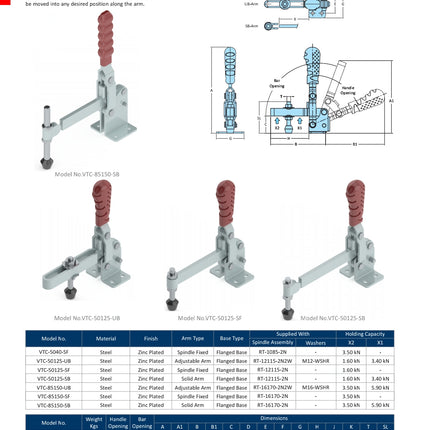

VTC Series/Medium Duty Clamps-Flanged Base/5000-8000 Series

Description

Toggle Clamps-Vertical Hold Down Action

In the VTC Series, Toggle Clamps from Steel Smith employ a downward clamping action to secure workpieces, boasting a robust holding capacity of up to 3000 kgs. With a minimum 90 degree opening angle, these clamps facilitate easy loading and unloading of workpieces. The clamping arm options include solid bar, U-shaped, or fixed hole configurations, catering to individual needs.

Features

  • Series Details:
    • SF Series: Solid hold-down bar with a fixed guide bush for the spindle assembly.
    • SB Series: 'U' bar arm allows the bolt retainer to be welded at any desired angle.
    • UB Series: 'U' bar arm permits one or more spindles to be moved to any desired position along the arm.

Specifications

Material and Finish:

  • Material: Steel
  • Finish: Zinc Plated

Technical Details:

Model No Material Finish Arm Type Base Type Holding Capacity
VTC-5040-SF Steel Zinc Plated Spindle Fixed Flanged Base 3.40 kN
VTC-50125-UB Steel Zinc Plated Adjustable Arm Flanged Base 3.40 kN
VTC-50125-SF Steel Zinc Plated Spindle Fixed Flanged Base 3.40 kN
VTC-50125-SB Steel Zinc Plated Solid Arm Flanged Base 3.40 kN
VTC-85150-UB Steel Zinc Plated Adjustable Arm Flanged Base 5.90 kN
VTC-85150-SF Steel Zinc Plated Spindle Fixed Flanged Base 5.90 kN
VTC-85150-SB Steel Zinc Plated Solid Arm Flanged Base 5.90 kN

Dimensions

Model No Handle Opening Bar Opening Weight (Kgs) A1 B1 C D E F G H J K T
VTC-5040-SF 120° 71° 0.750 143 50 50 45 54.2 138 50 113 8.5 M10
VTC-50125-UB 120° 72° 0.880 215 60 50 45 60 130 50 128 8.5 M12
VTC-50125-SF 120° 72° 0.880 215 60 50 45 60 130 50 128 8.5 M12
VTC-50125-SB 120° 72° 0.880 208 60 50 45 60 130 50 128 8.5 M12
VTC-85150-UB 107° 75° 2.510 322 85 72 45 75 162 85 211.5 8.5 M16
VTC-85150-SF 107° 75° 2.510 335 85 72 45 75 165 85 210 8.5 M16
VTC-85150-SB 107° 75° 2.510 303 85 72 45 75 142 85 210 8.5 M16

Read more

VTC Series/Medium Duty Clamps-Flanged Base/5000-8000 Series

Product form

Rs. 660.80 Incl. GST

    • Steelsmith
    • Shop Now for Quick Delivery on In-Stock Items!
    • Discover the Quality Difference: Shop Our Collection of 100% Genuine Products.

    • Shop Confidently & Get 100% Genuine GST Bill on All the Items !!!

    Description

    Toggle Clamps-Vertical Hold Down Action

    In the VTC Series, Toggle Clamps from Steel Smith employ a downward clamping action to secure workpieces, boasting a robust holding capacity of up to 3000 kgs. With a minimum 90 degree opening angle, these clamps facilitate easy loading and unloading of workpieces. The clamping arm options include solid bar, U-shaped, or fixed hole configurations, catering to individual needs.

    Features

    • Series Details:
      • SF Series: Solid hold-down bar with a fixed guide bush for the spindle assembly.
      • SB Series: 'U' bar arm allows the bolt retainer to be welded at any desired angle.
      • UB Series: 'U' bar arm permits one or more spindles to be moved to any desired position along the arm.

    Specifications

    Material and Finish:

    • Material: Steel
    • Finish: Zinc Plated

    Technical Details:

    Model No Material Finish Arm Type Base Type Holding Capacity
    VTC-5040-SF Steel Zinc Plated Spindle Fixed Flanged Base 3.40 kN
    VTC-50125-UB Steel Zinc Plated Adjustable Arm Flanged Base 3.40 kN
    VTC-50125-SF Steel Zinc Plated Spindle Fixed Flanged Base 3.40 kN
    VTC-50125-SB Steel Zinc Plated Solid Arm Flanged Base 3.40 kN
    VTC-85150-UB Steel Zinc Plated Adjustable Arm Flanged Base 5.90 kN
    VTC-85150-SF Steel Zinc Plated Spindle Fixed Flanged Base 5.90 kN
    VTC-85150-SB Steel Zinc Plated Solid Arm Flanged Base 5.90 kN

    Dimensions

    Model No Handle Opening Bar Opening Weight (Kgs) A1 B1 C D E F G H J K T
    VTC-5040-SF 120° 71° 0.750 143 50 50 45 54.2 138 50 113 8.5 M10
    VTC-50125-UB 120° 72° 0.880 215 60 50 45 60 130 50 128 8.5 M12
    VTC-50125-SF 120° 72° 0.880 215 60 50 45 60 130 50 128 8.5 M12
    VTC-50125-SB 120° 72° 0.880 208 60 50 45 60 130 50 128 8.5 M12
    VTC-85150-UB 107° 75° 2.510 322 85 72 45 75 162 85 211.5 8.5 M16
    VTC-85150-SF 107° 75° 2.510 335 85 72 45 75 165 85 210 8.5 M16
    VTC-85150-SB 107° 75° 2.510 303 85 72 45 75 142 85 210 8.5 M16

    Read more
