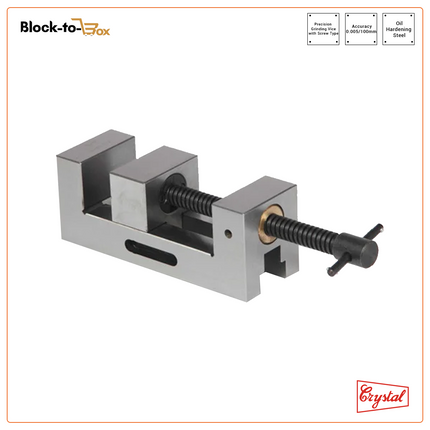

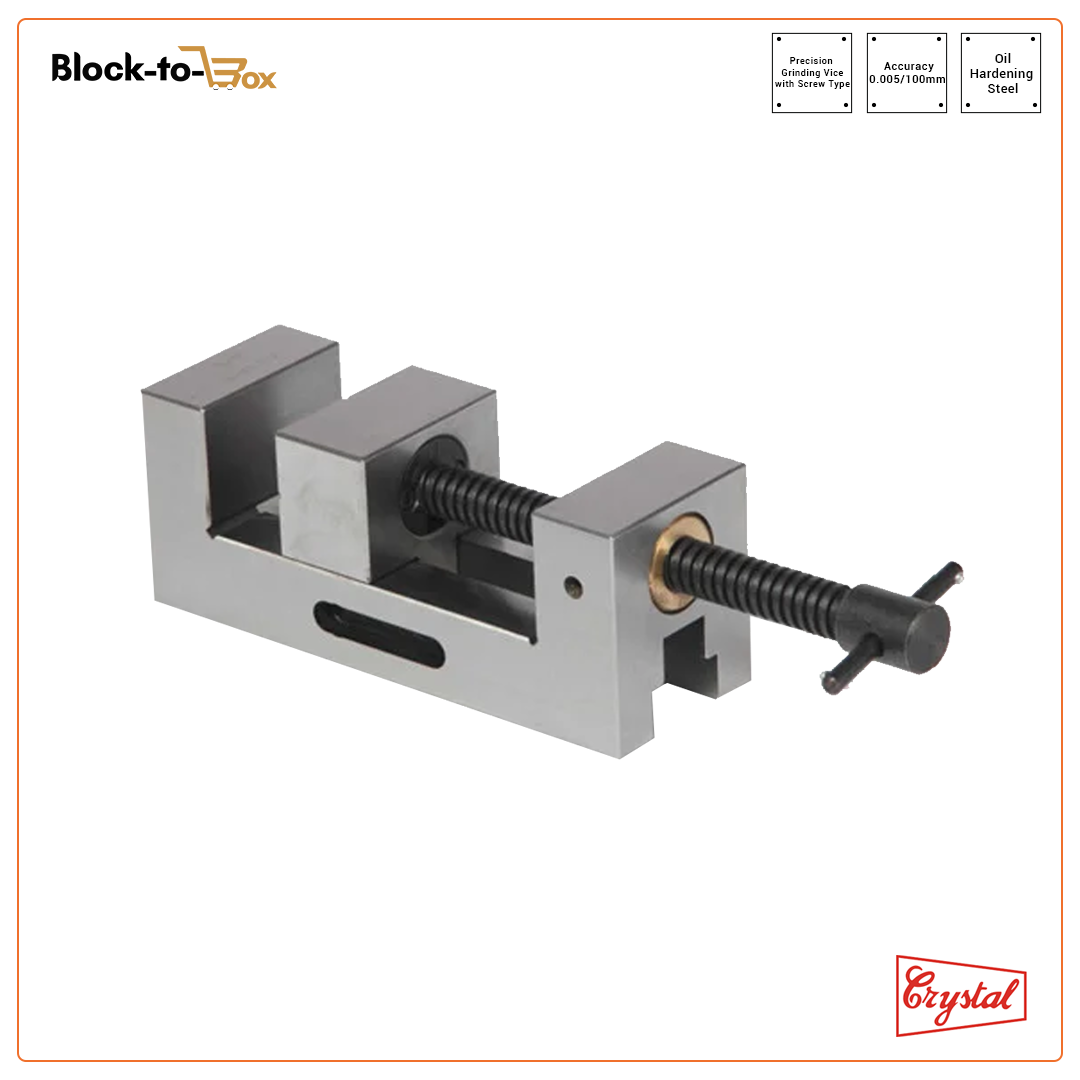

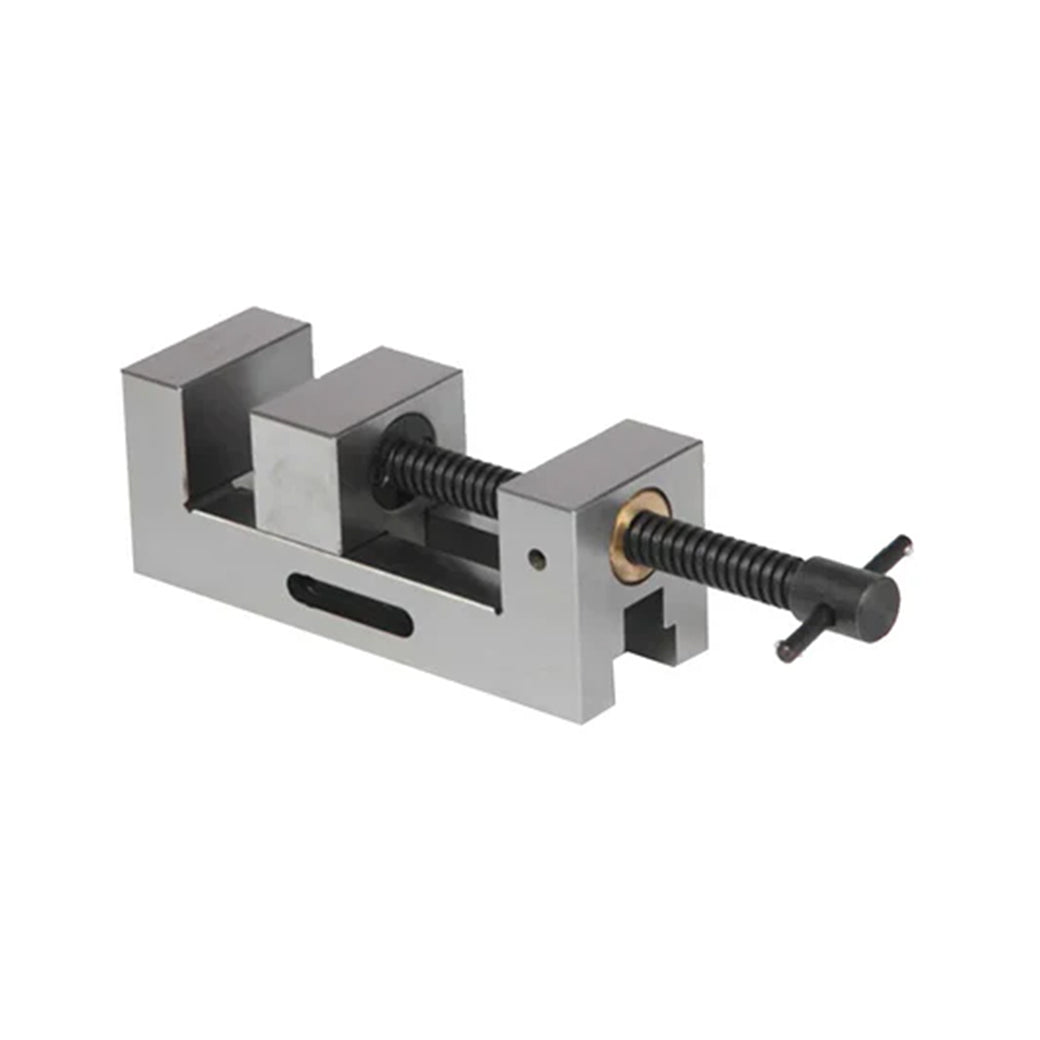

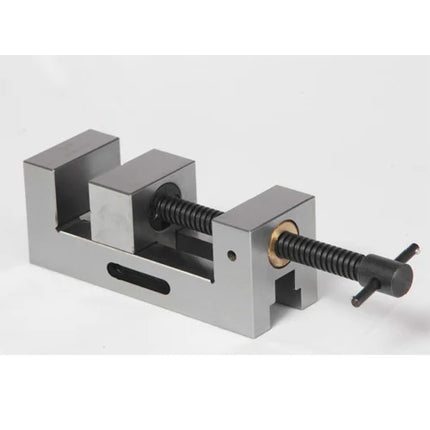

Crystal Hardened & Ground Precision Grinding Vice With Screw

Description

We are highly engaged in offering AA-481 Hardened & Ground Precision Grinding Vice With Screw to our prestigious clients.

Features:
  • For high accuracy light Machining, Grinding, Inspection or marking out of precision components.
  • Vice can be used, standing on its base, sides, end or top.
  • The smooth operation is gained because clamping and releasing is through a threaded spindle with precision cut square threads.
  • Guaranteed 0.005/100mm for parallelism, Flatness & Squareness with the vice in any position.
  • Manufactured from high grade oil hardening steel, as vice spindle moves in a specially designed gun metal bush ensures long life working and reduces wear.

Details:

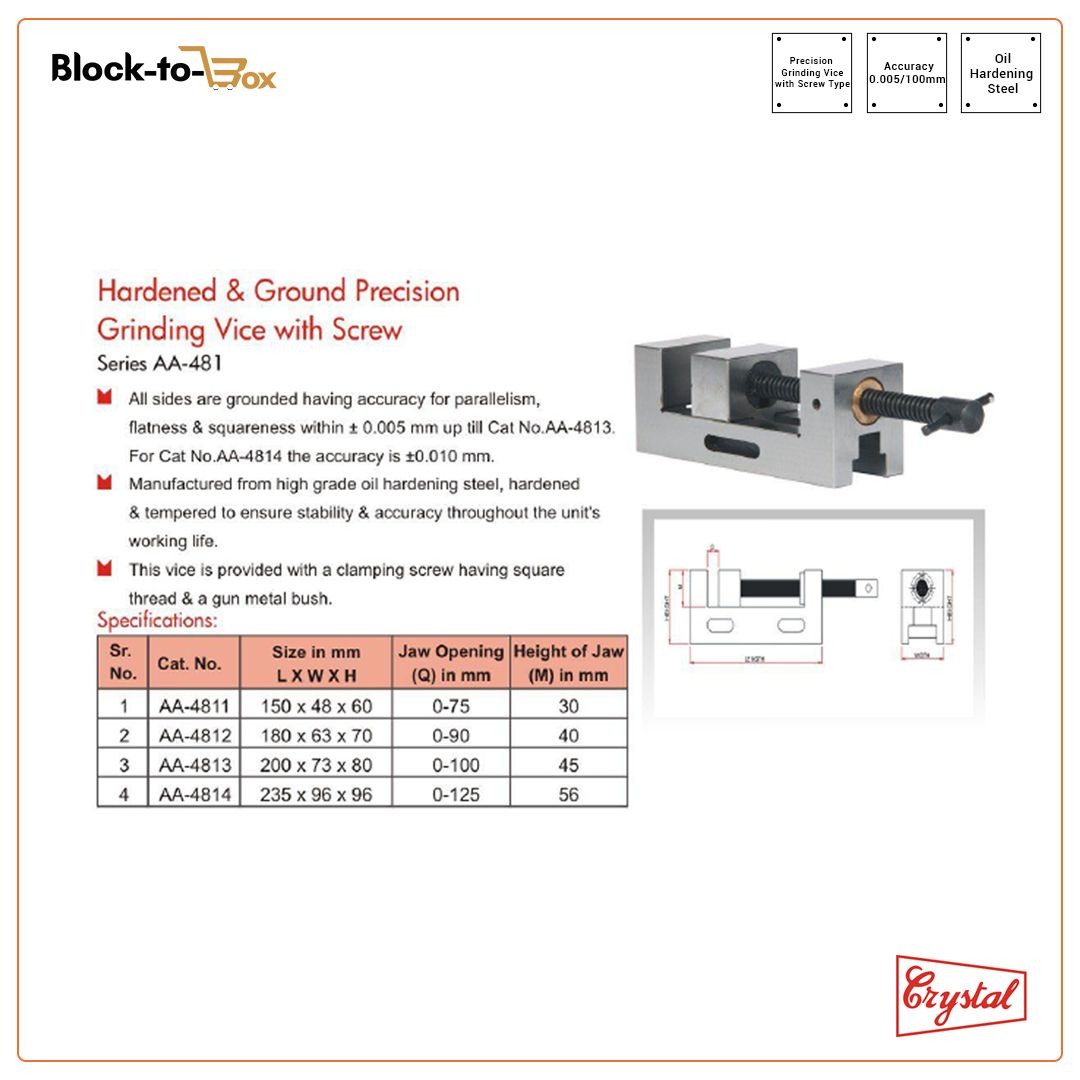

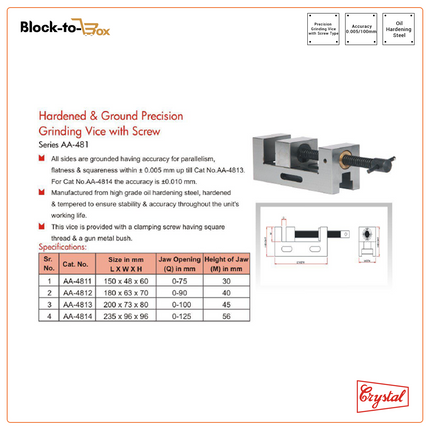

Sr. no. Cat No. Size (mm) LXWXH Jaw Opening (Q) Height of Jaw(M)
1. AA-4811 150X48X60 mm 0-75 mm 30 mm
2. AA-4812 180X63X70 mm 0-90 mm 40 mm
3. AA-4813 200X73X80 mm 0-100 mm 45 mm
4. AA-4814 235X96X96 mm 0-125 mm 56 mm

Read more

Crystal Hardened & Ground Precision Grinding Vice With Screw

Product form

We are highly engaged in offering AA-481 Hardened & Ground Precision Grinding Vice With Screw to our prestigious clients.Features: For high... Read more

Rs. 7,530.00 Excl. GST

    • Armatech Associates
    • Shop Now for Quick Delivery on In-Stock Items!
    • Discover the Quality Difference: Shop Our Collection of 100% Genuine Products.

    • Shop Confidently and Quickly with our Express Checkout Option!

    Description

    We are highly engaged in offering AA-481 Hardened & Ground Precision Grinding Vice With Screw to our prestigious clients.

    Features:
    • For high accuracy light Machining, Grinding, Inspection or marking out of precision components.
    • Vice can be used, standing on its base, sides, end or top.
    • The smooth operation is gained because clamping and releasing is through a threaded spindle with precision cut square threads.
    • Guaranteed 0.005/100mm for parallelism, Flatness & Squareness with the vice in any position.
    • Manufactured from high grade oil hardening steel, as vice spindle moves in a specially designed gun metal bush ensures long life working and reduces wear.

    Details:
    Sr. no. Cat No. Size (mm) LXWXH Jaw Opening (Q) Height of Jaw(M)
    1. AA-4811 150X48X60 mm 0-75 mm 30 mm
    2. AA-4812 180X63X70 mm 0-90 mm 40 mm
    3. AA-4813 200X73X80 mm 0-100 mm 45 mm
    4. AA-4814 235X96X96 mm 0-125 mm 56 mm

    Read more
