Height Gauges
-

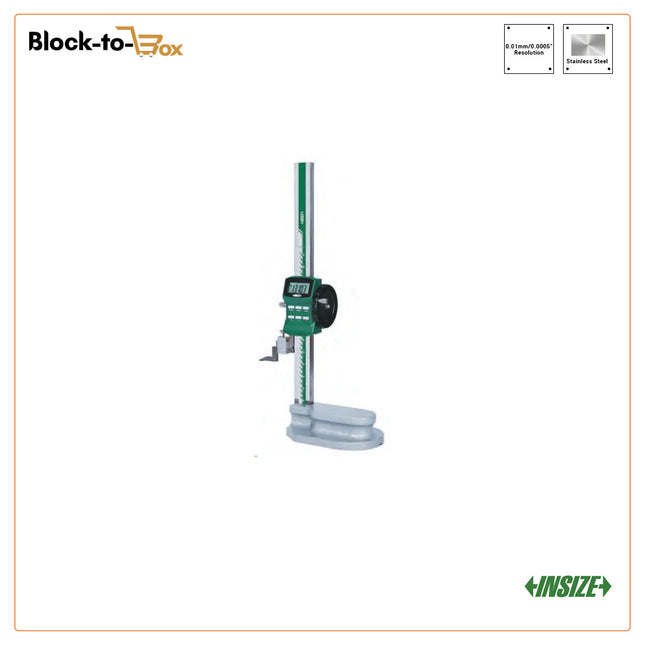

Insize Insize Digital Height Gage With Driving Wheel-1156 Series
DIGITAL HEIGHT GAGES WITH DRIVING WHEEL Non waterproofResolution: 0.01mm/0.0005"Buttons: on/off, zero, mm/inch, preset +, preset -, ABS/INCAutomatic power off, move the digital unit to turn on powerCarbide tipped scriberMade of stainless steelBattery CR2032Data outputSupplied with dust coverWith dial test indicator holderOptional accessory: data output cable (code 7315-22, 7302-22), clamp for protractors (code 2372-CLAMP) 1156-300 and 1156-1000 Scriber (included)Dial test indicator holder (included)Clamp for protractors (optional) Code Range Accuracy Length (L) Width (W) Height (H) a b c h 1156-300 0-300mm/0-12" ±0.03mm 515mm 180mm 55mm 80mm 30mm 35mm 9mm 1156-600 0-600mm/0-24" ±0.05mm 815mm 180mm 55mm 80mm 30mm 35mm 9mm 1156-1000 0-1000mm/0-40" ±0.07mm 1220mm 265mm 70mm 92mm 48mm 40mm 12mm
-

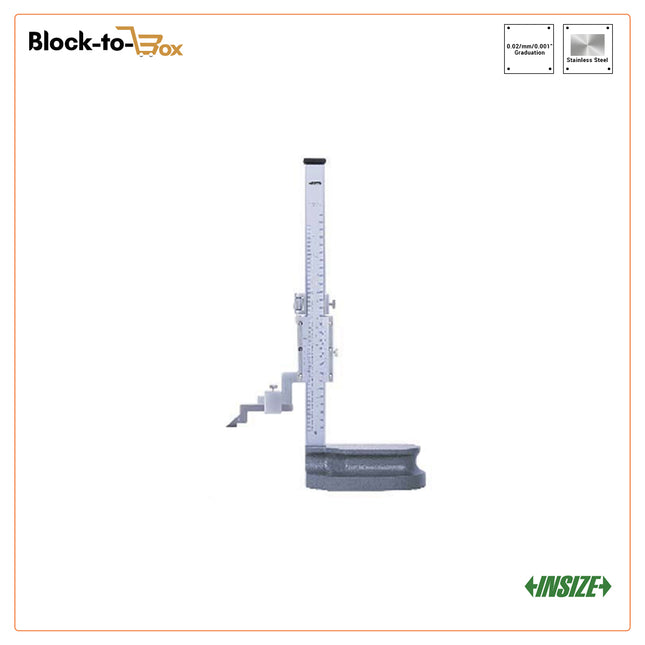

Insize Insize Vernier Height Gages-1250 Series
Graduation: 0.02/mm/0.001" Adjustable main scale to zero Carbide tipped scriber Made of stainless steel (expect the base) Stain chrome plated scale Supplied with magnifier With fine adjustment Supplied with dust cover Optional accessory: dial test indicator holder (code 6293-6) clam for protractors (code 2372-CLAMP)
-
-
-
-

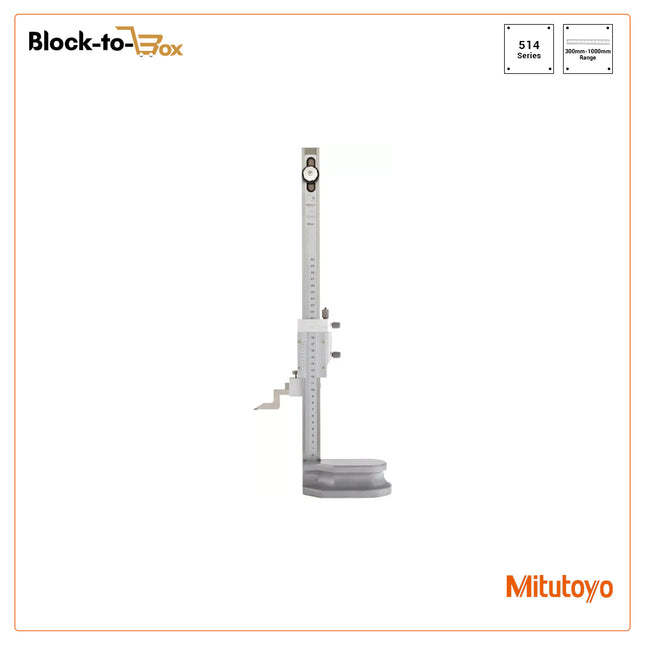

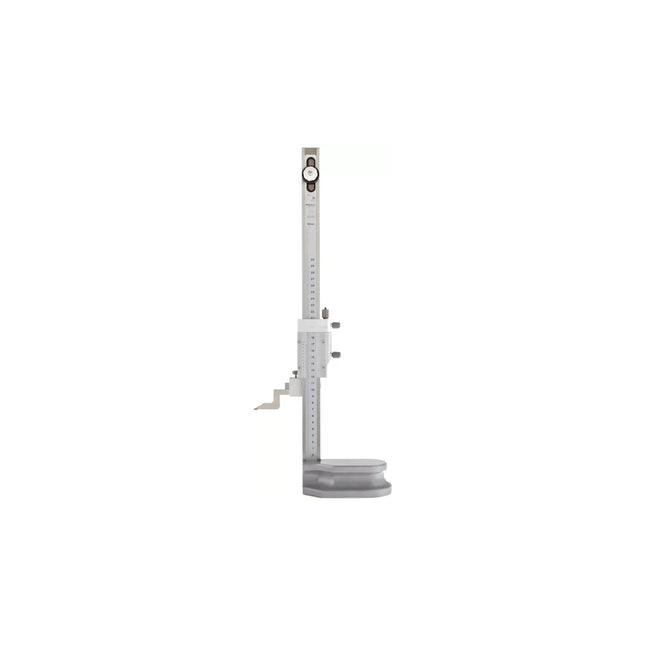

Mitutoyo Mitutoyo Height Gauge Single Column-514 Series
Single Column Height Gauge
-

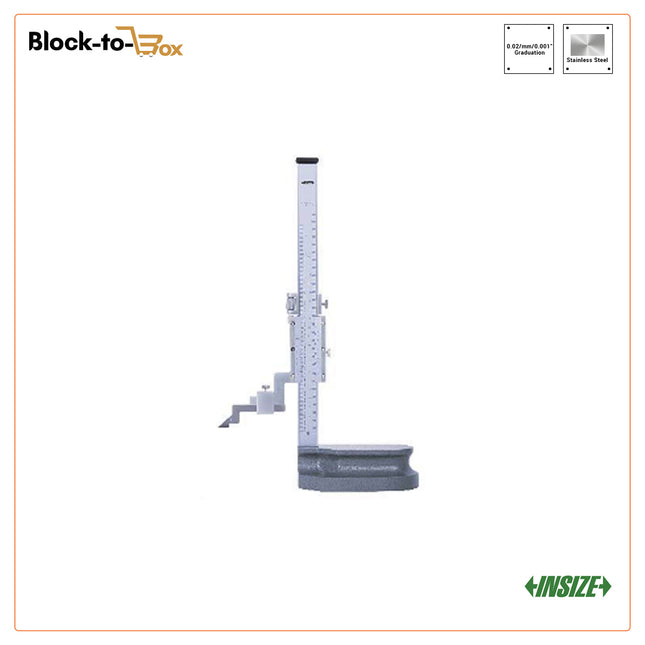

Insize Insize Vernier Height Gages-1251 Series
Graduation: 0.02/mm/0.001" Adjustable main scale to zero Carbide tipped scriber Made of stainless steel (expect the base) Stain chrome plated scale Supplied with magnifier With fine adjustment Supplied with dust cover Optional accessory: dial test indicator holder (code 6293-6) clam for protractors (code 2372-CLAMP)
