Grinding Vices

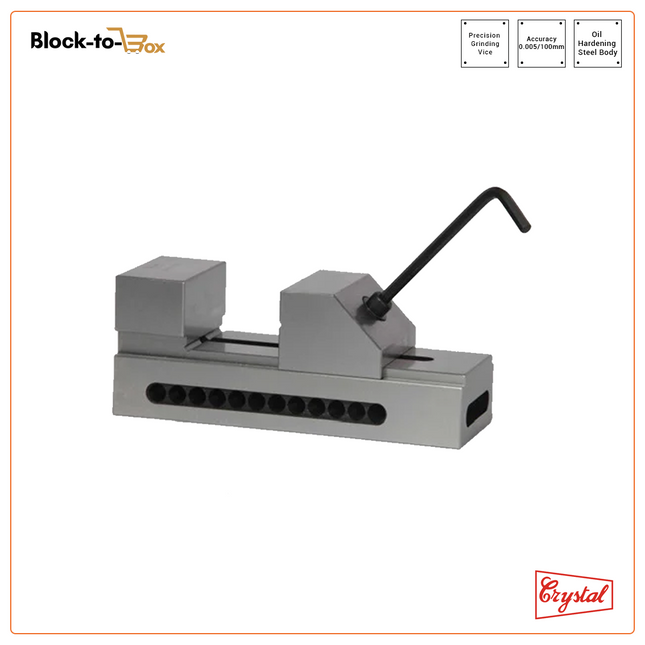

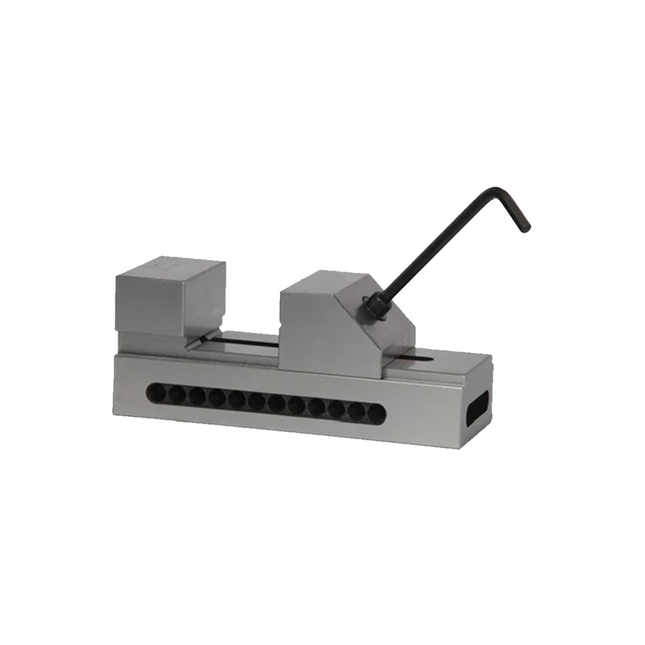

Armatech Associates Crystal Hardened & Ground Precision Grinding Vice
Features: For high accuracy light Machining, Grinding, Inspection or marking out of precision components. Vice can be used, standing on its base, sides, end or top. Guaranteed 0.005/100mm for parallelism, Flatness & Squareness with the vice in any position. Manufactured from high grade oil hardening steel, hardened & tempered to ensure stability & accuracy throughout the unit’s working life. Specification: Sr.No. Cat No. Overall Size ( LXWXH ) Jaw Opening (Q) Height oflaw(M) 1. AA-4801 150X48X60 mm 0-75 mm 30 mm 2. AA-4802 180X63X70 mm 0-90 mm 35 mm 3. AA-4803 200X73X80 mm 0-100 mm 40 mm

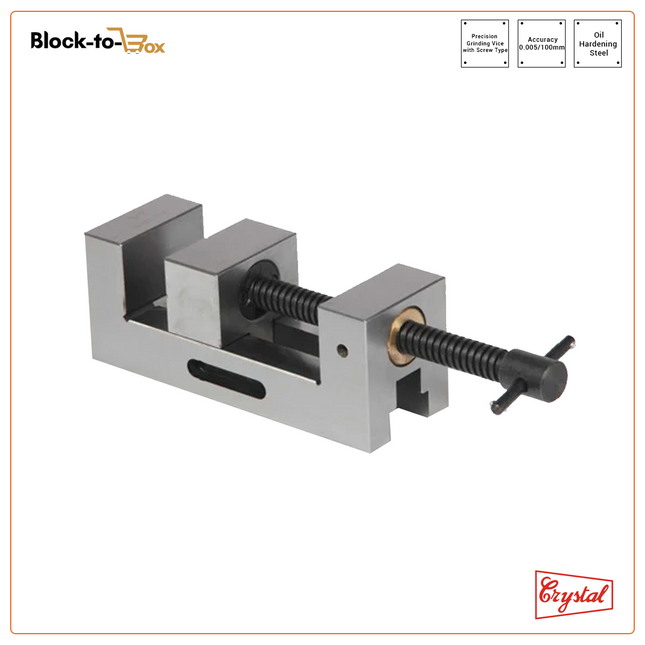

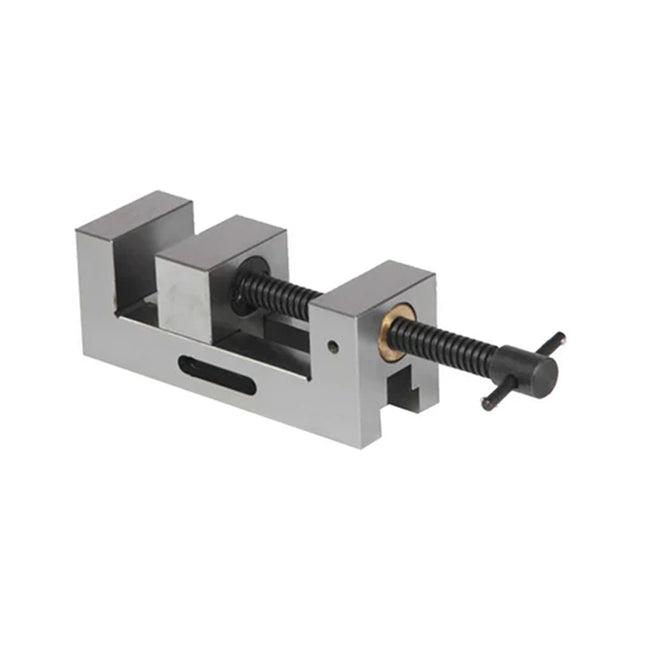

Armatech Associates Crystal Hardened & Ground Precision Grinding Vice With Screw
We are highly engaged in offering AA-481 Hardened & Ground Precision Grinding Vice With Screw to our prestigious clients.Features: For high accuracy light Machining, Grinding, Inspection or marking out of precision components. Vice can be used, standing on its base, sides, end or top. The smooth operation is gained because clamping and releasing is through a threaded spindle with precision cut square threads. Guaranteed 0.005/100mm for parallelism, Flatness & Squareness with the vice in any position. Manufactured from high grade oil hardening steel, as vice spindle moves in a specially designed gun metal bush ensures long life working and reduces wear. Details: Sr. no. Cat No. Size (mm) LXWXH Jaw Opening (Q) Height of Jaw(M) 1. AA-4811 150X48X60 mm 0-75 mm 30 mm 2. AA-4812 180X63X70 mm 0-90 mm 40 mm 3. AA-4813 200X73X80 mm 0-100 mm 45 mm 4. AA-4814 235X96X96 mm 0-125 mm 56 mm

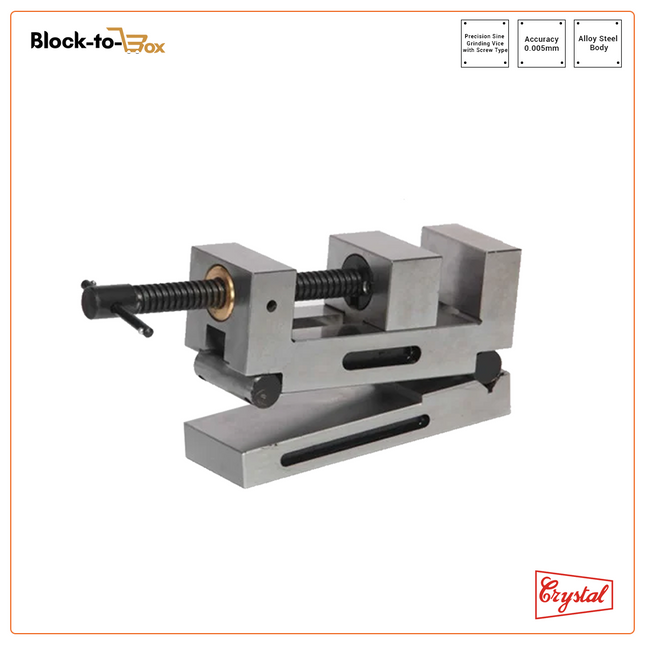

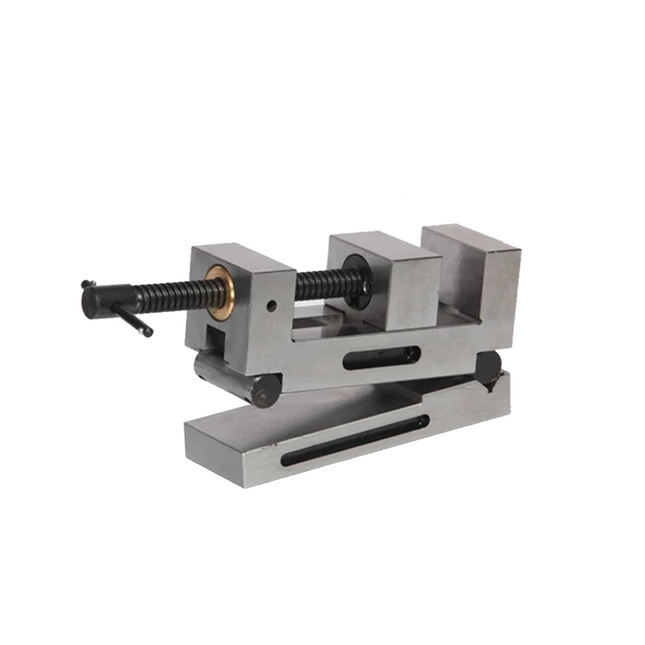

Armatech Associates Crystal Precision Grinding Sine Vice With Screw
Features: Used for precision measurement, setting of angles, right angle grinding and light machining. Made from high quality alloy steel. Accuracy for squareness, Flatness, & Parallelism is without 0.005mm. Angular accuracy within ±5 seconds. Center distance between rollers is within ±0.005mm. Specification: Sr. no. Cat. No. Size (mm) LxWxH) Opening 'Q' (mm) C.D(mm) Centre Distance 1 AA-6131 150x48x88 0-75 125 2 AA-6132 180x63x98 0-90 150 3 AA-6133 200x73x108 0-100 175

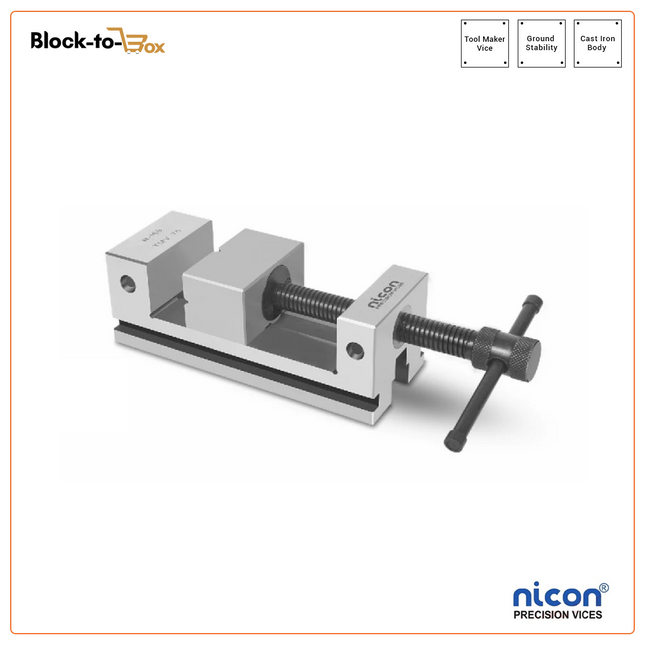

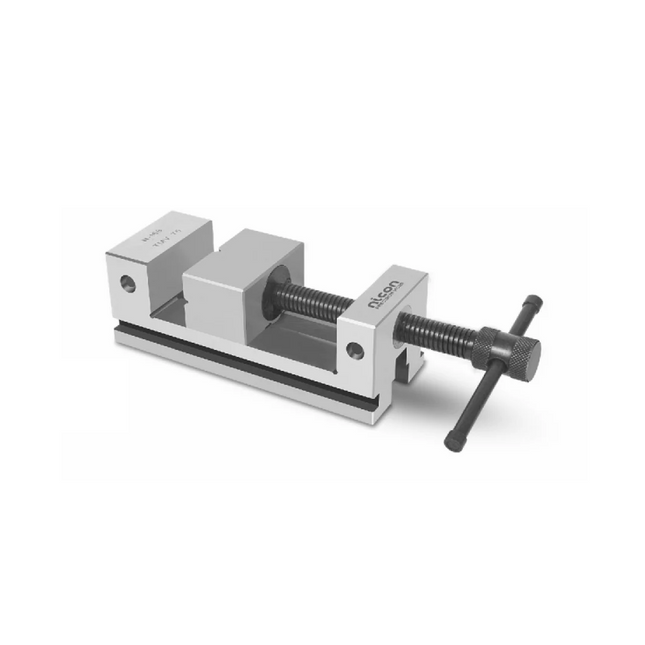

Nicon N-168 Nicon Precision Tool Maker Vice(Screw Type)
FEATURES: These vices are mainly used with precision grinding, milling machines, engraving and jig boring operations. Ground and square all over the vise may be mounted on its base, sides or end. The moving jaw has two vees ground into its face , one vertically the other horizontally to aid gripping round components. Clamping and releasing through a precision cut square thread lead screw for smooth operations. vice screw moves in specially designed gun metal bush with reduces wear the vise and enhancing life of vise.

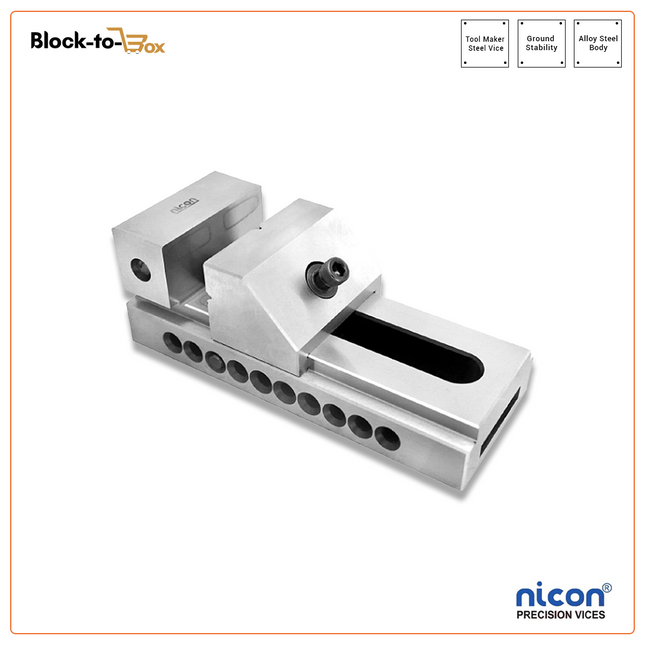

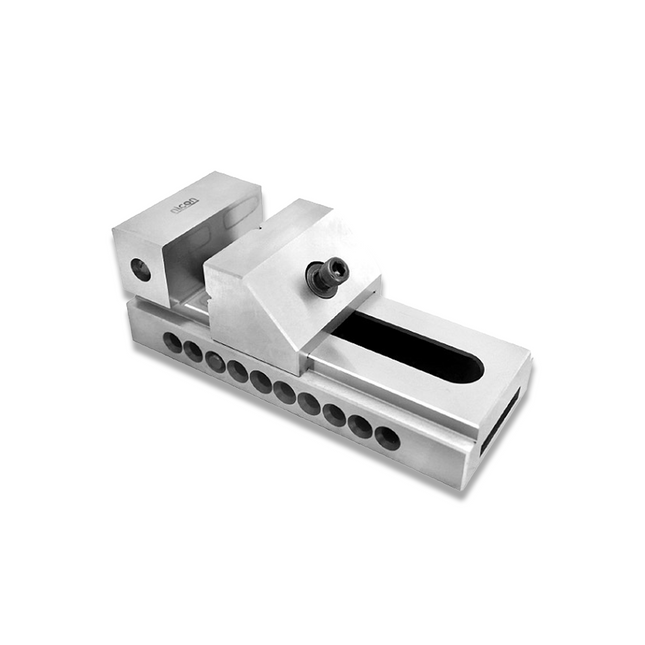

Nicon N-169 Nicon Precision Tool Maker Steel Vice (Pin Type)
FEATURES: These vices are mainly used with precision grinding, milling machines, engraving and jig boring operations. Ground and square all over the vise may be mounted on its base or end. The moving jaw has two vees ground into its face, one vertically the other horizontally to aid gripping round components. The rapid positioning notches allow the vise to be locked in any means on an allen key provided with vise.
Nicon N-168S Nicon Precision Tool Maker Sine Vice(Screw Type)
FEATURES: These are very useful for manufacturing processes the require the highest standards of clamping accuracy at desired angles. A minute angle step of 0.2"/5mm allows very small angles to be set using standard gauge blocks. The moving jaw has two vees ground into its face , one vertically to aid griping round components. Clamping and releasing through a precision cut square thread lead screw for smooth operations. Vice screw moves in specially designed gun metal bush which reduces wear the vice and enhancing life of vise.
Nicon N-169S Nicon Precision Tool Makers Sine Type(Pin Type)
FEATURES: These any very useful for manufacturing processes that requires the highest standards of clamping accuracy at desired angles. A minute angle step of 0.2"/5mm allows very small angles to be set with easy using standard gauge blocks. Mounted onto a precision hinged bottom plate. All the surfaces of the vise are precisely ground for extreme accuracy. The moving jaws has two vees ground into its face, one vertically the other horizontally to aid gripping round components. The rapid jaws positioning notches allow the vise to be locked in any position by means on an allen key provided with the vise.
