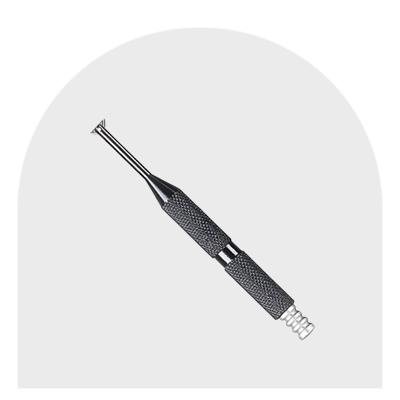

The Noga Countersink Tools/Reversible (R) Type utilizes an innovative Reversible design for efficient and precise countersinking.   COUNTERSINK - NG3100 The standard tool for countersinking. Useful For Chamfering Deep Holes NG-3 HANDLE - NG3000 NogaGrip 3 Holds all Blade Holders Spare blades are kept inside back cap. Designed for maximum comfort in your hand.

Read more less

Introducing Noga patented REVERSIBLE COUNTERSINKS range for working on both back and front sides of holes. APPLICATION Holes Pipe Cross Holes

Read more less

Noga Heavy Duty Countersinks Patented External contersinks allows the user continuous rotation for fast and accurate chamfering of external shafts.   APPLICATION Holes External Shaft

Read more less

 Sheet/Rib Deburring Set SDT (34084) For simultaneous deburring of both edges of sheet / Rib up to 12 mm width. Ergonomically designed Polyacetal Body Handle with Metallic Blade holder, Hand guard & blades. Cutting edge along the full circle on 2 sides. Includes : Polyacetal Handle, Blade Holder, Hand Guard & 2 Nos. S-12 blades. Pack Qty : 1 Wt. : 178 gms

Read more less

Double ended Deburring blade for single or 2-edge deburring of Sheets / Ribs. Deburrs both edges of sheet/rib of up to 4 mm, thick from one side Single edge deburring from other side. Blade Material : HSS (M2 grade). Pack Qty. : 1 Wt : 18 gms

Read more less

V' Shaped Sheet / Rib Deburrer VDT-SD (34094) V' Shaped Sheet / Rib Deburrer for simultaneous deburring of both edges of sheet / Rib upto 12 mm width. Unique Tool - has 4 nos 'V' shaped edges - 2 nos for 1 to 12 mm width range & 2 nos for 0 to 4 mm. width range. Ergonomically designed Polyacetal Body handle with special collet to hold plain surface holder & blade Includes : 'T-SD' Handle, Telescopic Holder VT & V-4 Blade Pack Qty : 1 Wt. : 108 gms

Read more less

Key-way / slot Deburring Blade for simultaneous deburring of both edges of slot or key-way up to 9 mm. Four cutting edges - 2 for std.depth of slot/key-wey & 2 for shallow depth. Cutting edges on 2 sides. Blade Material : HSS (M2 grade). Pack Qty. : 1 Wt : 1.25 gms

Read more less

RotoDrive Cranked Countersinks which allows the user to chamfer holes, deep holes and continuous rotation for fast and accurate chamfering.   If a hole is drilled into a work piece, usually a rough edge will appear around the top of the hole. Noga countersinks can remove these rough ridges and put a chamfer between the hole and the surface into which the hole was drilled. Noga Countersinks can also create a deeper recess into a hole, in order to prevent a flat head screw from projecting over the surrounding surface. Noga Countersinks are hand-operated tools normally used for producing a small chamfer, but may also be gripped in a drill press to create deeper recesses. Noga Countersinks consist of three parts: A blade of high speed steel, a holder, and a handle. The Noga Countersinks are used like a screw-driver, pressed onto the hole, and rotated clockwise. However, another method to perform the rotation is offered with our Noga Countersinks Rotodrive system. In this case the blade-holder has the form of a crank, which enables the user to perform continuous rotations. With the Rotodrive system, Noga Countersinks also offers External Countersinks, with which rough edges can be chamfered on the outside of tubes and round bars. For external and internal light chamfering, Noga makes Reversible Countersinks. If a cross hole was drilled into a tube, this tool can be inserted into the hole, then a blade can swivel out to deburr the inside break-through, by rotating the tool clockwise and anticlockwise. Contrary to other Noga countersinks, this tool can create good chamfers also on curved surfaces, because its cutting edges will follow exactly the contour of the hole. As well as on the inside of cross holes, they can also chamfer the outside burrs.   APPLICATION Holes External Shaft

Read more less

RotoDrive Cranked Countersinks which allows the user to chamfer holes, deep holes and continuous rotation for fast and accurate chamfering. If a hole is drilled into a work piece, usually a rough edge will appear around the top of the hole. Noga countersinks can remove these rough ridges and put a chamfer between the hole and the surface into which the hole was drilled. Noga Countersinks can also create a deeper recess into a hole, in order to prevent a flat head screw from projecting over the surrounding surface. Noga Countersinks are hand-operated tools normally used for producing a small chamfer, but may also be gripped in a drill press to create deeper recesses. Noga Countersinks consist of three parts: A blade of high speed steel, a holder, and a handle. The Noga Countersinks are used like a screw-driver, pressed onto the hole, and rotated clockwise. However, another method to perform the rotation is offered with our Noga Countersinks Rotodrive system. In this case the blade-holder has the form of a crank, which enables the user to perform continuous rotations. With the Rotodrive system, Noga Countersinks also offers External Countersinks, with which rough edges can be chamfered on the outside of tubes and round bars. For external and internal light chamfering, Noga makes Reversible Countersinks. If a cross hole was drilled into a tube, this tool can be inserted into the hole, then a blade can swivel out to deburr the inside break-through, by rotating the tool clockwise and anticlockwise. Contrary to other Noga countersinks, this tool can create good chamfers also on curved surfaces, because its cutting edges will follow exactly the contour of the hole. As well as on the inside of cross holes, they can also chamfer the outside burrs. APPLICATION Holes External Shaft
