Noga C-Type Heavy Duty Countersink Blades & Handles - Professional External Chamfering Solution
The Noga C-Type Heavy Duty Countersink represents a breakthrough in external deburring technology, featuring a patented design specifically engineered for chamfering external shafts, rods, tubes, and cylindrical surfaces. This innovative tool system is essential for professionals in mechanical assembly, automotive manufacturing, hydraulic systems, aerospace fabrication, and precision machining operations.
Revolutionary External Countersink Design
Unlike traditional countersinks designed for internal hole deburring, the Noga C-Type features a unique external configuration that wraps around the outside diameter of shafts and rods. This patented geometry enables you to create perfect chamfers on external edges where conventional tools simply cannot reach.
Patented RotoDrive Technology:
The cranked handle design with integrated RotoDrive mechanism allows continuous 360-degree rotation around external workpieces. This continuous rotation capability delivers exceptionally fast and accurate chamfering compared to intermittent manual methods, reducing production time by up to 60% on repetitive external chamfering operations.
Key Features:
Heavy-Duty Construction
High-Speed Steel (HSS) Blades: Hardened to 62-64 HRC for exceptional wear resistance
90-Degree Cutting Angle: Standard geometry for most external chamfering applications
Single-Flute Design: Provides smooth, chatter-free cutting on external surfaces
Robust Build Quality: Engineered for demanding industrial environments
Versatile Size Range
Available in multiple blade configurations to handle various external diameters:
C12 Model: For shafts 3-12mm diameter
C20 Model: For shafts 3-20mm diameter (most popular)
C30 Model: For larger shafts 10-30mm diameter

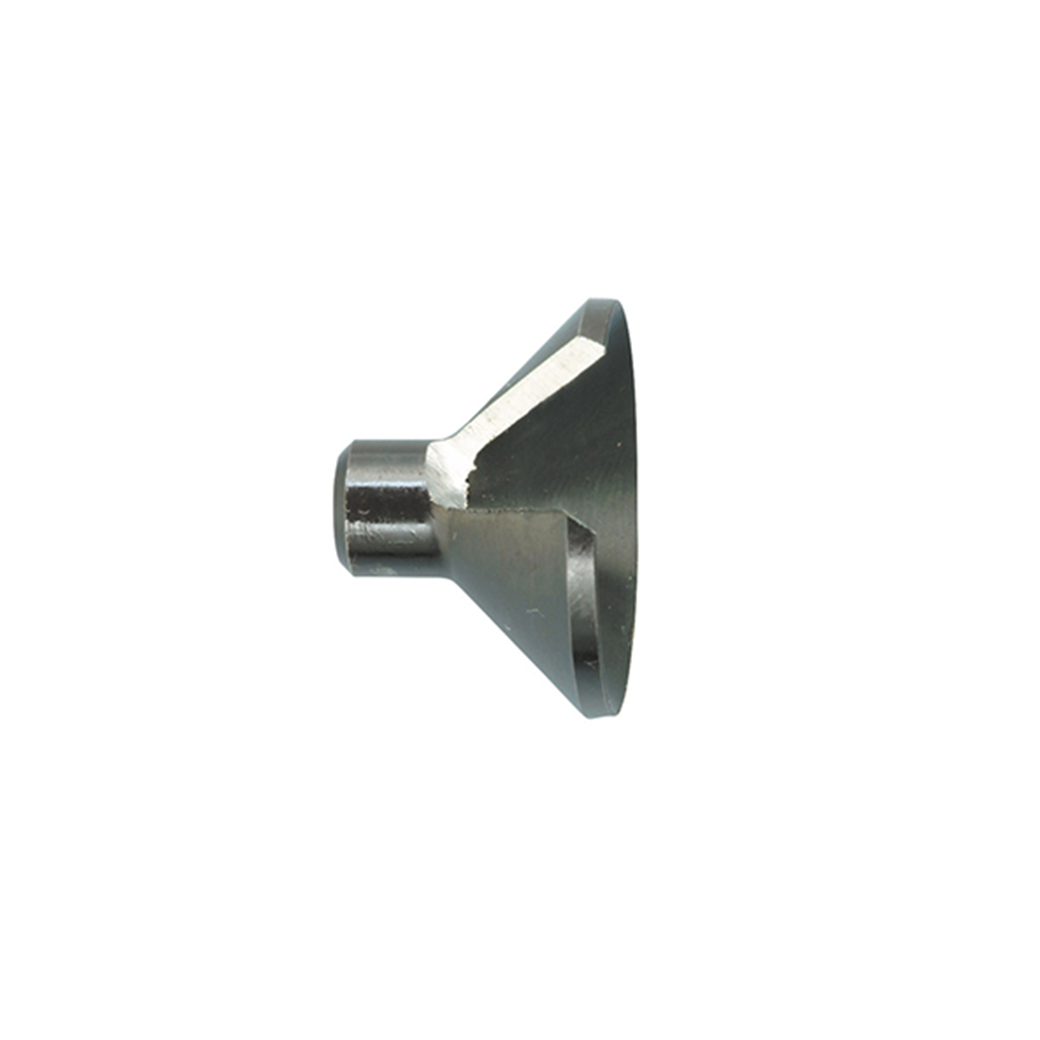

EX28 External RotoDrive: Specialized for 8-28mm external chamfering
EX34 External RotoDrive: For heavy-duty 10-34mm applications
Ergonomic Handle System
NG-3 Heavy-Duty Handle: Wide-body design with superior grip
40mm Displacement: Provides leverage for removing heavy burrs
Lightweight Construction: Only 28 grams (blade) for reduced operator fatigue
Heat-Treated Components: Ensures long-term durability under harsh conditions
Quick Blade Replacement
Modular Blade System: Interchangeable blades for different sizes and materials
Compatible Holders: Works with NogaGrip-1 and RotoDrive holders
Tool-Free Changes: Internal threading allows fast blade swaps
Cost-Effective Maintenance: Replace only worn blades, not entire tool
Technical Specifications:
Blade Characteristics:
Material: High-Speed Steel (HSS)
Hardness: 62-64 Rockwell C
Angle: 90 degrees (standard)
Coating Options: Standard HSS or TiN-coated for extended life
Weight: 28 grams (typical blade)
Packaging: Individual or 10-piece packs available
Handle Specifications:
Type: NG-3 Heavy-Duty with cranked design
Material: Reinforced polyacetal plastic
Displacement: 40mm for heavy-duty applications
Compatibility: All C-Type countersink blades
Heat Treatment: Wear-resistant surface treatment
Applications & Industries:
Ideal For External Chamfering:
Hydraulic & Pneumatic Shafts: Smooth chamfers prevent seal damage during assembly
Drive Shafts & Axles: Professional finishing for automotive components
Threaded Rods & Bolts: Chamfer cut ends for easier nut starting
Dowel Pins: Remove sharp edges for safe handling and press-fitting
Tube Ends: Prepare pipe ends for welding or fitting assembly
Bar Stock: Finish cut ends of round and hex bar stock
CNC Machined Parts: Final deburring of external diameters
Repair & Maintenance: Restore damaged thread starts on bolts
Material Compatibility:
Ferrous Metals: Steel, stainless steel, tool steel, cast iron
Non-Ferrous Metals: Aluminum, brass, copper, bronze, titanium
Plastics: Nylon, acetal, polycarbonate, PVC, PEEK
Composites: Carbon fiber, fiberglass reinforced materials
Wood & Non-Metals: Hardwood dowels, composite rods
Why Choose Noga C-Type External Countersink?
Unmatched External Deburring Capability:
The C-Type is the only hand tool specifically designed for external shaft chamfering with continuous rotation capability. Traditional files, grinders, or internal countersinks cannot match its speed, precision, and consistency on external diameters.
Production Efficiency:
The continuous rotation feature dramatically increases throughput in production environments. What once required 2-3 minutes of filing per shaft now takes just 15-20 seconds with the C-Type countersink.
Operator Safety:
Unlike angle grinders or files that generate heat, sparks, and sharp metal fragments, the C-Type operates cleanly and safely. The controlled cutting action produces small chips rather than dangerous flying debris.
Consistent Quality:
Every chamfer is uniform and repeatable. The 90-degree blade angle ensures compliance with engineering drawings and assembly requirements, eliminating rework from inconsistent manual deburring.
Cost Effectiveness:
Replaceable blade system reduces long-term operating costs
Significantly faster than manual filing or grinding
No power consumption or air supply required
Minimal training required for operators
Durable construction provides years of reliable service
How It Works:
Select Appropriate Blade: Choose C12, C20, or C30 based on your shaft diameter
Mount Blade: Attach countersink blade to NG-3 handle via threaded connection
Position Tool: Place external countersink around shaft end or edge
Rotate Continuously: Use cranked handle to rotate tool around workpiece
Apply Light Pressure: Let the sharp HSS blade do the cutting work
Inspect Results: Achieve smooth, uniform chamfer in seconds
Noga Quality & Heritage:
Noga Engineering has been the global leader in precision hand deburring tools since 1980. Their patented innovations have set industry standards for quality, ergonomics, and performance. The C-Type Heavy Duty Countersink represents decades of engineering excellence, delivering professional-grade tools trusted by manufacturers worldwide.
Quality Certifications:
ISO 9001:2015 certified manufacturing
Precision-ground cutting edges
Rigorous quality control testing
Backed by manufacturer warranty

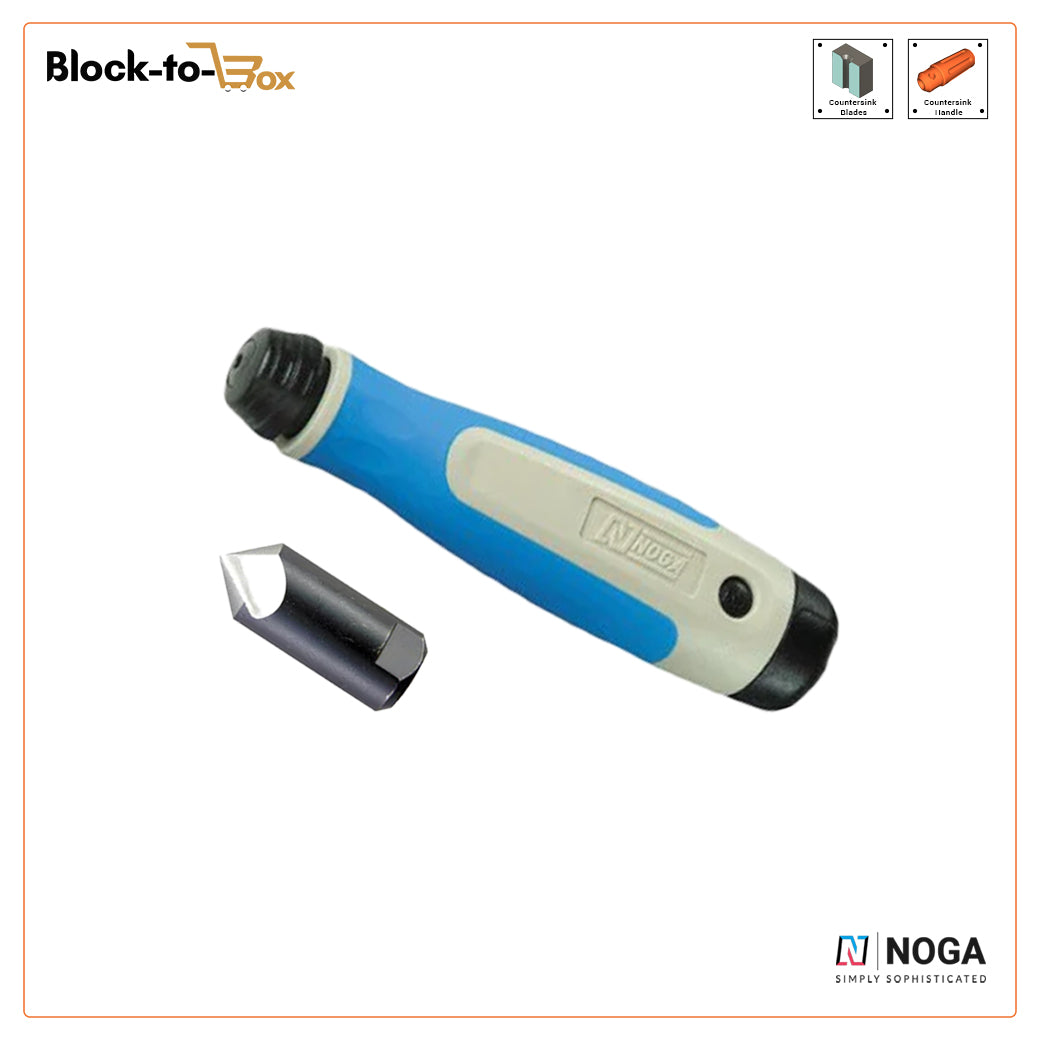

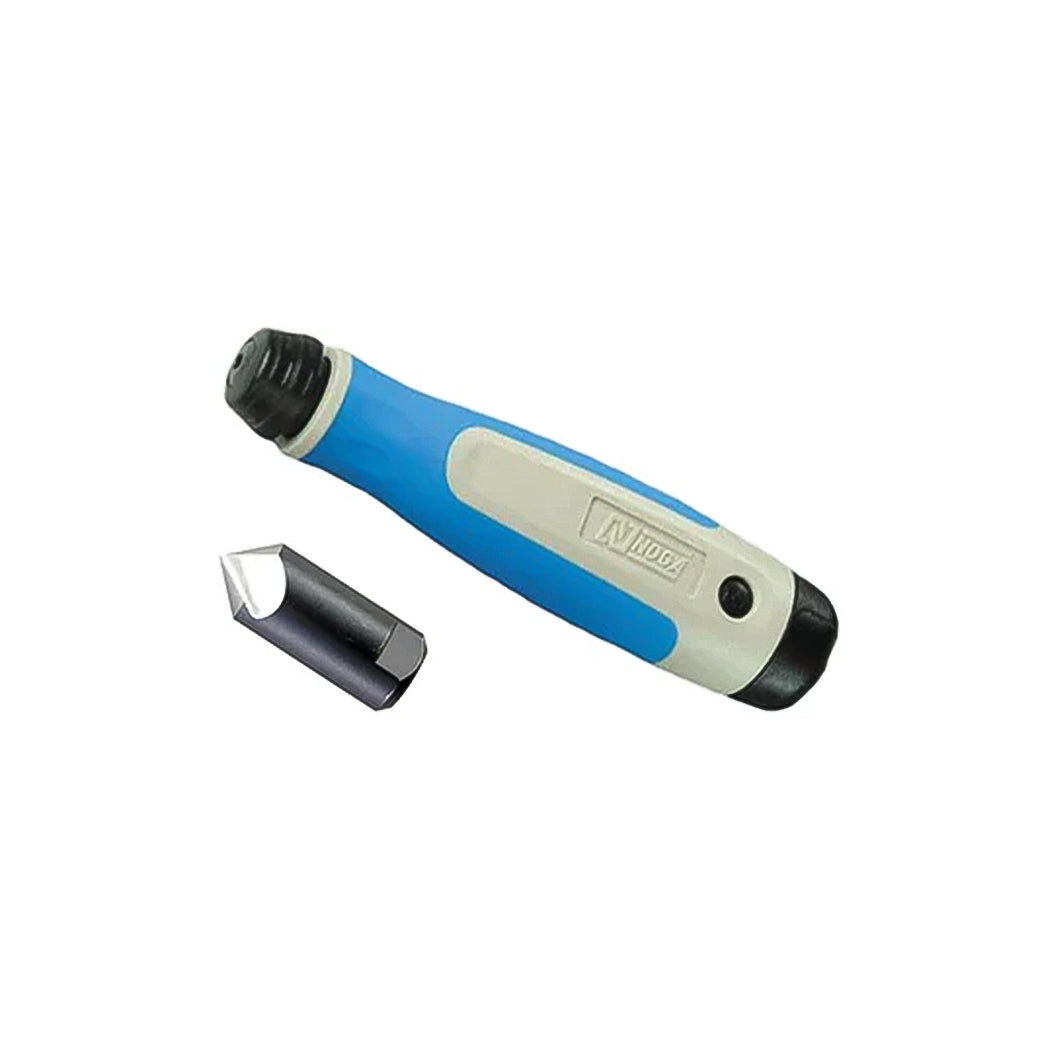

Package Includes:
1x Noga NG-3 Heavy-Duty Handle (cranked design)
1x C-Type Countersink Blade (specify size: C12, C20, or C30)
1x RotoDrive Holder (compatible holder)
User Manual with technical specifications
Available Configurations:

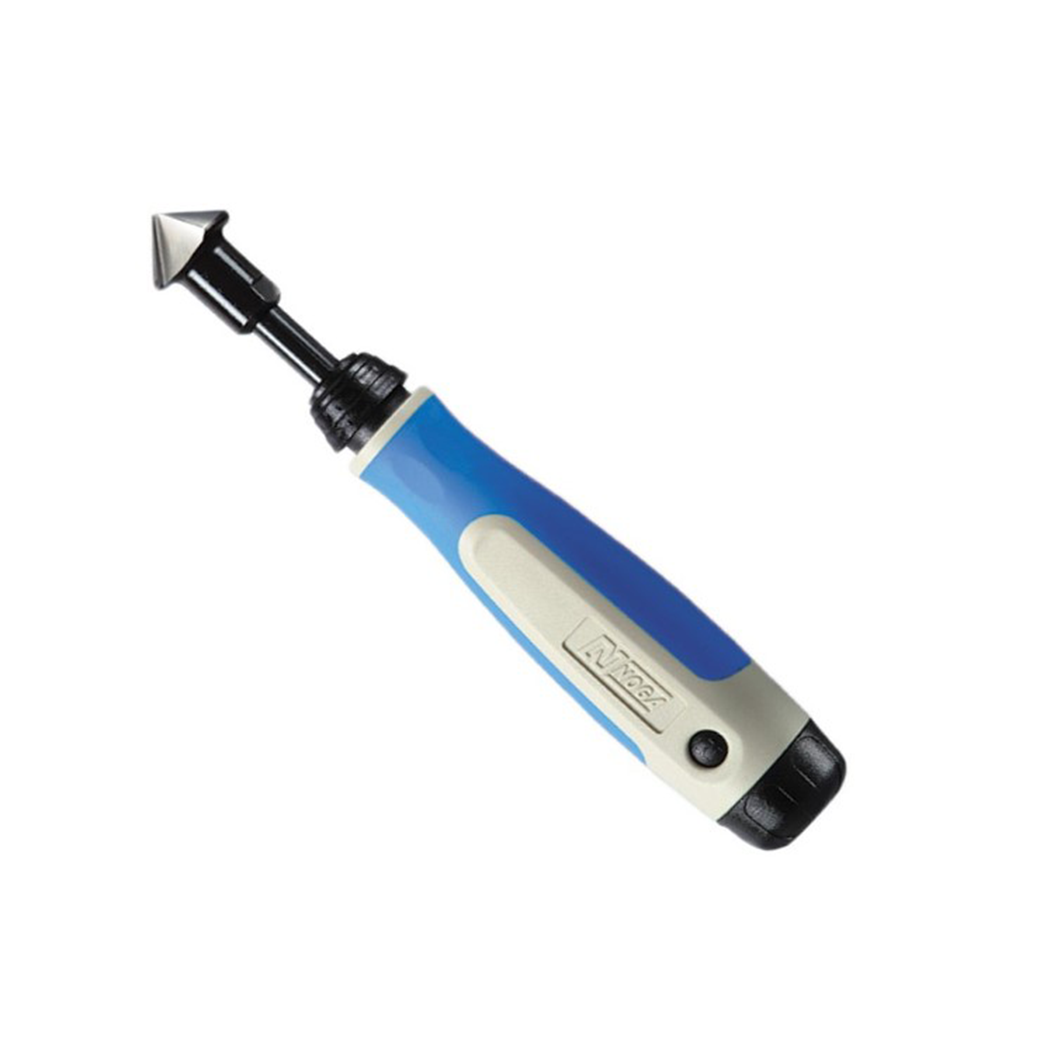

Complete Sets: Handle + holder + blade (NG3100, NG3400 series)

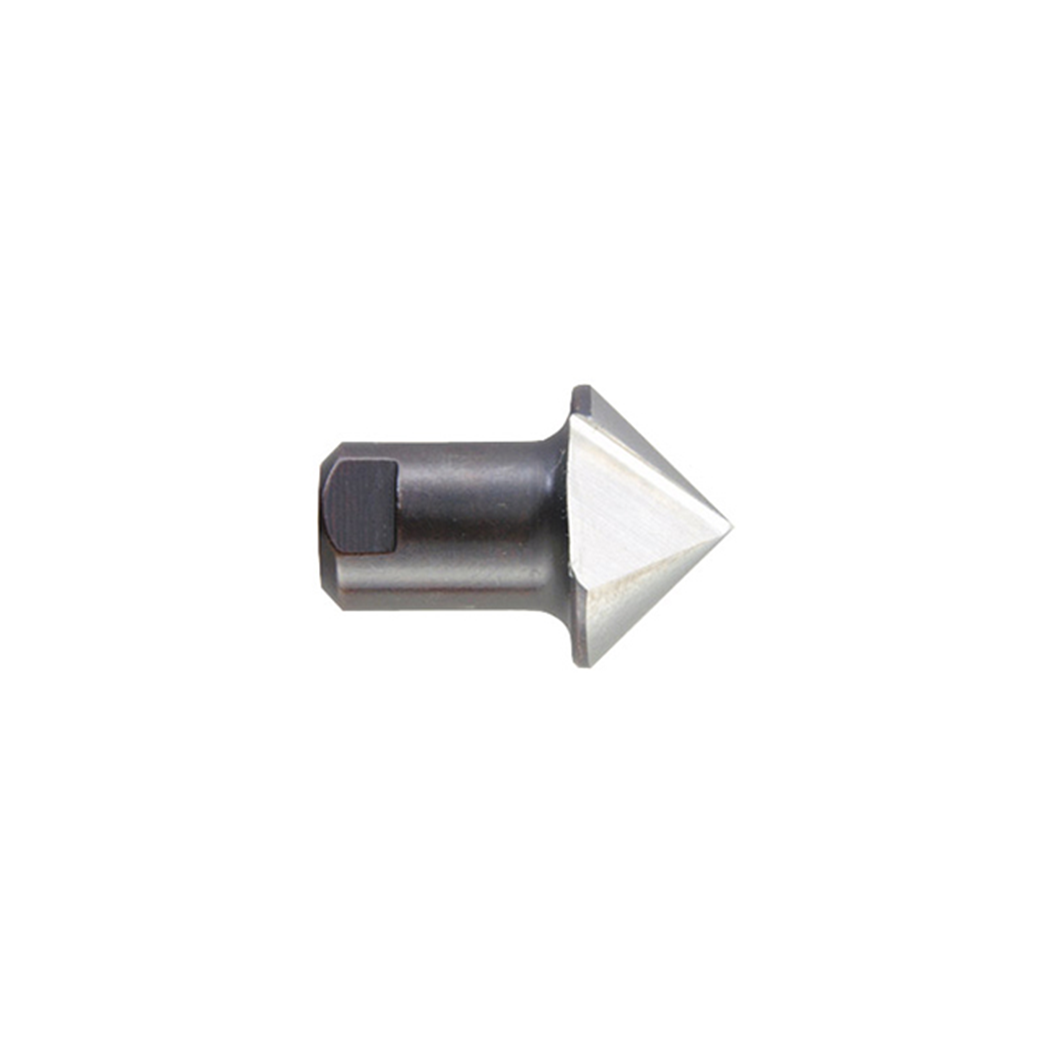

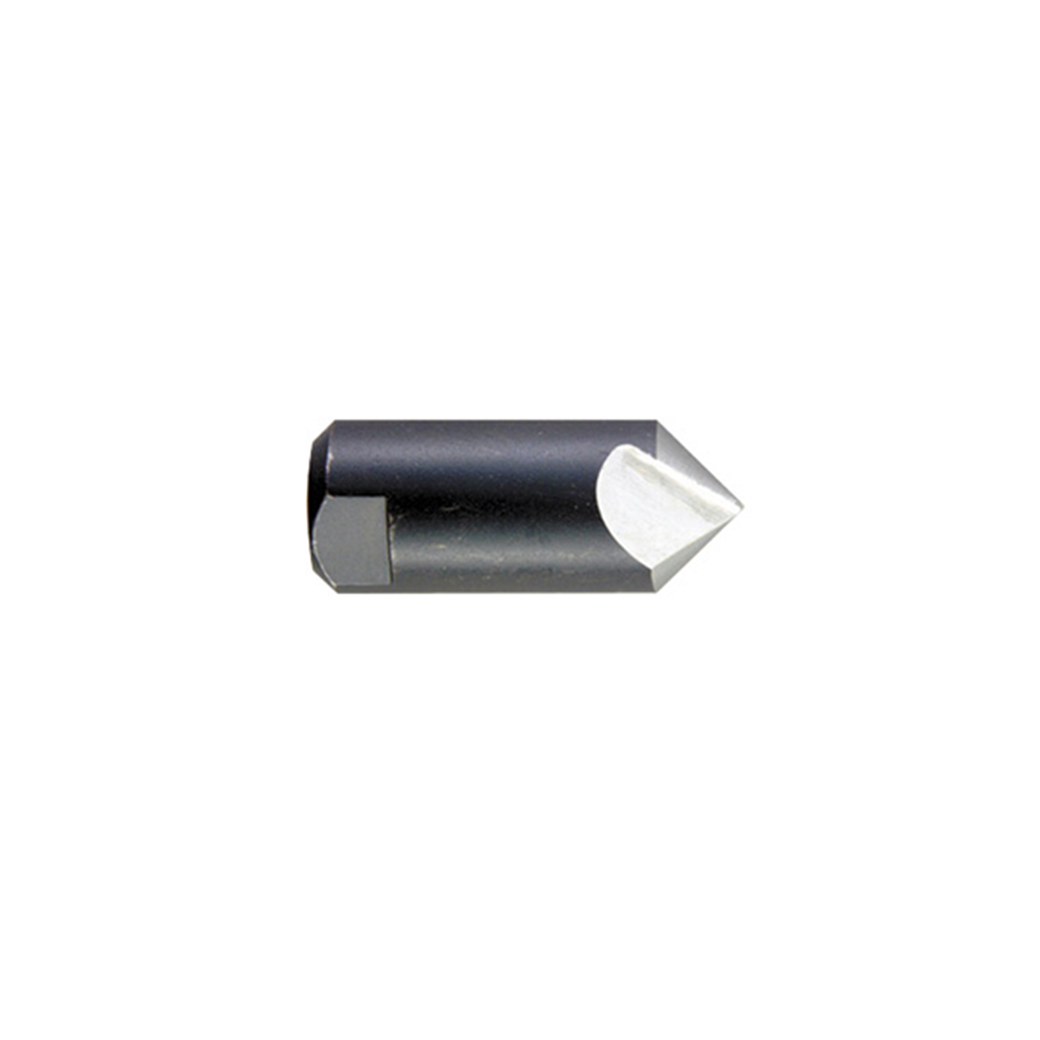

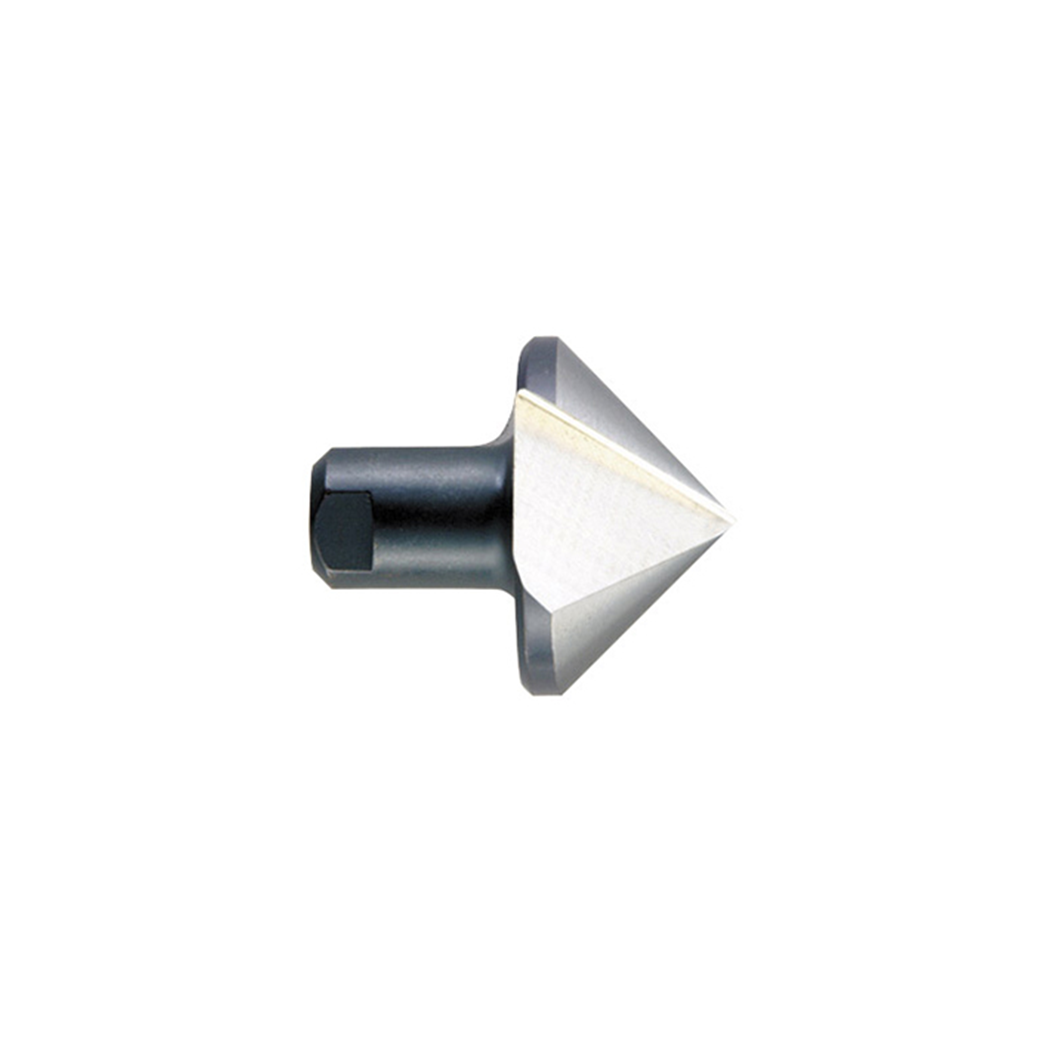

Replacement Blades: Individual blades (BC1211, BC2011, BC3011)
Blade Packs: 10-piece quantity for production environments

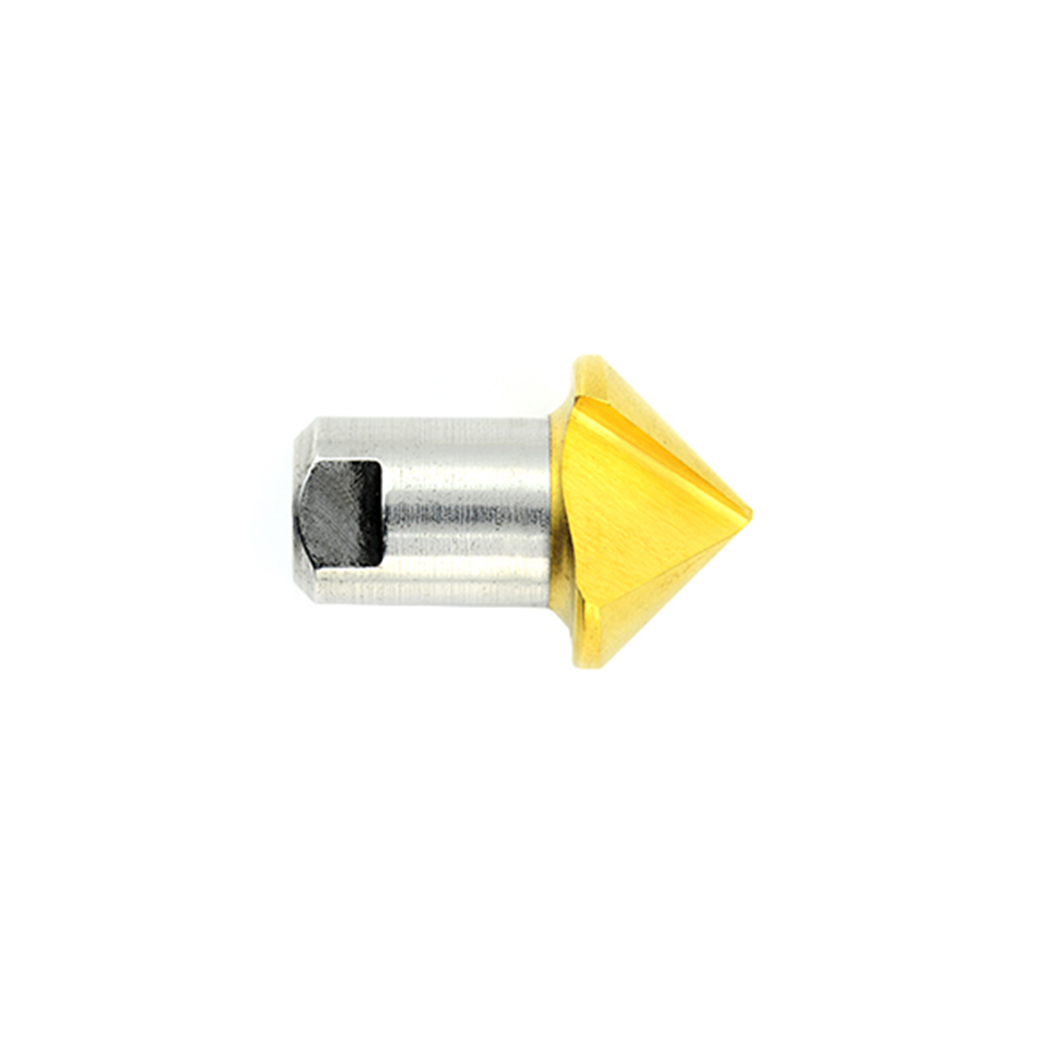

TiN Coated Blades: Extended life for abrasive materials
Upgrade your external deburring operations with the Noga C-Type Heavy Duty Countersink and experience professional-grade shaft chamfering that manual filing and grinding simply cannot match.
