Speciality Vices
Nicon N-153 Nicon Tilting & Swiveling Machine Vice
FEATURES: Angular Machine Vices are ideal for applications where in the workpiece requires machining at an angle. Angular adjustment is achieved via the angular slide that can be set to any desired angle. Additionally the fully graduated 360° swivel base allows the vice to be set at any angle along the vertical axis. These vices are manufactured from close grained hi tensile seasoned cast iron. Unbreakable steel crank handle. Use of hi tensile grade fasteners provides strength and rigidity to these vice. Hardened and ground jaw. A milled slot in the vice base helps in accurate location of the vice on the machine table using rectangular locating nuts. Accuracy in parallelism of jaws 0.02/100mm. "Hold Down" slots allow for secure clamping of the vice on the machine table.
Nicon N-154 Nicon 3-Way Tilt And Swivel Angular Vice
FEATURES: 3 Way Tilting vices provide for 3 axis setting of the workplace in special milling, drilling, grinding, Shaping and g boring applications. Vices have 2 angular slides which allow the work piece to be set at any desired angle - 45. Tilting range on either sides and 90° vertical indexing. The 360° swivel base further allows rotation along the vertical axis. These vices are manufactured from close grained hi tensile seasoned cast iron. Unbreakable steel crank handle. Use of hi tensile grade fasteners provides strength and rigidity to these vices. hardened and ground jaw. A milled slot in the vice base helps in accurate location of the vice on the machine table using rectangular locating nuts. Accuracy in parallelism of jaws 0.02/100mm. "Hold Down" slots allow for secure clamping of the vice on the machine table.

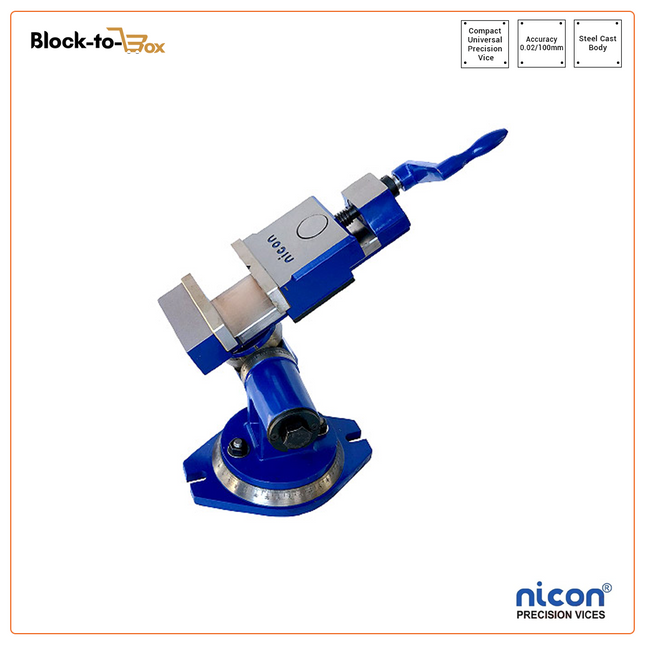

Nicon N-156 Nicon Precision Compact Universal Precision Vice
FEATURES: Universal Vice allows the work piece to be set at any desired angle widely used on tool and cutter grinders and surface grinders. Low height construction makes these useful on even the most complicated grinding jobs. The vice has one fixed horizontal axis which allows the workpiece to be rotated at any angle along it. Fully graduated 360 swivel base allows complete rotation along the vertical axis. The third angular slide with a moving axis allows for any setting in the 3D plane. Manufactured from unbreakable steel casting with fully hardened and ground tool steel jaws. Hardened and ground jaw plates. Horizontal and vertical v groove provided for thin round jobs to hold accurately. Ergonomically designed all steel handle allows for stress free operation. Use of hi tensile grade fasteners provides strength and rigidity to these vices. A milled slot in the vice base allows for accurate location of the vice on the machine table using rectangular locating nuts. "Hold Down" slots allow for secure clamping of the vice on the work table.
Nicon N-189 Nicon 2Piece Adjustable Milling Machine vice
FEATURES: Designed for use with milling machines, drill presses, etc, where a large clamping force is required. Facilitates utilization of the full length of the machine bed. Thrust bearing in the power transmission makes operation easy. Removable, grooved jaw inserts are hardened and ground, ensuring a longer life with maintained accuracy and repeatability. The workpiece is located directly on the bed for rigidity. Clamp base body and rigid base are high-quality castings.
Nicon N-157 Nicon Compound Sliding Table
FEATURES: Multi-purpose accessory for all drilling and milling applications. Graduated wheels for accurate positioning in X and Y axis. Calibrated hand wheels. Closed grain graded cast iron construction Adjustable dove-tail guide ways. Machined t-slot provided on table for multiple clamping options.
