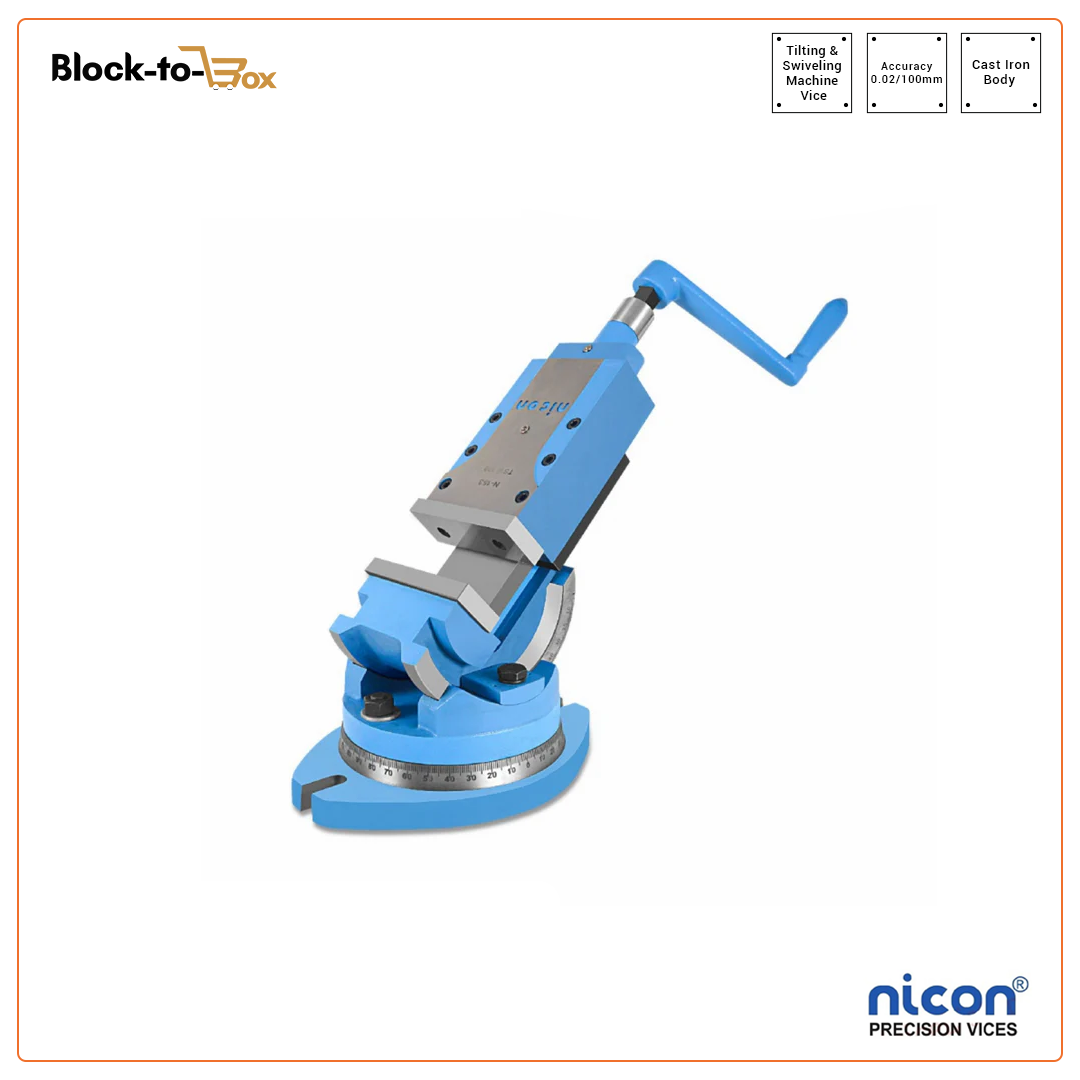

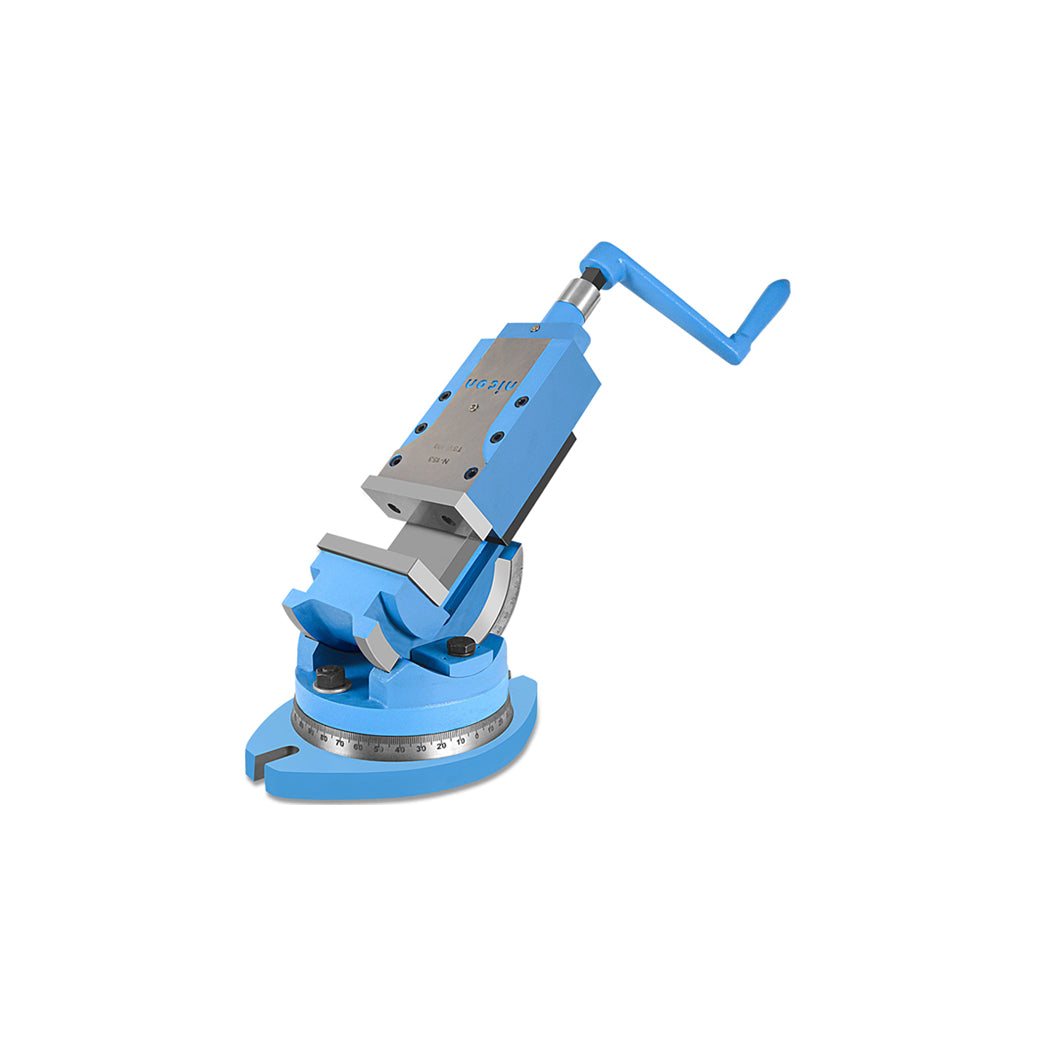

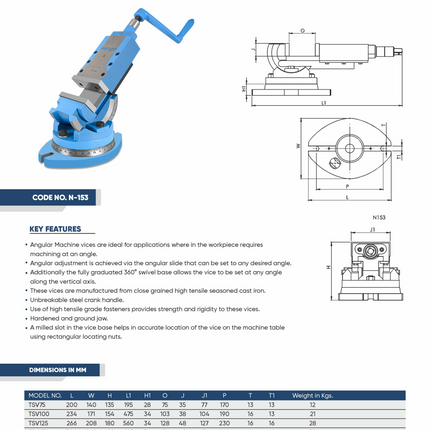

Nicon Tilting & Swiveling Machine Vice N-153

Description

FEATURES:

  • Angular Machine Vices are ideal for applications wherein the workpiece requires machining at an angle.
  • Angular adjustment is achieved via the angular slide that can be set to any desired angle.
  • Additionally, the fully graduated 360° swivel base allows the vice to be set at any angle along the vertical axis.
  • These vices are manufactured from close grained hi tensile seasoned cast iron.
  • Unbreakable steel crank handle.
  • Use of high tensile grade fasteners provides strength and rigidity to these vices.
  • Hardened and ground jaw.
  • A milled slot in the vice base helps accurately locate the vice on the machine table using rectangular locating nuts.
  • Accuracy in parallelism of jaws 0.02/100mm.
  • "Hold Down" slots allow for secure clamping of the vice on the machine table.

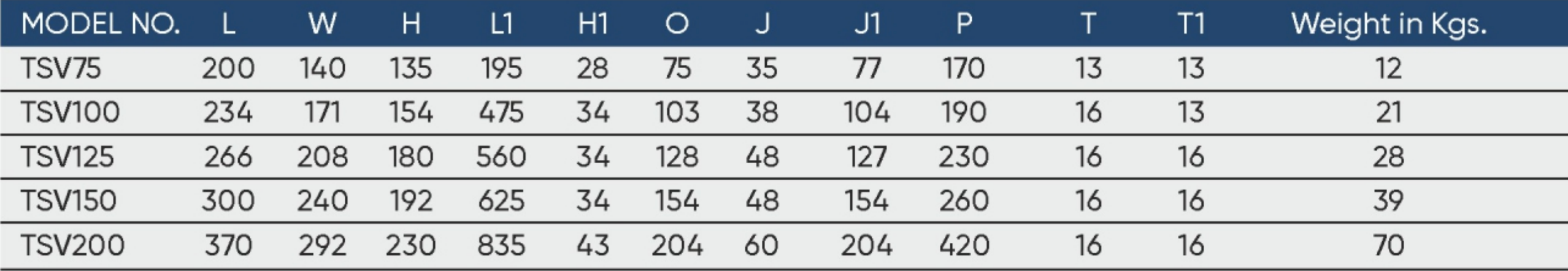

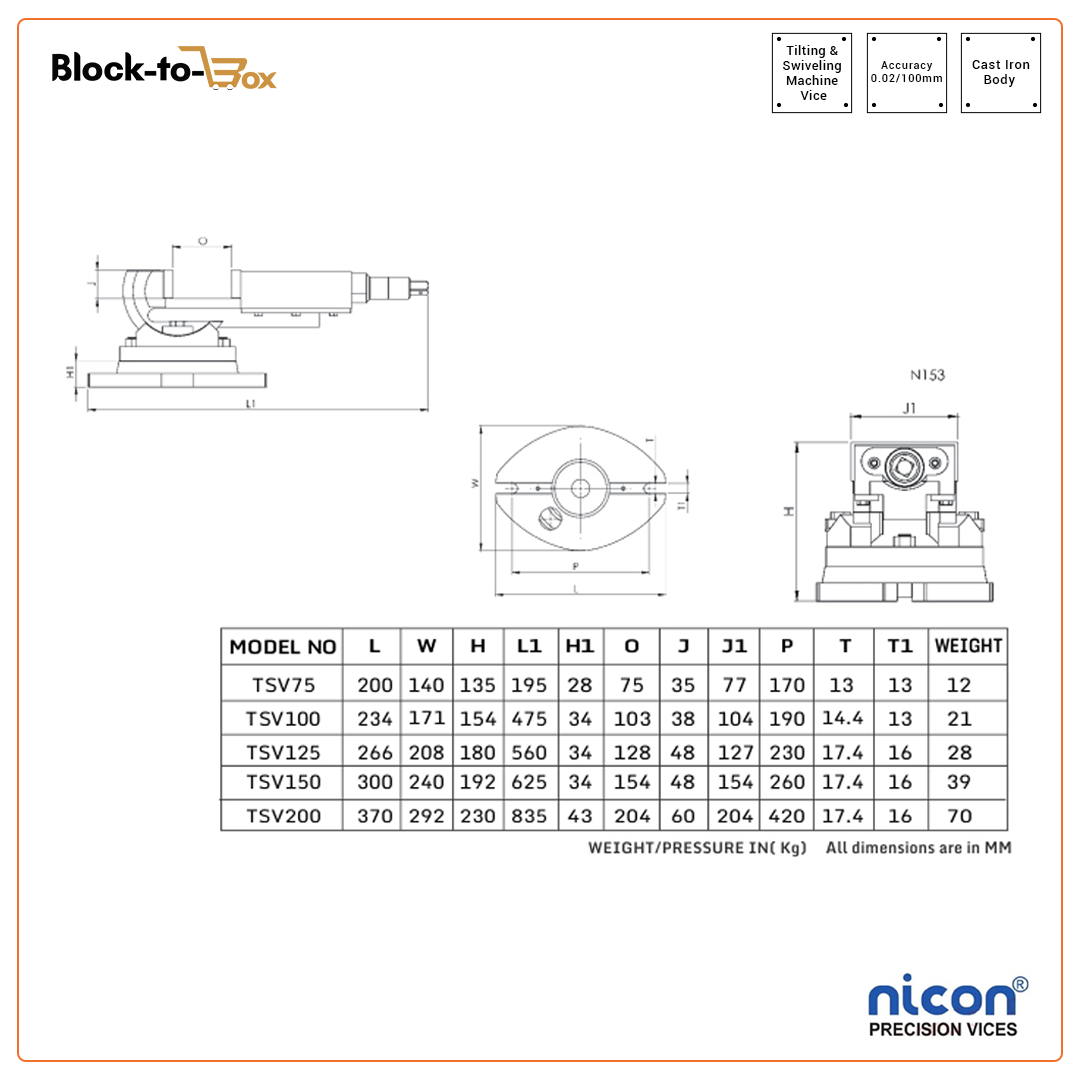

DIMENSIONS IN MM:

Product form

Nicon Tilting & Swiveling Machine Vice N-153

SKU: TSV75

Rs. 14,940.00 Rs. 10,458.00 Excl.GST

    Dispatched within 2 days
    100% Original Products
    GST Invoice on Every Purchase

    Description

    FEATURES:

    • Angular Machine Vices are ideal for applications wherein the workpiece requires machining at an angle.
    • Angular adjustment is achieved via the angular slide that can be set to any desired angle.
    • Additionally, the fully graduated 360° swivel base allows the vice to be set at any angle along the vertical axis.
    • These vices are manufactured from close grained hi tensile seasoned cast iron.
    • Unbreakable steel crank handle.
    • Use of high tensile grade fasteners provides strength and rigidity to these vices.
    • Hardened and ground jaw.
    • A milled slot in the vice base helps accurately locate the vice on the machine table using rectangular locating nuts.
    • Accuracy in parallelism of jaws 0.02/100mm.
    • "Hold Down" slots allow for secure clamping of the vice on the machine table.



    DIMENSIONS IN MM:
