V-Blocks
-

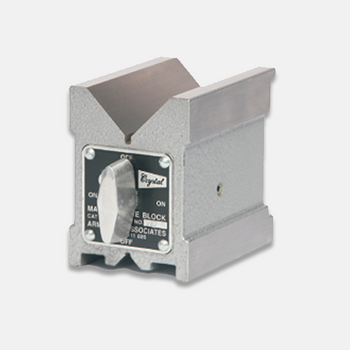

Armatech Associates Crystal Magnetic V-Blocks Series AA-180-PAIR
• Accuracy for Flatness, squareness & Parallelism within 0.005mm for 2″, 3″, 4”, 6” & 0.010mm for 8” ‘V’ blocks.• The main ’V’ angle & the bottom holding surface are equipped with hardened HSS Blades that ensure extra wear resistance in hardened series.• Uniform & Strong magnetic pull to all three magnetic surfaces that is top, bottom & two ’V’ grooves.• Hardness of ’V’ face 58 HRC + 2 HRC.• 60”, 108”, 120” ‘V’ angles are also available.• Easy ON-OFF facility.• Used for Grinding, Light milling, Drilling & Inspection of Round & Square jobs.• The magnetic system is shielded from penetration of moisture & cannot be damaged by coolants or other fluids.
-
Armatech Associates Roller Bearing V-Blocks Series AA-3711
The Roller Bearing ‘V’ Blocks are accurately assembled and are precision ground in matched pairs. Four high precision double Z bearings are provided on the top . This facilitates in the inspection of heavy round components. Work pieces don’t get damaged due to bearings. The base plate of roller bearing ‘V’ block is hardened to 55 HRC i 2 HRC.
-

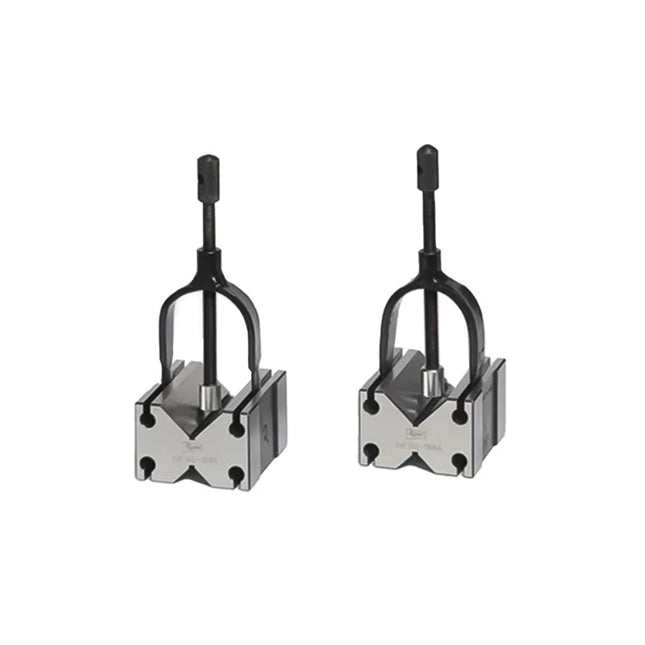

Armatech Associates Crystal Hardened V-Block
The 'V’ Block have two 'V’ angles of different sizes to take jobs of various dimention. By means of clamp the work can be held rigidly to the 'V’ Block. The top 'V’ and bottom 'V’ are parallel within ± 3 micron and it's squareness to the end faces and height variation to the 'V Block in a pair is within ± 3 micronIn Built Features: V Blocks are Hardened & Ground to 55 HRC ± 2 HRC. The top V and bottom V are parallel within ± 3 micron and its squareness to the end faces and height variations to the V Block in a pair is within ± 3 micron. Supplied with Clamp for holding job. Hold square and Round work.
-
Armatech Associates Crystal Hardened & Ground Tool Room V-Blocks Series AA-176
• A precision ‘V’ block hardened at 55 HRC 1 2HRC for the most accurate Tool Room Work. • V-Grooves are ground central and parallel to the sides and base there is perfect alignment in matched pairs. • Holds square or round work. Clamp has tapping holes at 45″ and 90°. • Stepped groove construction permits low or high clamp mounting for small or large work up to a 50mm & 35mm square. • Clamps do not project in the sides , permitting block to be used on base, ends or sides. • I Exclusive features gives it extra utility and versatility not found in other types of blocks.
-
Armatech Associates Crystal Hardened & Ground V-Blocks
We are highly engaged in offering Hardened & Ground ''V'' Blocks to our prestigious clients. Features: Grade A- 'V' Blocks are made from high quality tool steel. Hardened to 55 HRC ± 2 HRC and are precision ground. Grade B- 'V' Blocks are made from closed grain cast iron. The top 'V and bottom 'V are parallel and its squareness to the end faces and height variations in the 'V block are controlled in a matched pair. Supplied with clamps for holding job. Perfect alignment in matched pairs.
-

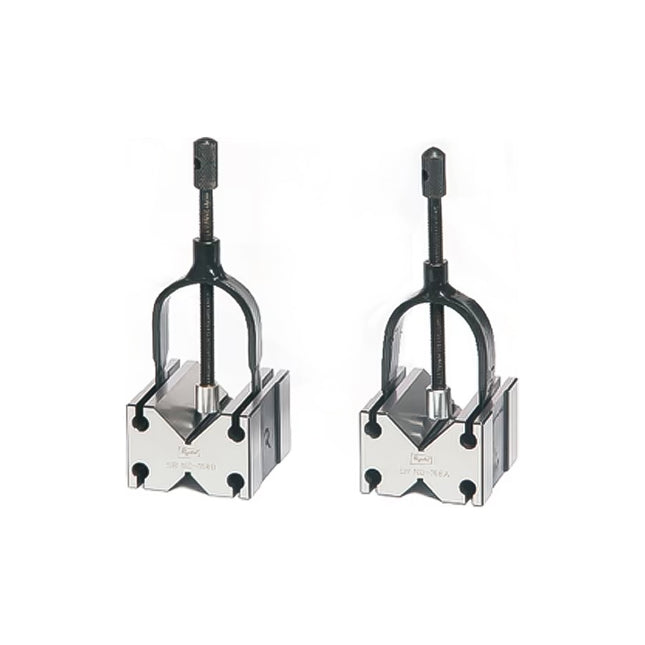

Armatech Associates Crystal Hardened & Ground V-Blocks With clamps Series AA-171
• V’ Blocks are Hardened & Ground to 55 HRC + 2 HRC. • The top ’V’ and bottom ’V’ are parallel within + 3 micron and it’s squareness to the end faces and height variations to the ’V’ Block in a pair is within + 3 micron. • Supplied with Clamp for holding job. • Hold square & Round work.
