Deburring Blades

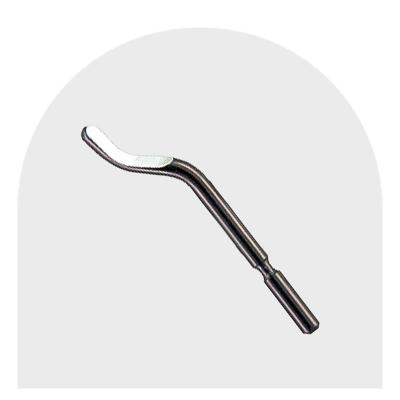

Noga Noga Deburring Blades for Light Duty (2.6mm)
Light duty 2.6mm Swivel blades. For fast and easy removal of burrs from Straight edge, Curved edge, Holes, Cross holes and Deep holes. A comprehensive program to cover all your light duty deburring needs. Choose the right blade for your workpiece material and dimensions.Some blades are available for right hand or left hand operation, and some are for both. Some blades are made of M35 Super H.S.S. or Tungsten Carbide and certain blades can be obtained Tin-coated for longer tool life. All blades are made of H.S.S. Hardness 62-64Rc except N10 Cobalt 65-66Rc N2 & N2 Tin comes in L/R - for left and right hand users. APPLICATION Holes Cross Deep Straight Edge Curved Edge Holes Holes
CP CP Deburring Blades-Light Duty Dia2.6mm
2.6 mm ,3.2mm , 6mm Ø blade for light to Extra heavy duty application for material forming continuous chips such as Steel, Al., Copper, Zinc, Plastics, etc. Blade Material : HSS (M2 grade) Pack Qty : 10 No's Until & Unless Mentioned Qty next to item code Wt : 18 gms
CP CP Deburring Blades-Heavy Duty Dia3.2mm
2.6 mm ,3.2mm , 6mm Ø blade for light to Extra heavy duty application for material forming continuous chips such as Steel, Al., Copper, Zinc, Plastics, etc. Blade Material : HSS (M2 grade) Pack Qty : 10 No's Until & Unless Mentioned Qty next to item code Wt : 18 gms
CP CP Deburring Blades-Extra Heavy Duty Dia 6mm
R-10(S) 6 mm Ø Universal Blade for extra Heavy duty deburring application on materials having spiral chipssuch as Steel, Al., Copper, Zinc etc.Blade Material : HSS (M2 grade)Pack Qty : 5Wt : 70 gms R-15 (S) 6 mm Ø Blade for extra Heavy duty deburring application of Stainless Steel, C.I., Brass etc.Blade Material : HSS (M2 grade)Pack Qty : 5Wt : 76 gms
CP CP Deburring Blades-Multi Cutting-Heavy Duty Dia3.2mm
MC-10 (22100) 3.2 mm Ø Multi-Cutting Edge, Universal Blade for Heavy duty deburring application on materials having spiral chips such as Steel, SS, Al., Copper, Zinc, etc.No. of Cutting Edge Segment : 3Blade Material : HSS (M2 grade)Pack Qty : 10Wt : 36 gms MC-20 (22200) 3.2 mm Ø Multi-Cutting Edge Blade for Heavy duty deburring application on materials having brittle burr such as C.I., Brass, etc.No. of Cutting Edge Segment : 3Blade Material : HSS (M2 grade)Pack Qty : 10Wt : 38 gms MC-101 (22110) 3.2 mm Ø Multi-Cutting Edge Blade for deburring of small holes from 1.5 mm Ø in Steel & Aluminium.No. of Cutting Edge Segment : 2Blade Material : HSS (M2 grade)Pack Qty : 10Wt : 32 gms MC-15 (22151) 3.2 mm Ø Multi-Cutting Edge Blade for Heavy duty deburring application on Stainless Steel & hard Plastics.No. of Cutting Edge Segment : 3Blade Material : HSS (M2 grade)Pack Qty : 10Wt : 38 gms MC-40 (22400) 3.2 mm Ø Multi-Cutting Edge Blade specially for Hole & inner edge deburring of all metals.No. of Cutting Edge Segment : 2Blade Material : HSS (M2 grade)Pack Qty : 10Wt : 36 gms MC-70 (22700) 3.2 mm Ø Multi-Cutting Edge Blade for straight edge deburring application on Steel, Al., Copper, Zinc, Plastics, etc. .No. of Cutting Edge Segment : 8Blade Material : HSS (M2 grade)Pack Qty : 10Wt : 50 gms MC-80 (22800) 3.2 mm Ø Multi-Cutting Edge Blade for straight edge deburring application on C.I,Brass etc.No. of Cutting Edge Segment : 8Blade Material : HSS (M2 grade)Pack Qty : 10Wt : 53 gms MC-10 (TiN Coated) (22102) Titanium Nitride (TiN) coated MC-10, 3.2 mm Ø Blade for hard metal & longer life application.No. of Cutting Edge Segment : 3Blade Material : HSS (M2 grade)Pack Qty : 10Wt : 36 gms
CP CP Deburring Blades-Multi Cutting-Light Duty Dia2.6mm
MP-1 (21010) 2.6 mm Ø Multi-Cutting Edge Blade for small components deburring of Steel, Al., Copper, Zinc, Plastics etc.No. of Cutting Edge Segment : 2Blade Material : HSS (M2 grade)Pack Qty : 10Wt : 18 gms MP-2 (21020) 2.6 mm Ø Multi-Cutting Edge Blade for small components deburring of C.I., Brass materials. No. of Cutting Edge Segment : 2Blade Material : HSS (M2 grade)Pack Qty : 10Wt : 18 gms
CP CP Deburring Blades-Multi Cutting-Extra Heavy Duty-6mm
MR-10 (23100) 6 mm Ø Multi-Cutting Edge, Universal Blade for extra Heavy duty deburring application on materials having spiral chipssuch as Steel, SS, Al., Copper, Zinc, etc.No. of Cutting Edge Segment : 4Blade Material : HSS (M2 grade)Pack Qty : 5Wt : 70 gms MR-15 (23151) 6 mm Ø Multi-Cutting Edge Blade for extra Heavy duty deburring application on Stainless Steel, C.I., Brass etc.No. of Cutting Edge Segment : 5Blade Material : HSS (M2 grade)Pack Qty : 5Wt : 76 gms
