FEATURES: Made from graded casting  end of machined rugged constructions. Graduated in degrees from 0-90, Ground table surface. Machined T slots for clamping options. DIMENSIONS IN MM:

Read more less

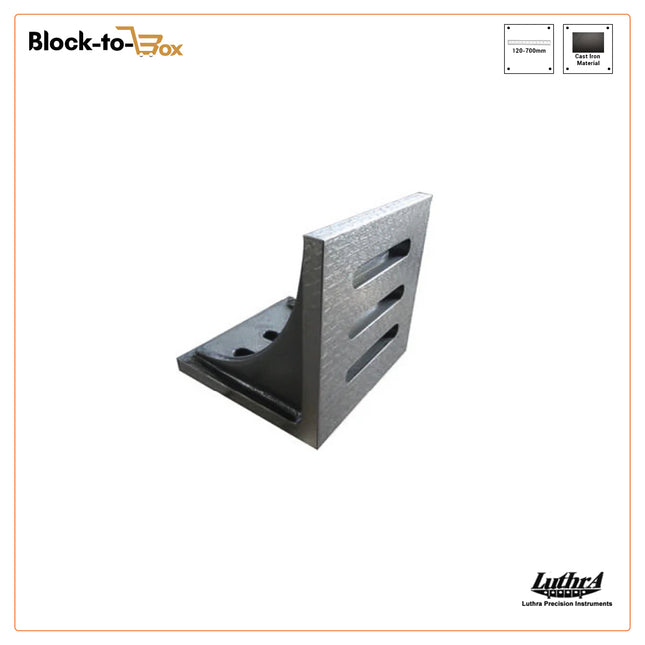

Slotted Angle Plates - Workholding Fixture for Vertical Machining Slotted Angle Plates are workholding fixtures used to hold a job in a vertical position while machining and also provide a vertical surface to mark, inspect and fabricate. Cast Iron Angle Plates, Webbed End U129 range, are made of special cast iron. Toolroom owners, purchase managers and toolroom operators have been provided with a choice of dimensions enabling a suitable fixture to be selected for the component and operation and the available machine-table space before ordering. 💬 Get quotation for Unique Slotted Angle Plates U123 price TECHNICAL SPECIFICATIONS Specification Details Brand Unique Vices Model U123, Webbed End Material Special Cast Iron Construction Slotted Angle Plate Applications Vertical job mounting, machining, marking, inspection, fabrication and checking surface accuracy Seller BlockToBox SIZE MATRIX - U123 WEBBED END Manufacturer Code Nominal Size (Inches) Size (mm) U123-3 4½ × 3½ × 3 115 × 90 × 75 U123-4 6 × 5 × 4½ 150 × 125 × 115 U123-5 7 × 5½ × 4½ 175 × 140 × 115 U123-6 8 × 6 × 5 200 × 150 × 125 U123-7 9 × 7 × 6 225 × 175 × 150 U123-8 10 × 8 × 6 250 × 200 × 150 U123-9 12 × 9 × 8 300 × 225 × 200 Price Range: ₹1,905 - ₹13,215 for 115 x 90 x 75 mm to 300 x 225 x 200 mm. Check blocktobox.com for GST, discount offers & shipping. Related Products: Cast Iron Plain Angle Plate (Unique U122) | Universal Machine Vice | Shaper Vice Swivel Base (Unique U311S) Why Choose Unique U123 as Your Slotted Angle Plates? Special Cast Iron Construction: Manufactured from the grade of cast iron specified by the manufacturer; if the use of a particular grade is a part of your procurement specification, ask us for grade information. Workholding – Vertical: Slotted angle plate allows jobs to be mounted vertically while machining; choose clamps and fixings that will suit the actual slots. Webbed-end format: When the fixture plan utilizes the U123 webbed-end configuration, you can opt for this webbed-end angle plate range. Inspection applications: An angle plate for machining can likewise be utilized as a vertical surface for inspection. Verify accuracy when considering whether to buy. Size: Offering seven sizes listed by the manufacturer, designed to compare component clearance to table dimensions. Clarity of purchasing: Easy to compare angle plate cost between size, specification and included accessories. FAQ – WITH BUYING INTENT KEYWORDS Q1. What is the price of the Slotted Angle Plates of Unique U123? A. ₹1,905 - ₹13,215 for Unique U123 slotted angle plates size 115 x 90 x 75 mm to 300 x 225 x 200 mm in current list. Know price with GST, discount offers & shipping - check on web store blocktobox.com. Q2. Which size of Unique U123 slotted angle plate should I purchase? A. Analyze by Workpiece size, Clamping Surfaces & Milling Machine Table Size – not price range. Range available 115 x 90 x 75 mm to 300 x 225 x 200 mm - ₹1905 to ₹13215. Tell us your job size and we will recommend best cast iron slotted angle plate. Q3. Do Your Unique U123 slotted angle plates suit my milling machine? A. This fit depends on mounting table area, T-slot size and clamp setup. U123 is workholding attachment for vertical use. Send us your table dimensions and machine model for easy fit check. Q4. How should I compare slotted angle plate prices before buying? A. Don't compare by price alone. Compare by dimensions, cast iron quality, squareness, slot quality, accessories included, and check if like-for-like quote is available. A cheaper plate without inspection may cost more in rework. Q5. What other accessories do I get when I buy a Unique U123? A. Normal listing doesn't include clamps, bolts or nuts. It is simply slotted angle plate. Don't assume mounting hardware. Ask for product contents in writing prior to checkout. Q6. How to locate Unique U123 slotted angle plates on eBay or Amazon? A. Order Unique U123 slotted angle plates from this online store in 7 sizes. Choose size, verify current rate and estimated delivery, and place order on blocktobox.com. For bulk/workshop orders, reach out to 88474 88475. BLOCK TO BOX ONLINE ENTERPRISES PRIVATE LIMITED The Online Mega Store for Machine Tools & Acc's 📞 Phone: +91 88474 88475 💬 WhatsApp Quotation: Chat on WhatsApp ✉️ Email: support@blocktobox.com Related Workshop & Workholding Equipment Mechanic's Bench Vice (Unique U301) Bench Vise Swivel Base (Unique U301 S) Engineers Bench Vice Fixed Base (Unique U301R) Engineers Bench Vice Ductile Iron (Unique U301 RS STEEL) Heavy Duty Bench Vise Double Rib (Unique U308) Shaper Vice Swivel Base (Unique U311S) Universal Machine Vice Rotary Table for Milling Machine (Unique U335) Universal Dividing Head for Milling Machine (U352) Cast Iron Plain Angle Plate (Unique U122) Slotted Angle Plates (Unique U123)

Read more less

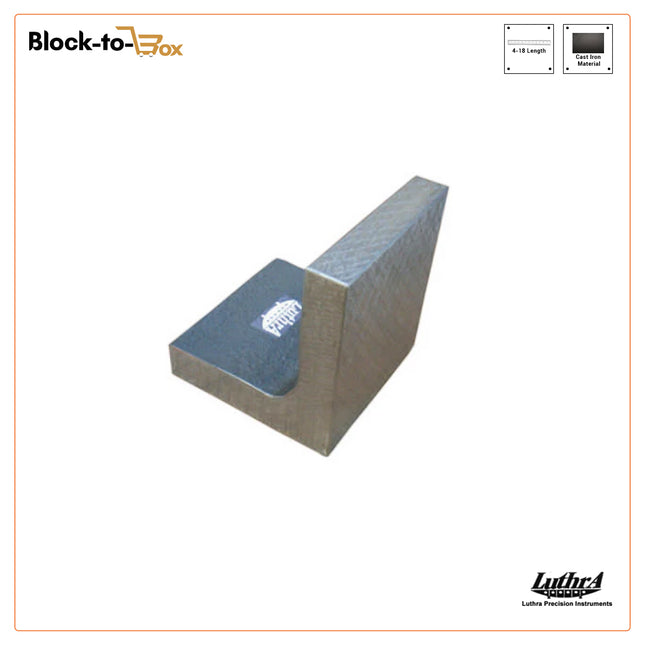

Cast Iron Plain Angle Plate - Unique U122 for Right Angle Setup. Angle plates assist you in orienting components at right angles to your machine table and are an invaluable tool in any workshop for accurate setup. The Unique U122 cast iron angle plate is a basic, no-frills model for the beginner, with its durable material and traditional design. Consider the size of your component, the amount of room on your machine table, and your method of clamping down hold-downs - don't just choose the cheapest option. Technical Specifications - U122 Plain Angle Plate Parameter Specification Product Name Cast Iron Plain Angle Plates Model U122 Brand Unique Vices Material Close-grained alloyed Cast Iron FG-220 as per IS 210 / HT200-300, Stress relieved, Hardness HB 170-240 Design Plain / Closed Type Surface Finish Working faces machined then hand-scraped or precision ground. Standard Ra ≤ 1.6 μm, Non-working faces anti-rust painted Squareness / Flatness (Grade 1 as per IS 6232) 125x75x100mm: Flatness 5 micron, Squareness 10 micron, Parallelism 13 micron / 150mm: 5 / 13 / 15 micron / 200mm: 8 / 15 / 18 micron / 250mm: 8 / 15 / 18 micron / 300mm: 8 / 18 / 20 micron Clamping Accessories None included. Sold as bare casting only. Requires separate C-clamps, toe clamps, bolts. Price Range (As of Oct 2026) ₹1,650 – ₹12,578 Read more Read less Available Variants: Price ( Oct 2026) U122 - 100x100x100mm: ₹1,650 (Size requires confirmation) U122 - 125x125x125mm: ₹2,730 U122 - 150x150x150mm: ₹4,065 U122 - 200x200x200mm: ₹6,345 U122 - 250x250x250mm: ₹12,578 Why Select Unique U122 Cast Iron Flat Angle Plates? The U122 is more than your average right angle plate. Its close-grained cast iron construction and stress-relieved casting guarantee stability during machining. Clear Material: Close-grained alloyed Cast Iron FG-220 as per IS 210 / HT200-300, no confusion in quoting. Plain Design: Standard closed style plate, unlike slotted, box or adjustable plates. Ideal for basic fixture work. Working Face Access: Smaller U122 variants fit on compact tables while still providing full working-face dimensions and spanner clearance for clamping. Brand Assurance: Unique Vices brand ensures repeatability - your shop floor buyer can re-order by Model U122 and size over the phone. Procurement Ready: Single-angle plate specification allows your purchasing department to specify the article in exactly the same way for technical approval. Buy Note: It is a Plain (non-slotted) Cast Iron Angle Plate. Clamps, bolts, T-nuts are NOT included. For slotted version, ask for Unique U123. Check final size, tolerance grade and landed price before ordering. Q1. What are the best U122 angle plates for my workshop? Select the angle plate according to work dimensions, table space, and clamping setup. The U122 list covers many sizes, so determine the precise setup and don't go for the biggest. Verify working-face coverage, tool clearances, and the size of the variants you choose before you buy. Q2. How much is the price of the Unique U122 angle plate? Prices range from ₹1,650 to ₹12,578 in five versions as of Oct 2026. The 125x125x125mm costs ₹2,730, 150x150x150mm is ₹4,065, 200x200x200mm is ₹6,345, while the 250x250x250mm model is ₹12,578. Kindly check the product page on blocktobox.com for regular updated prices. Compare by size, not as same product. Q3. Can I use this cast iron angle plate on my milling machine? Yes, but selection depends on machine table size, work-piece dimensions, mounting system and clearance requirements. The listing mentions a cast iron angle plate but does not include drawing or fastening instructions. Confirm details with your shop team and have dimensions checked before selecting one for milling machine application. Q4. What should I note before purchasing a right angle plate? Check overall size, squareness and flatness tolerance, surface finish, and mounting configuration. For dimensional accuracy, ask for the U122 dimension catalogue. At present, the standard catalogue does not consist of tolerance figures - request Grade 1 tolerance as per IS 6232 for precision work. Q5. Should I get a regular angle plate rather than a slotted one? Select plain angle plate U122 if you intend to use it with fixtures or secure it with separate clamps. Slotted design U123 provides slots for bolting and gives alternative setup. Don't assume they can be interchanged; check your clamping requirements. Q6. What are the exact sizes and prices for the U122 angle plates? The verified variants are 125x125x125mm priced at ₹2,730, 150x150x150mm at ₹4,065, 200x200x200mm at ₹6,345, as well as 250x250x250mm at ₹12,578. An additional variation of ₹1,650 has an uncertain label of 100x100x100mm. Contrast these with your job size and pick the smallest suitable one before purchase. Q7. Is the cast iron plain angle plate provided with bolts or clamps? No. No clamps, bolts, or fixing items are included. All Indian sellers sell angle plates as bare casting only. Clamping is by separate C-clamps, toe clamps, bolts, T-nuts. Identify your setup's requirements, then include necessary fixings in your purchase order. Q8. How do I compare angle plate prices from various suppliers? Compare angle plate cost after size, material, tolerance requirement, finish, and accessories have been matched. The lowest price shown may be a different size or specification. Always highlight product in enquiry as: Unique U122, Xmm x Ymm x Zmm Plain, Grade 1. Request a like-for-like quotation before purchasing. Q9. Which is the best online angle plate shop? blocktobox.com is a leading online angle plate shop with representative products from renowned brands like Unique. Guaranteed good quality stock, COD and other options available, with almost 20 best online angle plates to choose from. Q10. How do I choose the best angle plates? 1. Material - FG-220 Cast Iron 2. Brand - Unique Vices 3. Seller - blocktobox.com is a well-known seller 4. Choose based on your work dimensions, table layout, and price vs tolerance needs. Q11. Where to buy the best angle plates? blocktobox.com is the most popular place to buy angle plates online. It has a selection of all the best brands like Unique, and you can buy with COD or other available options at discounted rates with quality assurance.

Read more less

Code No.: U121UNIQUE MAGNETIC ANGLE PLATE.HSN CODE: 90318000. Precision is our commitment.

Read more less
