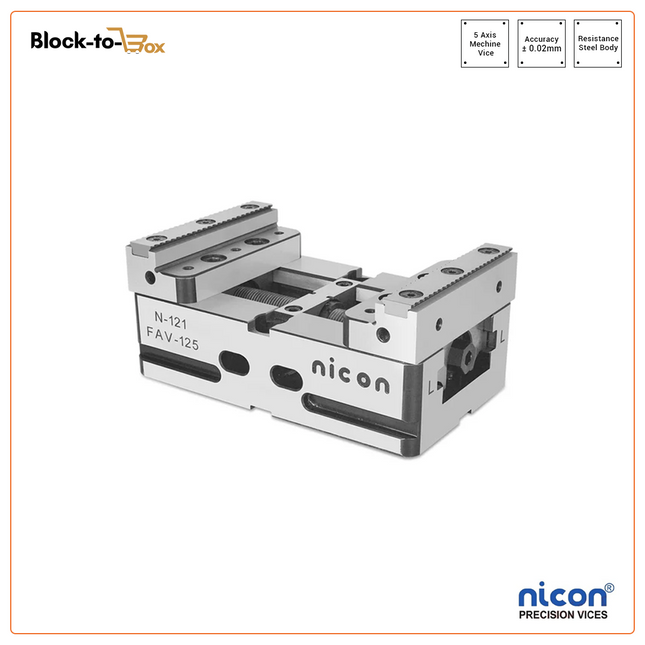

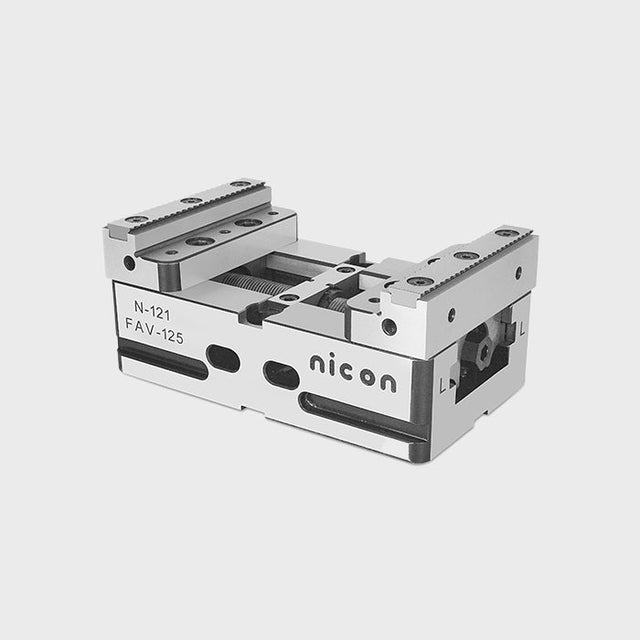

FEATURES: • Self centering 5-axis machine vice designed for precision 4 and 5-Axis CNC rotary table usage, either in horizontal or vertical machining and widely used with Grinding & Precision Milling Machines. •Vice precision of its centre repetition position is ±0.02mm.  •The space-saving design and solid construction allow a maximum blocking ratio to total overall dimension of the vice. • High alloyed quality resistance steel, case hardened HRC 60±2 is used in all body and accessories of vice to give maximum rigidity, high performance & no wear. • All components of vice are interchangeable with perfect alignment to provide different work holding solutions. • Minimum clamping depth of workpiece 3 mm gives enormous material savings. • Maximum clamping pressure 5000 kg. approximate. • Highest holding power at minimum clamping force. Vice allows application of short tools reduced vibration longer life to provide the best finish. • Ideal for use in 3 Axis machining centers also for mass production with multiple vices setup. • Same bed hight maintained for gang milling operations.   STANDARD ACCESSORIES • 1 Work Stopper, 3 Pc. of standard 15mm positioning Pins • T Allen Key, 1 box Wrench   DIMENSIONS IN MM OPTIONAL JAWS

Read more less

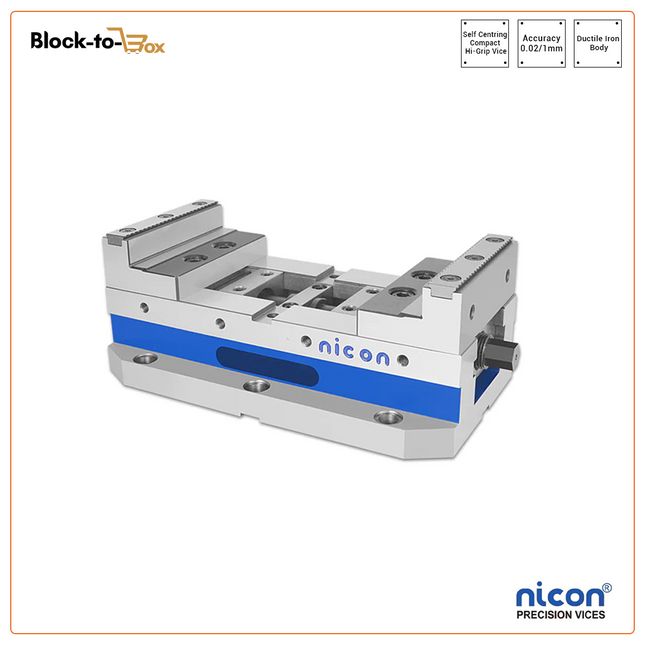

FEATURES: Self centring compact hi-grip machine vice designed for precision milling, grinding and widely used with CNC machining center. Space saving design can be installed in multiple on standard machine table. Also suitable for 4th and 5th axis CNC rotatry tables. Large opening in very compact vice body. This vice can hold two work pieces with optional intermediate jaws. High grade FCO 60 ductile iron body, grounded top and bottom. Bed height matched with multiple vice orders. High alloyed quality resistance stress, case hardened HRC 60 +or- 2 is used in clamping jaws give high preferences and no wear. Accuracy in parallelism and squareness within 0.02/1mm. Interchangeable jaws plates. Tenon & tenon slots are provided for effortless truing of vice on the machine table. High clamping force can be achieved by effortless handle movement, which eliminates hammering on vice handle. Maximum clamping force 3000kg. STANDARD ACCESSORIES: 1 Adjustable handle 1 pair of positioning key nuts 1 Wok stopper DIMENSIONS IN MM:

Read more less

FEATURES: Self centring lock down jaw vice designed for precision milling machines and CNC machining centres. The jaws move towards the centre. This always provide stable work pieces centring setting. Sealed bearing system includes clamping pressure and increases bearing life. Accuracy in parallelism and squareness within 0.2/100mm. Hardened bed and jaws maintain accuracy for a long time. Ductile cast iron body. No work piece tile after clamping. All parts interchangeable and available as spares. Tenons and tenon slots provided for effortless truing of vice on machine table. The high clamping force can be achieved by effortless handle movement which eliminates hammering on a handle. STANDARD ACCESSORIES: Clip Guards Adjustable Handle DIMENSIONS IN MM OPTIONAL JAWS

Read more less

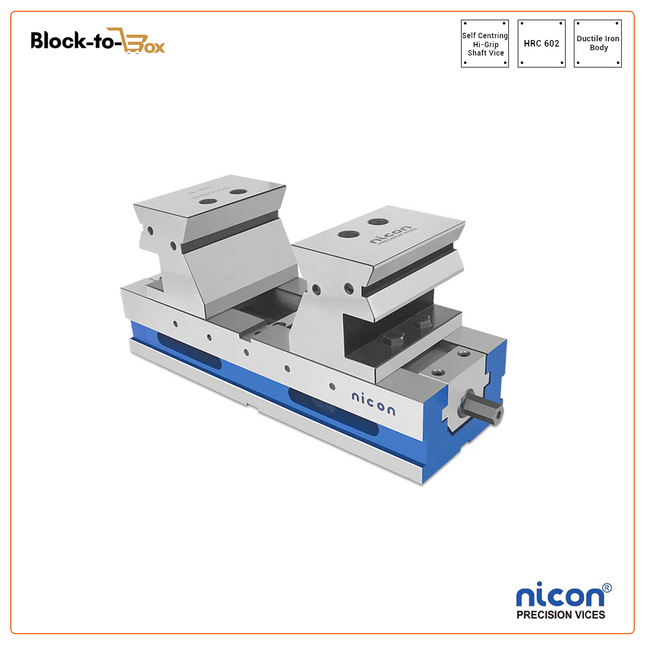

FEATURES: Self Centring Hi-Grip shaft Vice Designed for accurate centring for round jobs on Precision Milling machine & Widely Used With CNC Machining Center. High-Grade FCD 60 grade ductile iron Body. Grounded Top & Bottom. This CNC vice Securely Holds round jobs and can also use in various shapes of components with the help of different available optional jaws. Perfect Vice for Mass Production environments. Bed Hight Matched with Multiple Vice Orders. High Alloyed Quality Resistance Steel, Case Hardened HRC 602 is used in Clamping Jaws to give High Performance & No Wear. Tenon & Tenon Slots Provided for Effortless Truing Of Vice on Machine Table. High Clamping Force can Achieve by Effortless handle movement which eliminates Hammering on vice handle. DIMENSIONS IN MM: STANDARD ACCESSORIES: 4 Side Clamps. 1 Box Wrench. 2 Positioning Key Nuts, 1 work stopper.

Read more less
