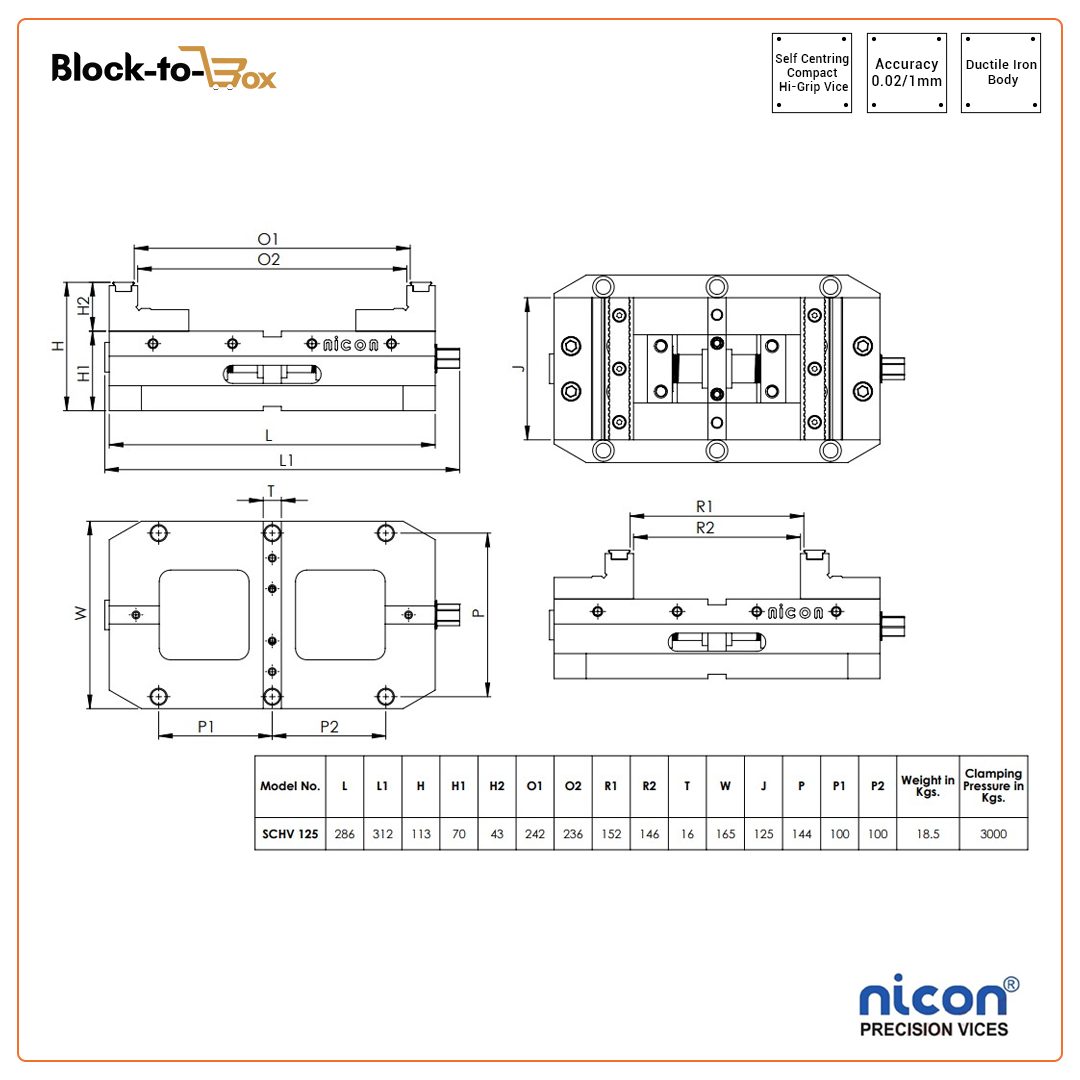

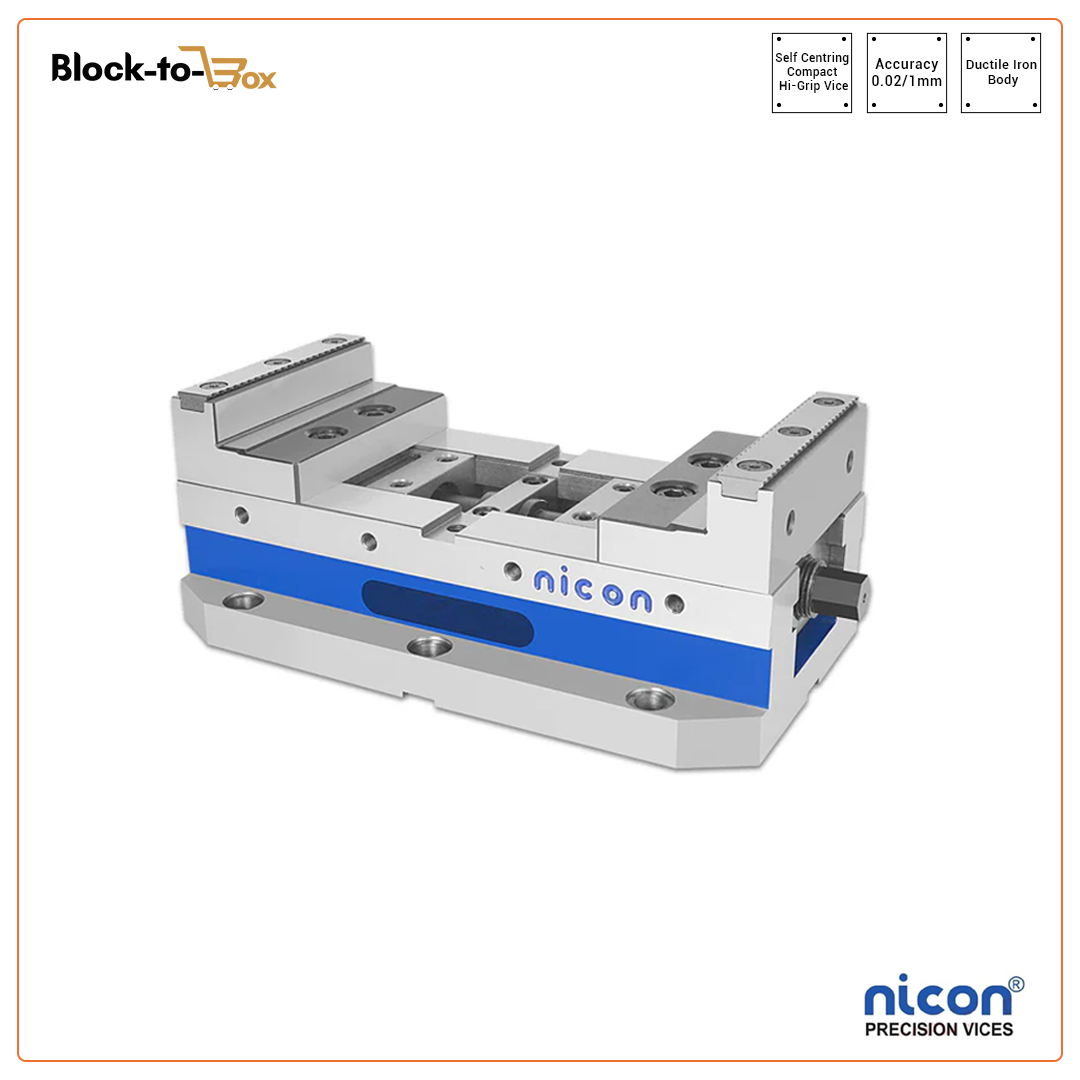

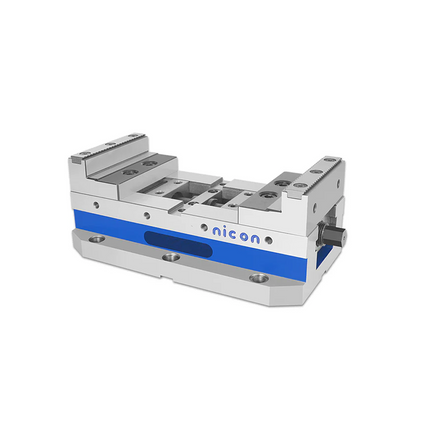

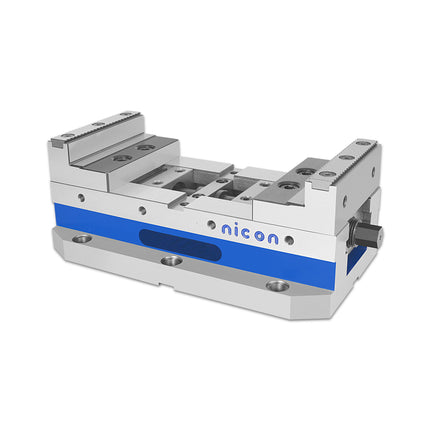

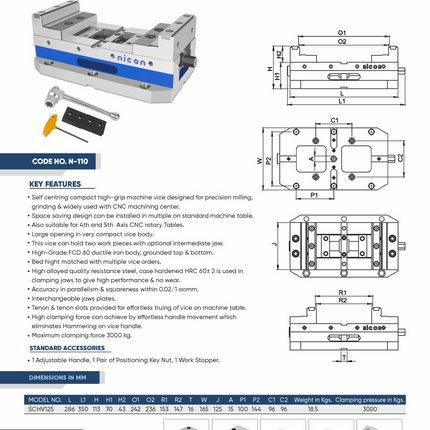

N-110 Nicon Self Centring Compact High Grip Vice

Description

FEATURES:

  • Self centering compact hi-grip machine vice designed for precision milling, grinding and widely used with CNC machining center.
  • Space saving design can be installed in multiple on standard machine table.
  • Also suitable for 4th and 5th axis CNC rolaey tables.
  • Large opening in very compact vice body.
  • This vise can hold two work pieces with optional intermediate jaws.
  • High grade FCO 60 ductile iron body, grounded top and bottom.
  • Bed height matched with multiple vice orders.
  • High alloyed quality resistance stress, case hardened HRC 60 +or- 2 is used in clamping jaws give high preferences and no wear.
  • Accuracy in parallelism and squareness within 0.02/1mm.
  • Interchangeable jaws plates.
  • tenon and tenon slots provided for effortless truing of vice on machine table.
  • High clamping force can be achieved by effortless handle movement which eliminates hammering on vise handle.
  • Maximum clamping force 3000kg.

STANDARD ACCOSSORIES:

  • 1 Adjustable handle,
  • 1 pair of positioning key nut,
  • 1 Wok stopper.

Read more

N-110 Nicon Self Centring Compact High Grip Vice

Product form

SKU: SCHV125

FEATURES: Self centering compact hi-grip machine vice designed for precision milling, grinding and widely used with CNC machining center. Space... Read more

Rs. 58,400.00 Excl. GST

    • Nicon
    • Shop Now for Quick Delivery on In-Stock Items!
    • Discover the Quality Difference: Shop Our Collection of 100% Genuine Products.

    • Shop Confidently and Quickly with our Express Checkout Option!

    Description

    FEATURES:

    • Self centering compact hi-grip machine vice designed for precision milling, grinding and widely used with CNC machining center.
    • Space saving design can be installed in multiple on standard machine table.
    • Also suitable for 4th and 5th axis CNC rolaey tables.
    • Large opening in very compact vice body.
    • This vise can hold two work pieces with optional intermediate jaws.
    • High grade FCO 60 ductile iron body, grounded top and bottom.
    • Bed height matched with multiple vice orders.
    • High alloyed quality resistance stress, case hardened HRC 60 +or- 2 is used in clamping jaws give high preferences and no wear.
    • Accuracy in parallelism and squareness within 0.02/1mm.
    • Interchangeable jaws plates.
    • tenon and tenon slots provided for effortless truing of vice on machine table.
    • High clamping force can be achieved by effortless handle movement which eliminates hammering on vise handle.
    • Maximum clamping force 3000kg.

    STANDARD ACCOSSORIES:

    • 1 Adjustable handle,
    • 1 pair of positioning key nut,
    • 1 Wok stopper.

    Read more
