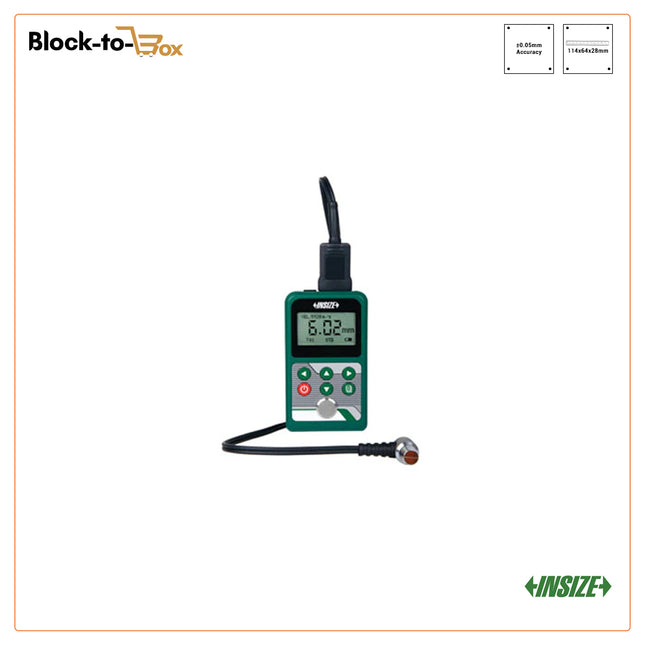

Ultrasonic Thickness Gauge INSIZE ISU-100D (Basic Type) is a compact tool that measures material thickness from one side only. It is ideal for checking the wall thickness of pipes, tanks, and similar parts when the other side is hard to reach. If you want to buy a reliable, easy-to-use ultrasonic thickness gauge for daily inspection work, the ISU-100D is a practical choice. This ultrasonic thickness meter measures 0.8–300 mm on steel with a selectable resolution of 0.1 mm or 0.01 mm. It uses a 5 MHz transducer and supports a sound velocity range of 1000–9999 m/s so that you can set it up for many materials. It also has a backlit LCD and a built-in 4.00 mm calibration block. The gauge can measure steel, stainless steel, glass, copper, brass, polystyrene, and titanium. Plastics such as nylon, resin, and ceramics can also be measured once the correct sound velocity is set. Important: The ISU-100D is not designed for castings or aluminium workpieces. Specifications of INSIZE Ultrasonic Thickness Gauge (Basic Type) ISU-100D Model ISU-100D Product Type Ultrasonic Thickness Gauge – Basic Type Measuring Range 0.8–300 mm on steel Resolution 0.1 / 0.01 mm Accuracy – H < 10 mm ±0.05 mm Accuracy – 10 ≤ H < 100 mm ±(0.05 + H/1000) mm Accuracy – H ≥ 100 mm ±H/333 mm Transducer Frequency 5 MHz Transducer Diameter 10.8 mm Minimum Pipe Size Ø20 × 1.2 mm (diameter × wall thickness) Sound Velocity Range 1000–9999 m/s Main Unit Operating Temperature -20°C to 50°C Transducer Operating Temperature -20°C to 60°C Measurement Units mm/inch Power Supply 2 × AAA batteries Dimensions 114 × 64 × 28 mm Weight 200 g Read more Features of INSIZE Ultrasonic Thickness Gauge ISU-100D One-Side Thickness Measurement – Measures thickness without needing access to both sides of the part. 0.8–300 mm Measuring Range – Covers a wide range of thickness checks on steel. Backlit LCD Display – Gives clear readings, even in low light. Built-In 4.00 mm Calibration Block – Makes setup and calibration quick and easy. Adjustable Sound Velocity – 1000–9999 m/s range for different compatible materials. High Resolution – Choose between 0.1 mm and 0.01 mm resolution. mm/Inch Switching – Work in metric or imperial units. Compact and Lightweight – About 114 × 64 × 28 mm and 200 g, easy to carry on site. Battery Operated – Runs on two AAA batteries. Inspection Certificate – Supplied with the gauge for quality records. Materials You Can Measure The ISU-100D ultrasonic thickness tester works with these compatible materials: Steel Stainless steel Glass Copper Brass Polystyrene Titanium Plastic Nylon Resin Ceramic Results depend on the acoustic properties of each material and the correct sound velocity setting. Applications of the ISU-100D Ultrasonic Thickness Gauge Measures accurate pipe wall thickness Inspects tank wall thickness Analyses steel component thickness Assists in thickness measurement of metal sheet and plate Inspection of industrial maintenance and corrosion Quality inspection in manufacturing Engineering inspection work Routine material thickness testing A key advantage of this ultrasonic thickness gauge is that you can take readings from one side when the back of a pipe, tank, or part cannot be reached. Why Buy the INSIZE ISU-100D? INSIZE is a well-known measuring instrument product brand. The ISU-100D provides you with dependable single-side thickness readings, simple setup, and a compact build at a basic-model price. It suits maintenance teams, QC inspectors, and fabrication shops that need a precise ultrasonic thickness gauge for everyday use. Order the INSIZE ISU-100D today from BlockToBox. FAQs About the INSIZE ISU-100D Ultrasonic Thickness Gauge What is the measuring range of the ISU-100D ultrasonic thickness gauge? It measures 0.8–300 mm on steel. What is the resolution of the INSIZE ISU-100D? You can select 0.1 mm or 0.01 mm resolution. Can the ISU-100D measure thickness from one side? Yes. It is designed to measure thickness when only one side is accessible, which makes it useful for pipes and tanks. What materials can an ultrasonic thickness gauge measure? The listed materials include steel, stainless steel, glass, copper, brass, polystyrene, and titanium. Other compatible materials can be measured once the correct sound velocity is set. Can the ISU-100D measure pipe wall thickness? Yes. It is suitable for pipe thickness measurement. The minimum pipe size is Ø20 × 1.2 mm. Can the ISU-100D measure castings or aluminium? No. The manufacturer stated that the ISU-100D is not intended for castings or aluminium workpieces. What is the sound velocity range of the ISU-100D? The sound velocity range is 1000–9999 m/s. What batteries does the ISU-100D use? It works on 2 × AAA batteries. What comes in the box with the INSIZE ISU-100D? The package includes the main unit, transducer, couplant, 2 × AAA batteries, and an inspection certificate. What is the price of the INSIZE ISU-100D ultrasonic thickness gauge? The price can change based on offers, taxes, and stock. Check the current price on this product page and buy the ISU-100D online from BlockToBox. Explore More Insize Measuring Instruments Insize Digital Vernier Caliper – 1112 Series Insize Digital Height Gage With Driving Wheel – 1156 Series Insize Bore Gauge – Internal Diameter & Bore Measurement Insize Digital Outside Micrometers

Read more less

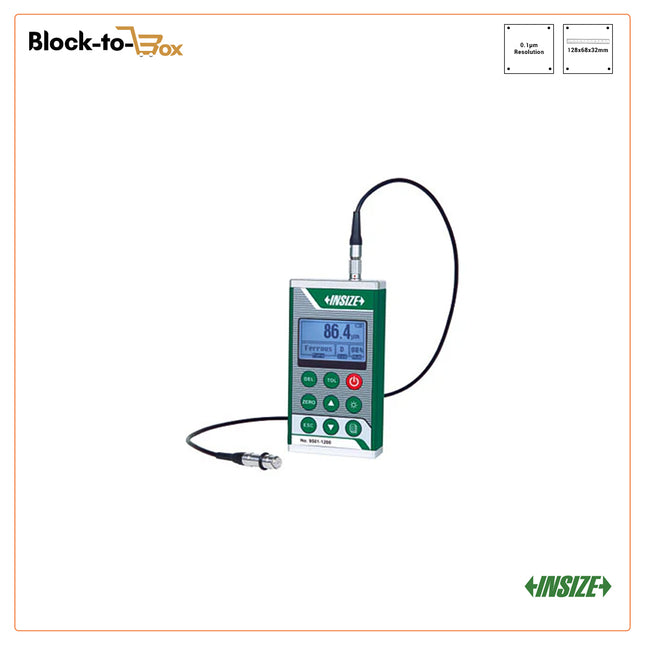

A coating thickness gauge helps to check the thickness of your metal coatings. Are you trying to find a trustworthy paint thickness gauge for industrial quality control? A professional-grade thickness gauge for precisely measuring the thickness of non-magnetic coatings on magnetic substrates is the Insize Coating Thickness Gage 9501-1200. This model is perfect for paint shops, plating industries, automotive, and manufacturing facilities since it is small, digital, and extremely accurate. This Type F model uses the magnetic induction principle to provide consistently quick, accurate, and non-destructive readings. Technical Specifications Item Code / Model 9501-1200 Brand Insize Type F (Magnetic Induction - FE Probe) Measuring Range 0 - 1250 µm Resolution 0.1µm (range < 100 µm), 1µm (range > 100 µm) Accuracy ±(3%L+1)µm (range ≤1250µm) Minimum Measurement Area 7 mm (Ø7 mm) Minimum Substrate Thickness 0.5 mm Minimum Curvature Radius Convex workpiece compatible Substrate Steel, Iron, Magnetic Stainless Steel Coating Measurable Zinc, Copper, Chrome, Tin, Plastic, Powder, Paint (nickel not included) Power Supply 2 x AA 1.5V Batteries Interface Type-C + Bluetooth Dimension 128 x 68 x 32 mm Weight 340g Read more ▼ Key Features of 9501-1200 Thickness Gauge High-precision Measurement: ±(3%L+1)µm precision is achieved when measuring non-magnetic coatings on steel, iron, and magnetic stainless steel. Wide Range: Measuring range 0-1250 µm for all standard industrial coatings Smart Functions: Low and high limit setting with PASS/FAIL judgment, automatic average calculation Data Management: Data statistics including average, variance, maximum and minimum values Connectivity: Bluetooth and Data Output - Data can be sent directly to Excel via Bluetooth / Type-C cable receiver and supports Bluetooth printer User Friendly: Digital display, automatic power off, and it works on 2 x 1.5V AA batteries. Applications of Coating Thickness Gauges Paint industry and Powder Coating Industry: Gauges assist in determining paint thickness on metal bodies. Electroplating & Galvanising Units: Helps measure thickness of zinc, copper, chrome, and tin. Automotive and Aerospace industry: Aids in examining automobile bodywork and aircraft components for quality QA/QC for metal fabrication and corrosion protection in manufacturing and laboratories Steel Structure Inspection: Verifying that coating satisfies anti-corrosion requirements Advantages of Insize Coating Thickness Measurement Non-Destructive Testing: Coating and Substrate are not harmed Prevents overcoating and undercoating to ensure quality and compliance and reduce material costs. Enhances Corrosion Protection: Product ensures the coating is as per the required standard Time reduction and effort savings: rapid digital reading with a single press Professional Reporting: Export data to Excel for documentation and auditing in a professional manner. What is the difference between coating thickness gauge and ultrasonic thickness gauge? Paint or coating on the surface of metal is measured using a coating thickness gauge. The metal's thickness is measured from one side using an ultrasonic thickness gauge such as the ISU-100D. A coating gauge is needed to examine paint, and an ultrasonic is needed to measure the thickness of metallic walls. FAQs About Insize 9501-1200 Is it possible to use a flat calibration foil on curved workpieces? No, calibrate the device using a standard film sample on an uncoated substrate sample with the same curvature prior to measurement to ensure reliable readings on curved surfaces. Is it possible to monitor a workpiece at a high temperature directly? It is not advised. Elevated temperatures have the potential to impact the probe and result in inaccurate measurements. Before taking a measurement, please let the workpiece cool to room temperature. Will the reading change if I measure too near the edge? Indeed. Inaccurate measurements may result from the magnetic field or eddy current leaking at the edge if the probe is positioned too close. The measuring point should always be kept away from the edge. What is the coating thickness gauge price? Coating thickness Gauge Insize comes to around INR 27200 approx. The real price may vary slightly; please check on blocktobox.com for the current price of the paint thickness gauge. Explore More Insize Measuring Instruments Insize Ultrasonic Thickness Gage Insize Digital Height Gage With Driving Wheel – 1156 Series Insize Bore Gauge – Internal Diameter & Bore Measurement Insize Digital Outside Micrometers Read less ▲

Read more less
