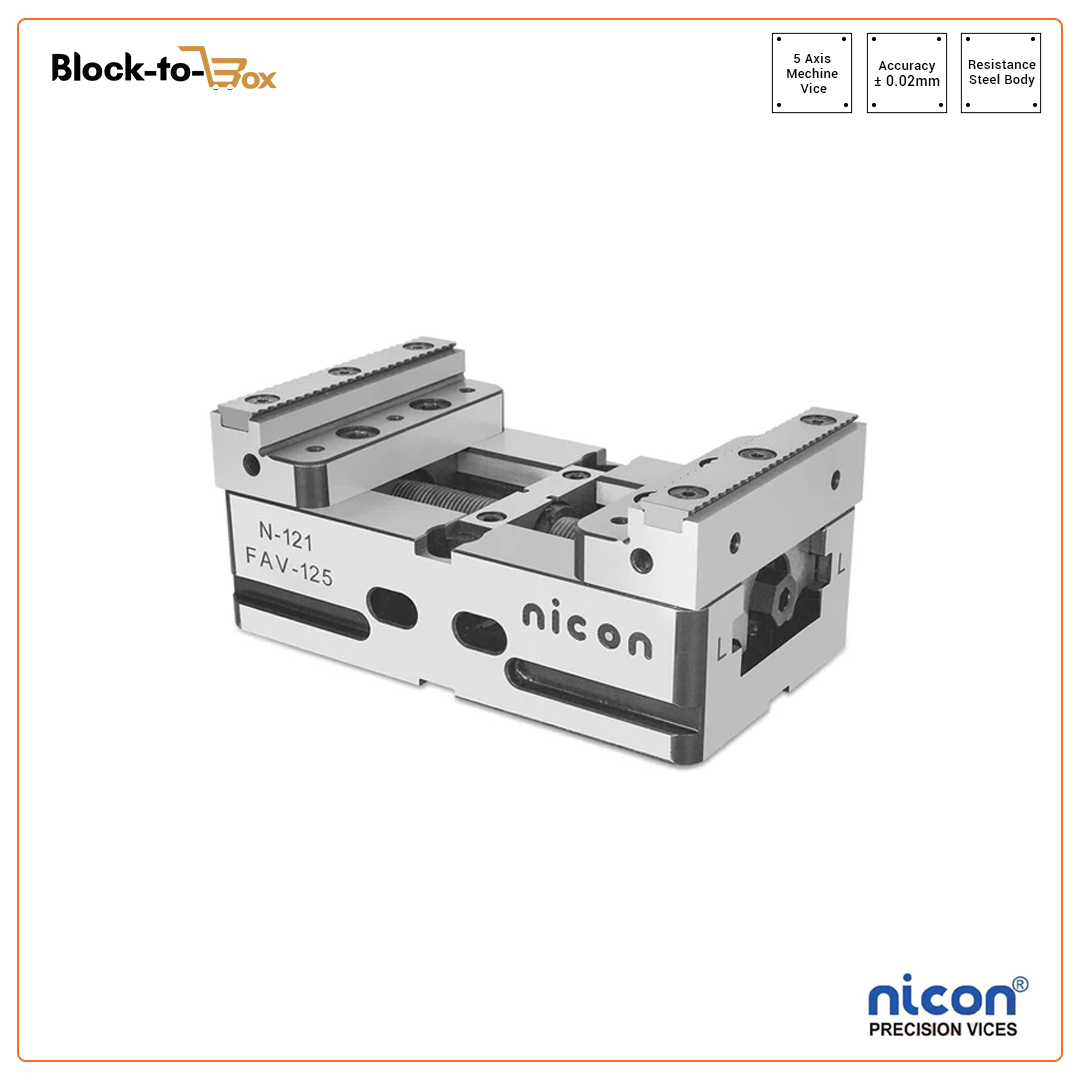

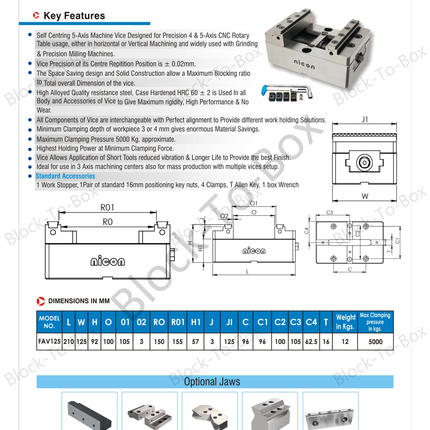

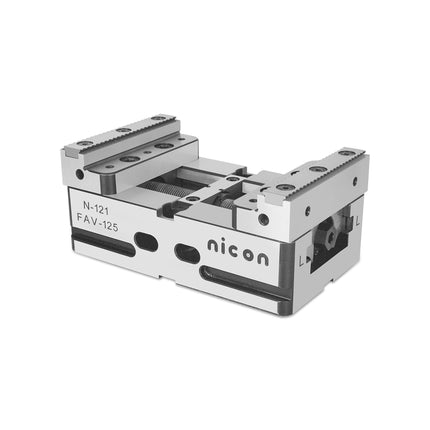

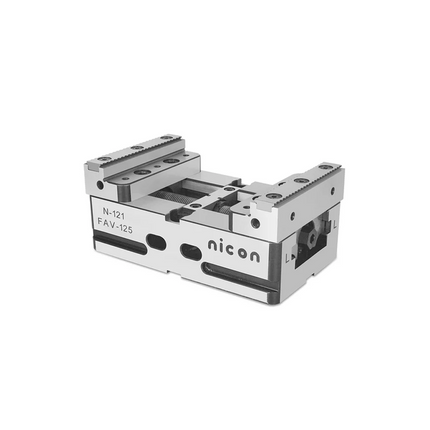

FEATURES:
• Self centering 5-axis machine vice designed for precision 4 and 5-Axis CNC rotary table usage, either in horizontal or vertical machining and widely used with Grinding & Precision Milling Machines.
•Vice precision of its centre repetition position is ±0.02mm.
•The space-saving design and solid construction allow a maximum blocking ratio to total overall dimension of the vice.
• High alloyed quality resistance steel, case hardened HRC 60±2 is used in all body and accessories of vice to give maximum rigidity, high performance & no wear.
• All components of vice are interchangeable with perfect alignment to provide different work holding solutions.
• Minimum clamping depth of workpiece 3 mm gives enormous material savings.
• Maximum clamping pressure 5000 kg. approximate.
• Highest holding power at minimum clamping force. Vice allows application of short tools reduced vibration longer life to provide the best finish.
• Ideal for use in 3 Axis machining centers also for mass production with multiple vices setup.
• Same bed hight maintained for gang milling operations.
STANDARD ACCESSORIES
• 1 Work Stopper, 3 Pc. of standard 15mm positioning Pins
• T Allen Key, 1 box Wrench

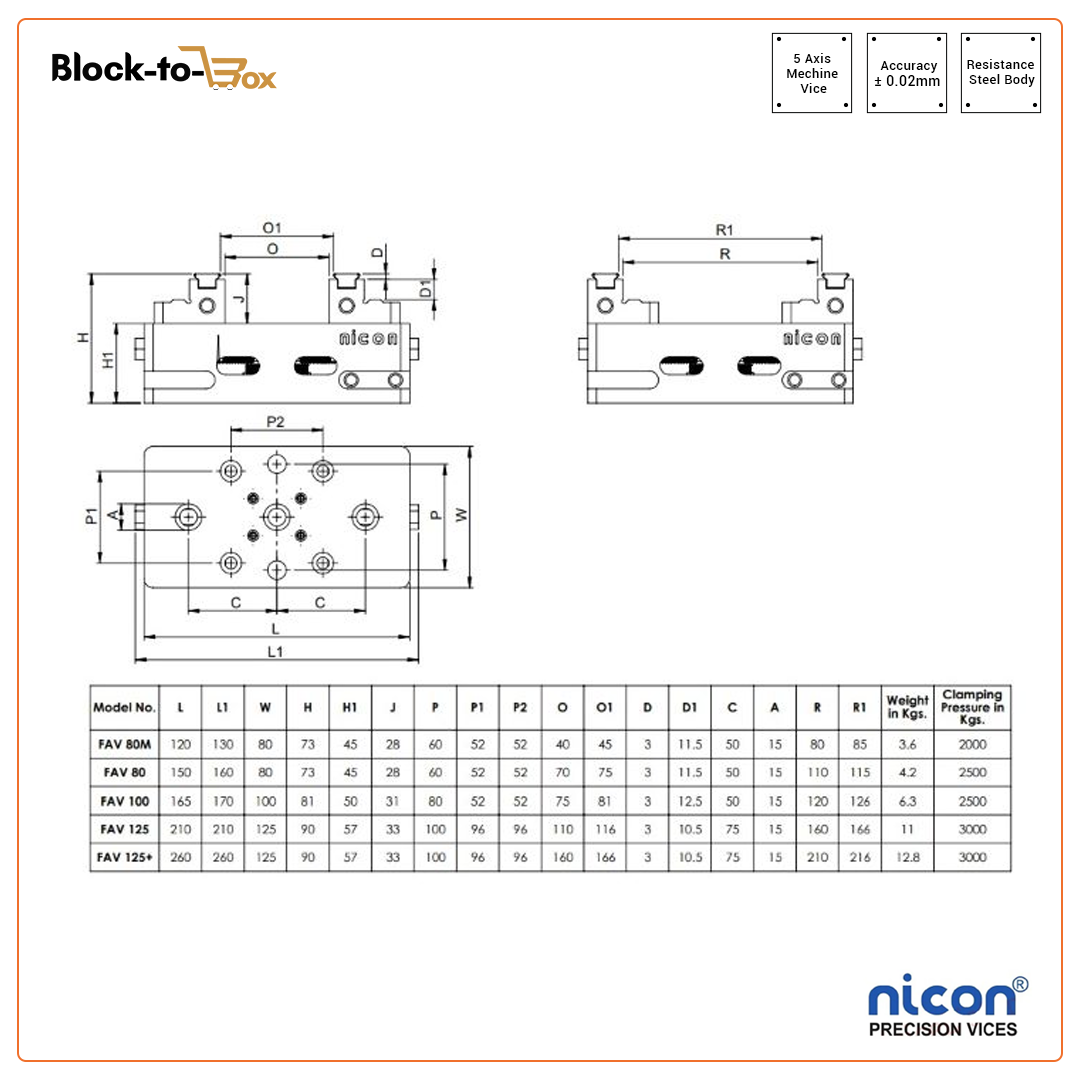

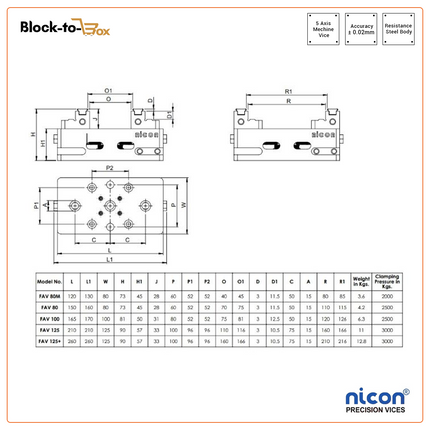

DIMENSIONS IN MM
OPTIONAL JAWS
