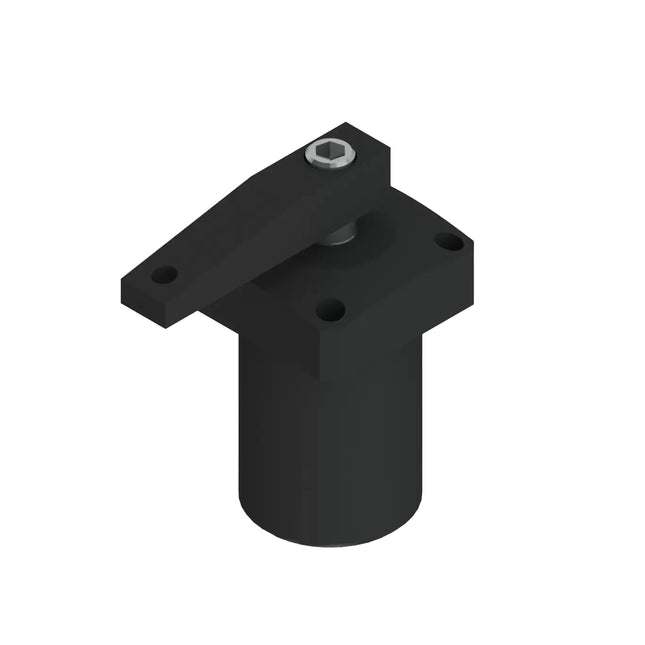

NPSU‐Series Pneumatic Swing Clamp Upper Flange Version Features Design Benefits: No fixture hole required. Cylinder can be bolted directly to the fixture. Easiest mounting preparation in the swing clamp line. Square flange design enables clamping on all four sides of the clamp. Suitable for clamping extra-large parts. Specifications Material and Design: Material: Aluminum Alloy Body Finish: Black Anodizing Acting Type: Double Acting Force: 16-140 kgs Total Stroke: 27-32 mm Working Pressure: 4-7 Bar Swivel Angle: 90° ±2° Technical Details Model No Weight (Kgs) Piston Dia. (mm) Bore Dia. (mm) Swing Stroke (mm) Clamping Stroke (mm) Force in Kgs (5 kg/cm²) SC-25-NPUF-R / L 0.700 14 25 14 14 16 SC-32-NPUF-R / L 0.800 16 32 14 14 30 SC-40-NPUF-R / L 0.850 16 40 14 14 50 SC-50-NPUF-R / L 1.000 20 50 14 15 85 SC-63-NPUF-R / L 1.200 20 63 15 15 140 Dimensions Model No D Sq. A Clamped C G H J NCB L P SC-25-NPUF-R / L 16 50 50 6 M6 23 25 50 87 SC-32-NPUF-R / L 19 60 60 9 M8 23 25 60 98 SC-40-NPUF-R / L 19 70 65 9 M8 26 25 65 103 SC-50-NPUF-R / L 25 80 75 10 M12 32 25 75 110 SC-63-NPUF-R / L 25 90 90 10 M12 35 25 90 110

Read more less

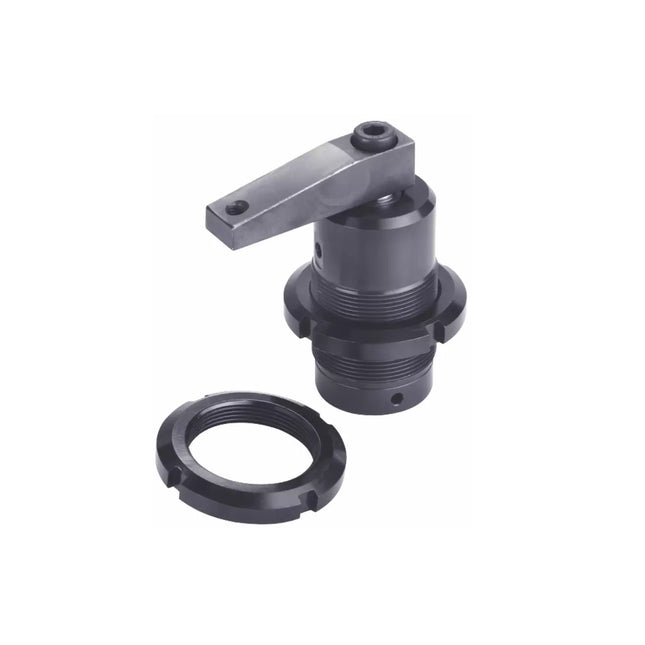

Pneumatic Swing Clamp Threaded Body Model - Right Swing Threaded Body Model - Left Swing Key Features: Body thread for precise cylinder height positioning. Threaded port connection. Available with two flange nuts. Material Specifications: Material: Aluminum Alloy Body Finish: Black Anodizing Acting Type: Double Acting Force: 16-140 kgs Total Stroke: 28-30 mm Working Pressure: 4-7 Bar Swivel Angle: 90° ±2° Technical Table: Model No Weight (Kgs) Piston Dia. (mm) Bore Dia. (mm) Swing Stroke (mm) Clamping Stroke (mm) Force in Kgs (5 kg/cm²) Dimensions A (Clamped) B C D E SC-25-PT-R / SC-25-PT-L 0.800 14 25 14 14 16 76 70 10 16 35 SC-32-PT-R / SC-32-PT-L 1.100 16 32 14 16 30 83 79 13 19 40 SC-40-PT-R / SC-40-PT-L 1.250 16 40 14 15 50 87 83 13 19 45 SC-50-PT-R / SC-50-PT-L 1.700 20 50 14 14 85 92 87 13 25 50 SC-63-PT-R / SC-63-PT-L 2.200 20 63 15 15 140 97 92 13 25 56 Dimensions (Contd.): Model No G H J L M P S SC-25-PT-R / SC-25-PT-L M8x1.25 M5x0.8 9 58 M40 x 1.5 SC-32-PT-R / SC-32-PT-L M8x1.25 G1/8 11 70 M50 x 1.5 SC-40-PT-R / SC-40-PT-L M8x1.25 G1/8 11 75 M55 x 1.5 SC-50-PT-R / SC-50-PT-L M12x1.5 G1/8 12 85 M65 x 1.5 SC-63-PT-R / SC-63-PT-L M12x1.5 G1/8 15 105 M80 x 1.5

Read more less

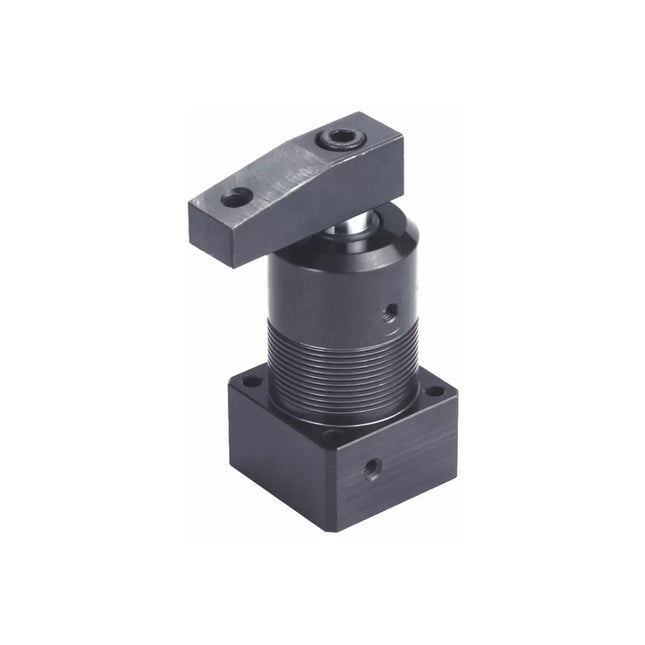

PSF‐Series Pneumatic Swing Clamp Lower Flange Version Features Design Benefits: Cylinder can be bolted directly to the fixture. Easiest mounting preparation in the swing clamp line. Square flange design enables clamping on all four sides of the clamp. Suitable for clamping extra-large parts. No Fixture Hole Required. Specifications Material and Design: Material: Aluminum Alloy Body Finish: Black Anodizing Acting Type: Double Acting Force: 16-140 kgs Total Stroke: 26-29 mm Working Pressure: 4-7 Bar Swivel Angle: 90° ±2° Technical Details: Model No Weight (Kgs) Piston Dia. (mm) Bore Dia. (mm) Swing Stroke (mm) Clamping Stroke (mm) Force in Kgs (5 kg/cm²) SC-25-PLF-R / SC-25-PLF-L 0.400 14 25 12 14 16 SC-32-PLF-R / SC-32-PLF-L 0.700 16 32 12 14 30 SC-40-PLF-R / SC-40-PLF-L 0.850 16 40 12 14 50 SC-50-PLF-R / SC-50-PLF-L 1.300 20 50 14 15 85 SC-63-PLF-R / SC-63-PLF-L 1.800 20 63 14 15 140 Dimensions: Model No D Sq. A Clamped C G H J MCB L P SC-25-PLF-R / L 16 35 30 8 M8x1.25 23 30 40 65.5 SC-32-PLF-R / L 19 50 50 9 M8x1.25 23 44 54 71 SC-40-PLF-R / L 19 55 50 9 M8x1.25 26 48 58 75 SC-50-PLF-R / L 25.4 65 70 10 M10x1.5 26 55 68 80 SC-63-PLF-R / L 25.4 75 70 10 M10x1.5 30 64 80 86

Read more less

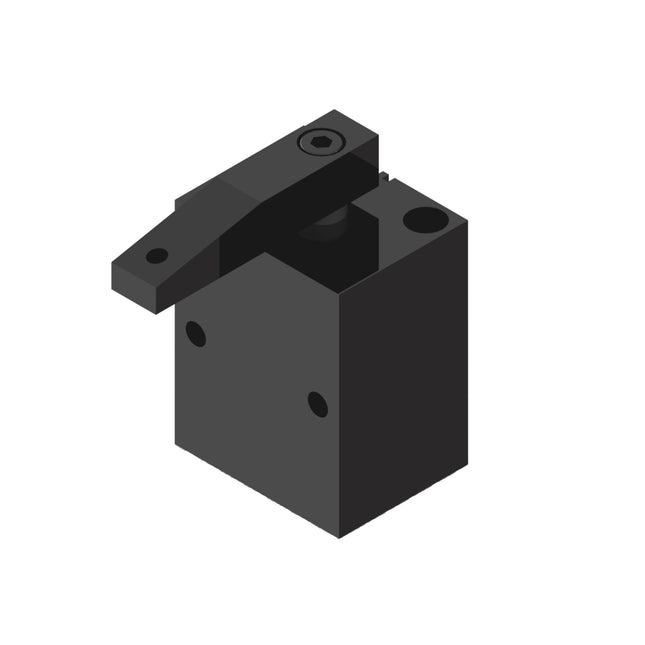

Features Block design permits the clamp to be mounted from three different faces. Grooves on one side for Reed switch mounting. Simple mounting preparation and easy installation with 2 or 4 mounting bolts. Specifications Material and Design: Material: Aluminum Alloy Body Finish: Black Anodizing Acting Type: Double Acting Force: 16-140 kgs Total Stroke: 27-32 mm Working Pressure: 4-7 Bar Swivel Angle: 90° ±2° Technical Details Model No Weight (Kgs) Piston Dia. (mm) Bore Dia. (mm) Swing Stroke (mm) Clamping Stroke (mm) Force in Kgs (5 kg/cm²) SC-25-PB-R / L 0.700 14 25 13 14 16 SC-32-PB-R / L 0.900 16 32 16 14 30 SC-40-PB-R / L 1.100 16 40 15 15 50 SC-50-PB-R / L 1.200 20 50 17 15 85 SC-63-PB-R / L 1.400 20 63 15 15 140 Dimensions Model No D Sq. A Clamped C G H J NCB L P SC-25-PB-R / L 16 50 35 6 M6x1.00 21 40 78 82 SC-32-PB-R / L 19 60 45 9 M8x1.25 21 45 90 96 SC-40-PB-R / L 19 70 55 9 M8x1.25 22 52 90 96 SC-50-PB-R / L 25 80 65 10 M12x1.5 25 66 100 105 SC-63-PB-R / L 25 90 80 10 M12x1.5 28 80 100 107
