Vertical Hold Down Action With Additional Locking Mechanism(VTC): As the name implies clamps of this type hold the work piece with a downward clamping action. These clamps are manufactured with a holding capacity upto 3000kgs. The Clamping Exhibits a minimum of 90 deg opening angle giving full clearance for loading& unloading of workpiece. Clamping arm can be solid bar, U shaped or fixed hole to suit individual requirements. The SF Series have solid hold down bar which has a fixed guide bush at its end for the spindle assembly. The SB Series have a "U" bar arm which the bolt retainer can be welded at any desired angle. The UB Series have a "U" bar arm which enables one or more spindles to be moved into any desired position along the arm.

Read more less

Vertical Hold Down Action With Additional Locking Mechanism(VTC): In the VTC Series, Toggle Clamps from Steel Smith employ a downward clamping action to secure workpieces, boasting a robust holding capacity of up to 3000 kgs. With a minimum 90 degree opening angle, these clamps facilitate easy loading and unloading of workpieces. The clamping arm options include solid bar, U-shaped, or fixed hole configurations, catering to individual needs. Features Series Details: SF Series: Solid hold-down bar with a fixed guide bush for the spindle assembly. SB Series: 'U' bar arm allows the bolt retainer to be welded at any desired angle. UB Series: 'U' bar arm permits one or more spindles to be moved to any desired position along the arm. Specifications Material and Finish: Material: Steel Finish: Zinc Plated Technical Details: Model No Material Finish Arm Type Base Type Holding Capacity VTC-50125-UB-BS Steel Zinc Plated Adjustable Arm Straight Base 3.40 kN VTC-50125-SF-BS Steel Zinc Plated Spindle Fixed Straight Base 3.40 kN VTC-50125-SB-BS Steel Zinc Plated Solid Arm Straight Base 3.40 kN VTC-85150-UB-BS Steel Zinc Plated Adjustable Arm Straight Base 5.90 kN VTC-85150-SF-BS Steel Zinc Plated Spindle Fixed Straight Base 5.90 kN VTC-85150-SB-BS Steel Zinc Plated Solid Arm Straight Base 5.90 kN Dimensions Model No Handle Opening Bar Opening Weight (Kgs) A1 B1 C D E F G H J K T VTC-50125-UB-BS 120° 72° 0.910 240.5 132 76 25 11 45 8 138 8.5 M12 VTC-50125-SF-BS 120° 72° 0.910 240 133 75 25 11 45 8 138 8.5 M12 VTC-50125-SB-BS 120° 72° 0.910 233 133 75 25 11 45 8 130 8.5 M12 VTC-85150-UB-BS 107° 75° 2.450 358 202.5 116 45 15 76 10 162 8.5 M16 VTC-85150-SF-BS 107° 75° 2.450 355 203.5 116 45 15 76 10 165 8.5 M16 VTC-85150-SB-BS 107° 75° 2.450 338 201.5 116 45 15 76 10 142 8.5 M16

Read more less

Vertical Hold Down Action With Additional Locking Mechanism(VTC): As the name implies clamps of this type hold the work piece with a downward clamping action. These clamps are manufactured with a holding capacity upto 3000kgs. The Clamping Exhibits a minimum of 90 deg opening angle giving full clearance for loading& unloading of workpiece. Clamping arm can be solid bar, U shaped or fixed hole to suit individual requirements. The SF Series have solid hold down bar which has a fixed guide bush at its end for the spindle assembly. The SB Series have a "U" bar arm which the bolt retainer can be welded at any desired angle. The UB Series have a "U" bar arm which enables one or more spindles to be moved into any desired position along the arm.

Read more less

Vertical Hold Down Action With Additional Locking Mechanism(VTC): As the name implies clamps of this type hold the work piece with a downward clamping action. These clamps are manufactured with a holding capacity upto 3000kgs. The Clamping Exhibits a minimum of 90 deg opening angle giving full clearance for loading& unloading of workpiece. Clamping arm can be solid bar, U shaped or fixed hole to suit individual requirements. The SF Series have solid hold down bar which has a fixed guide bush at its end for the spindle assembly. The SB Series have a "U" bar arm which the bolt retainer can be welded at any desired angle. The UB Series have a "U" bar arm which enables one or more spindles to be moved into any desired position along the arm.

Read more less

Vertical Hold Down Action With Additional Locking Mechanism(VTC): As the name implies clamps of this type hold the work piece with a downward clamping action. These clamps are manufactured with a holding capacity upto 3000kgs. The Clamping Exhibits a minimum of 90 deg opening angle giving full clearance for loading& unloading of workpiece. Clamping arm can be solid bar, U shaped or fixed hole to suit individual requirements. The SF Series have solid hold down bar which has a fixed guide bush at its end for the spindle assembly. The SB Series have a "U" bar arm which the bolt retainer can be welded at any desired angle. The UB Series have a "U" bar arm which enables one or more spindles to be moved into any desired position along the arm.

Read more less

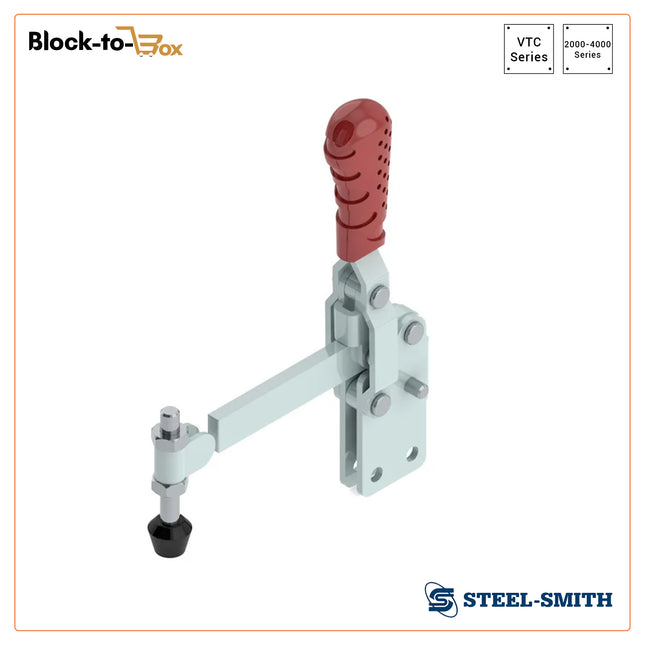

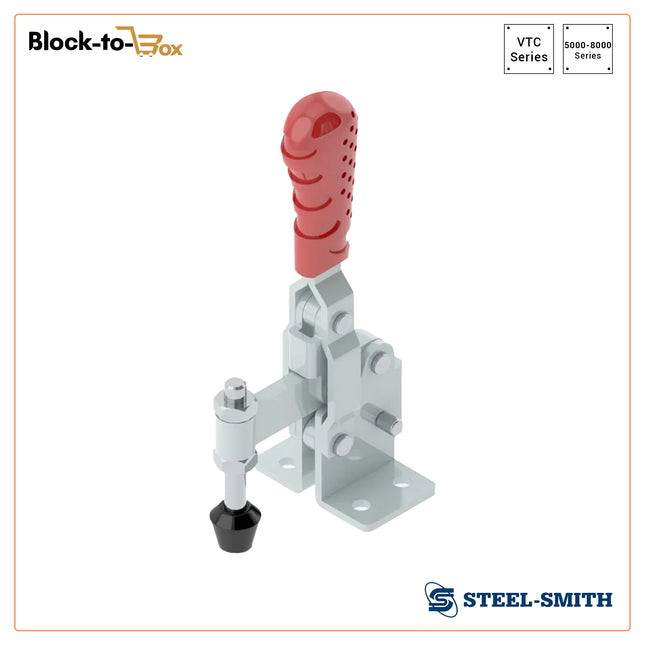

Toggle Clamps-Vertical Hold Down Action In the VTC Series, Toggle Clamps from Steel Smith employ a downward clamping action to secure workpieces, boasting a robust holding capacity of up to 3000 kgs. With a minimum 90 degree opening angle, these clamps facilitate easy loading and unloading of workpieces. The clamping arm options include solid bar, U-shaped, or fixed hole configurations, catering to individual needs. Features Series Details: SF Series: Solid hold-down bar with a fixed guide bush for the spindle assembly. SB Series: 'U' bar arm allows the bolt retainer to be welded at any desired angle. UB Series: 'U' bar arm permits one or more spindles to be moved to any desired position along the arm. Specifications Material and Finish: Material: Steel Finish: Zinc Plated Technical Details: Model No Material Finish Arm Type Base Type Holding Capacity VTC-5040-SF Steel Zinc Plated Spindle Fixed Flanged Base 3.40 kN VTC-50125-UB Steel Zinc Plated Adjustable Arm Flanged Base 3.40 kN VTC-50125-SF Steel Zinc Plated Spindle Fixed Flanged Base 3.40 kN VTC-50125-SB Steel Zinc Plated Solid Arm Flanged Base 3.40 kN VTC-85150-UB Steel Zinc Plated Adjustable Arm Flanged Base 5.90 kN VTC-85150-SF Steel Zinc Plated Spindle Fixed Flanged Base 5.90 kN VTC-85150-SB Steel Zinc Plated Solid Arm Flanged Base 5.90 kN Dimensions Model No Handle Opening Bar Opening Weight (Kgs) A1 B1 C D E F G H J K T VTC-5040-SF 120° 71° 0.750 143 50 50 45 54.2 138 50 113 8.5 M10 VTC-50125-UB 120° 72° 0.880 215 60 50 45 60 130 50 128 8.5 M12 VTC-50125-SF 120° 72° 0.880 215 60 50 45 60 130 50 128 8.5 M12 VTC-50125-SB 120° 72° 0.880 208 60 50 45 60 130 50 128 8.5 M12 VTC-85150-UB 107° 75° 2.510 322 85 72 45 75 162 85 211.5 8.5 M16 VTC-85150-SF 107° 75° 2.510 335 85 72 45 75 165 85 210 8.5 M16 VTC-85150-SB 107° 75° 2.510 303 85 72 45 75 142 85 210 8.5 M16

Read more less

Toggle Clamps-Vertical Hold Down Action In the VTC Series, Toggle Clamps from Steel Smith employ a downward clamping action to secure workpieces, boasting a robust holding capacity of up to 3000 kgs. With a minimum 90 degree opening angle, these clamps facilitate easy loading and unloading of workpieces. The clamping arm options include solid bar, U-shaped, or fixed hole configurations, catering to individual needs. Features Series Details: SF Series: Solid hold-down bar with a fixed guide bush for the spindle assembly. SB Series: 'U' bar arm, allowing the bolt retainer to be welded at any desired angle. UB Series: 'U' bar arm enables one or more spindles to be moved into any desired position along the arm. Specifications Material and Finish: Material: Steel or Stainless Steel (304) Finish: Zinc Plated or Electro Polished (for stainless steel models) Technical Details: Model No Material Finish Arm Type Base Type Holding Capacity VTC-1625-UB Steel Zinc Plated Adjustable Arm Flanged Base 0.50 kN VTC-1625-SF Steel Zinc Plated Spindle Fixed Flanged Base 0.20 kN VTC-2535-UB Steel Zinc Plated Adjustable Arm Flanged Base 1.00 kN VTC-2535-SF Steel Zinc Plated Spindle Fixed Flanged Base 0.50 kN VTC-2535-SB Steel Zinc Plated Solid Arm Flanged Base 1.00 kN VTC-1625-UB-SS Stainless Steel (304) Electro Polished Adjustable Arm Flanged Base 0.50 kN VTC-2535-UB-SS Stainless Steel (304) Electro Polished Adjustable Arm Flanged Base 1.00 kN   Dimensions Table: Model No Handle Opening Bar Opening Weight (Kgs) A B C D E F G H J K T VTC-1625-UB 101° 60° 0.080 24 25 16 33 23 86 56 31 4.5 M5 VTC-1625-SF 101° 60° 0.080 24 25 16 33 23 86 56 31 4.5 M5 VTC-2535-UB 104° 64° 0.220 27 30 25 38 32 129 75 45 5.5 M6 VTC-2535-SF 104° 64° 0.220 27 30 25 38 32 129 75 45 5.5 M6 VTC-2535-SB 104° 64° 0.220 27 30 25 38 32 129 75 45 5.5 M6 VTC-1625-UB-SS 101° 60° 0.080 24 25 16 33 23 86 56 31 4.5 M5 VTC-2535-UB-SS 104° 64° 0.220 27 30 25 38 32 129 75 45 5.5 M6   Technical Details: Model No Material Finish Arm Type Base Type Holding Capacity VTC-3050-UB Steel Zinc Plated Adjustable Arm Flanged Base 1.50 kN VTC-3670-UB Steel Zinc Plated Adjustable Arm Flanged Base 2.00 kN VTC-3670-SF Steel Zinc Plated Spindle Fixed Flanged Base 2.00 kN VTC-3670-SB Steel Zinc Plated Solid Arm Flanged Base 2.00 kN VTC-4595-UB Steel Zinc Plated Adjustable Arm Flanged Base 3.90 kN VTC-4595-SF Steel Zinc Plated Spindle Fixed Flanged Base 3.90 kN VTC-4595-SB Steel Zinc Plated Solid Arm Flanged Base 3.90 kN VTC-3670-UB-SS Stainless Steel (304) Electro Polished Adjustable Arm Flanged Base 2.00 kN VTC-4595-UB-SS Stainless Steel (304) Electro Polished Adjustable Arm Flanged Base 3.90 kN Dimensions Model No Handle Opening Bar Opening Weight (Kgs) A B C D E F G H J K T VTC-3050-UB 110° 85° 0.350 46.5 145 66 35 46 50 35 115 7.2 M8 VTC-3670-UB 110° 115° 0.410 61.5 180 66 35 58 80 35 152 6.5 M8 VTC-3670-SF 110° 115° 0.410 61.5 180 66 35 58 80 35 152 6.5 M8 VTC-3670-SB 110° 115° 0.410 61.5 180 66 35 58 80 35 152 6.5 M8 VTC-4595-UB 120° 151° 0.820 79 205 86 45 82 105 45 182 8.5 M10 VTC-4595-SF 120° 151° 0.820 79 205 86 45 82 105 45 182 8.5 M10 VTC-4595-SB 120° 151° 0.820 79 205 86 45 82 105 45 182 8.5 M10
