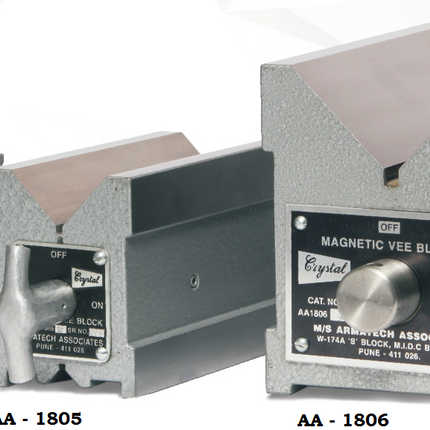

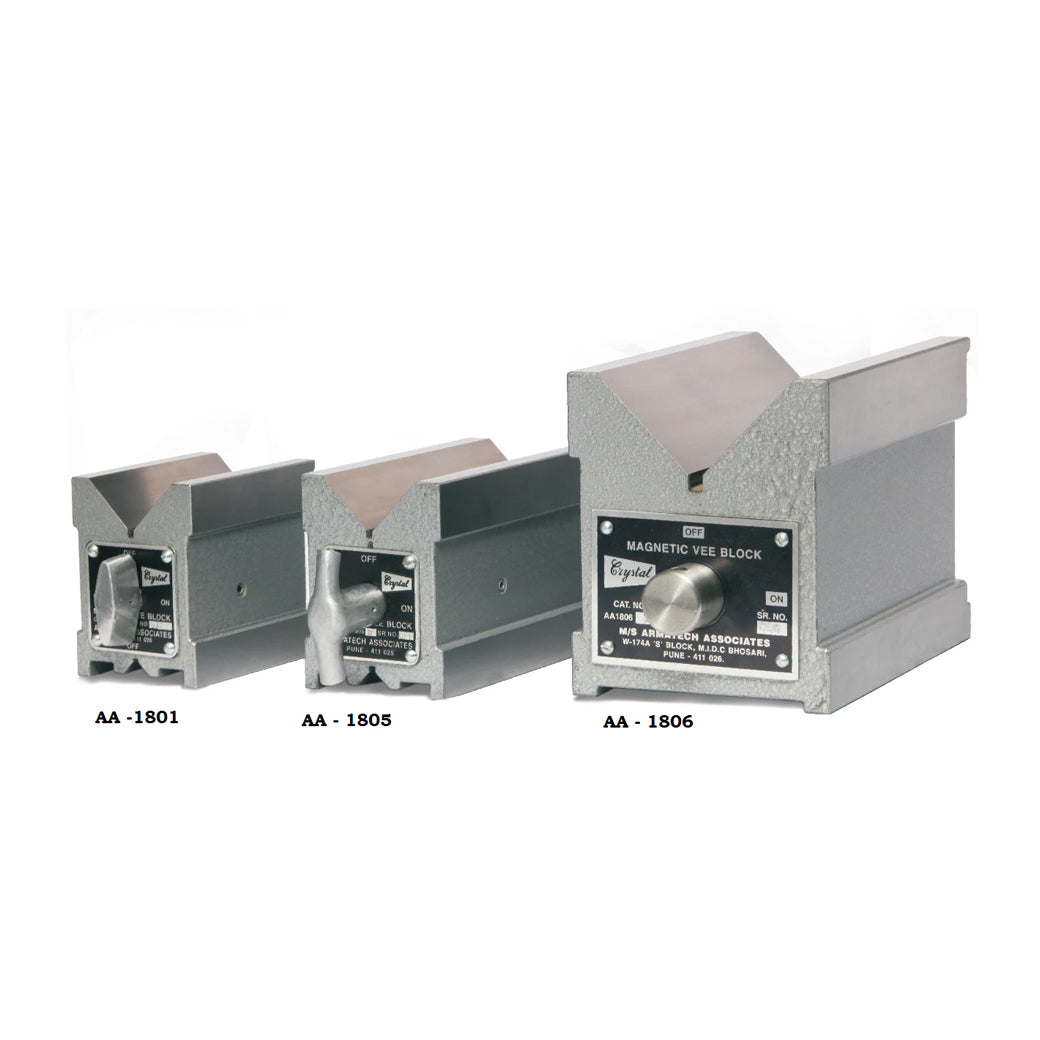

Crystal Magnetic 'V' Blocks Series AA-180-PAIR

Description

• Accuracy for Flatness, squareness & Parallelism within 0.005mm for 2″, 3″, 4”, 6” & 0.010mm for 8” ‘V’ blocks.
• The main ’V’ angle & the bottom holding surface are equipped with hardened HSS Blades that ensure extra wear resistance in hardened series.
• Uniform & Strong magnetic pull to all three magnetic surfaces that is top, bottom & two ’V’ grooves.
• Hardness of ’V’ face 58 HRC + 2 HRC.
• 60”, 108”, 120” ‘V’ angles are also available.
• Easy ON-OFF facility.

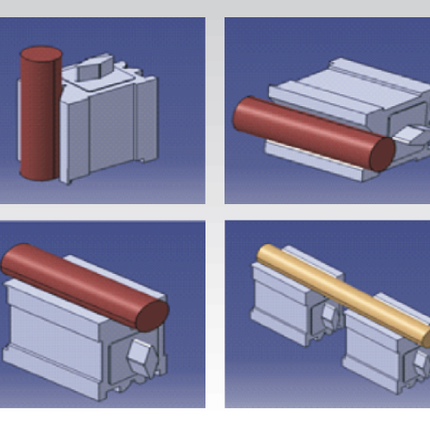

• Used for Grinding, Light milling, Drilling & Inspection of Round & Square jobs.
• The magnetic system is shielded from penetration of moisture & cannot be damaged by coolants or other fluids.

Read more

Crystal Magnetic 'V' Blocks Series AA-180-PAIR

Product form

SKU: AA-1803H

• Accuracy for Flatness, squareness & Parallelism within 0.005mm for 2″, 3″, 4”, 6” & 0.010mm for 8” ‘V’ blocks.•... Read more

Rs. 3,990.00 Excl. GST

    • Armatech Associates
    • Shop Now for Quick Delivery on In-Stock Items!
    • Discover the Quality Difference: Shop Our Collection of 100% Genuine Products.

    • Shop Confidently and Quickly with our Express Checkout Option!

    Description

    • Accuracy for Flatness, squareness & Parallelism within 0.005mm for 2″, 3″, 4”, 6” & 0.010mm for 8” ‘V’ blocks.
    • The main ’V’ angle & the bottom holding surface are equipped with hardened HSS Blades that ensure extra wear resistance in hardened series.
    • Uniform & Strong magnetic pull to all three magnetic surfaces that is top, bottom & two ’V’ grooves.
    • Hardness of ’V’ face 58 HRC + 2 HRC.
    • 60”, 108”, 120” ‘V’ angles are also available.
    • Easy ON-OFF facility.
    • Used for Grinding, Light milling, Drilling & Inspection of Round & Square jobs.
    • The magnetic system is shielded from penetration of moisture & cannot be damaged by coolants or other fluids.

    Read more
