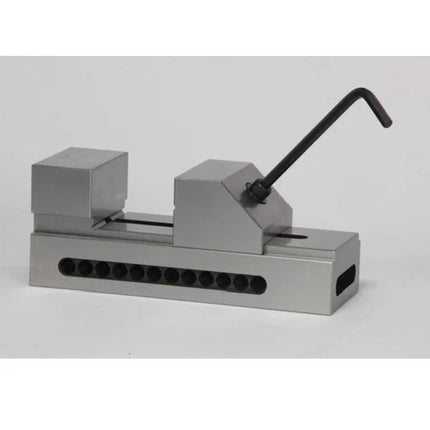

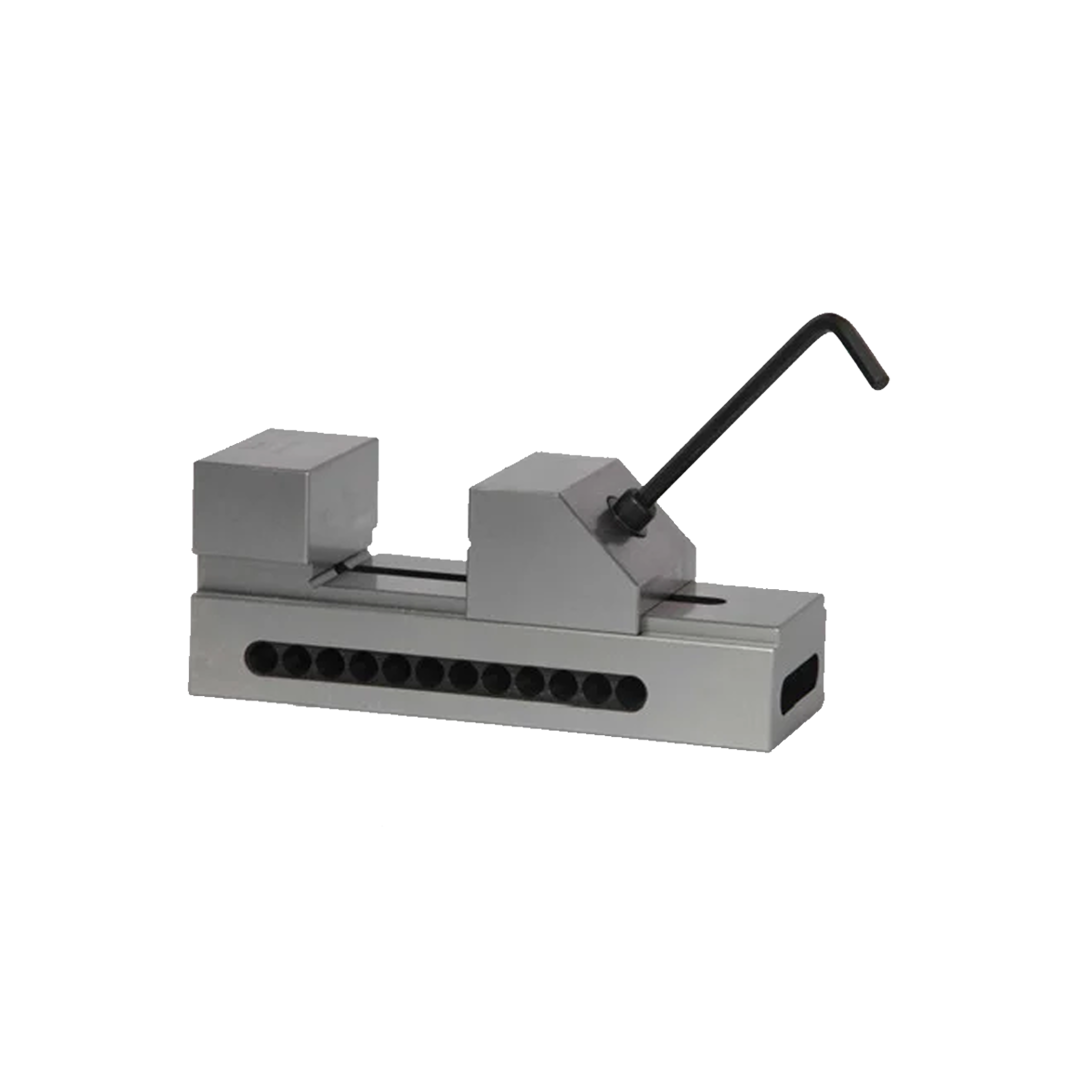

Crystal Hardened & Ground Precision Grinding Vice

Description

Features:
  • For high accuracy light Machining, Grinding, Inspection or marking out of precision components.
  • Vice can be used, standing on its base, sides, end or top.
  • Guaranteed 0.005/100mm for parallelism, Flatness & Squareness with the vice in any position.
  • Manufactured from high grade oil hardening steel, hardened & tempered to ensure stability & accuracy throughout the unit’s working life.

Specification:
Sr.No. Cat No. Overall Size ( LXWXH ) Jaw Opening (Q) Height oflaw(M)
1. AA-4801 150X48X60 mm 0-75 mm 30 mm
2. AA-4802 180X63X70 mm 0-90 mm 35 mm
3. AA-4803 200X73X80 mm 0-100 mm 40 mm

Crystal Hardened & Ground Precision Grinding Vice

Product form

Features: For high accuracy light Machining, Grinding, Inspection or marking out of precision components. Vice can be used, standing on... Read more

Rs. 3,950.00 Excl. GST

    • Armatech Associates
    • Shop Now for Quick Delivery on In-Stock Items!
    • Discover the Quality Difference: Shop Our Collection of 100% Genuine Products.
    • Shop Confidently and Quickly with our Express Checkout Option!

    Description

    Features:
    • For high accuracy light Machining, Grinding, Inspection or marking out of precision components.
    • Vice can be used, standing on its base, sides, end or top.
    • Guaranteed 0.005/100mm for parallelism, Flatness & Squareness with the vice in any position.
    • Manufactured from high grade oil hardening steel, hardened & tempered to ensure stability & accuracy throughout the unit’s working life.

    Specification:
    Sr.No. Cat No. Overall Size ( LXWXH ) Jaw Opening (Q) Height oflaw(M)
    1. AA-4801 150X48X60 mm 0-75 mm 30 mm
    2. AA-4802 180X63X70 mm 0-90 mm 35 mm
    3. AA-4803 200X73X80 mm 0-100 mm 40 mm
