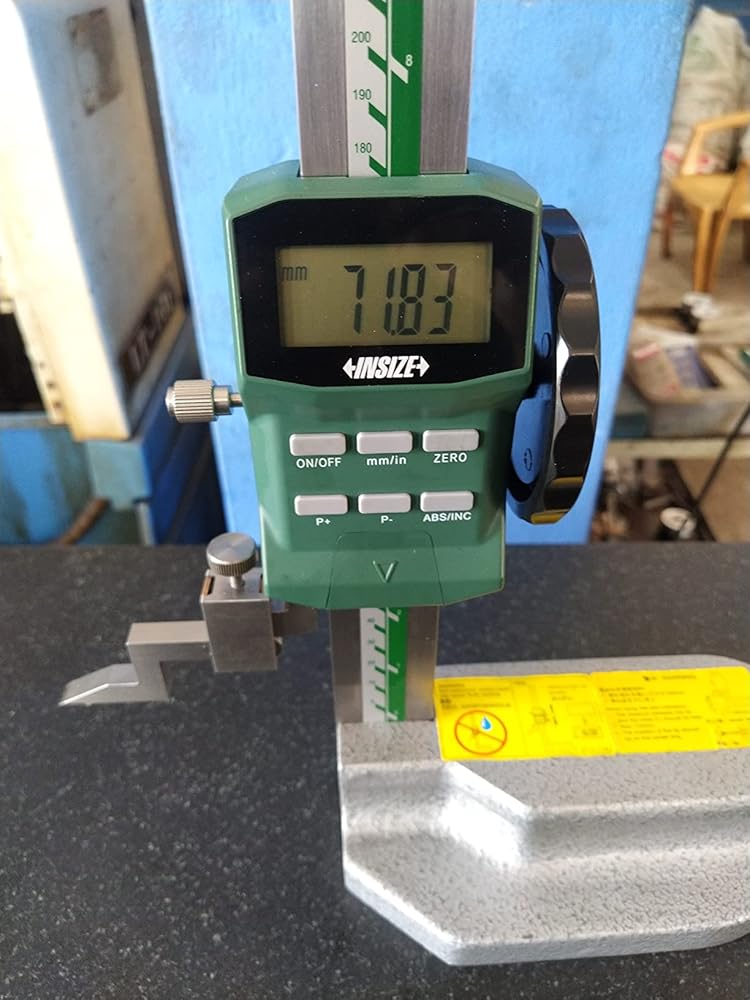

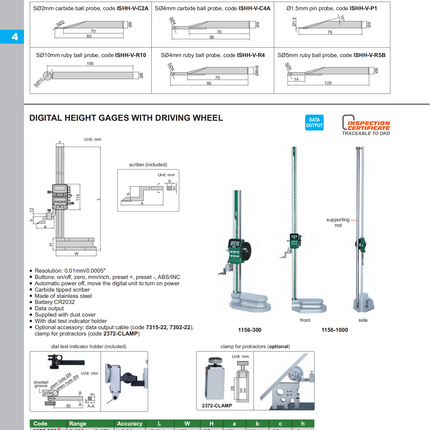

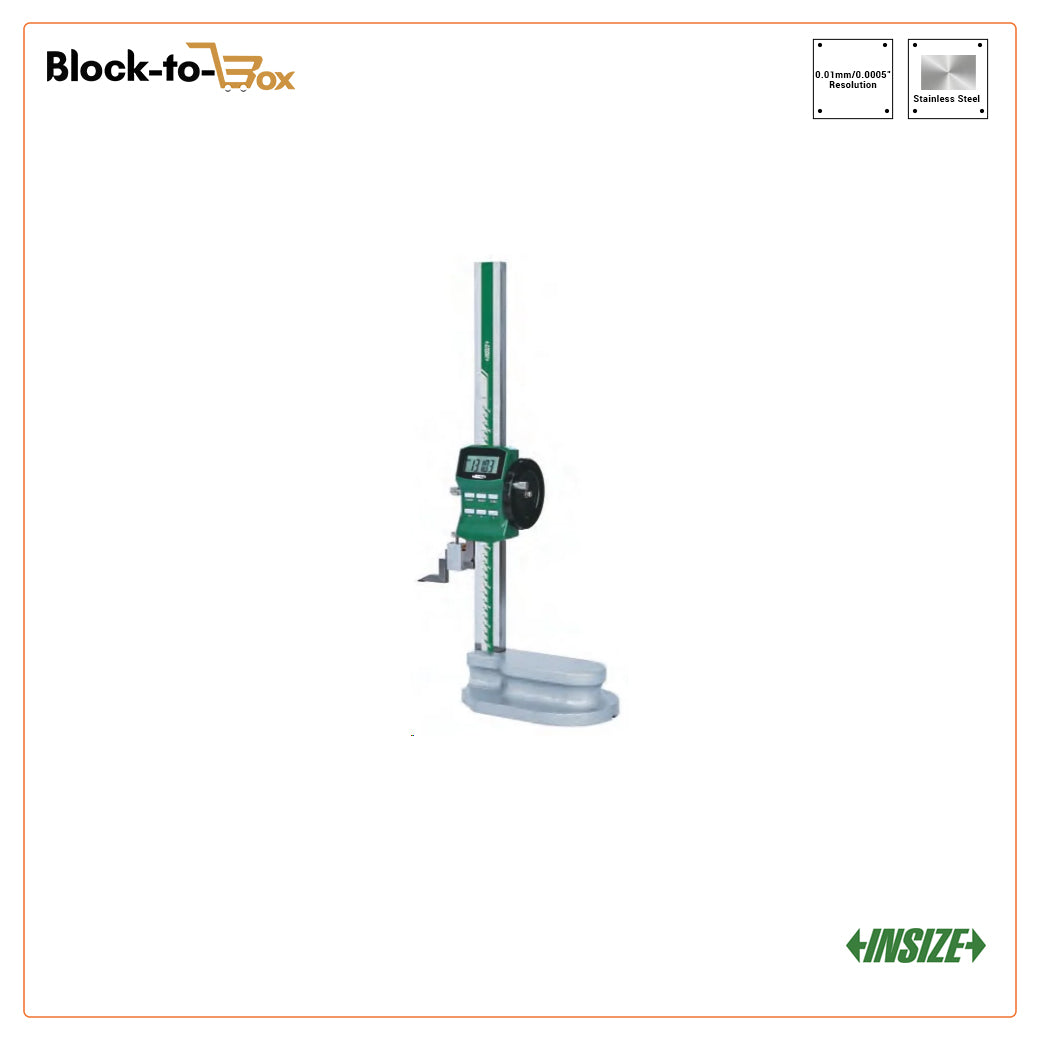

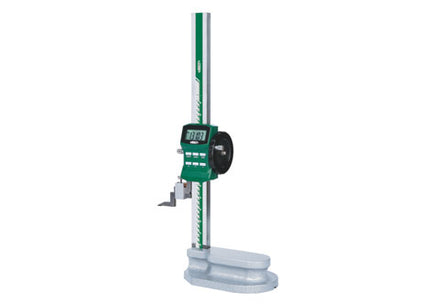

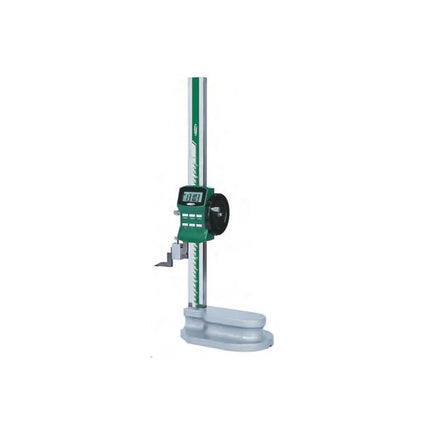

DIGITAL HEIGHT GAGES WITH DRIVING WHEEL
Non waterproof
Resolution: 0.01mm/0.0005"
Buttons: on/off, zero, mm/inch, preset +, preset -, ABS/INC
Automatic power off, move the digital unit to turn on power
Carbide tipped scriber
Made of stainless steel
Battery CR2032
Data output
Supplied with dust cover
With dial test indicator holder
Optional accessory: data output cable (code 7315-22, 7302-22), clamp for protractors (code 2372-CLAMP)
1156-300 and 1156-1000
Scriber (included)
Dial test indicator holder (included)
Clamp for protractors (optional)
| Code |
Range |
Accuracy |
Length (L) |
Width (W) |
Height (H) |
a |
b |
c |
h |
| 1156-300 |
0-300mm/0-12" |
±0.03mm |
515mm |
180mm |
55mm |
80mm |
30mm |
35mm |
9mm |
| 1156-600 |
0-600mm/0-24" |
±0.05mm |
815mm |
180mm |
55mm |
80mm |
30mm |
35mm |
9mm |
| 1156-1000 |
0-1000mm/0-40" |
±0.07mm |
1220mm |
265mm |
70mm |
92mm |
48mm |
40mm |
12mm |
