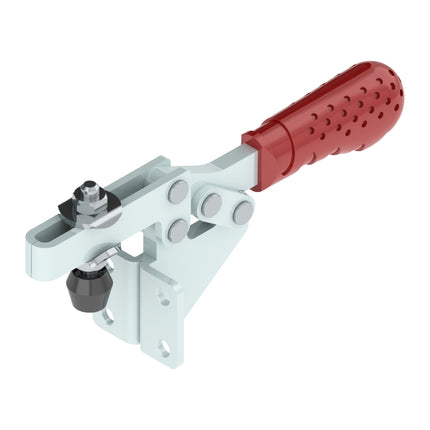

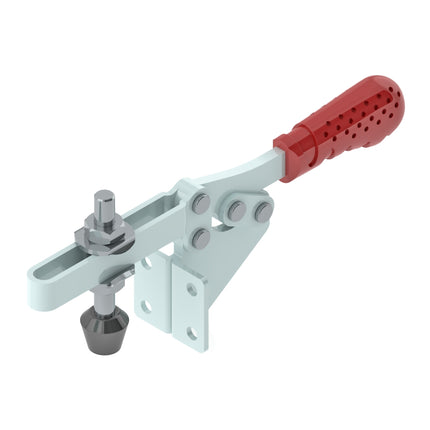

H-Series Medium Duty Clamps-Front Mounting

Description

Horizontal Hold Down Action (HTC-Series):

The holding action in these types of Toggle Clamps is same as VTC-Series clamps. The outstanding characteristic is the low height design. Unlike the handle & the clamping bar of the VTC-Series, these of the H-Series clamps move in opposite direction. The holding capacities range upto 1,000 kgs. The clamping arm can be solid bar, U shaped or fixed hole type.

  • The SF Series have solid hold down bar which has a fixed guide bush at its end for the spindle assembly.
  • The SB Series have a "U" bar arm which the bolt retainer can be welded at any desired angle.
  • The UB Series have a "U" bar arm which enables one or more spindles to be moved into any desired position along the arm.

Read more

H-Series Medium Duty Clamps-Front Mounting

Product form

Rs. 513.30 Incl. GST

    • Steelsmith
    • Shop Now for Quick Delivery on In-Stock Items!
    • Discover the Quality Difference: Shop Our Collection of 100% Genuine Products.

    • Shop Confidently & Get 100% Genuine GST Bill on All the Items !!!

    Description

    Horizontal Hold Down Action (HTC-Series):

    The holding action in these types of Toggle Clamps is same as VTC-Series clamps. The outstanding characteristic is the low height design. Unlike the handle & the clamping bar of the VTC-Series, these of the H-Series clamps move in opposite direction. The holding capacities range upto 1,000 kgs. The clamping arm can be solid bar, U shaped or fixed hole type.

    • The SF Series have solid hold down bar which has a fixed guide bush at its end for the spindle assembly.
    • The SB Series have a "U" bar arm which the bolt retainer can be welded at any desired angle.
    • The UB Series have a "U" bar arm which enables one or more spindles to be moved into any desired position along the arm.

    Read more
