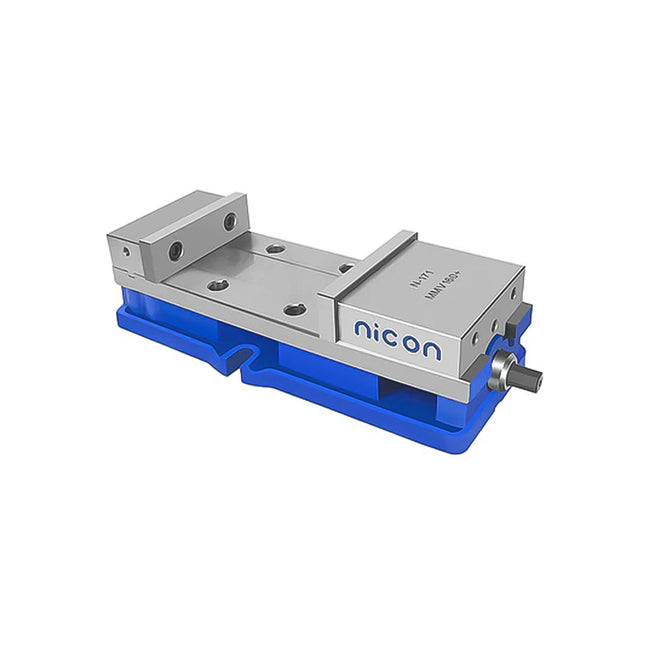

Nicon N-171 Nicon Lockdown Jaw Machine Vice
FEATURES: Lock down Jaw vice Designed for Precision Milling machines and CNC Machining Centres. Sealed bearing system induces clamping pressure and increases bearing life. Bearing part is stronger and more durable then our previous designed vices. Accuracy in parallelism and squareness within 0.02/100 mm. Hardened bed and jaws maintain accuracy for long time. Ductile Cast iron body. No work piece tilt after clamping. All parts interchangeable and available as spares. Same bed height and Redesigned nut with lighter weight. Tenons and tenon slots provided for effortless truing of vice on machine table. High clamping force can be achieve by effortless handle movement which eliminates hammering on handle. Available with Swivel base also. STANDARD ACCESSORIES: Chip guards Adjustable handle
Nicon N-167 Nicon Drill Press Vice(Ungrip)
FEATURES: Unbreakable alloy Steel construction with ground surfaces helps smooth lateral movement of moveable jaws. Rugged design provides precision and power full clamping for drilling tapping and reaming operations. The base is slotted enabling the vice to be bolted to drill press tables, assisting in quick and accurate positioning. Longitudinal and transversal prisms in the fixed jaw allow for firm gripping of round jobs of different sizes both horizontally and vertically. Special seat in jaws facilitates retaining of flat work pieces. Vices are equipped with a convenient uni-grip mechanism. Spindle moves inside the hollow hand grip allowing the vice to be used at a location away from the table edge. This feature increases the scope of application of this range of vices

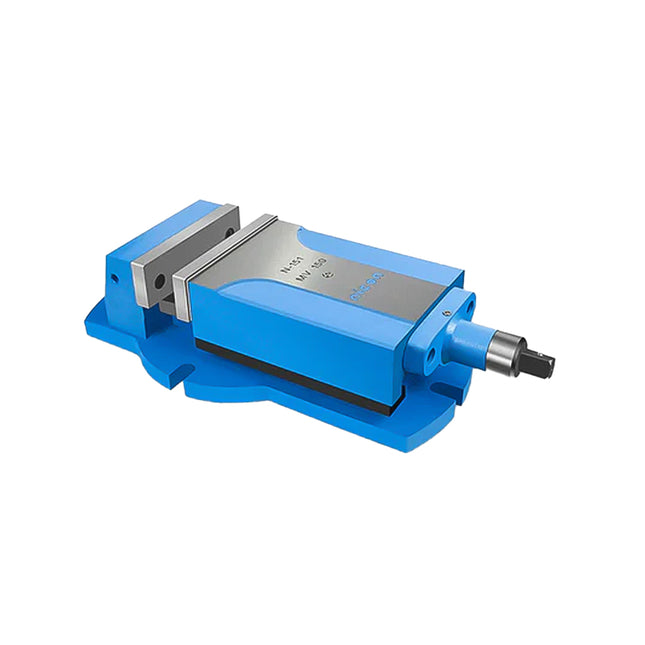

Nicon N-151 Nicon Precision Milling machine Vice(Fixed Base)
FEATURES: Precision milling machine vice is suitable for milling operations and it also finds applications in jig boring, grinding and shaping jobs. Vice body made from high grade cast iron for rigidity. Hardened and ground steel jaw plates ensuring longer life with maintained accuracy and repeatability. Fully covered lead screw in a unbreakable steel nut protects against dirt and chips. Usage of high tensile grade fasteners provides greater strength and rigidity. Tenon slot machined n base as standard. Unbreakable steel crank handle.
Nicon N-151S Nicon Precision Milling Machine Vice(Swivel Base)
FEATURES: Precision Milling Machine Vice is suitable for milling operations & it also finds applications in jig boring, grinding and shaping jobs. Vice body made from high grade cast iron for rigidity. Hardened and ground steel jaw plates ensuring longer life with maintained accuracy & repeatability. Fully covered lead screw in a unbreakable steel nut protects against dirt and chips. Usage of high tensile grade fasteners provides greater strength and rigidity. Tenon slot machined in base as standard. unbreakable steel crank handle.

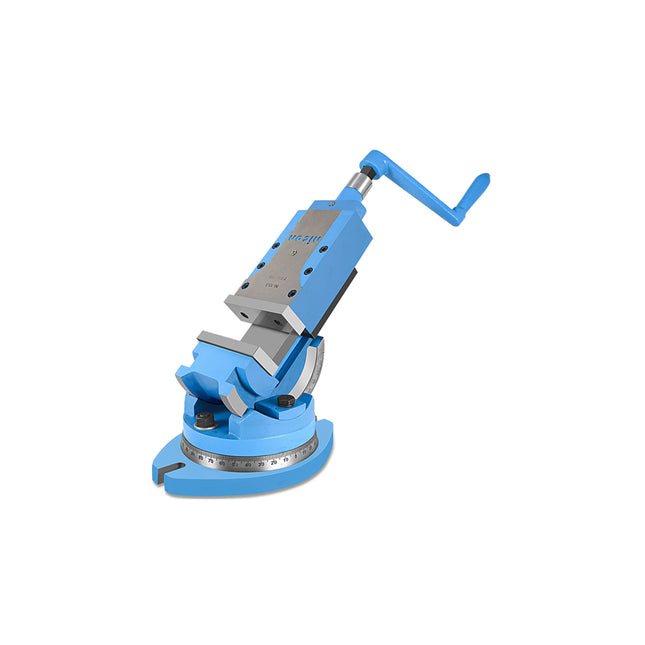

Nicon N-153 Nicon Tilting & Swiveling Machine Vice
FEATURES: Angular Machine Vices are ideal for applications where in the workpiece requires machining at an angle. Angular adjustment is achieved via the angular slide that can be set to any desired angle. Additionally the fully graduated 360° swivel base allows the vice to be set at any angle along the vertical axis. These vices are manufactured from close grained hi tensile seasoned cast iron. Unbreakable steel crank handle. Use of hi tensile grade fasteners provides strength and rigidity to these vice. Hardened and ground jaw. A milled slot in the vice base helps in accurate location of the vice on the machine table using rectangular locating nuts. Accuracy in parallelism of jaws 0.02/100mm. "Hold Down" slots allow for secure clamping of the vice on the machine table.
Nicon N-154 Nicon 3-Way Tilt And Swivel Angular Vice
FEATURES: 3 Way Tilting vices provide for 3 axis setting of the workplace in special milling, drilling, grinding, Shaping and g boring applications. Vices have 2 angular slides which allow the work piece to be set at any desired angle - 45. Tilting range on either sides and 90° vertical indexing. The 360° swivel base further allows rotation along the vertical axis. These vices are manufactured from close grained hi tensile seasoned cast iron. Unbreakable steel crank handle. Use of hi tensile grade fasteners provides strength and rigidity to these vices. hardened and ground jaw. A milled slot in the vice base helps in accurate location of the vice on the machine table using rectangular locating nuts. Accuracy in parallelism of jaws 0.02/100mm. "Hold Down" slots allow for secure clamping of the vice on the machine table.
Nicon N-158 Nicon Self Centering Vice Swivel Base
FEATURES: The Self Centering vice allows for accurate centering of jobs automatically. The vice is specially useful in applications where the same operation is to be performed on workpieces of varying sizes .Self Centric clamping is particularly useful in milling, slot and groove cutting and drilling. The special design allows accurate setting up of jobs with only a single machine setting. Manufactured from graded cast iron with fully hardened and ground tool steel jaws, the vice has opposite threads for quick and accurate centering. Rotation of the crank handle automatically adjusts workpiece to the center. Fully graduated 360° swivel base allows the vice to be set at any angle along the vertical axis. A milled slot in the vice base allows for accurate location of the vice on the machine table using rectangular locating nuts. Vice can be converted from swivel to fix base by removing base.
Nicon N-168 Nicon Precision Tool Maker Vice(Screw Type)
FEATURES: These vices are mainly used with precision grinding, milling machines, engraving and jig boring operations. Ground and square all over the vise may be mounted on its base, sides or end. The moving jaw has two vees ground into its face , one vertically the other horizontally to aid gripping round components. Clamping and releasing through a precision cut square thread lead screw for smooth operations. vice screw moves in specially designed gun metal bush with reduces wear the vise and enhancing life of vise.
Nicon N-169 Nicon Precision Tool Maker Steel Vice (Pin Type)
FEATURES: These vices are mainly used with precision grinding, milling machines, engraving and jig boring operations. Ground and square all over the vise may be mounted on its base or end. The moving jaw has two vees ground into its face, one vertically the other horizontally to aid gripping round components. The rapid positioning notches allow the vise to be locked in any means on an allen key provided with vise.
Nicon N-162 Nicon Drill Machine Vice Heavy Duty
FEATURES: Manufactured from unbreakable alloy steel, these drill vices have been designed for powerful clamping for drilling, taping, reaming. Jaw depth extra then regular drill press vices. Fine acme thread lead screw. The base and slides are precision ground for stability and accurate operation. Horizontal & vertical V-grooves in the stationery jaw allows holding of rounding job securely. The base is slotted enabling the vice to be bolted to drill press tables, assisting in quick & accurate positioning.

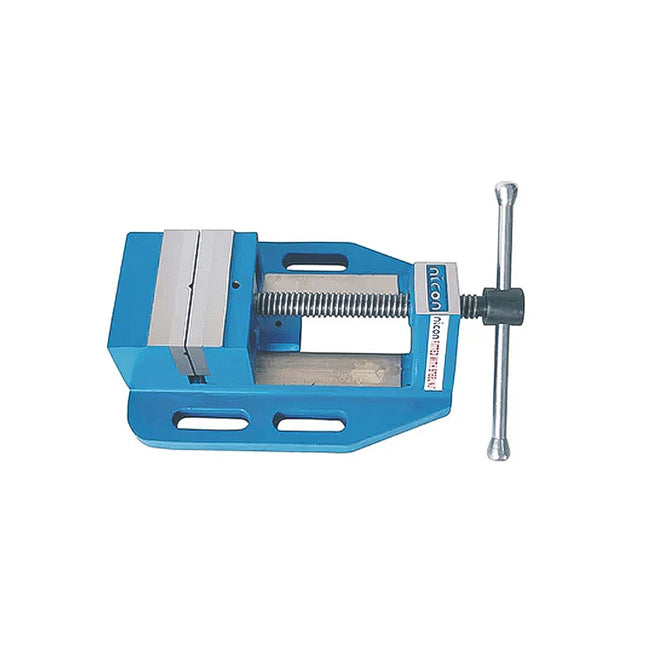

Nicon N-163 Nicon Drill Machine Vice Deluxe Model
FEATURES: Manufactured from unbreakable alloy steel, these drill vices have been designed for powerful clamping for drilling, taping, reaming. Jaw depth extra then regular drill press vices. Fine acme thread lead screw. The base and slides are precision ground for stability and accurate operation. Horizontal & vertical V-grooves in the stationery jaw allows holding of rounding job securely. The base is slotted enabling the vice to be bolted to drill press tables, assisting in quick and accurate positioning.
Nicon N-170 Nicon 3-Way Drill Press Vice(Unigrip)
FEATURES: This 3 way drill press vice available with three mounting options via two additional precisely ground surfaces end face and side face this allows for drilling along all axis with a single setting of the job and holding long work piece which are combersome and difficult to manage in regular vices. Fully grounded side face allows for right angle machining with same jaw setting the jaw width acts as jaw hight facilitating longer workpieces to be held. Fully grounded end face allows for right angle machining with same jaw setting. Unbreakable alloy Steel construction with ground surfaces helps smooth lateral movement of moveable jaws. Rugged design provides precision and power full clamping for drilling tapping and reaming operations. Longitudinal and transversal prisms in the fixed jaw allow for firm gripping of round jobs of different sizes both horizontally and vertically. Special seat in jaws facilitates retaining of flat work pieces. Vices are equipped with a convenient unigrip mechanism. Spindle moves inside the hollow hand grip allowing the vice to be used at a location away from the table edge. This feature increases the scope of application of this range of vices.
Nicon N-189 Nicon 2Piece Adjustable Milling Machine vice
FEATURES: Designed for use with milling machines, drill presses, etc, where a large clamping force is required. Facilitates utilization of the full length of the machine bed. Thrust bearing in the power transmission makes operation easy. Removable, grooved jaw inserts are hardened and ground, ensuring a longer life with maintained accuracy and repeatability. The workpiece is located directly on the bed for rigidity. Clamp base body and rigid base are high-quality castings.
Nicon N-157 Nicon Compound Sliding Table
FEATURES: Multi-purpose accessory for all drilling and milling applications. Graduated wheels for accurate positioning in X and Y axis. Calibrated hand wheels. Closed grain graded cast iron construction Adjustable dove-tail guide ways. Machined t-slot provided on table for multiple clamping options.
Nicon N-301 Nicon Adjustable Angle Plate
FEATURES: Made from graded casting end of machined rugged constructions. Graduated in degrees from 0-90, Ground table surface. Machined T slots for clamping options.
Nicon N-161 Bench Vice Unbreakable Steel Body
FEATURES: Unbreakable steel body which is CNC machined on all load bearing surfaces for smooth and trouble free operation. Jaw of vice made of special carbon steel hardened and serrated to ensure a rigid grip and non slip. Fine acme thread screw. Unbreakable steel cast iron dovetailed nut can be replaced when worn. Hi tensile fasteners used for strength and rigidity of vice.
Nicon N-160 Bench Nicon Vice heavy Duty Double Ribbed
FEATURES: Close grained cast iron body which is CNC machined on all load bearing surfaces for smooth and trouble free Operation. Replaceable hardened and knurled steel jaws. Fine acme thread screw. Unbreakable steel cast iron nut can be replaced when worn. The nut is dovetailed into the body. Hi tensile fasteners used for strength and rigidity of vice.
Nicon N-182 Precision Tool Room Vice
FEATURES: Rear jaw sliding bench vice dove tail slide guide ways ensure jib less jaws alignment fine acme thread screw in steel box nut ensures long life of vice. Body is made of closed grain graded cast iron. Hardened and ground jaws maintain accuracy for long and rigid grid. All parts are interchangeable and available as spares.
Nicon N-351 Nicon Self Centering Corner Welding Wise
FEATURES: Rigid cast iron construction An ideal supporting tool for every workshop. Use for metal wood or plastic Ideal for right angle welding of parts. Always joins at 90 degrees angle. either as butt corner joint, mitre joint or t-section. Copper plated spindle and spindle nut prevents "burnt on wold beads" and splatter.
Nicon N-316 Tool Holder Locking Device(Vertical)
FEATURES: Tool holder locking device is mainly used to assemble and dissemble pull studs, cutting tools and collects from tool holders. Compact design. Easy to operate. Minimum clamp force required. Unbreakable steel body.
