Description

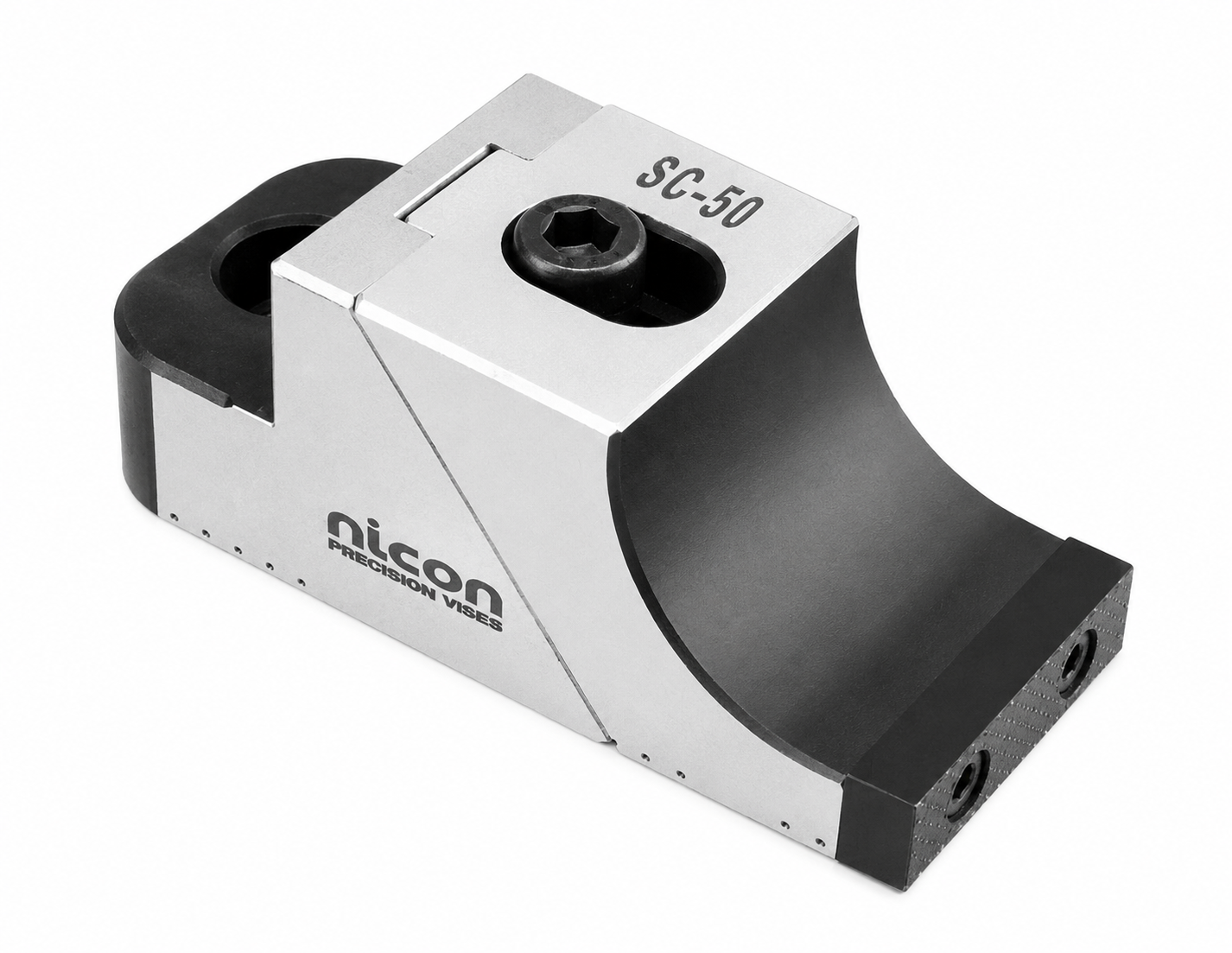

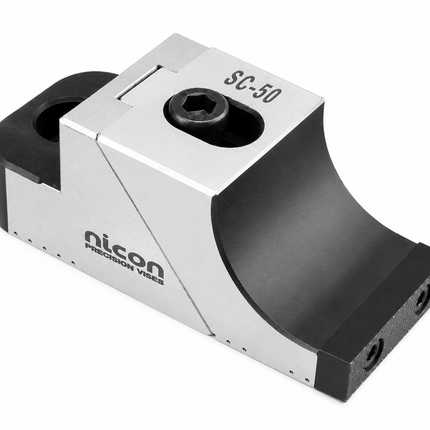

The Nicon Low Profile Side Clamp is a compact and efficient work holding solution designed to securely clamp workpieces from the side, leaving the top surface completely accessible for machining operations. Its low-profile design makes it ideal for CNC milling, grinding, drilling, and precision machining applications where unobstructed access is essential.
Manufactured from high-quality alloy steel and hardened to HRC 55 ±2, the clamp offers excellent strength, wear resistance, and long service life. The integrated dovetail clamping mechanism provides a strong lateral clamping force while preventing workpiece lift during machining, ensuring maximum stability and accuracy.

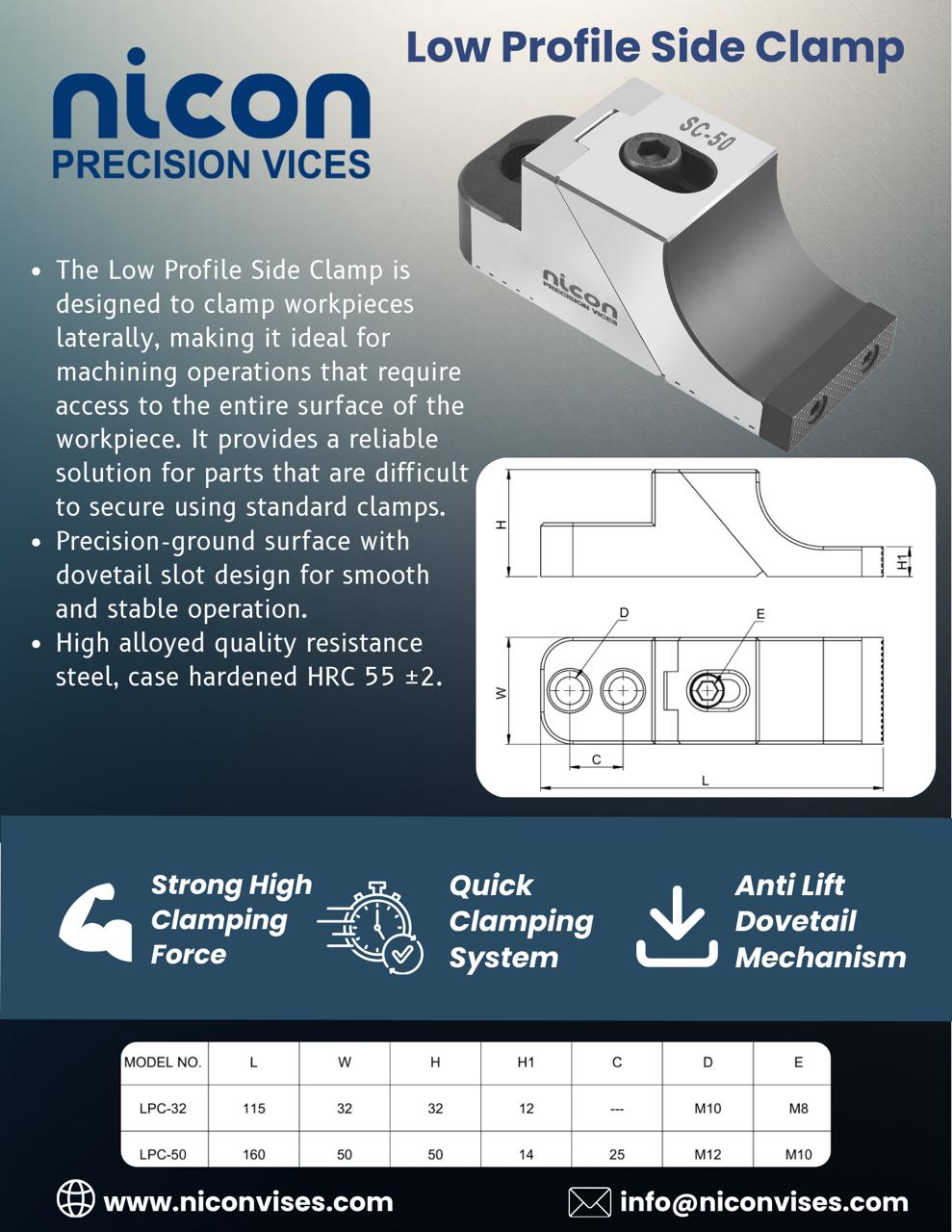

Technical Specifications
| Model |
Length (L) |
Width (W) |
Height (H) |
H1 |
C |
D Thread |
E Thread |
| LPC-32 |
115 mm |
32 mm |
32 mm |
12 mm |
— |
M10 |
M8 |
| LPC-50 |
160 mm |
50 mm |
50 mm |
14 mm |
25 mm |
M12 |
M10 |
Key Features
-
Side Clamping Design – Holds the workpiece laterally, keeping the entire top surface free for machining.
-
Low Profile Construction – Ideal for applications with limited space and multi-part setups.
-
High Clamping Force – Delivers secure holding power for reliable machining performance.
-
Anti-Lift Dovetail Mechanism – Minimizes workpiece movement and prevents lifting under cutting forces.
-
Precision Ground Surfaces – Ensures accurate positioning and repeatable results.
-
Quick Setup and Operation – Simple clamping system reduces setup time and improves productivity.
-
Durable Alloy Steel Body – Case hardened to HRC 55 ±2 for superior wear resistance and extended service life.
Applications
- CNC Milling Machines
- Vertical and Horizontal Machining Centers
- Precision Grinding Operations
- Drilling and Tapping Fixtures
- Multi-Part and High-Density Workholding Setups
- Manufacturing of Precision Components
