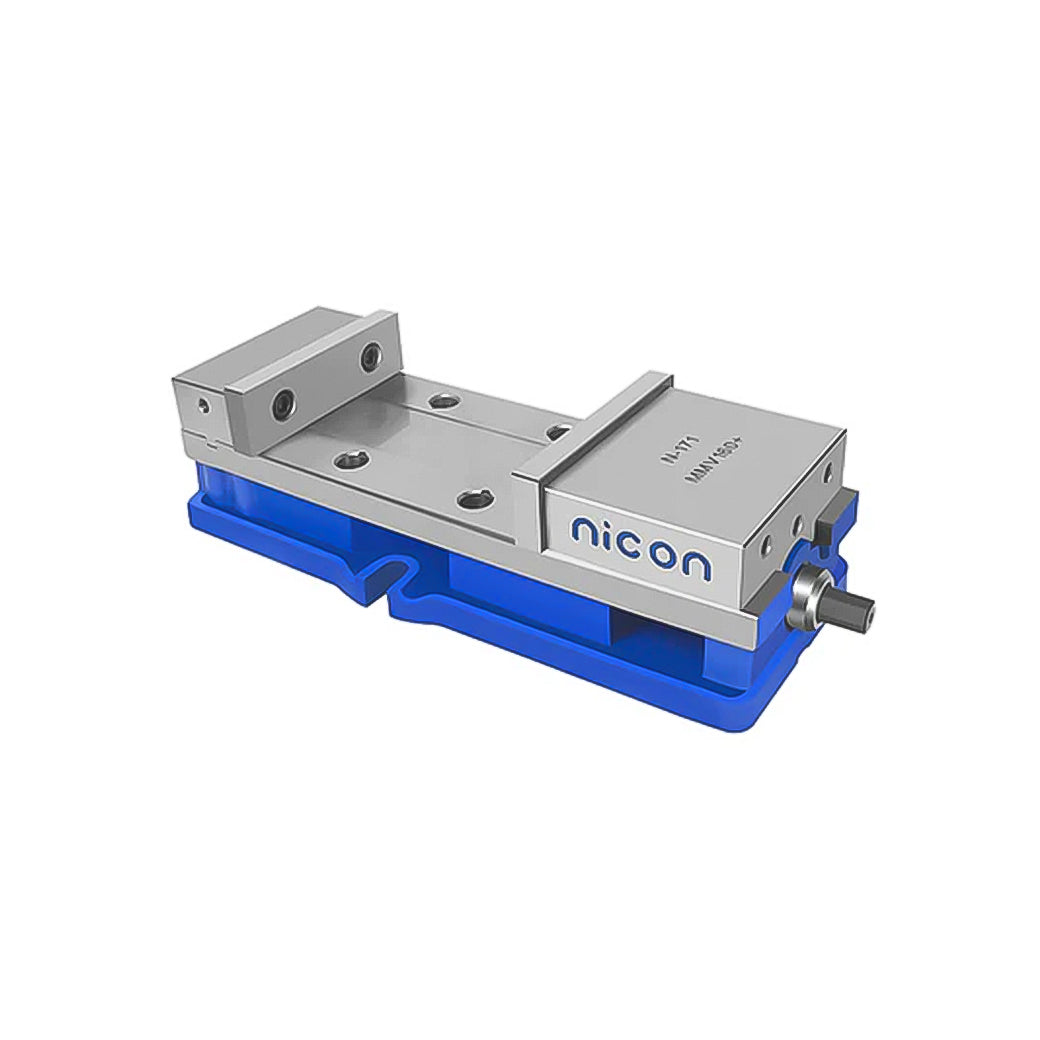

N-171 Nicon Lockdown Jaw Machine Vice

    ThumbnailThumbnail
    Sale -38%
Description

Description

KEY FEATURES:

  • Lock down Jaw vice Designed for Precision Milling machines and CNC Machining Centres.
  • Sealed bearing system induces clamping pressure and increases bearing life.
  • Bearing part is stronger and more durable then our previous designed vices.
  • Accuracy in parallelism and squareness within 0.02/100 mm.
  • Hardened bed and jaws maintain accuracy for long time.
  • Ductile Cast iron body.
  • No work piece tilt after clamping.
  • All parts interchangeable and available as spares.
  • Same bed height  and Redesigned nut with lighter weight.
  • Tenons and tenon slots provided for effortless truing of vice on machine table.
  • High clamping force can be achieve by effortless handle movement which eliminates hammering on handle.
  • Available with Swivel base also.



STANDARD ACCESSORIES:

  • Chip guards
  • Adjustable handle



DIMENSIONS IN MM

MODEL NO. L W H H1 L1 O J J1 P T T1 Weight in Kgs. Clamping pressure in Kgs.
MMV100 308 153 104 67 345 125 37 110 120 16 14 16 1500
MMV150 396 190 125 76.7 440 175 47 160 147 16 17 30 3000
MMV160+ 437 190 125 76.7 482 225 47 160 147 16 17 32 3000
MMV200 512 249 152 92 557 255 60 210 195 18 20 62 3500
MMV200+ 558 249 152 92 603 305 60 210 195 18 20 65 3500
 MMV300 695 350 165 95 760 402 70 300 282 18 22 110 4000



OPTIONAL JAWS

Read more

Product form

N-171 Nicon Lockdown Jaw Machine Vice

SKU: MMV100

Rs. 20,057.64 Rs. 12,436.02 Incl. GST

    • Brand: Nicon
    • Free shipping on orders above Rs.999/-
    • 100% Genuine Products: Discover the Quality Difference in our entire collection
    Description

    Description

    KEY FEATURES:

    • Lock down Jaw vice Designed for Precision Milling machines and CNC Machining Centres.
    • Sealed bearing system induces clamping pressure and increases bearing life.
    • Bearing part is stronger and more durable then our previous designed vices.
    • Accuracy in parallelism and squareness within 0.02/100 mm.
    • Hardened bed and jaws maintain accuracy for long time.
    • Ductile Cast iron body.
    • No work piece tilt after clamping.
    • All parts interchangeable and available as spares.
    • Same bed height  and Redesigned nut with lighter weight.
    • Tenons and tenon slots provided for effortless truing of vice on machine table.
    • High clamping force can be achieve by effortless handle movement which eliminates hammering on handle.
    • Available with Swivel base also.



    STANDARD ACCESSORIES:

    • Chip guards
    • Adjustable handle



    DIMENSIONS IN MM

    MODEL NO. L W H H1 L1 O J J1 P T T1 Weight in Kgs. Clamping pressure in Kgs.
    MMV100 308 153 104 67 345 125 37 110 120 16 14 16 1500
    MMV150 396 190 125 76.7 440 175 47 160 147 16 17 30 3000
    MMV160+ 437 190 125 76.7 482 225 47 160 147 16 17 32 3000
    MMV200 512 249 152 92 557 255 60 210 195 18 20 62 3500
    MMV200+ 558 249 152 92 603 305 60 210 195 18 20 65 3500
     MMV300 695 350 165 95 760 402 70 300 282 18 22 110 4000



    OPTIONAL JAWS

    Read more
