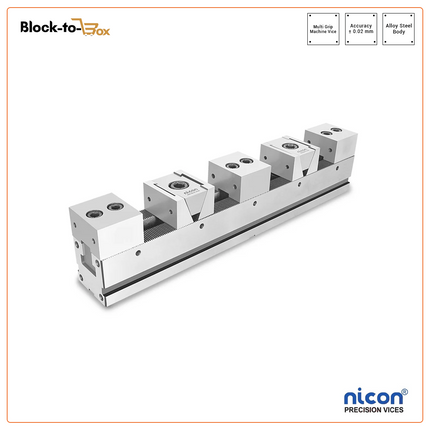

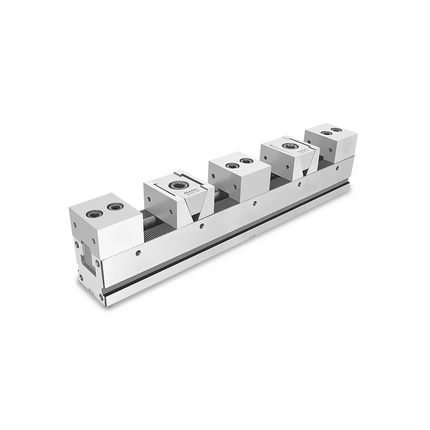

N-103S Nicon Multi Grip machine Vice With Serrated Slide Ways

Description

Description

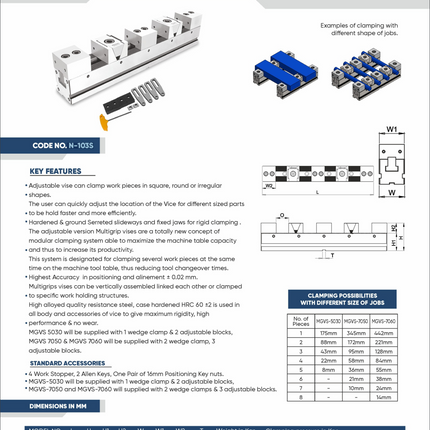

FEATURES:

  • Perfect vise for flexible clamping of multiple work pieces of various sizes.
  • Hardened & ground serreted slide ways and fixed jaws for rigid clamping.
  • The multi grip vises are a totally new concept of modular clamping system able to maximize the machine table capacity and thus to increase its productivity.
  • This system is designated for clamping several work pieces at the same time on the machine tool table, thus reducing tool changeover times.
  • Highest accuracy in positioning and alignment ± 0.02 mm.
  • Multi grip vises can be vertically assembled linked each other or clamped to specific work holding structures.
  • High alloyed quality resistance steel, case hardened HRC 60 ±2 is used in all body and accessories of vice to give maximum rigidity, high performance & no wear.
  • Each vise is supplied with 3 fixed jaws and 2 wedge clamps.
  • Same high maintained for gang milling operations.

STANDARD ACCESSORIES:

  • 4 Work Stopper, 2 Allen Keys, One Pair of 16mm Positioning Key nuts.
  • MGVS-5030 will be supplied with 1 wedge clamp & 2 adjustable blocks
  • MGVS-7050 and MGVS-7060 will supplied with 2 wedge clamps & 3 adjustable blocks.

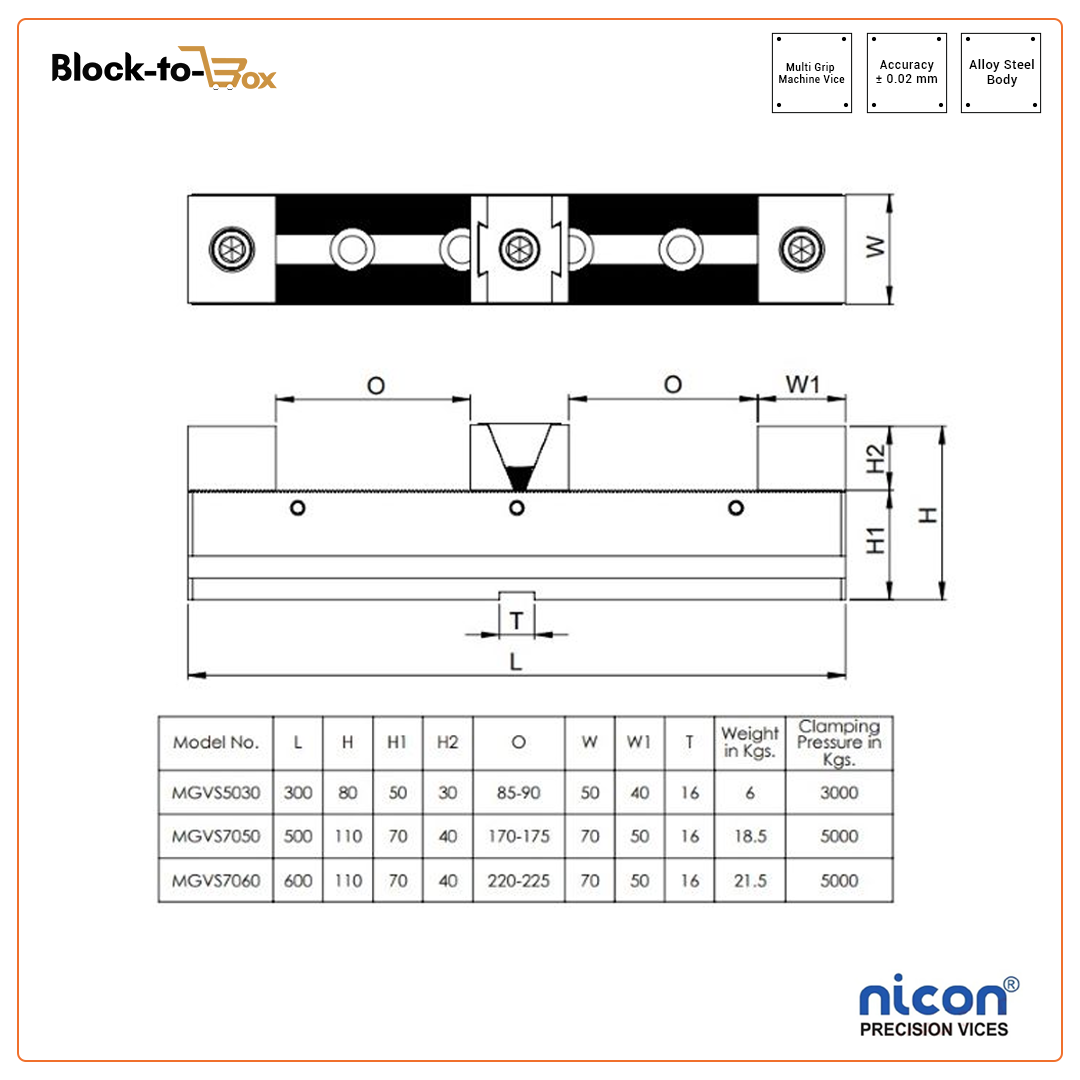

DIMENSIONS IN MM

Read more

Product form

N-103S Nicon Multi Grip machine Vice With Serrated Slide Ways

Rs. 67,024.00 Rs. 41,554.88 Incl. GST

    • Brand: Nicon
    • Free shipping on orders above Rs.999/-
    • 100% Genuine Products: Discover the Quality Difference in our entire collection
    Description

    Description

    FEATURES:

    • Perfect vise for flexible clamping of multiple work pieces of various sizes.
    • Hardened & ground serreted slide ways and fixed jaws for rigid clamping.
    • The multi grip vises are a totally new concept of modular clamping system able to maximize the machine table capacity and thus to increase its productivity.
    • This system is designated for clamping several work pieces at the same time on the machine tool table, thus reducing tool changeover times.
    • Highest accuracy in positioning and alignment ± 0.02 mm.
    • Multi grip vises can be vertically assembled linked each other or clamped to specific work holding structures.
    • High alloyed quality resistance steel, case hardened HRC 60 ±2 is used in all body and accessories of vice to give maximum rigidity, high performance & no wear.
    • Each vise is supplied with 3 fixed jaws and 2 wedge clamps.
    • Same high maintained for gang milling operations.

    STANDARD ACCESSORIES:

    • 4 Work Stopper, 2 Allen Keys, One Pair of 16mm Positioning Key nuts.
    • MGVS-5030 will be supplied with 1 wedge clamp & 2 adjustable blocks
    • MGVS-7050 and MGVS-7060 will supplied with 2 wedge clamps & 3 adjustable blocks.

    DIMENSIONS IN MM

    Read more
