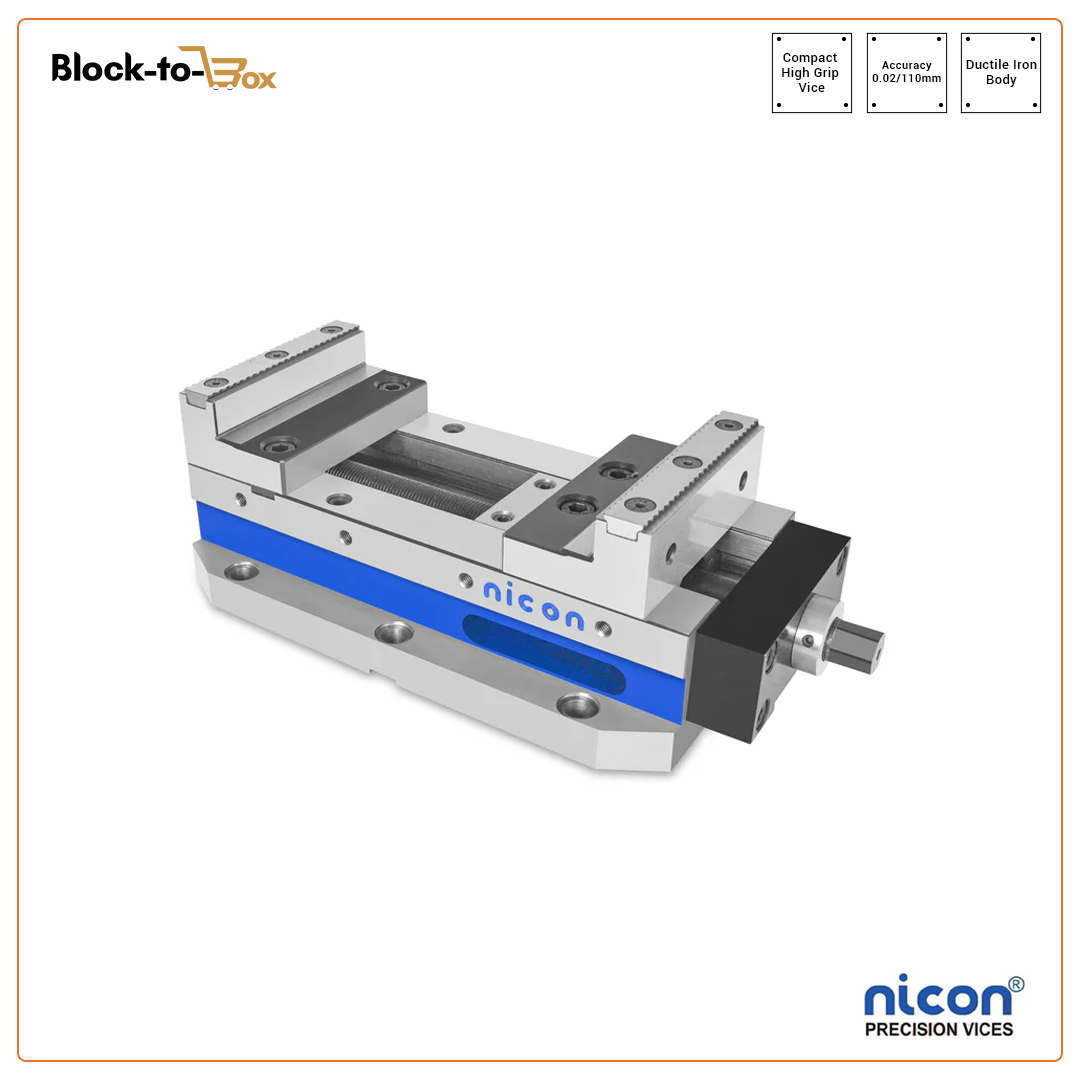

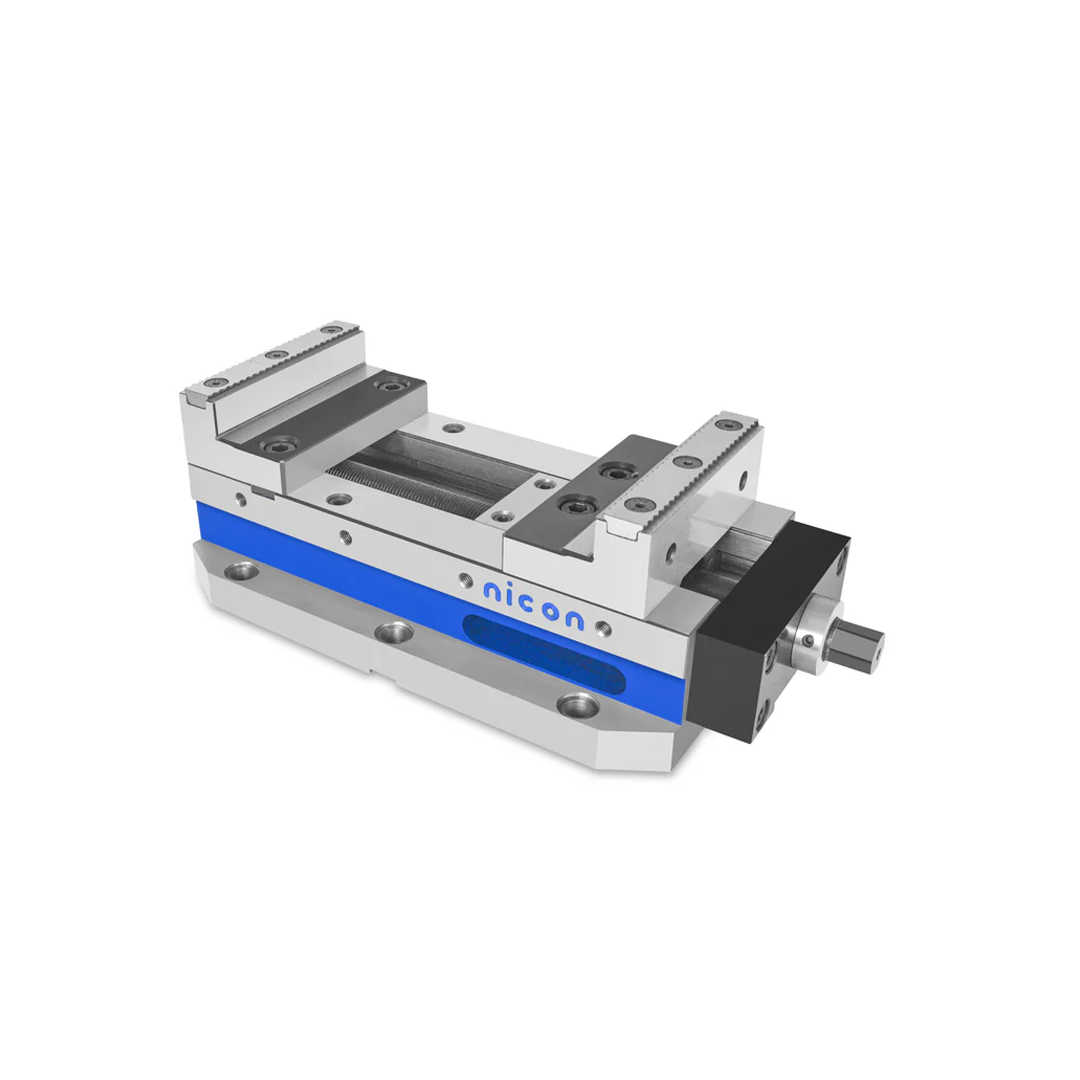

N-109 Nicon Compact High Grip Vice

Description

FEATURES:
  • Compact Hi-grip machine vice designed for precision milling , grinding and widely used with CNC machining center.
  • Space saving design can  be installed in multiple on standard machine tools table.
  • Also suitable for 4th and 5th axis CNC rolaey tables.
  • Large opening in very compact vice body.
  • High grade FCO 60 ductile iron body, grounded top and bottom.
  • Bed height matched with multiple vice orders.
  • High alloyed quality resistance steel, case hardened HRC 60 +or- 2 is used in clamping jaws to give high preferences and no wear.
  • Accuracy in parallelism and squareness within 0.02/110mm.
  • Interchangeable jaws plates.
  • Tenon and tenon slots provided for effortless truing of vise on machine table.
  • Hammering on vise handle.
  • maximum clamping force 4000kg.

STANDARD ACCESORIES:

  • 1 Adjustable handle,
  • 1 pair of positioning key nut ,
  • 1 Work stopper.

    Read more

    N-109 Nicon Compact High Grip Vice

    Product form

    SKU: CHV125

    FEATURES: Compact Hi-grip machine vice designed for precision milling , grinding and widely used with CNC machining center. Space saving... Read more

    Rs. 53,200.00 Excl. GST

      • Nicon
      • Shop Now for Quick Delivery on In-Stock Items!
      • Discover the Quality Difference: Shop Our Collection of 100% Genuine Products.

      • Shop Confidently and Quickly with our Express Checkout Option!

      Description

      FEATURES:
      • Compact Hi-grip machine vice designed for precision milling , grinding and widely used with CNC machining center.
      • Space saving design can  be installed in multiple on standard machine tools table.
      • Also suitable for 4th and 5th axis CNC rolaey tables.
      • Large opening in very compact vice body.
      • High grade FCO 60 ductile iron body, grounded top and bottom.
      • Bed height matched with multiple vice orders.
      • High alloyed quality resistance steel, case hardened HRC 60 +or- 2 is used in clamping jaws to give high preferences and no wear.
      • Accuracy in parallelism and squareness within 0.02/110mm.
      • Interchangeable jaws plates.
      • Tenon and tenon slots provided for effortless truing of vise on machine table.
      • Hammering on vise handle.
      • maximum clamping force 4000kg.

      STANDARD ACCESORIES:

      • 1 Adjustable handle,
      • 1 pair of positioning key nut ,
      • 1 Work stopper.

        Read more
