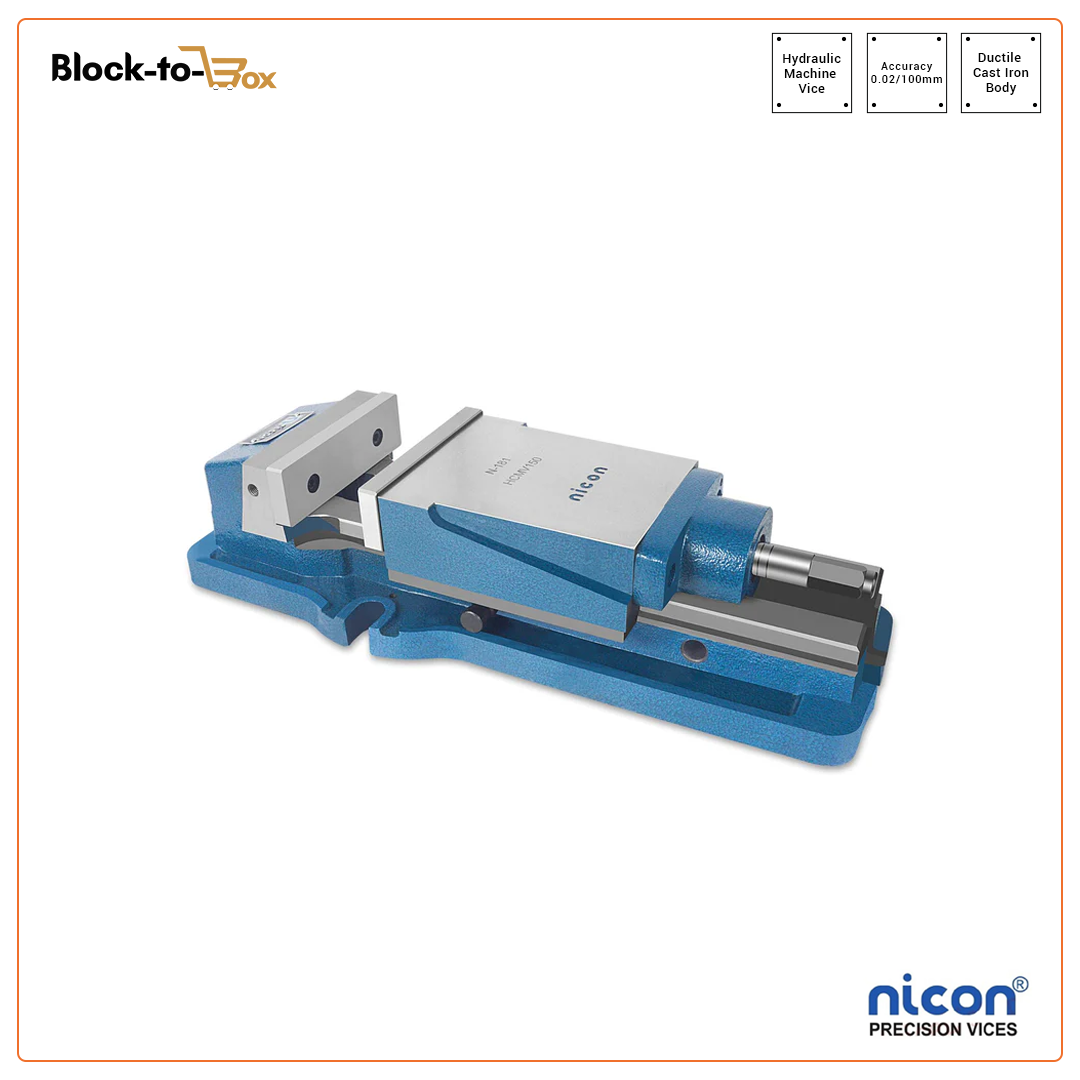

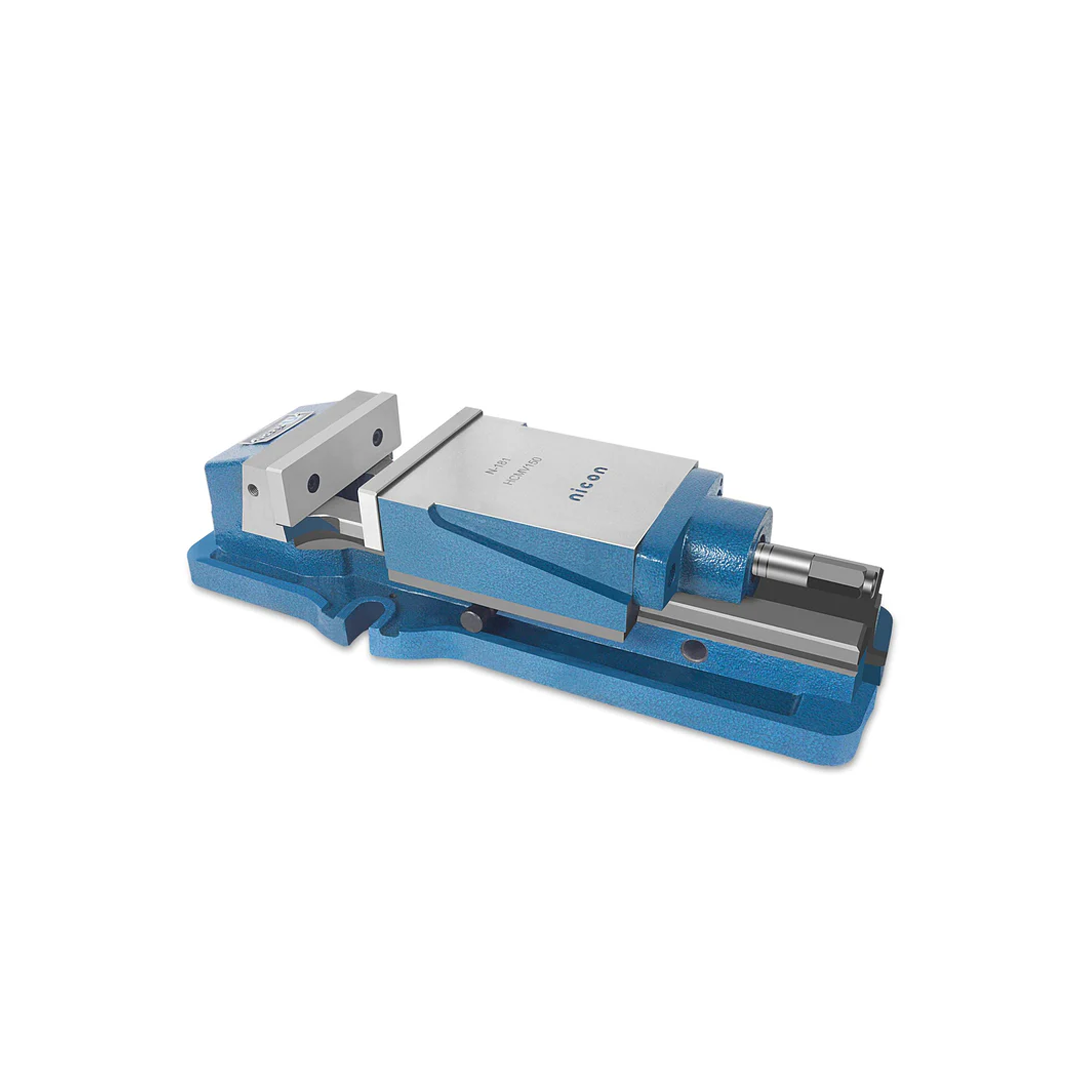

Nicon N-181 Hydraulic Machine Vice

Description

FEATURES:

  • Ruggedly constructed for milling, drilling, shaping, grinding and many other machine shop applications
  • Body made of high-quality ductile cast iron to resist deflection or bending.
  • Hardened and ground sideways. Concealed spindle for protection against chip and dirt.
  • Hydraulic booster system for maximum clamping pressure with minimum force.
  • Hydra-booster system is guaranteed for using 1 year limited. Also available in swivel base.
  • Accuracy in squareness is 0.02/100mm. Quick of clamping, locking and ease of operation.
  • The hydraulic oil number is #68
  • Maximum clamping Pressure 4500Kg.

STANDARD ACCESSORIES:

  • 1 Work Stopper,
  • Pair of standard16mm positioning key nuts,
  • 1 Crank Handle,
  • 1 Extention Bar.

Nicon N-181 Hydraulic Machine Vice

Product form

SKU: HCMV150

FEATURES: Ruggedly constructed for milling, drilling, shaping, grinding and many other machine shop applications Body made of high-quality ductile cast... Read more

Rs. 44,600.00 Excl. GST

    • Nicon
    • Shop Now for Quick Delivery on In-Stock Items!
    • Discover the Quality Difference: Shop Our Collection of 100% Genuine Products.
    • Shop Confidently and Quickly with our Express Checkout Option!

    Description

    FEATURES:

    • Ruggedly constructed for milling, drilling, shaping, grinding and many other machine shop applications
    • Body made of high-quality ductile cast iron to resist deflection or bending.
    • Hardened and ground sideways. Concealed spindle for protection against chip and dirt.
    • Hydraulic booster system for maximum clamping pressure with minimum force.
    • Hydra-booster system is guaranteed for using 1 year limited. Also available in swivel base.
    • Accuracy in squareness is 0.02/100mm. Quick of clamping, locking and ease of operation.
    • The hydraulic oil number is #68
    • Maximum clamping Pressure 4500Kg.

    STANDARD ACCESSORIES:

    • 1 Work Stopper,
    • Pair of standard16mm positioning key nuts,
    • 1 Crank Handle,
    • 1 Extention Bar.
