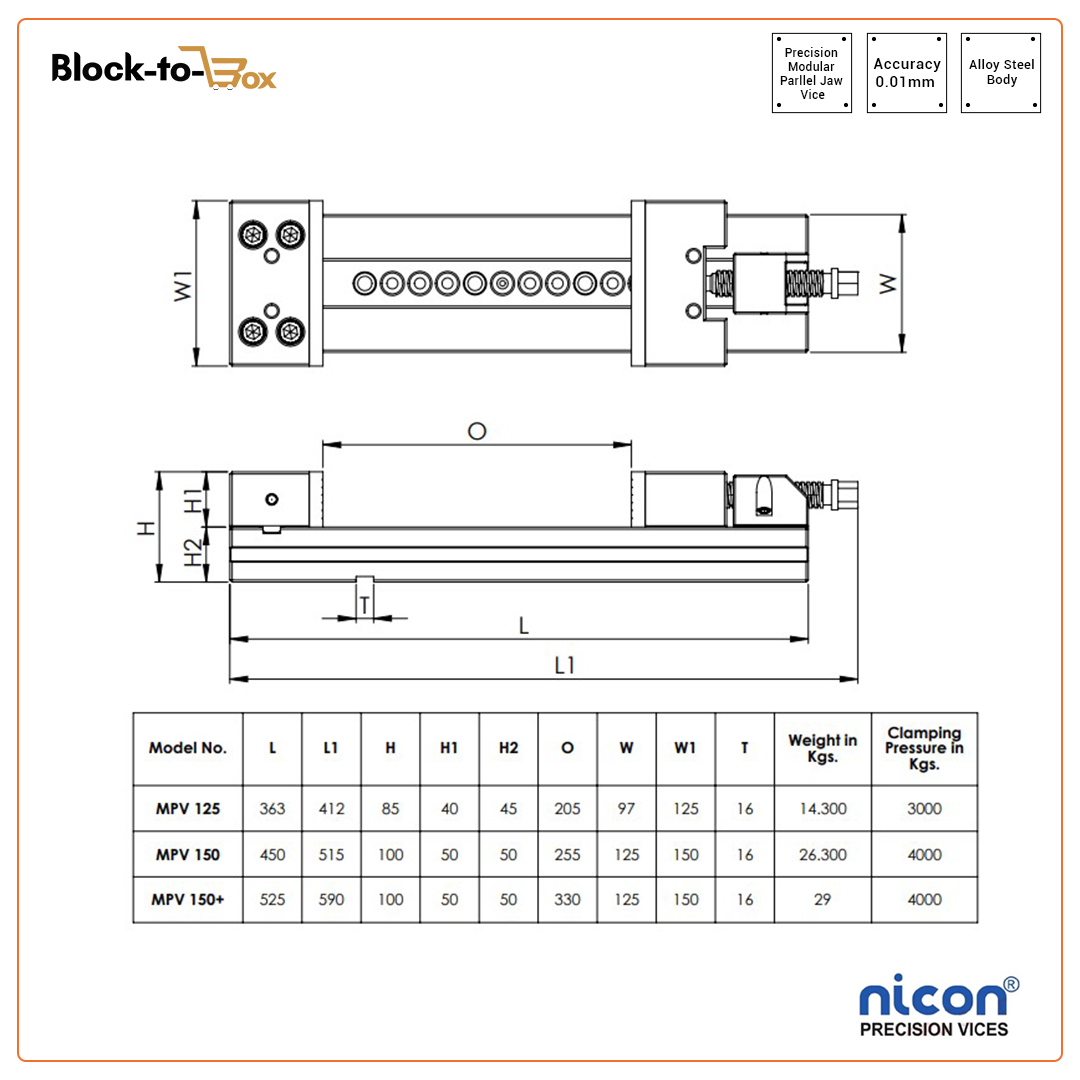

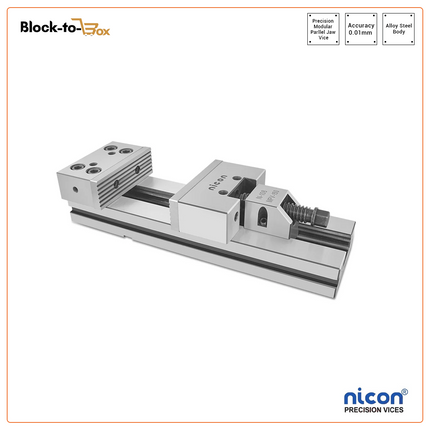

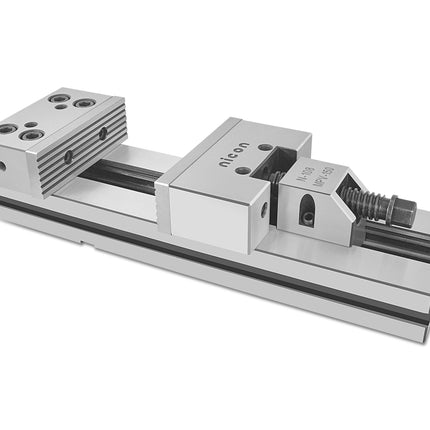

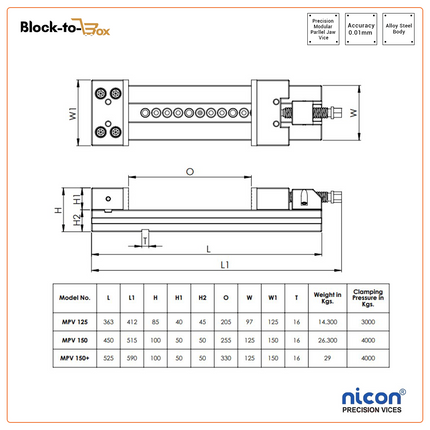

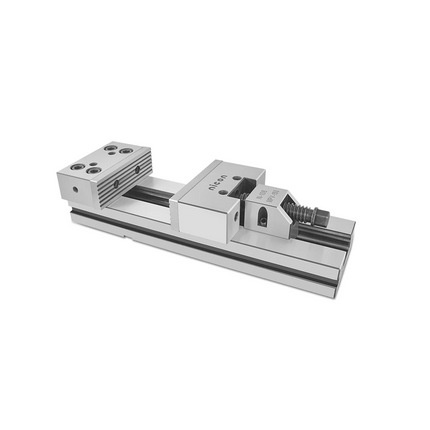

N-108 Nicon precision Modular Precision Vice With Parallel jaws

Description

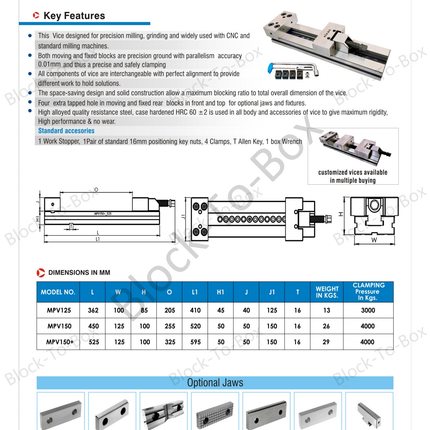

FEATURES:

  • This Vice designed for precision milling, grinding and widely used with CNC and standard milling machines.
  • Both moving and fixed blocks are precision ground with paralelism accuracy 0.01mm and thus a precise and safely clamping
  • All components of vice are interchangeable with perfect alignment to provide different work to hold solutions.
  • The space-saving design and solid construction allow a maximum blocking ratio to total overall dimension of the vice.
  • Four extra tapped hole in moving and fixed rear blocks in front and top for optional jaws and fixtures.
  • High alloyed quality resistance steel, case hardened HRC 60±2 is used in all body and accessories of vice to give maximum rigidity, High performance & no wear

STANDARD ACCESORIES:

  • 1 Work stopper,
  • 1 pair of standard 16mm positioning key nut,
  • 4 Clamps
  • T Allen key,
  • 1 box Wrench


Read more

N-108 Nicon precision Modular Precision Vice With Parallel jaws

Product form

SKU: MPV125

FEATURES: This Vice designed for precision milling, grinding and widely used with CNC and standard milling machines. Both moving and fixed... Read more

Rs. 43,640.00 Excl. GST

    • Nicon
    • Shop Now for Quick Delivery on In-Stock Items!
    • Discover the Quality Difference: Shop Our Collection of 100% Genuine Products.

    • Shop Confidently and Quickly with our Express Checkout Option!

    Description

    FEATURES:

    • This Vice designed for precision milling, grinding and widely used with CNC and standard milling machines.
    • Both moving and fixed blocks are precision ground with paralelism accuracy 0.01mm and thus a precise and safely clamping
    • All components of vice are interchangeable with perfect alignment to provide different work to hold solutions.
    • The space-saving design and solid construction allow a maximum blocking ratio to total overall dimension of the vice.
    • Four extra tapped hole in moving and fixed rear blocks in front and top for optional jaws and fixtures.
    • High alloyed quality resistance steel, case hardened HRC 60±2 is used in all body and accessories of vice to give maximum rigidity, High performance & no wear

    STANDARD ACCESORIES:

    • 1 Work stopper,
    • 1 pair of standard 16mm positioning key nut,
    • 4 Clamps
    • T Allen key,
    • 1 box Wrench


    Read more
