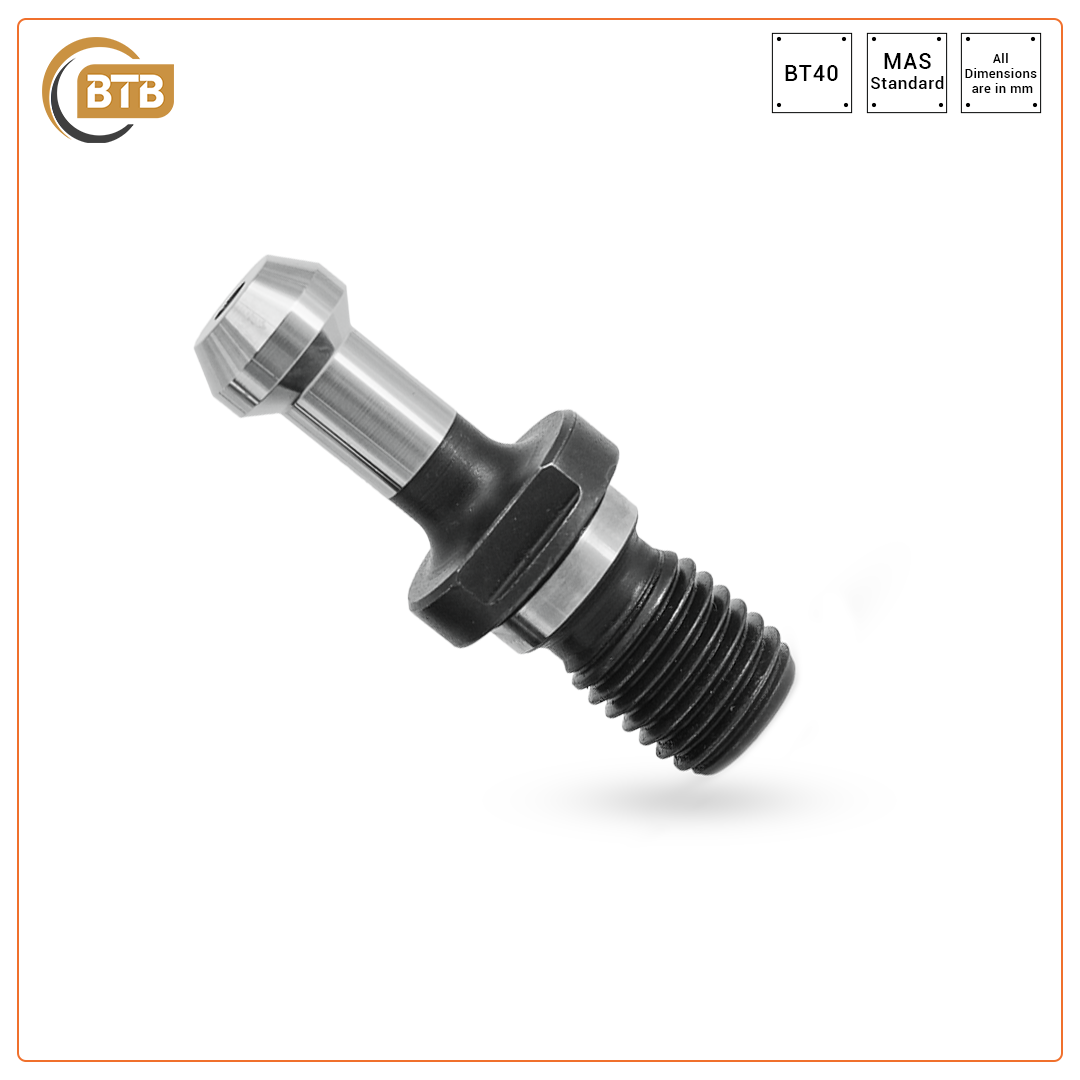

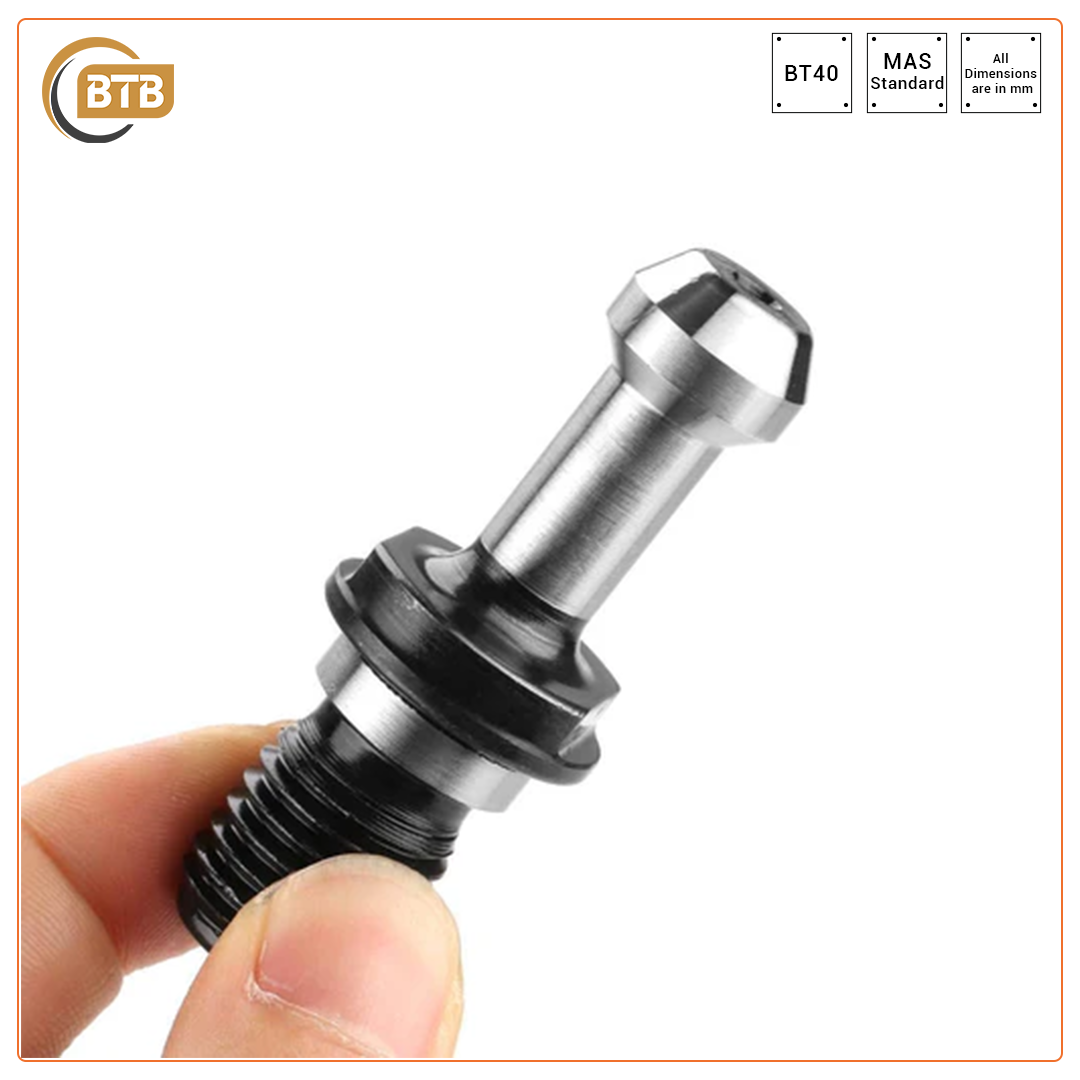

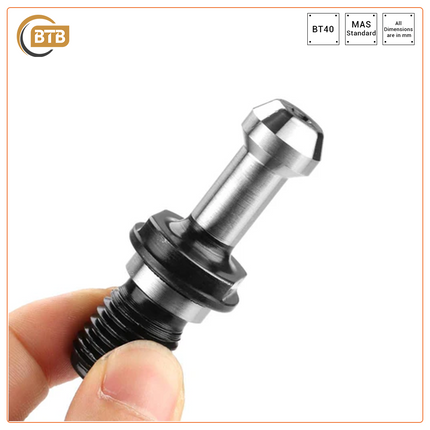

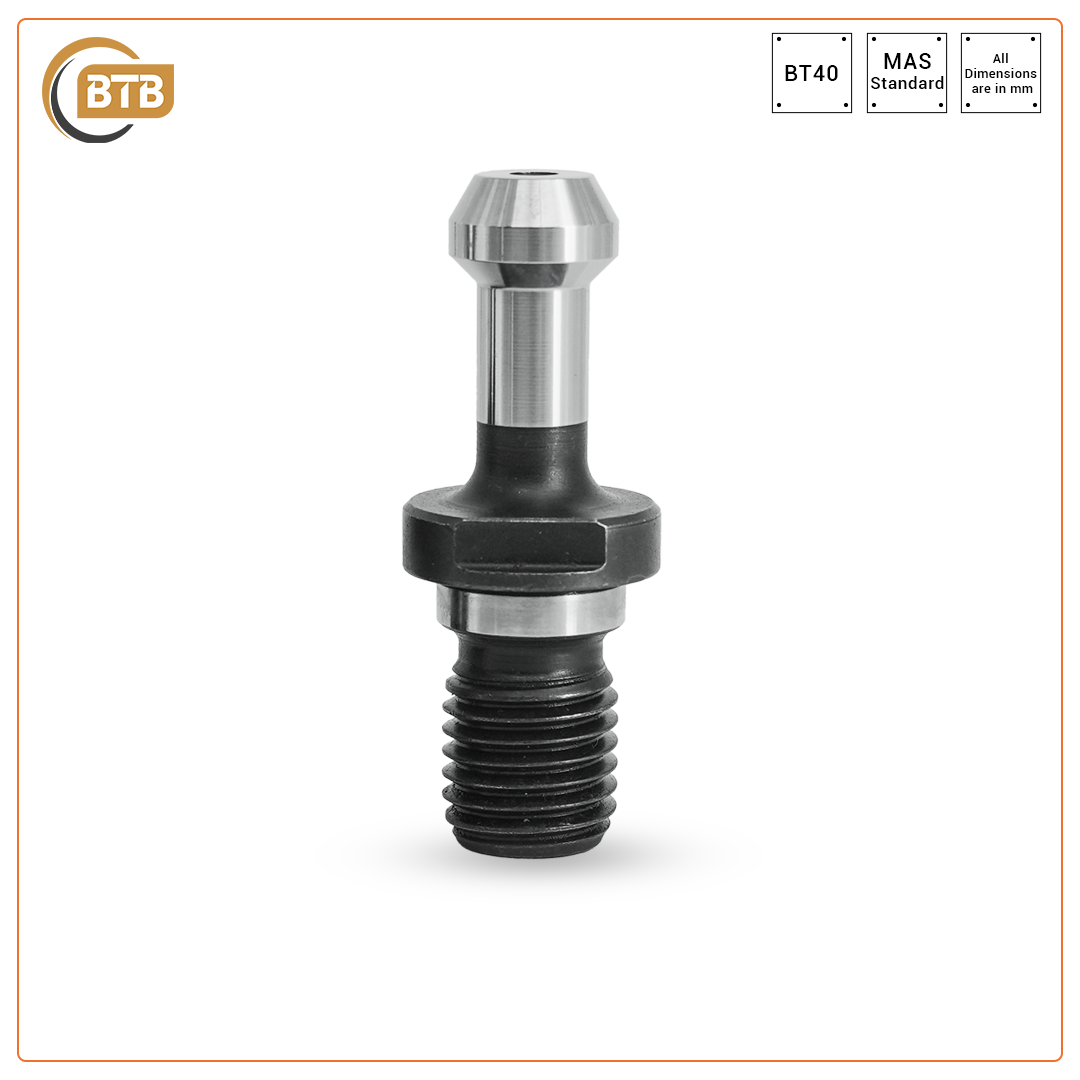

BTB Pull Studs/ BT40 45 DEG W/TC
The BT40 Pull Stud 45° With Through Coolant (W/TC) is a precision-engineered component designed to secure BT40 tool holders in CNC machines, offering robust performance under high-speed and high-load machining conditions. With its 45-degree angle and integrated through-coolant feature, this pull stud ensures efficient coolant delivery, enhancing cutting accuracy and tool life. Manufactured from hardened alloy steel, it provides high tensile strength, wear resistance, and secure locking compatibility with standard BT40 spindles.
-
Increased Performance: Engineered for optimal performance in demanding machining applications, these pull studs provide secure tool clamping and minimize vibration, leading to improved accuracy and surface finish.
-
Enhanced Safety: Designed with safety in mind, these pull studs ensure reliable and secure tool holding, minimizing the risk of tool breakage and potential accidents.
-
High-Grade Steel with Proper Heat Treatment: Crafted from high-grade steel with proper heat treatment, these pull studs offer exceptional strength, rigidity, and durability, ensuring long-lasting performance and resistance to wear and tear in demanding machining environments.
-
45-Degree Taper: The 45-degree taper design provides a strong and secure connection between the tool holder and the spindle, ensuring optimal clamping force and minimizing tool deflection.
-
Through-Coolant Capability: Incorporates through-coolant channels for efficient cooling and chip evacuation, improving tool life and enhancing machining performance.
Key Benefits
-
Coolant Capability
Allows direct coolant flow through the spindle to the tool, improving chip evacuation and reducing heat.
-
High Strength & Durability
Made from heat-treated alloy steel to withstand high torque and axial loads.
-
Enhanced Tool Life
Optimal coolant delivery minimizes tool wear and thermal expansion.
-
Secure & Accurate Fit
45° taper ensures proper alignment and secure clamping in BT40 spindle systems.
-
Corrosion & Wear Resistant
Precision finish and protective coating resist corrosion and extend life in demanding environments.
Applications:
- Ideal for a wide range of machining applications, including milling, drilling, and boring, on various CNC machines.
1. What is the function of the 45-degree angle on this pull stud?
The 45-degree angle ensures a secure engagement with the machine drawbar mechanism, providing a strong and reliable hold for high-speed CNC operations.
2. What does W/TC mean in the product title?
W/TC stands for "With Through Coolant." This means the pull stud is designed to allow coolant to pass through the spindle directly to the cutting tool.
3. Is this pull stud compatible with all BT40 tool holders?
Yes, this pull stud is designed to fit standard BT40 tool holders. However, always verify your CNC machine’s specification to ensure compatibility.
4. Can I use this pull stud for dry machining?
Yes, although it’s optimized for coolant-based applications, it can be used for dry machining as well. The through-coolant feature will remain inactive in such cases.
5. How often should I replace my pull studs?
It's recommended to inspect pull studs regularly for wear or cracks. Under regular use, replacing them every 6 to 12 months ensures optimal machine safety and performance.
