VTC Series/Medium Duty Clamps-Flanged Base/2000-4000 Series

Description

Toggle Clamps-Vertical Hold Down Action

In the VTC Series, Toggle Clamps from Steel Smith employ a downward clamping action to secure workpieces, boasting a robust holding capacity of up to 3000 kgs. With a minimum 90 degree opening angle, these clamps facilitate easy loading and unloading of workpieces. The clamping arm options include solid bar, U-shaped, or fixed hole configurations, catering to individual needs.

Features

  • Series Details:
    • SF Series: Solid hold-down bar with a fixed guide bush for the spindle assembly.
    • SB Series: 'U' bar arm, allowing the bolt retainer to be welded at any desired angle.
    • UB Series: 'U' bar arm enables one or more spindles to be moved into any desired position along the arm.

Specifications

Material and Finish:

  • Material: Steel or Stainless Steel (304)
  • Finish: Zinc Plated or Electro Polished (for stainless steel models)

Technical Details:

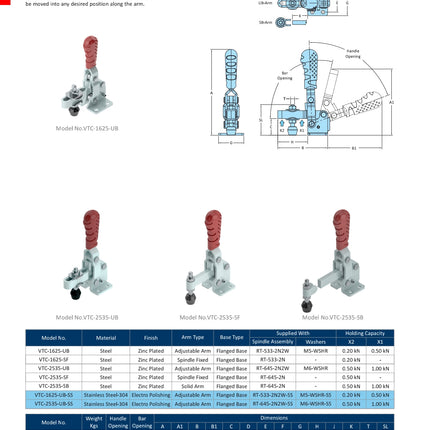

Model No Material Finish Arm Type Base Type Holding Capacity
VTC-1625-UB Steel Zinc Plated Adjustable Arm Flanged Base 0.50 kN
VTC-1625-SF Steel Zinc Plated Spindle Fixed Flanged Base 0.20 kN
VTC-2535-UB Steel Zinc Plated Adjustable Arm Flanged Base 1.00 kN
VTC-2535-SF Steel Zinc Plated Spindle Fixed Flanged Base 0.50 kN
VTC-2535-SB Steel Zinc Plated Solid Arm Flanged Base 1.00 kN
VTC-1625-UB-SS Stainless Steel (304) Electro Polished Adjustable Arm Flanged Base 0.50 kN
VTC-2535-UB-SS Stainless Steel (304) Electro Polished Adjustable Arm Flanged Base 1.00 kN



Dimensions Table:

Model No Handle Opening Bar Opening Weight (Kgs) A B C D E F G H J K T
VTC-1625-UB 101° 60° 0.080 24 25 16 33 23 86 56 31 4.5 M5
VTC-1625-SF 101° 60° 0.080 24 25 16 33 23 86 56 31 4.5 M5
VTC-2535-UB 104° 64° 0.220 27 30 25 38 32 129 75 45 5.5 M6
VTC-2535-SF 104° 64° 0.220 27 30 25 38 32 129 75 45 5.5 M6
VTC-2535-SB 104° 64° 0.220 27 30 25 38 32 129 75 45 5.5 M6
VTC-1625-UB-SS 101° 60° 0.080 24 25 16 33 23 86 56 31 4.5 M5
VTC-2535-UB-SS 104° 64° 0.220 27 30 25 38 32 129 75 45 5.5 M6



Technical Details:

Model No Material Finish Arm Type Base Type Holding Capacity
VTC-3050-UB Steel Zinc Plated Adjustable Arm Flanged Base 1.50 kN
VTC-3670-UB Steel Zinc Plated Adjustable Arm Flanged Base 2.00 kN
VTC-3670-SF Steel Zinc Plated Spindle Fixed Flanged Base 2.00 kN
VTC-3670-SB Steel Zinc Plated Solid Arm Flanged Base 2.00 kN
VTC-4595-UB Steel Zinc Plated Adjustable Arm Flanged Base 3.90 kN
VTC-4595-SF Steel Zinc Plated Spindle Fixed Flanged Base 3.90 kN
VTC-4595-SB Steel Zinc Plated Solid Arm Flanged Base 3.90 kN
VTC-3670-UB-SS Stainless Steel (304) Electro Polished Adjustable Arm Flanged Base 2.00 kN
VTC-4595-UB-SS Stainless Steel (304) Electro Polished Adjustable Arm Flanged Base 3.90 kN

Dimensions

Model No Handle Opening Bar Opening Weight (Kgs) A B C D E F G H J K T
VTC-3050-UB 110° 85° 0.350 46.5 145 66 35 46 50 35 115 7.2 M8
VTC-3670-UB 110° 115° 0.410 61.5 180 66 35 58 80 35 152 6.5 M8
VTC-3670-SF 110° 115° 0.410 61.5 180 66 35 58 80 35 152 6.5 M8
VTC-3670-SB 110° 115° 0.410 61.5 180 66 35 58 80 35 152 6.5 M8
VTC-4595-UB 120° 151° 0.820 79 205 86 45 82 105 45 182 8.5 M10
VTC-4595-SF 120° 151° 0.820 79 205 86 45 82 105 45 182 8.5 M10
VTC-4595-SB 120° 151° 0.820 79 205 86 45 82 105 45 182 8.5 M10
