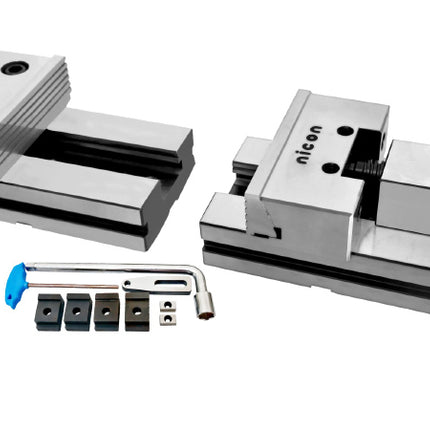

N-102 Nicon Precision Two Piece Modular Machine Vice

Description

FEATURES:

  • Two Piece Modular Vice designed for precision milling.grinding and widely used with CNC and standard milling machines.

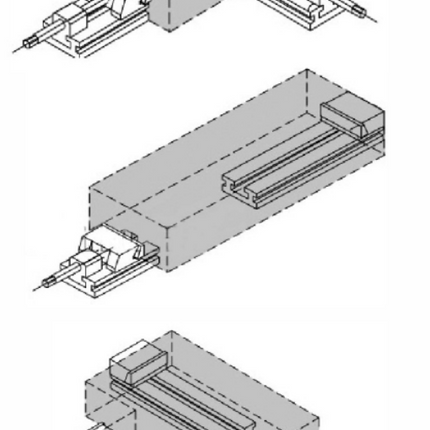

  • Modular elements allow you perfect clamping even of big workpieces wich need heaviest machining using the machine table as surface.
  • This vice is a solution for a lot of applications and a perfect complement or alternative to single or double vices.
  • Both jaws plates are in pull-down angle. This ensures, during the clamping operation a down load run of the workpiece against the vice base and thus a precise and safely clamping.
  • All components of vice are interchangeable with perfect alignment to provide different work to hold solutions.
  • The space-saving design and solid construction allow a maximum blocking ratio to total overall dimension of the vice
  • For extra tapped hole with ground back jaw rear face increases maximum capacity with addition of jaws extensions.
  • High alloyed quality resistance steel case hardened HRC 60+or-2 is used in all body and accessories of vice to give maximum rigidity, high performance & no wear.

STANDARD ACCESSORIES:

  • 1 Work stopper,
  • 1 Pair of standard 16mm positioning key nuts,
  • 4 Clamps,
  • T Allen key,
  • 1 box Wrench.

N-102 Nicon Precision Two Piece Modular Machine Vice

Product form

SKU: TPMV150

FEATURES: Two Piece Modular Vice designed for precision milling.grinding and widely used with CNC and standard milling machines. Modular elements... Read more

Rs. 66,990.00 Excl. GST

    • Nicon
    • Shop Now for Quick Delivery on In-Stock Items!
    • Discover the Quality Difference: Shop Our Collection of 100% Genuine Products.
    • Shop Confidently and Quickly with our Express Checkout Option!

    Description

    FEATURES:

    • Two Piece Modular Vice designed for precision milling.grinding and widely used with CNC and standard milling machines.
    • Modular elements allow you perfect clamping even of big workpieces wich need heaviest machining using the machine table as surface.
    • This vice is a solution for a lot of applications and a perfect complement or alternative to single or double vices.
    • Both jaws plates are in pull-down angle. This ensures, during the clamping operation a down load run of the workpiece against the vice base and thus a precise and safely clamping.
    • All components of vice are interchangeable with perfect alignment to provide different work to hold solutions.
    • The space-saving design and solid construction allow a maximum blocking ratio to total overall dimension of the vice
    • For extra tapped hole with ground back jaw rear face increases maximum capacity with addition of jaws extensions.
    • High alloyed quality resistance steel case hardened HRC 60+or-2 is used in all body and accessories of vice to give maximum rigidity, high performance & no wear.

    STANDARD ACCESSORIES:

    • 1 Work stopper,
    • 1 Pair of standard 16mm positioning key nuts,
    • 4 Clamps,
    • T Allen key,
    • 1 box Wrench.
