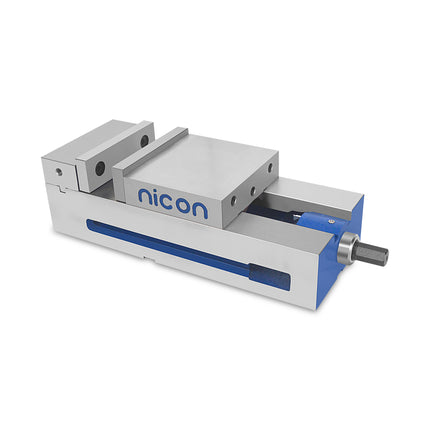

N-131 Nicon Compact Lockdown Jaw Machine Vice

    ThumbnailThumbnail
    Sale -38%
Description

Description

FEATURES:

  • This vice is the earliest vice that can be used vertical or on either side. Enhanced body structure reduces the deflection in operation while the vice mounted vertical or horizontal.
  • The sealed bearing system induces clamping pressure and increases bearing life.
  • Accuracy in parallelism & squareness within 0.02/100 mm.
  • Hardened bed and jaws maintain accuracy for a long time.
  • Ductile Cast iron body.
  • No workpiece tilt after clamping.
  • All parts interchangeable and available as spares.
  • Tenons and tenon slots provided for effortless truing of vice on machine table.
  • The high clamping force can be achieved by effortless handle movement which eliminate hammering on handle.

STANDARD ACCESSORIES:

  • Chip Guards
  • Adjustable Handle
MODEL NO. L W H H1 H1 O J J1 T Weight in Kgs. Clamping pressure in Kgs.
CMV150 390 152 120 455 75 150 45 150 18 32 3000

OPTIONAL JAWS

Read more

Product form

N-131 Nicon Compact Lockdown Jaw Machine Vice

SKU: CMV150

Rs. 36,344.00 Rs. 22,533.28 Incl. GST

    • Brand: Nicon
    • Free shipping on orders above Rs.999/-
    • 100% Genuine Products: Discover the Quality Difference in our entire collection
    Description

    Description

    FEATURES:

    • This vice is the earliest vice that can be used vertical or on either side. Enhanced body structure reduces the deflection in operation while the vice mounted vertical or horizontal.
    • The sealed bearing system induces clamping pressure and increases bearing life.
    • Accuracy in parallelism & squareness within 0.02/100 mm.
    • Hardened bed and jaws maintain accuracy for a long time.
    • Ductile Cast iron body.
    • No workpiece tilt after clamping.
    • All parts interchangeable and available as spares.
    • Tenons and tenon slots provided for effortless truing of vice on machine table.
    • The high clamping force can be achieved by effortless handle movement which eliminate hammering on handle.

    STANDARD ACCESSORIES:

    • Chip Guards
    • Adjustable Handle
    MODEL NO. L W H H1 H1 O J J1 T Weight in Kgs. Clamping pressure in Kgs.
    CMV150 390 152 120 455 75 150 45 150 18 32 3000

    OPTIONAL JAWS
