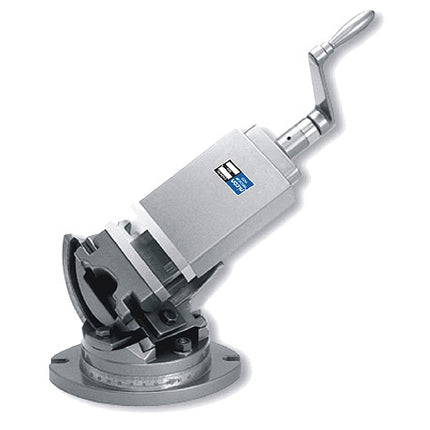

N-154 Nicon 3-Way Tilt And Swivel Angular Vice

Description

FEATURES:

  • 3 Way Tilting vices provide for 3 axis setting of the workplace in special milling, drilling, grinding, Shaping and g boring applications.
  • Vices have 2 angular slides which allow the work piece to be set at any desired angle - 45.
  • Tilting range on either sides and 90° vertical indexing. The 360° swivel base further allows rotation along the vertical axis.
  • These vices are manufactured from close grained hi tensile seasoned cast iron.
  • Unbreakable steel crank handle.
  • Use of hi tensile grade fasteners provides strength and rigidity to these vices. hardened and ground jaw.
  • A milled slot in the vice base helps in accurate location of the vice on the machine table using rectangular locating nuts.
  • Accuracy in parallelism of jaws 0.02/100mm.
  • "Hold Down" slots allow for secure clamping of the vice on the machine table.

Read more

N-154 Nicon 3-Way Tilt And Swivel Angular Vice

Product form

SKU: TSTV75

FEATURES: 3 Way Tilting vices provide for 3 axis setting of the workplace in special milling, drilling, grinding, Shaping and... Read more

Rs. 18,350.00 Excl. GST

    • Nicon
    • Shop Now for Quick Delivery on In-Stock Items!
    • Discover the Quality Difference: Shop Our Collection of 100% Genuine Products.

    • Shop Confidently and Quickly with our Express Checkout Option!

    Description

    FEATURES:

    • 3 Way Tilting vices provide for 3 axis setting of the workplace in special milling, drilling, grinding, Shaping and g boring applications.
    • Vices have 2 angular slides which allow the work piece to be set at any desired angle - 45.
    • Tilting range on either sides and 90° vertical indexing. The 360° swivel base further allows rotation along the vertical axis.
    • These vices are manufactured from close grained hi tensile seasoned cast iron.
    • Unbreakable steel crank handle.
    • Use of hi tensile grade fasteners provides strength and rigidity to these vices. hardened and ground jaw.
    • A milled slot in the vice base helps in accurate location of the vice on the machine table using rectangular locating nuts.
    • Accuracy in parallelism of jaws 0.02/100mm.
    • "Hold Down" slots allow for secure clamping of the vice on the machine table.

    Read more
