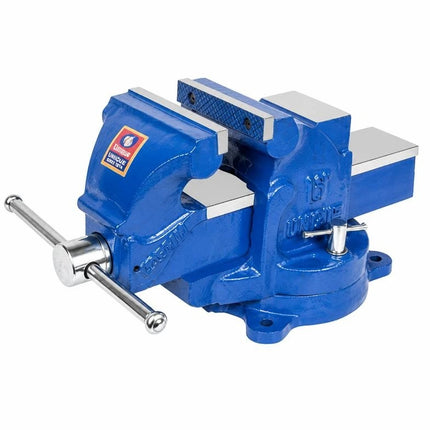

Bench Vise Unique u301 S
The standard-quality, open long-style, special-duty Bench Vise Unique u301 S features a one-piece, closed-grain cast iron body for maximum stability and vibration-free operation during hard shop work. An unbreakable steel nut, with an alloy steel square-thread lead screw, ensures smooth operation of high-torque clamping. Tender-tempered steel serrated jaws and a 360 swivel base with positive locking points make movement of the vise smooth in the same plane for machining or fabrication.
The toughest, most precise, and durable solution for bench vise applications. Able to take on the most demanding tasks, you can be confident this high-quality bench vise will grip tight as you tackle machining, metalworking, and heavy shop projects. Made from heavyweight, closed-grain cast iron and featuring an unbreakable steel nut, this open-pan bench vise will provide consistently reliable clamping strength for your most demanding jobs. Featuring a 360-degree swiveling base with locking screws at any angle, mounted with interchangeable tempered steel serrated jaws, and an alloy steel lead screw with square threads.
Technical Specifications
| Specification Parameter |
00 |
0 |
1 |
2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
| Size in Inches |
2¼ |
2½ |
3 |
3½ |
4 |
4½ |
5 |
6 |
8 |
10 |
12 |
| Width of Jaws (mm) |
60 |
65 |
75 |
85 |
100 |
115 |
125 |
150 |
200 |
250 |
300 |
| Jaws Opening (mm) |
60 |
65 |
80 |
110 |
110 |
130 |
160 |
170 |
240 |
290 |
340 |
| Depth of Jaws (mm) |
45 |
48 |
60 |
62 |
70 |
76 |
82 |
92 |
110 |
125 |
144 |
| Overall Height (mm) |
95 |
102 |
125 |
140 |
155 |
170 |
185 |
225 |
235 |
285 |
300 |
| Overall Width (mm) |
100 |
100 |
110 |
136 |
158 |
165 |
170 |
175 |
220 |
250 |
300 |
| Length Overall (mm) |
205 |
205 |
250 |
295 |
350 |
375 |
450 |
470 |
535 |
675 |
760 |
| Estimated Weight (kg) |
3.6 |
3.6 |
6 |
9.5 |
15 |
16.5 |
21 |
27 |
44 |
76 |
88 |

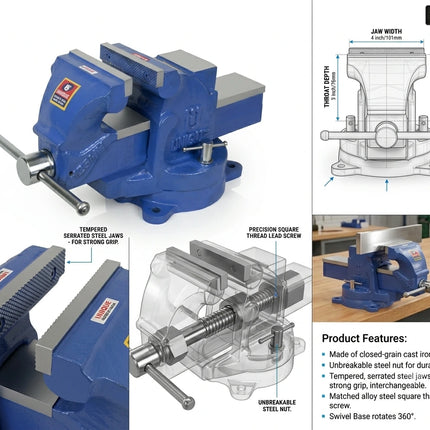

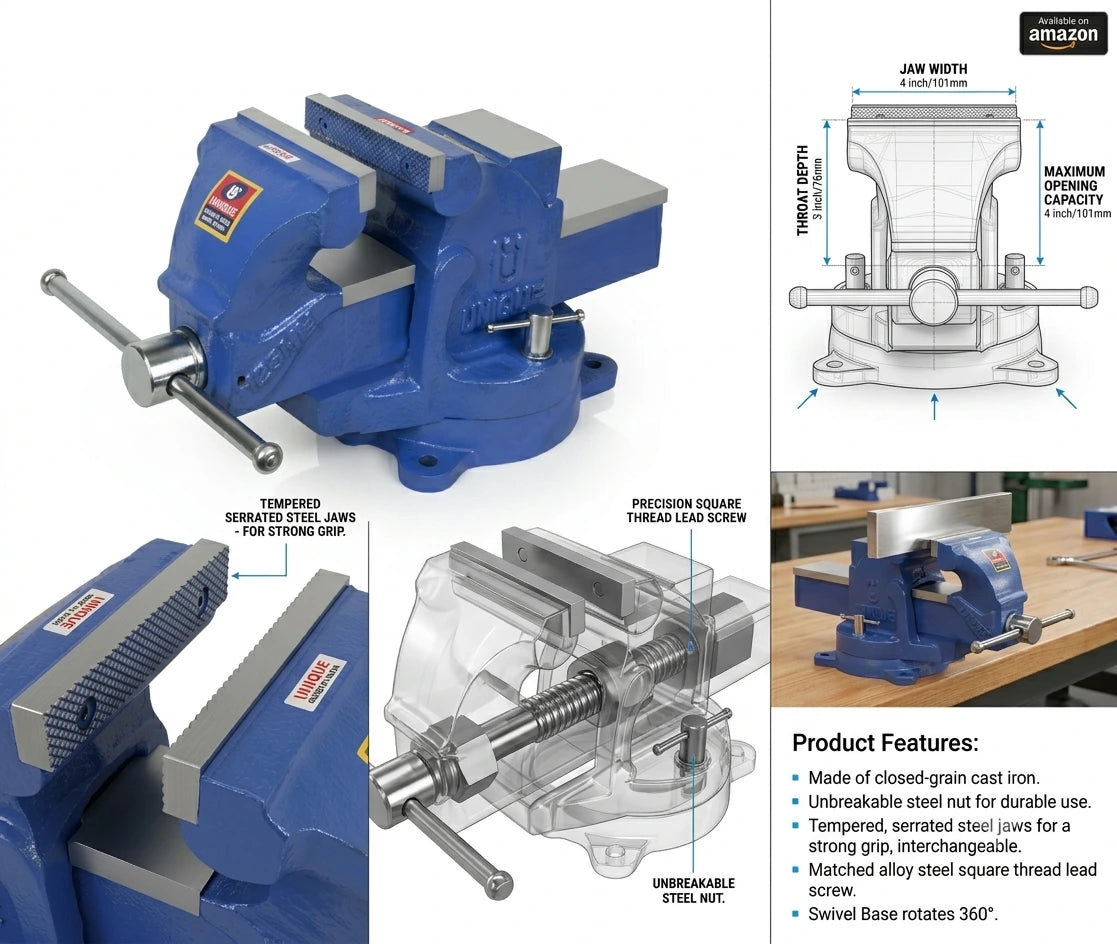

Why Choose Unique U301 S Bench Vise?
-
One-Piece Closed-Grain Cast Iron Body: Maximum stability and vibration-free operation during heavy shop floor fabrication.
-
Unbreakable Steel Nut & Square Threads: Heavy-duty alloy steel square-thread lead screw ensures smooth, high-torque clamping action.
-
360-Degree Swivel Base: Fully rotating base with positive locking points allows precise positioning at any angle.
-

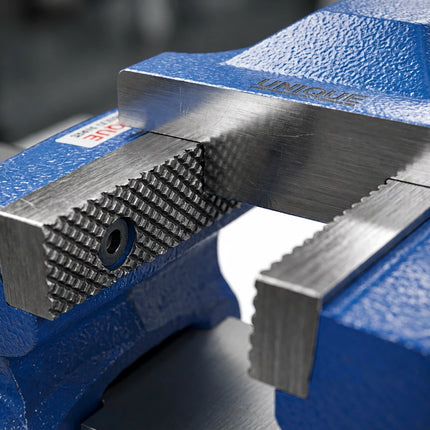

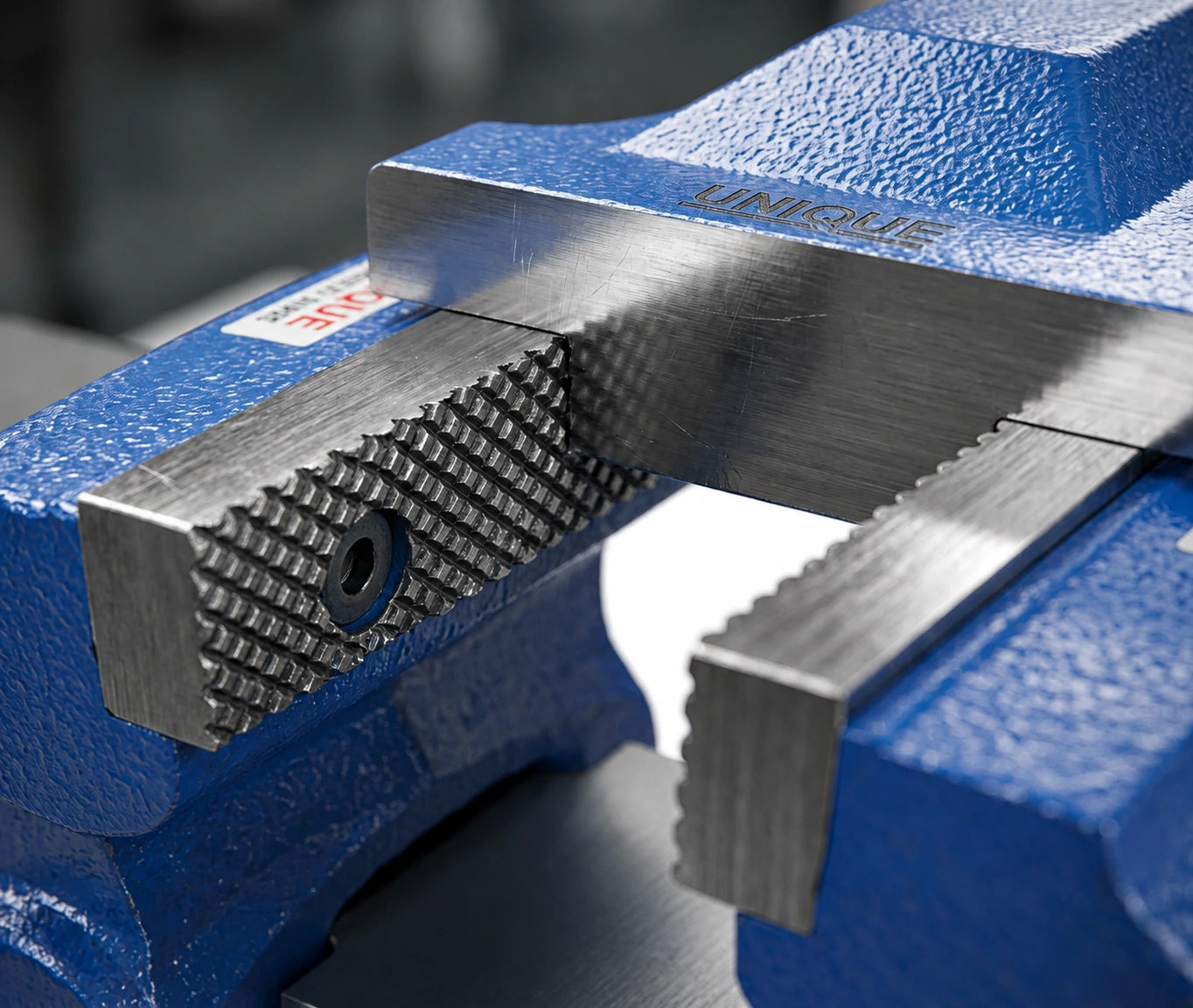

Interchangeable Tempered Jaws: Hardened steel serrated jaws provide a secure grip and are easily replaceable when worn out.
-
Extensive Size Range: Available from compact 2¼" models up to heavy-duty 12" workshop solutions.
Frequently Asked Questions (FAQ)
Q. Where do I get this? What size should I buy?
A: Place an order with one of our sales team members or a distributor via our network. Available in jaw sizes from 2¼" (3.6kg) up to 12" (88kg) to meet your workshop payload and hold requirements.
Q: What if my Jaws are worn out?
A: Jaws are sold separately. The tempered steel serrated jaws are supplied as a complete, interchangeable unit with each set of jaws, making them easy to replace and cheap to buy with no need to replace your entire existing work-holding tool.
Q: Is it able to cut on a 360-degree rotating weld angle?
A: Yes, the integrated swivel base has a 360-degree total rotational range, and you can lock it tightly in position as your work requires.
Q:Where to buy Bench Vise Unique u301 S online ?
A:You can purchase at our ecommerce store blocktobox.com , or contact our customer support team +91 8847488475 please check.
