BILZ FBT40 Super Collet Chuck

Description

Application:?For high-speed spindles and general milling
Machine types:?Machine Centers

FEATURES

  • Excellent Run-out accuracy? within? 5? @ 4D
  • Gripping force double than ER
  • Integrated run-out accuracy with compact design
  • Dynamically balanced G2.5 @ 25000rpm
  • Minimize the work interruption between tool and work piece

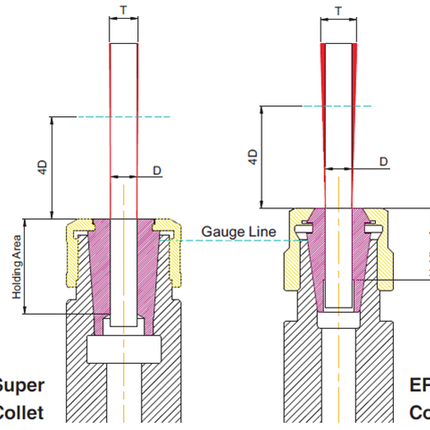

Super Collet Vs ER Collet

SUPER COLLET

  • Slim design allows for better each
  • Force is perpendicular to center line of tool holder for better grip
  • Integrated run-out accuracy with compact design
  • More gripping area creates better accuracy

ER COLLET

  • Wide collets = wide nut design
  • Force is angular to center line of tool holder
  • Less gripping area results in lesser accuracy

Super Collet chuck - Advantages

?

SUPER COLLET

  • slim design allows for better reach
  • Force is perpendicular to center line of tool holder for better grip
  • More gripping area creates better accuracy

ER? COLLET

  • Wide collets = wide nut design
  • Force is angular to center line of tool holder
  • Less gripping area results in lesser accuracy

Read more

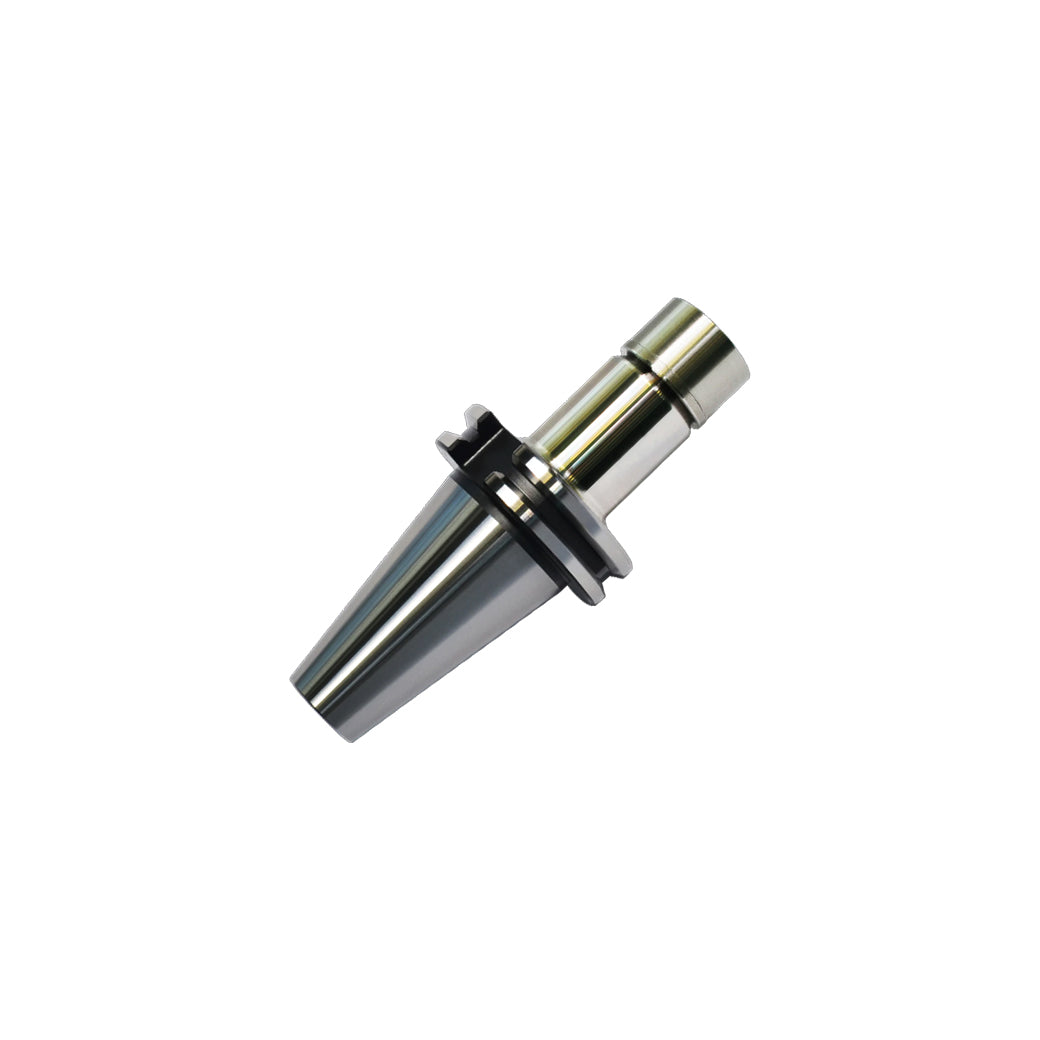

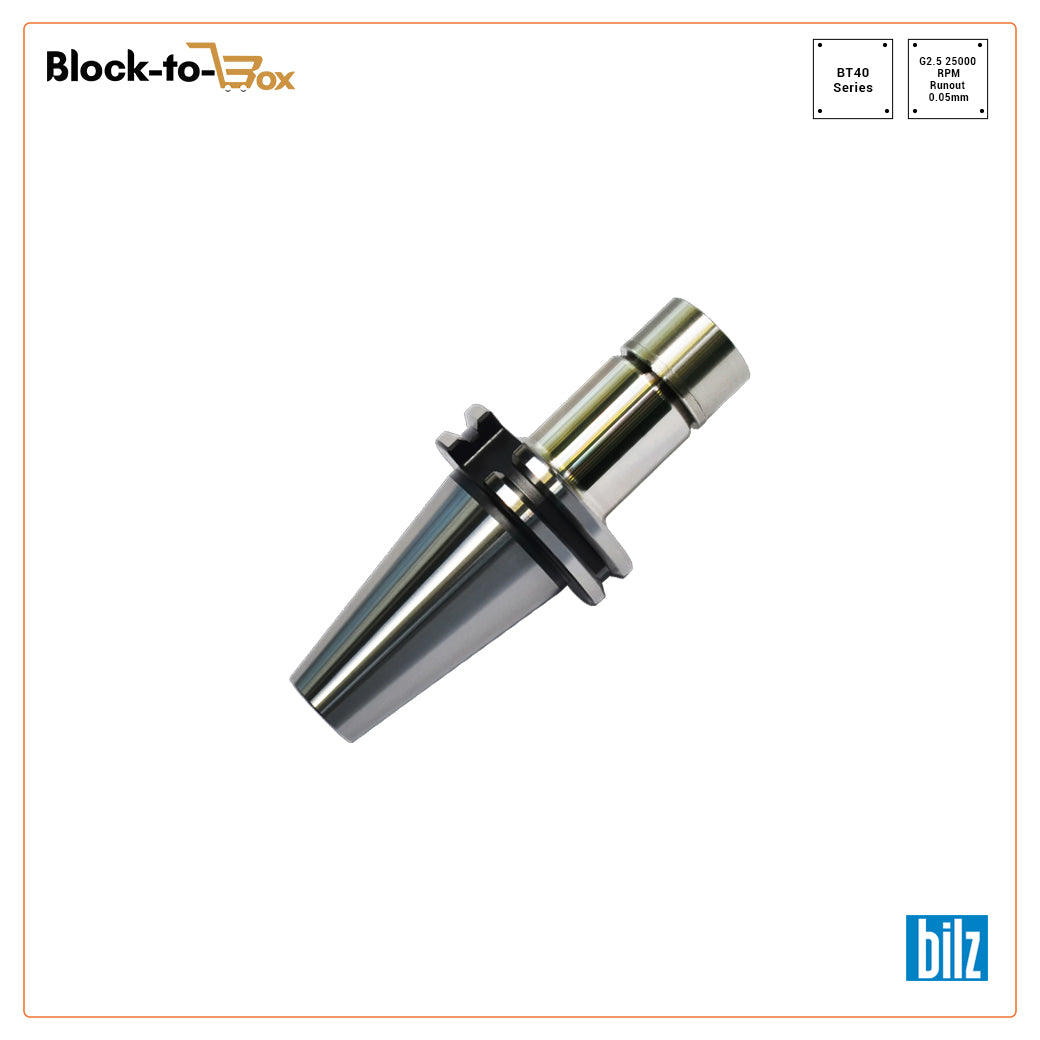

BILZ FBT40 Super Collet Chuck

Product form

SKU: 5127054

Application:?For high-speed spindles and general millingMachine types:?Machine Centers FEATURES Excellent Run-out accuracy? within? 5? @ 4D Gripping force double than... Read more

Rs. 14,467.00 Excl. GST

    • Bilz
    • Shop Now for Quick Delivery on In-Stock Items!
    • Discover the Quality Difference: Shop Our Collection of 100% Genuine Products.

    • Shop Confidently and Quickly with our Express Checkout Option!

    Description

    Application:?For high-speed spindles and general milling
    Machine types:?Machine Centers

    FEATURES

    • Excellent Run-out accuracy? within? 5? @ 4D
    • Gripping force double than ER
    • Integrated run-out accuracy with compact design
    • Dynamically balanced G2.5 @ 25000rpm
    • Minimize the work interruption between tool and work piece

    Super Collet Vs ER Collet

    SUPER COLLET

    • Slim design allows for better each
    • Force is perpendicular to center line of tool holder for better grip
    • Integrated run-out accuracy with compact design
    • More gripping area creates better accuracy

    ER COLLET

    • Wide collets = wide nut design
    • Force is angular to center line of tool holder
    • Less gripping area results in lesser accuracy

    Super Collet chuck - Advantages

    ?

    SUPER COLLET

    • slim design allows for better reach
    • Force is perpendicular to center line of tool holder for better grip
    • More gripping area creates better accuracy

    ER? COLLET

    • Wide collets = wide nut design
    • Force is angular to center line of tool holder
    • Less gripping area results in lesser accuracy

    Read more
