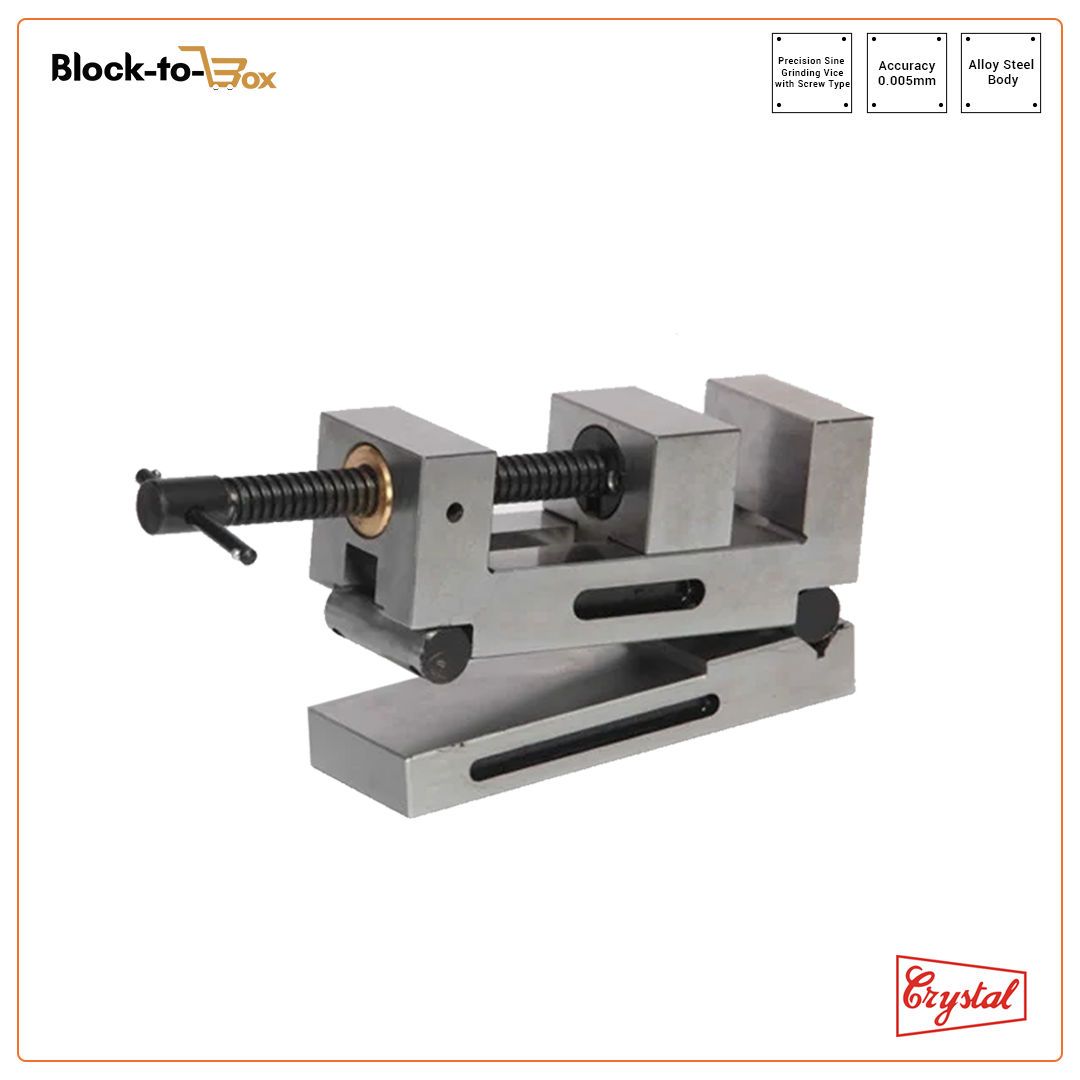

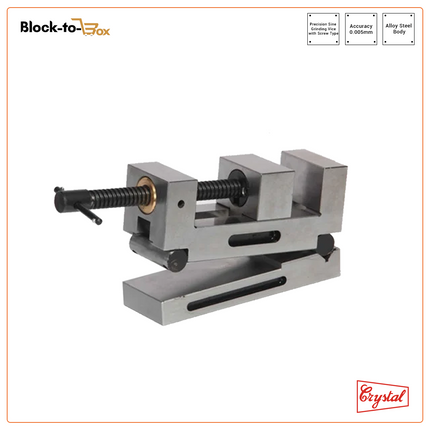

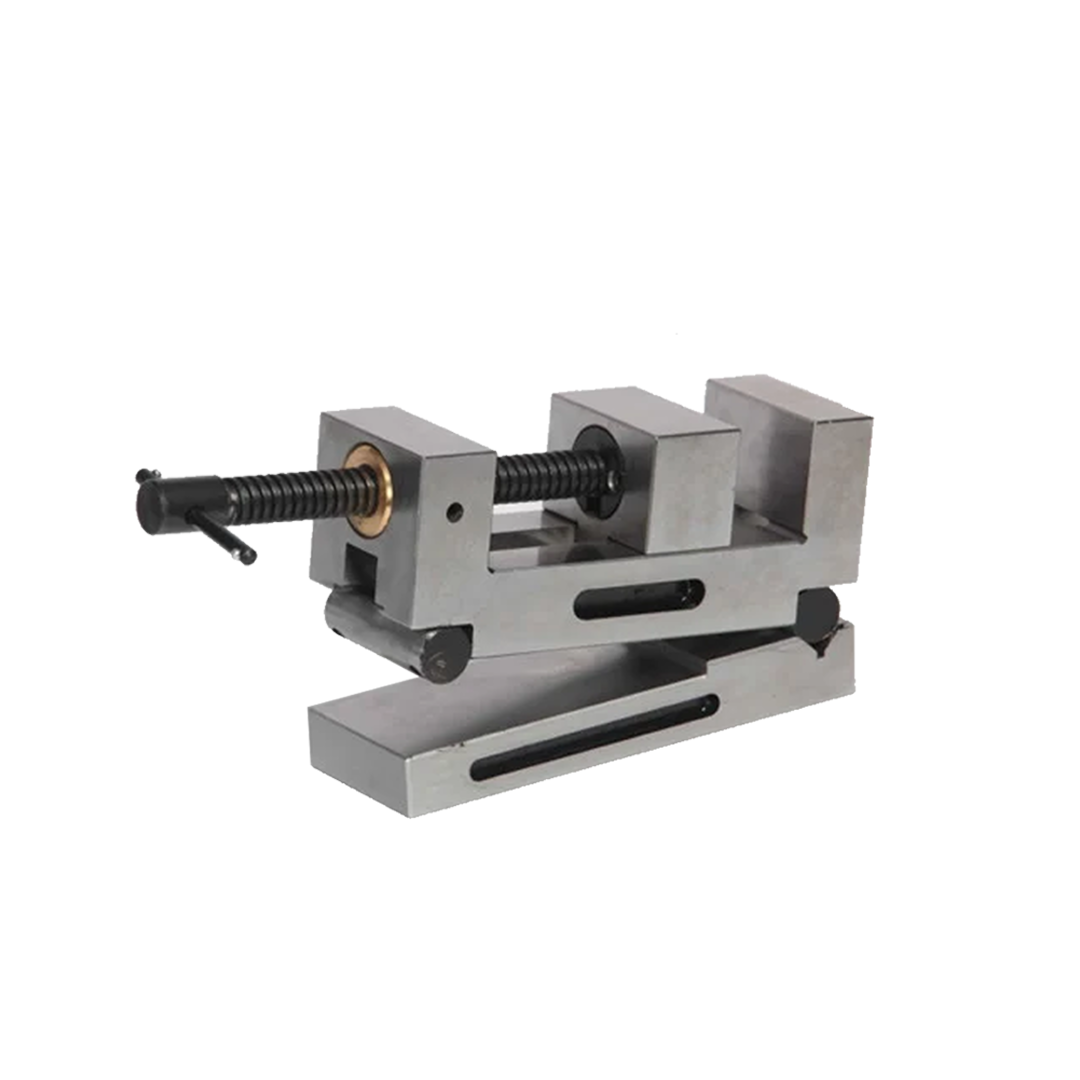

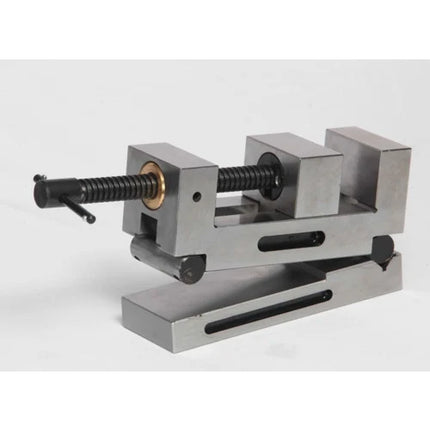

Crystal Precision Grinding Sine Vice With Screw

Description

Features:
  • Used for precision measurement, setting of angles, right angle grinding and light machining.
  • Made from high quality alloy steel.
  • Accuracy for squareness, Flatness, & Parallelism is without 0.005mm.
  • Angular accuracy within ±5 seconds.
  • Center distance between rollers is within ±0.005mm.

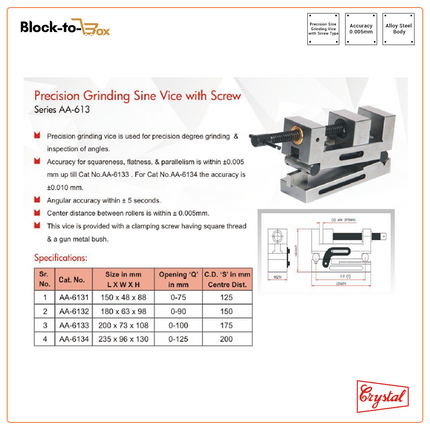

Specification:
Sr. no. Cat. No. Size (mm) LxWxH) Opening 'Q' (mm) C.D(mm) Centre Distance
1 AA-6131 150x48x88 0-75 125
2 AA-6132 180x63x98 0-90 150
3 AA-6133 200x73x108 0-100 175

Read more

Crystal Precision Grinding Sine Vice With Screw

Product form

Features: Used for precision measurement, setting of angles, right angle grinding and light machining. Made from high quality alloy steel.... Read more

Rs. 12,920.00 Excl. GST

    • Armatech Associates
    • Shop Now for Quick Delivery on In-Stock Items!
    • Discover the Quality Difference: Shop Our Collection of 100% Genuine Products.

    • Shop Confidently and Quickly with our Express Checkout Option!

    Description

    Features:
    • Used for precision measurement, setting of angles, right angle grinding and light machining.
    • Made from high quality alloy steel.
    • Accuracy for squareness, Flatness, & Parallelism is without 0.005mm.
    • Angular accuracy within ±5 seconds.
    • Center distance between rollers is within ±0.005mm.

    Specification:
    Sr. no. Cat. No. Size (mm) LxWxH) Opening 'Q' (mm) C.D(mm) Centre Distance
    1 AA-6131 150x48x88 0-75 125
    2 AA-6132 180x63x98 0-90 150
    3 AA-6133 200x73x108 0-100 175

    Read more
