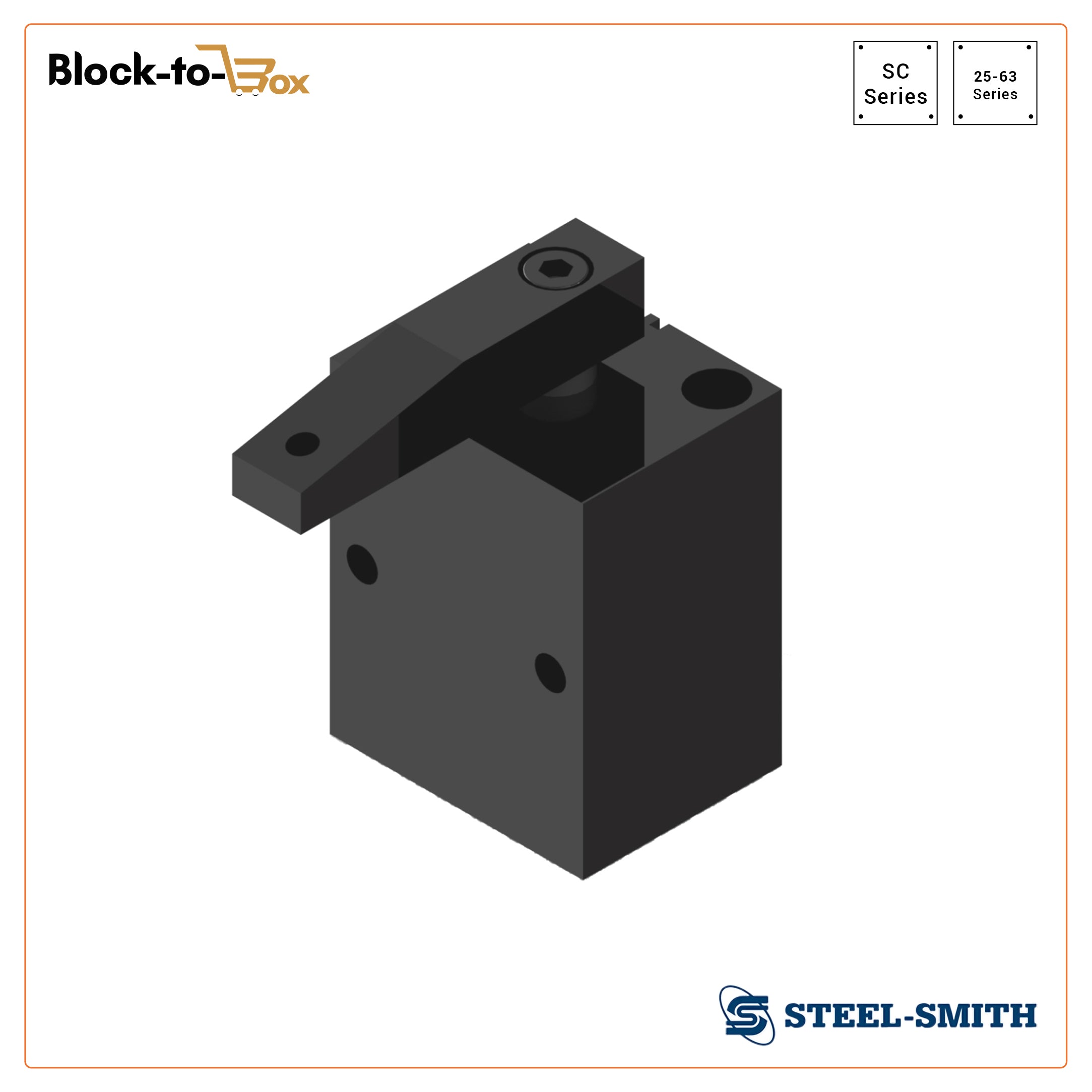

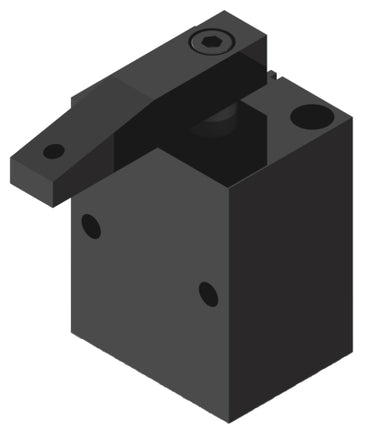

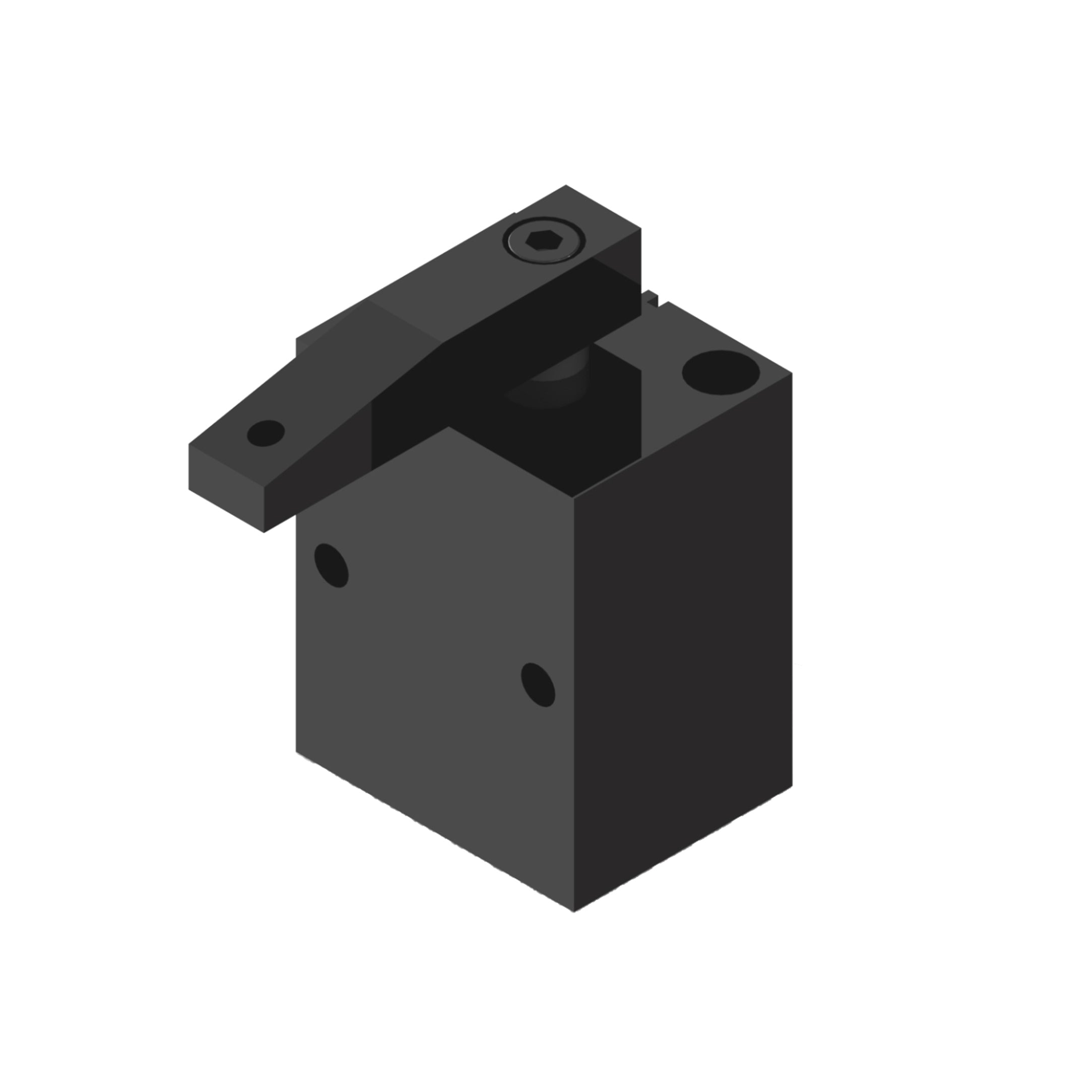

Name: Steelsmith Pneumatic Swing Clamp Block Version
Brand: Steelsmith
Price: 18004.0 INR

Steelsmith Pneumatic Swing Clamp Block Version

Description

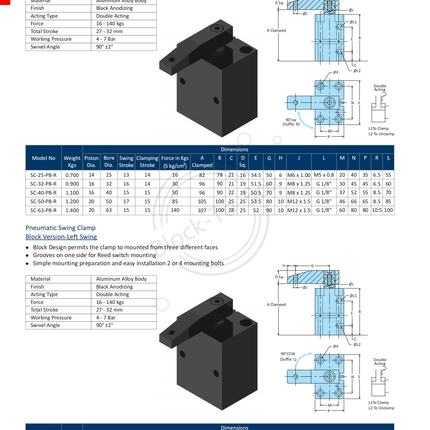

Model No	Weight (Kgs)	Piston Dia. (mm)	Bore Dia. (mm)	Swing Stroke (mm)	Clamping Stroke (mm)	Force in Kgs (5 kg/cmÂ²)
SC-25-PB-R / L	0.700	14	25	13	14	16
SC-32-PB-R / L	0.900	16	32	16	14	30
SC-40-PB-R / L	1.100	16	40	15	15	50
SC-50-PB-R / L	1.200	20	50	17	15	85
SC-63-PB-R / L	1.400	20	63	15	15	140

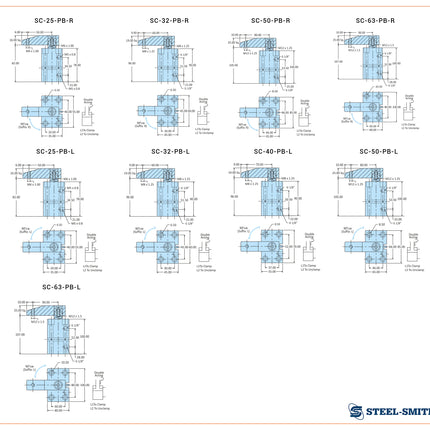

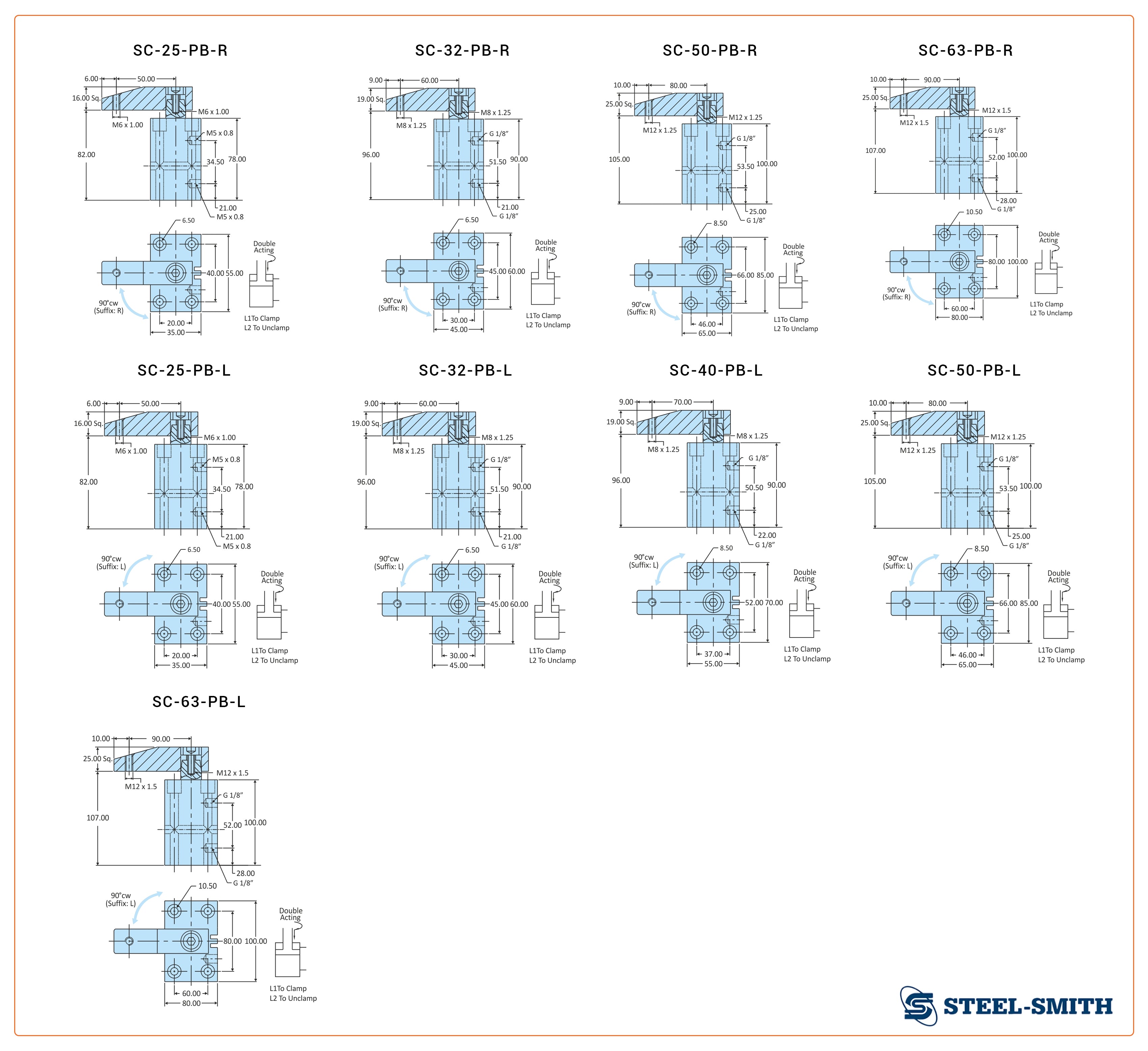

Model No	D Sq.	A Clamped	C	G	H	J	NCB	L	P
SC-25-PB-R / L	16	50	35	6	M6x1.00	21	40	78	82
SC-32-PB-R / L	19	60	45	9	M8x1.25	21	45	90	96
SC-40-PB-R / L	19	70	55	9	M8x1.25	22	52	90	96
SC-50-PB-R / L	25	80	65	10	M12x1.5	25	66	100	105
SC-63-PB-R / L	25	90	80	10	M12x1.5	28	80	100	107

Model No	Weight (Kgs)	Piston Dia. (mm)	Bore Dia. (mm)	Swing Stroke (mm)	Clamping Stroke (mm)	Force in Kgs (5 kg/cmÂ²)
SC-25-PB-R / L	0.700	14	25	13	14	16
SC-32-PB-R / L	0.900	16	32	16	14	30
SC-40-PB-R / L	1.100	16	40	15	15	50
SC-50-PB-R / L	1.200	20	50	17	15	85
SC-63-PB-R / L	1.400	20	63	15	15	140

Model No	D Sq.	A Clamped	C	G	H	J	NCB	L	P
SC-25-PB-R / L	16	50	35	6	M6x1.00	21	40	78	82
SC-32-PB-R / L	19	60	45	9	M8x1.25	21	45	90	96
SC-40-PB-R / L	19	70	55	9	M8x1.25	22	52	90	96
SC-50-PB-R / L	25	80	65	10	M12x1.5	25	66	100	105
SC-63-PB-R / L	25	90	80	10	M12x1.5	28	80	100	107
