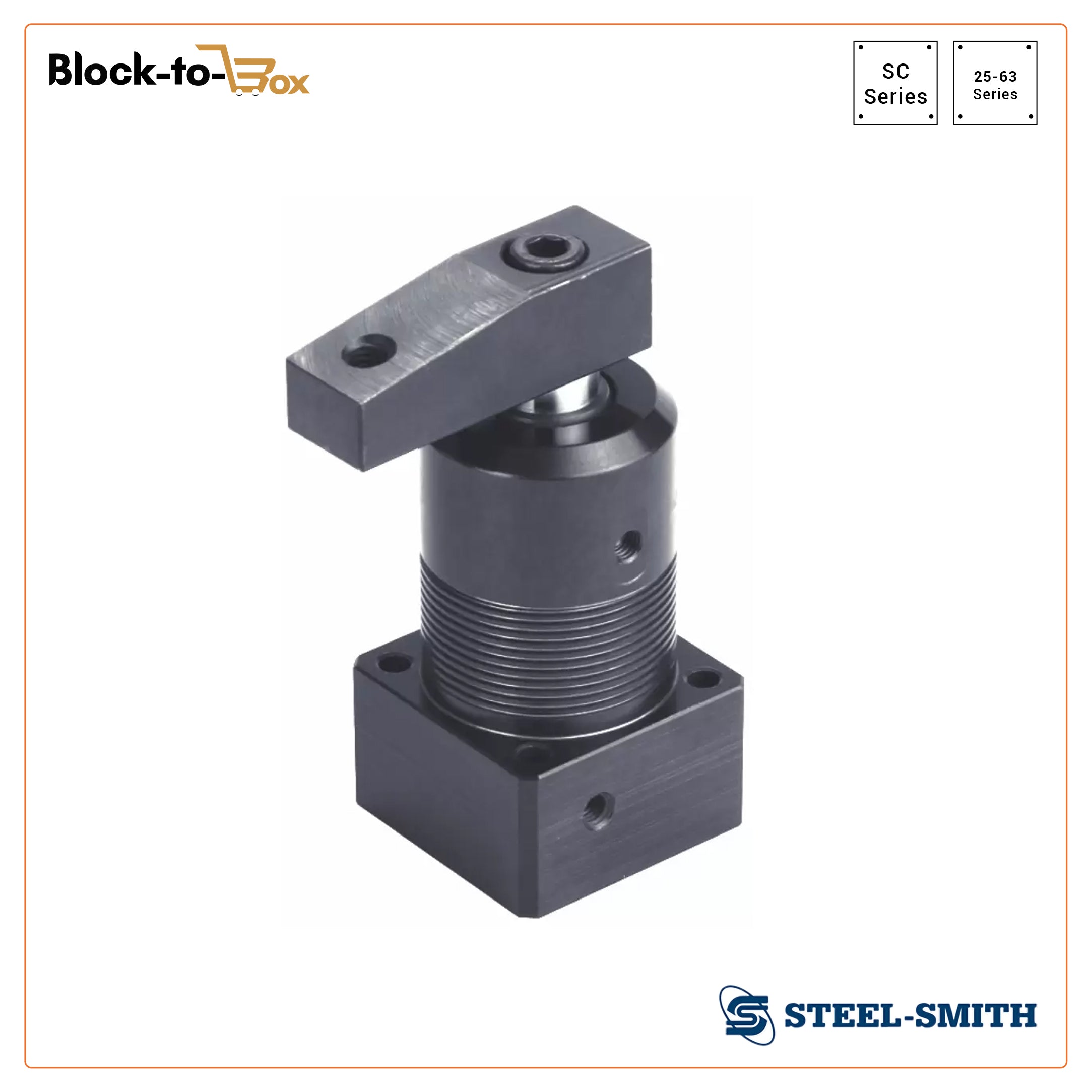

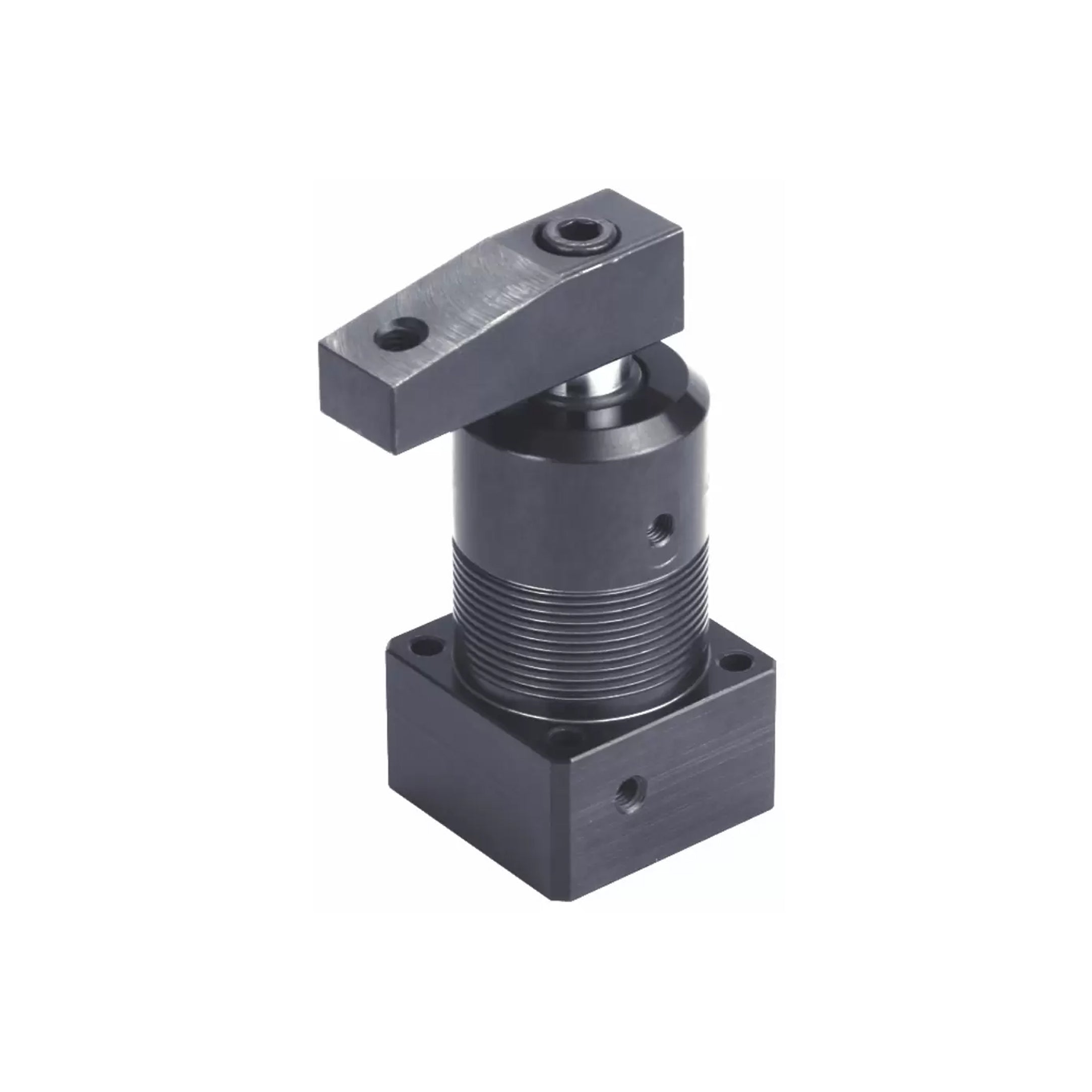

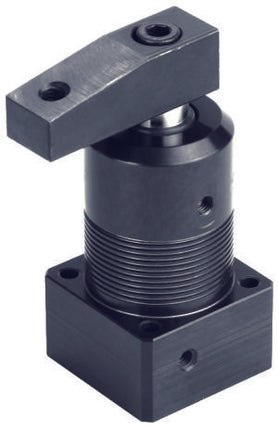

Pneumatic Swing Clamp Lower Flange Model

Description

PSF‐Series Pneumatic Swing Clamp Lower Flange Version

Features

  • Design Benefits:
    • Cylinder can be bolted directly to the fixture.
    • Easiest mounting preparation in the swing clamp line.
    • Square flange design enables clamping on all four sides of the clamp.
    • Suitable for clamping extra-large parts.
  • No Fixture Hole Required.

Specifications

Material and Design:

  • Material: Aluminum Alloy Body
  • Finish: Black Anodizing
  • Acting Type: Double Acting
  • Force: 16-140 kgs
  • Total Stroke: 26-29 mm
  • Working Pressure: 4-7 Bar
  • Swivel Angle: 90° ±2°

Technical Details:

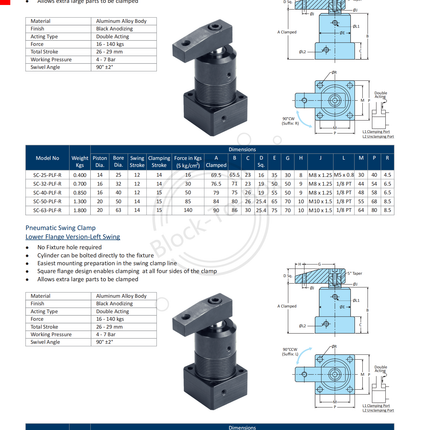

Model No Weight (Kgs) Piston Dia. (mm) Bore Dia. (mm) Swing Stroke (mm) Clamping Stroke (mm) Force in Kgs (5 kg/cm²)
SC-25-PLF-R / SC-25-PLF-L 0.400 14 25 12 14 16
SC-32-PLF-R / SC-32-PLF-L 0.700 16 32 12 14 30
SC-40-PLF-R / SC-40-PLF-L 0.850 16 40 12 14 50
SC-50-PLF-R / SC-50-PLF-L 1.300 20 50 14 15 85
SC-63-PLF-R / SC-63-PLF-L 1.800 20 63 14 15 140

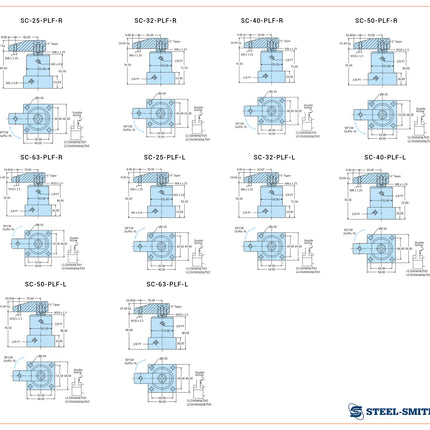

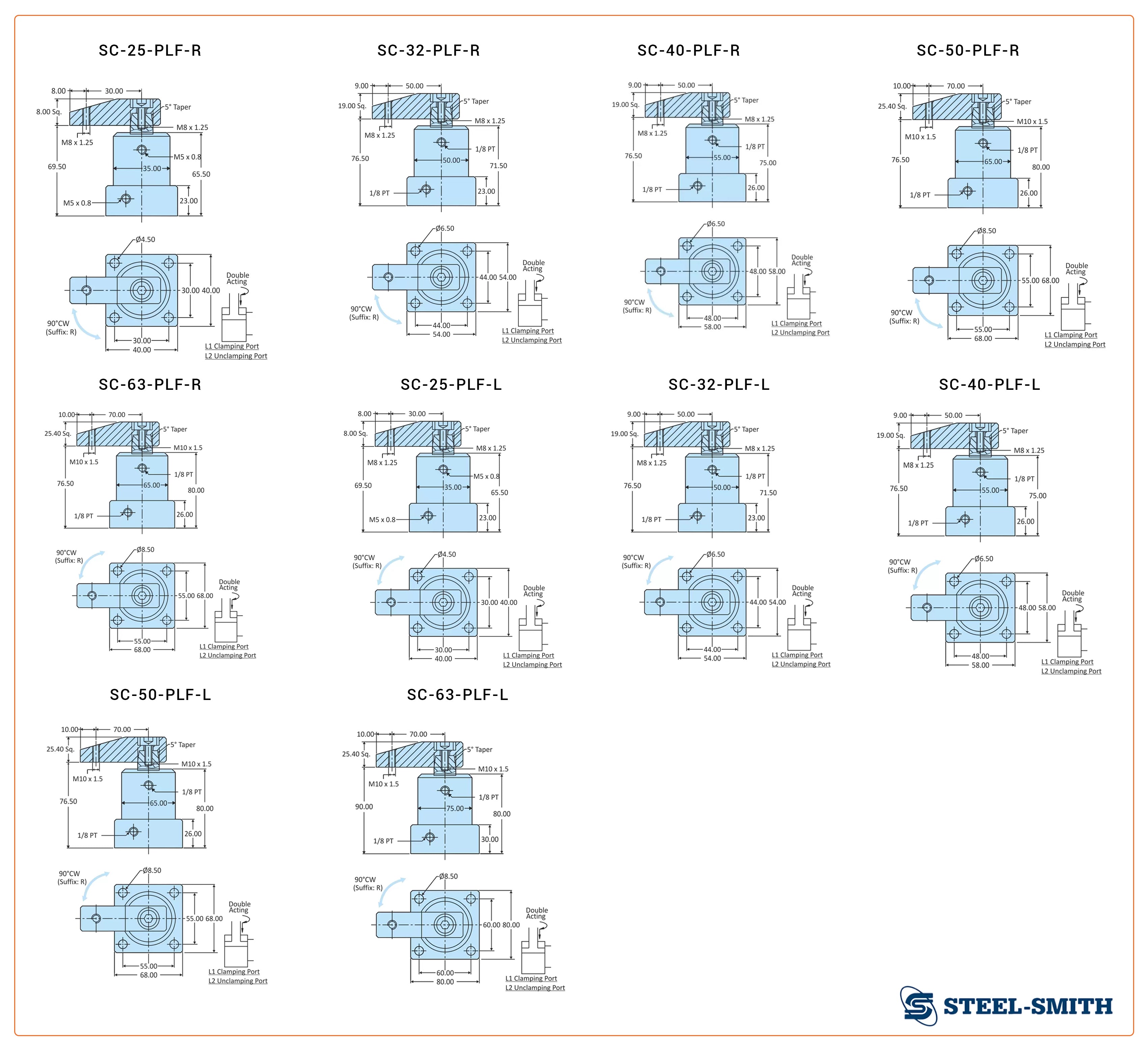

Dimensions:

Model No D Sq. A Clamped C G H J MCB L P
SC-25-PLF-R / L 16 35 30 8 M8x1.25 23 30 40 65.5
SC-32-PLF-R / L 19 50 50 9 M8x1.25 23 44 54 71
SC-40-PLF-R / L 19 55 50 9 M8x1.25 26 48 58 75
SC-50-PLF-R / L 25.4 65 70 10 M10x1.5 26 55 68 80
SC-63-PLF-R / L 25.4 75 70 10 M10x1.5 30 64 80 86

Pneumatic Swing Clamp Lower Flange Model

Product form

Rs. 12,100.90 Incl. GST

    • Steelsmith
    • Shop Now for Quick Delivery on In-Stock Items!
    • Discover the Quality Difference: Shop Our Collection of 100% Genuine Products.
    • Shop Confidently & Get 100% Genuine GST Bill on All the Items !!!

    Description

    PSF‐Series Pneumatic Swing Clamp Lower Flange Version

    Features

    • Design Benefits:
      • Cylinder can be bolted directly to the fixture.
      • Easiest mounting preparation in the swing clamp line.
      • Square flange design enables clamping on all four sides of the clamp.
      • Suitable for clamping extra-large parts.
    • No Fixture Hole Required.

    Specifications

    Material and Design:

    • Material: Aluminum Alloy Body
    • Finish: Black Anodizing
    • Acting Type: Double Acting
    • Force: 16-140 kgs
    • Total Stroke: 26-29 mm
    • Working Pressure: 4-7 Bar
    • Swivel Angle: 90° ±2°

    Technical Details:

    Model No Weight (Kgs) Piston Dia. (mm) Bore Dia. (mm) Swing Stroke (mm) Clamping Stroke (mm) Force in Kgs (5 kg/cm²)
    SC-25-PLF-R / SC-25-PLF-L 0.400 14 25 12 14 16
    SC-32-PLF-R / SC-32-PLF-L 0.700 16 32 12 14 30
    SC-40-PLF-R / SC-40-PLF-L 0.850 16 40 12 14 50
    SC-50-PLF-R / SC-50-PLF-L 1.300 20 50 14 15 85
    SC-63-PLF-R / SC-63-PLF-L 1.800 20 63 14 15 140

    Dimensions:

    Model No D Sq. A Clamped C G H J MCB L P
    SC-25-PLF-R / L 16 35 30 8 M8x1.25 23 30 40 65.5
    SC-32-PLF-R / L 19 50 50 9 M8x1.25 23 44 54 71
    SC-40-PLF-R / L 19 55 50 9 M8x1.25 26 48 58 75
    SC-50-PLF-R / L 25.4 65 70 10 M10x1.5 26 55 68 80
    SC-63-PLF-R / L 25.4 75 70 10 M10x1.5 30 64 80 86
