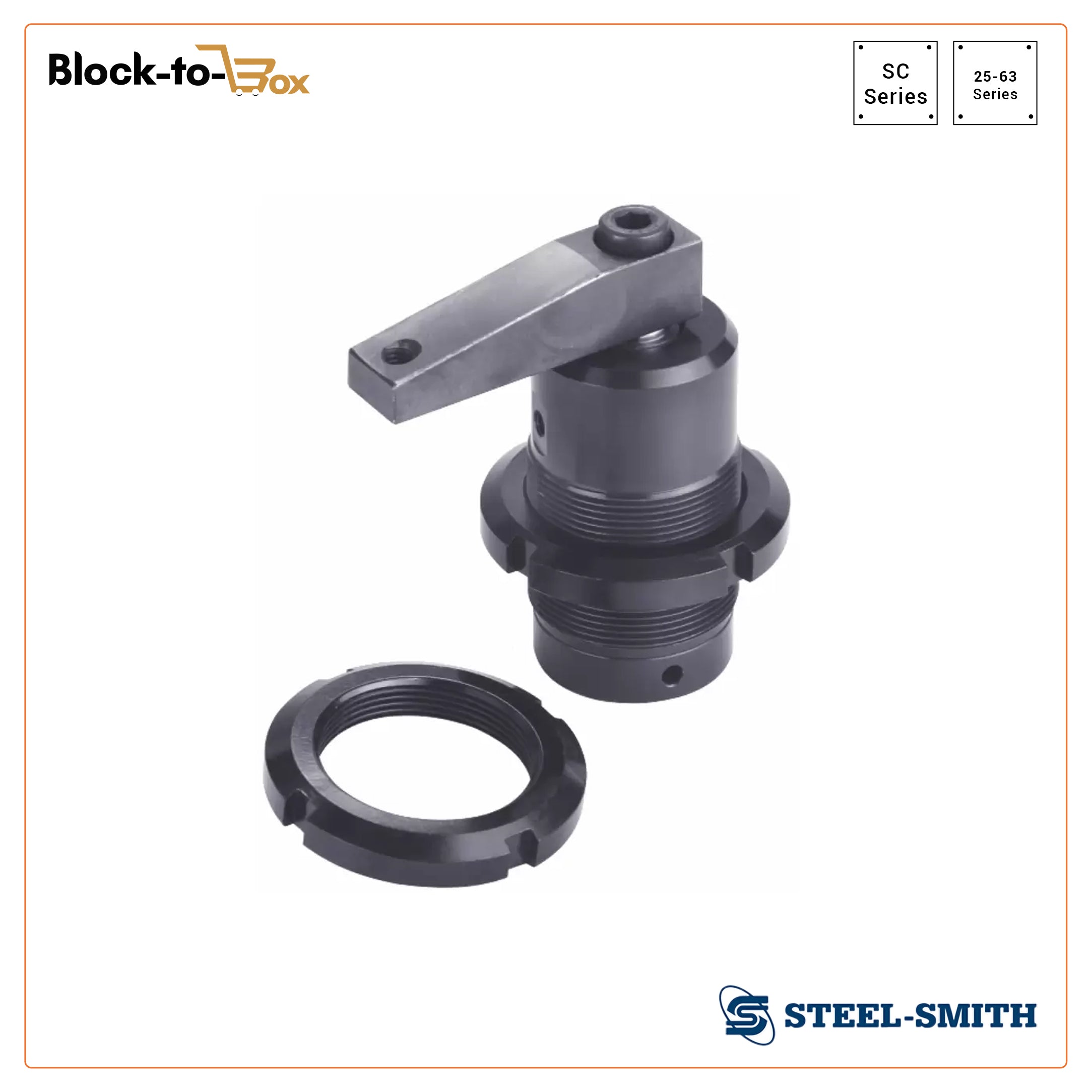

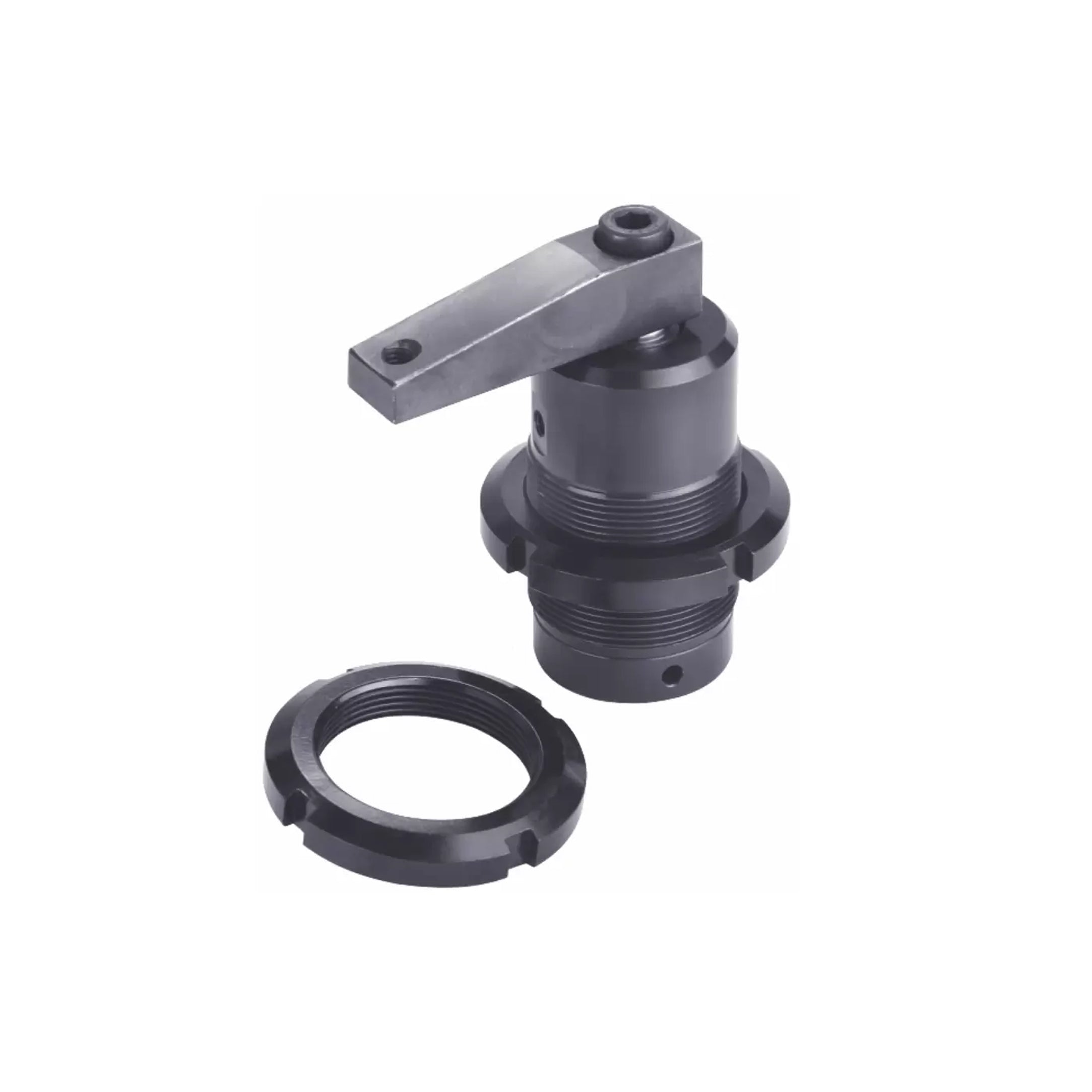

Steelsmith Pneumatic Swing Clamp Threaded Body Model

Description

Pneumatic Swing Clamp

  • Threaded Body Model - Right Swing
  • Threaded Body Model - Left Swing

Key Features:

  • Body thread for precise cylinder height positioning.
  • Threaded port connection.
  • Available with two flange nuts.

Material Specifications:

  • Material: Aluminum Alloy Body
  • Finish: Black Anodizing
  • Acting Type: Double Acting
  • Force: 16-140 kgs
  • Total Stroke: 28-30 mm
  • Working Pressure: 4-7 Bar
  • Swivel Angle: 90° ±2°

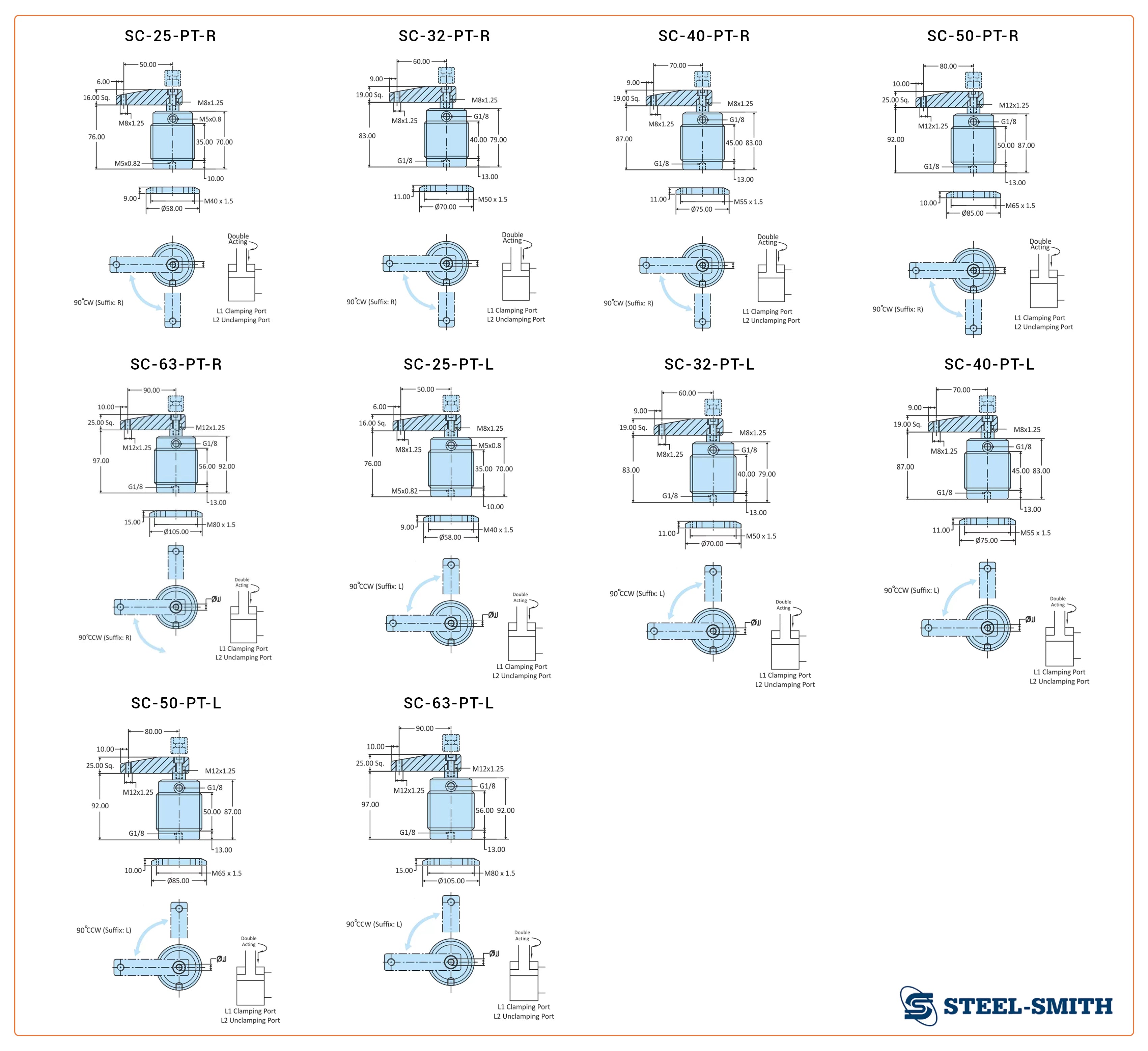

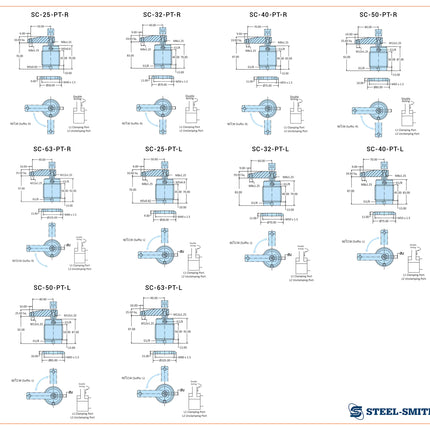

Technical Table:

Model No Weight (Kgs) Piston Dia. (mm) Bore Dia. (mm) Swing Stroke (mm) Clamping Stroke (mm) Force in Kgs (5 kg/cm²) Dimensions
A (Clamped) B C D E
SC-25-PT-R / SC-25-PT-L 0.800 14 25 14 14 16 76 70 10 16 35
SC-32-PT-R / SC-32-PT-L 1.100 16 32 14 16 30 83 79 13 19 40
SC-40-PT-R / SC-40-PT-L 1.250 16 40 14 15 50 87 83 13 19 45
SC-50-PT-R / SC-50-PT-L 1.700 20 50 14 14 85 92 87 13 25 50
SC-63-PT-R / SC-63-PT-L 2.200 20 63 15 15 140 97 92 13 25 56

Dimensions (Contd.):

Model No G H J L M P S
SC-25-PT-R / SC-25-PT-L M8x1.25 M5x0.8 9 58 M40 x 1.5
SC-32-PT-R / SC-32-PT-L M8x1.25 G1/8 11 70 M50 x 1.5
SC-40-PT-R / SC-40-PT-L M8x1.25 G1/8 11 75 M55 x 1.5
SC-50-PT-R / SC-50-PT-L M12x1.5 G1/8 12 85 M65 x 1.5
SC-63-PT-R / SC-63-PT-L M12x1.5 G1/8 15 105 M80 x 1.5
Product form

Steelsmith Pneumatic Swing Clamp Threaded Body Model

Rs. 18,431.60 Incl. GST

    Dispatch Timeline Confirmed After Order
    100% Original Products
    GST Invoice on Every Purchase

    Description

    Pneumatic Swing Clamp

    • Threaded Body Model - Right Swing
    • Threaded Body Model - Left Swing

    Key Features:

    • Body thread for precise cylinder height positioning.
    • Threaded port connection.
    • Available with two flange nuts.

    Material Specifications:

    • Material: Aluminum Alloy Body
    • Finish: Black Anodizing
    • Acting Type: Double Acting
    • Force: 16-140 kgs
    • Total Stroke: 28-30 mm
    • Working Pressure: 4-7 Bar
    • Swivel Angle: 90° ±2°

    Technical Table:

    Model No Weight (Kgs) Piston Dia. (mm) Bore Dia. (mm) Swing Stroke (mm) Clamping Stroke (mm) Force in Kgs (5 kg/cm²) Dimensions
    A (Clamped) B C D E
    SC-25-PT-R / SC-25-PT-L 0.800 14 25 14 14 16 76 70 10 16 35
    SC-32-PT-R / SC-32-PT-L 1.100 16 32 14 16 30 83 79 13 19 40
    SC-40-PT-R / SC-40-PT-L 1.250 16 40 14 15 50 87 83 13 19 45
    SC-50-PT-R / SC-50-PT-L 1.700 20 50 14 14 85 92 87 13 25 50
    SC-63-PT-R / SC-63-PT-L 2.200 20 63 15 15 140 97 92 13 25 56

    Dimensions (Contd.):

    Model No G H J L M P S
    SC-25-PT-R / SC-25-PT-L M8x1.25 M5x0.8 9 58 M40 x 1.5
    SC-32-PT-R / SC-32-PT-L M8x1.25 G1/8 11 70 M50 x 1.5
    SC-40-PT-R / SC-40-PT-L M8x1.25 G1/8 11 75 M55 x 1.5
    SC-50-PT-R / SC-50-PT-L M12x1.5 G1/8 12 85 M65 x 1.5
    SC-63-PT-R / SC-63-PT-L M12x1.5 G1/8 15 105 M80 x 1.5
