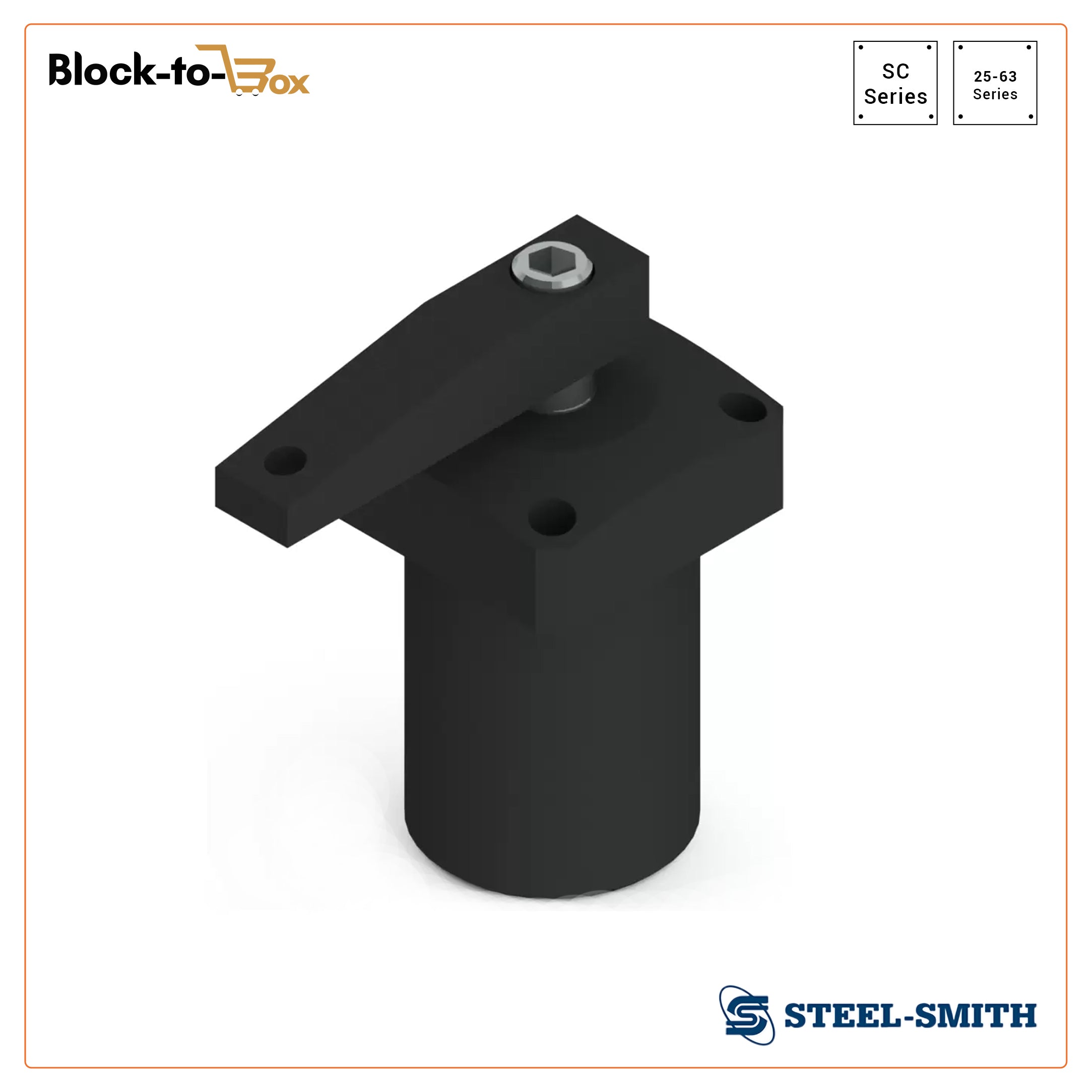

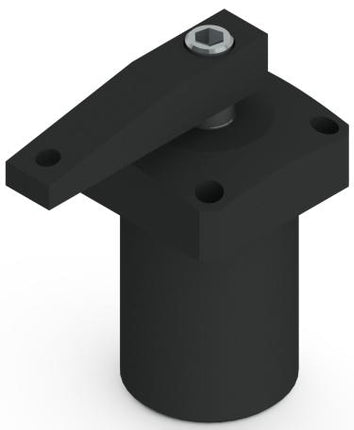

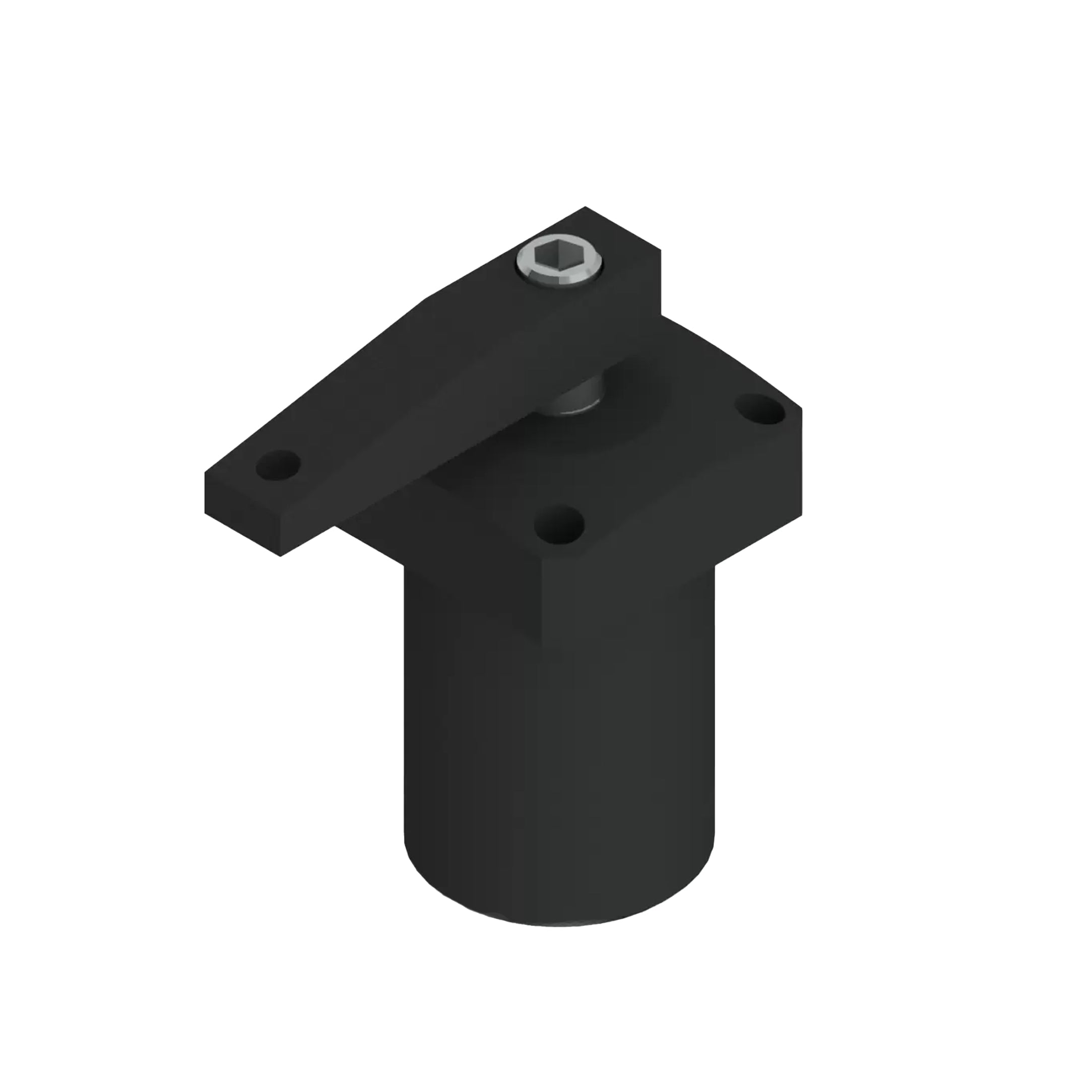

Pneumatic Swing Clamp Upper Flange Model

Description

NPSU‐Series Pneumatic Swing Clamp Upper Flange Version

Features

  • Design Benefits:
    • No fixture hole required.
    • Cylinder can be bolted directly to the fixture.
    • Easiest mounting preparation in the swing clamp line.
    • Square flange design enables clamping on all four sides of the clamp.
    • Suitable for clamping extra-large parts.

Specifications

Material and Design:

  • Material: Aluminum Alloy Body
  • Finish: Black Anodizing
  • Acting Type: Double Acting
  • Force: 16-140 kgs
  • Total Stroke: 27-32 mm
  • Working Pressure: 4-7 Bar
  • Swivel Angle: 90° ±2°

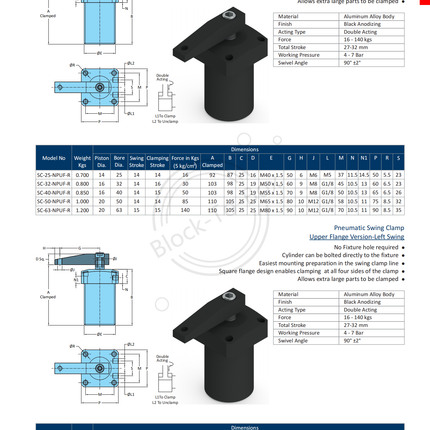

Technical Details

Model No Weight (Kgs) Piston Dia. (mm) Bore Dia. (mm) Swing Stroke (mm) Clamping Stroke (mm) Force in Kgs (5 kg/cm²)
SC-25-NPUF-R / L 0.700 14 25 14 14 16
SC-32-NPUF-R / L 0.800 16 32 14 14 30
SC-40-NPUF-R / L 0.850 16 40 14 14 50
SC-50-NPUF-R / L 1.000 20 50 14 15 85
SC-63-NPUF-R / L 1.200 20 63 15 15 140

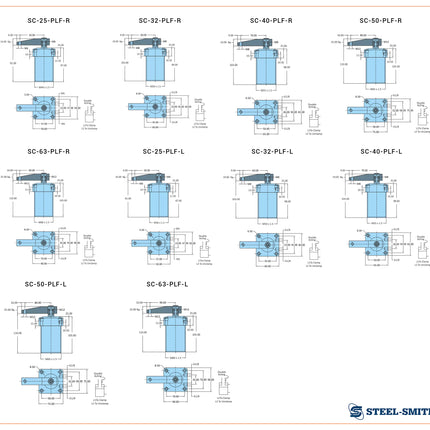

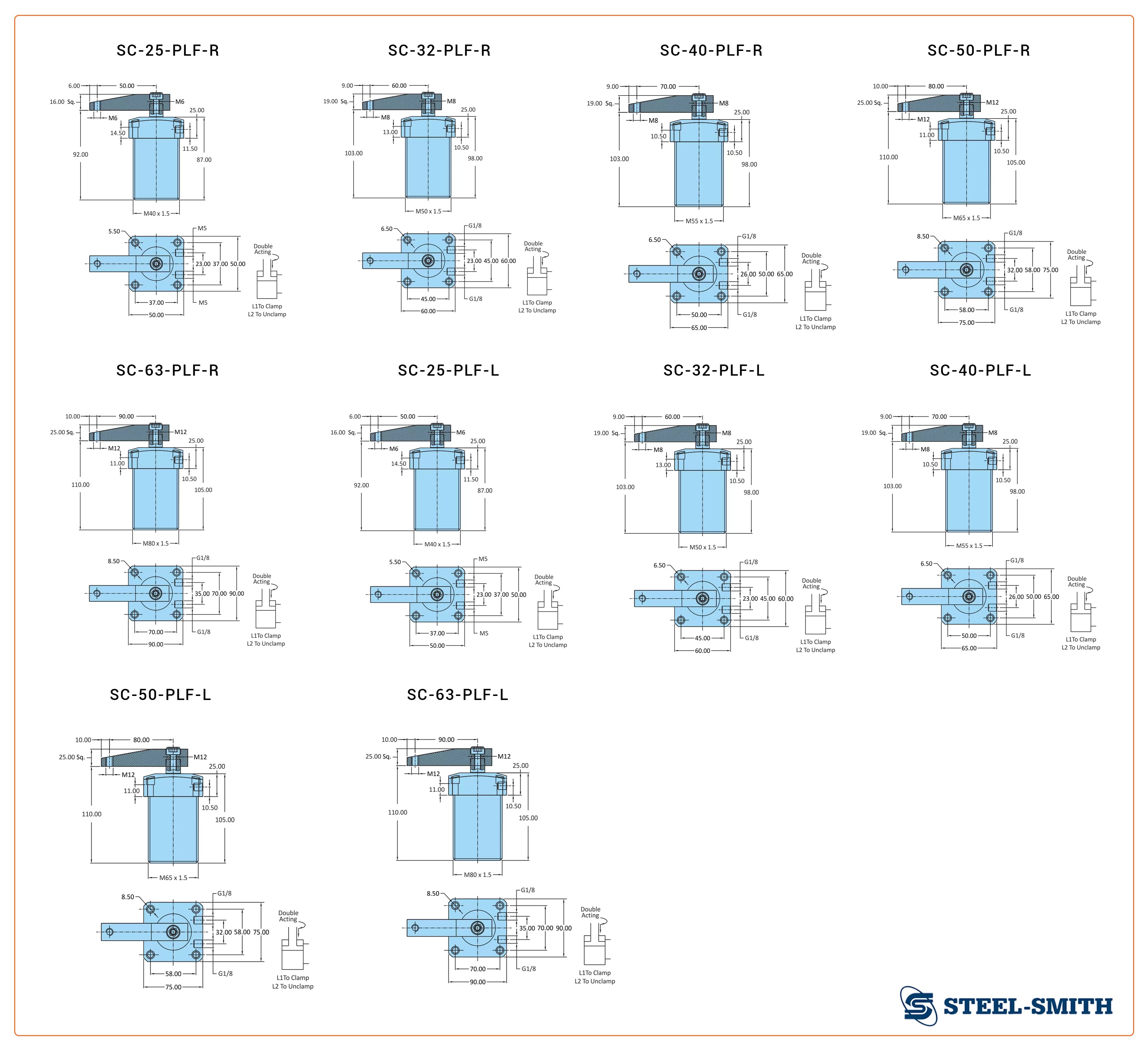

Dimensions

Model No D Sq. A Clamped C G H J NCB L P
SC-25-NPUF-R / L 16 50 50 6 M6 23 25 50 87
SC-32-NPUF-R / L 19 60 60 9 M8 23 25 60 98
SC-40-NPUF-R / L 19 70 65 9 M8 26 25 65 103
SC-50-NPUF-R / L 25 80 75 10 M12 32 25 75 110
SC-63-NPUF-R / L 25 90 90 10 M12 35 25 90 110

Pneumatic Swing Clamp Upper Flange Model

Product form

Rs. 19,965.60 Incl. GST

    • Steelsmith
    • Shop Now for Quick Delivery on In-Stock Items!
    • Discover the Quality Difference: Shop Our Collection of 100% Genuine Products.
    • Shop Confidently & Get 100% Genuine GST Bill on All the Items !!!

    Description

    NPSU‐Series Pneumatic Swing Clamp Upper Flange Version

    Features

    • Design Benefits:
      • No fixture hole required.
      • Cylinder can be bolted directly to the fixture.
      • Easiest mounting preparation in the swing clamp line.
      • Square flange design enables clamping on all four sides of the clamp.
      • Suitable for clamping extra-large parts.

    Specifications

    Material and Design:

    • Material: Aluminum Alloy Body
    • Finish: Black Anodizing
    • Acting Type: Double Acting
    • Force: 16-140 kgs
    • Total Stroke: 27-32 mm
    • Working Pressure: 4-7 Bar
    • Swivel Angle: 90° ±2°

    Technical Details

    Model No Weight (Kgs) Piston Dia. (mm) Bore Dia. (mm) Swing Stroke (mm) Clamping Stroke (mm) Force in Kgs (5 kg/cm²)
    SC-25-NPUF-R / L 0.700 14 25 14 14 16
    SC-32-NPUF-R / L 0.800 16 32 14 14 30
    SC-40-NPUF-R / L 0.850 16 40 14 14 50
    SC-50-NPUF-R / L 1.000 20 50 14 15 85
    SC-63-NPUF-R / L 1.200 20 63 15 15 140

    Dimensions

    Model No D Sq. A Clamped C G H J NCB L P
    SC-25-NPUF-R / L 16 50 50 6 M6 23 25 50 87
    SC-32-NPUF-R / L 19 60 60 9 M8 23 25 60 98
    SC-40-NPUF-R / L 19 70 65 9 M8 26 25 65 103
    SC-50-NPUF-R / L 25 80 75 10 M12 32 25 75 110
    SC-63-NPUF-R / L 25 90 90 10 M12 35 25 90 110
