Description

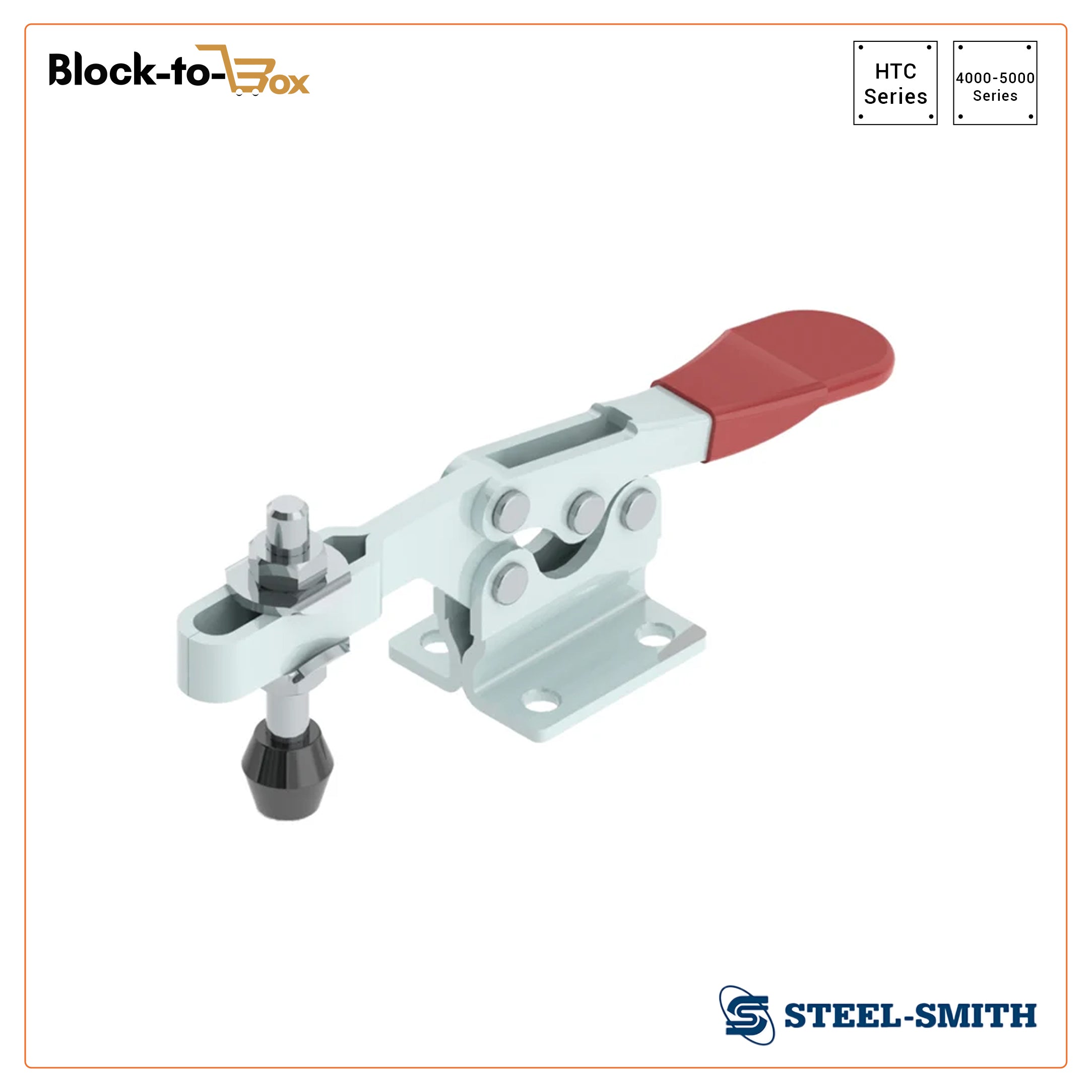

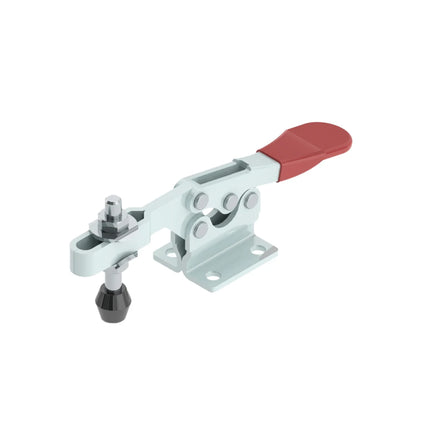

Horizontal Hold Down Action (HTC-Series):
The holding action in these types of Toggle Clamps is same as VTC-Series clamps. The outstanding characteristic is the low height design. Unlike the handle & the clamping bar of the VTC-Series, these of the H-Series clamps move in opposite direction. The holding capacities range upto 1,000 kgs. The clamping arm can be solid bar, U shaped or fixed hole type.

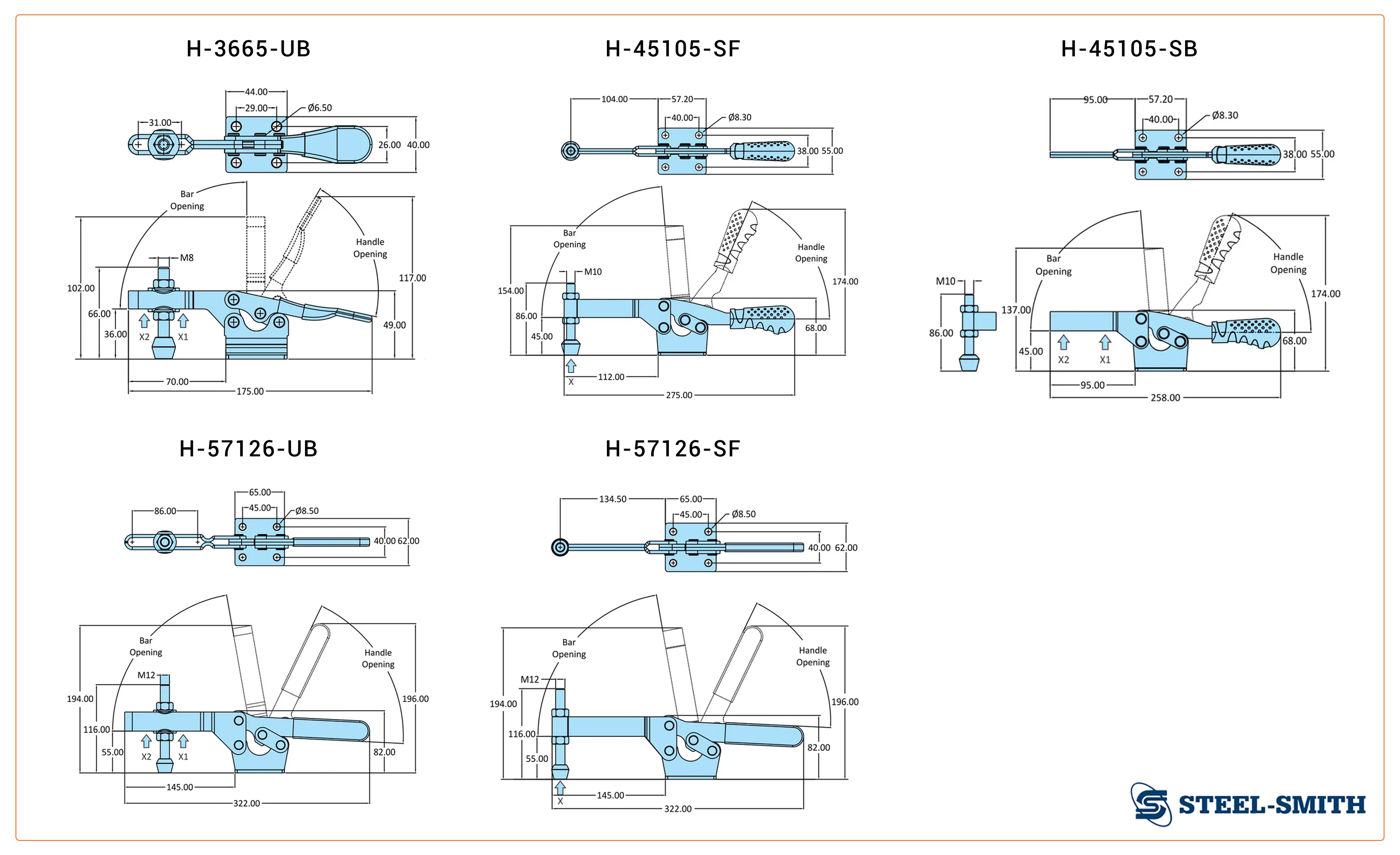

- The SF Series have solid hold down bar which has a fixed guide bush at its end for the spindle assembly.
- The SB Series have a "U" bar arm which the bolt retainer can be welded at any desired angle.
- The UB Series have a "U" bar arm which enables one or more spindles to be moved into any desired position along the arm.
