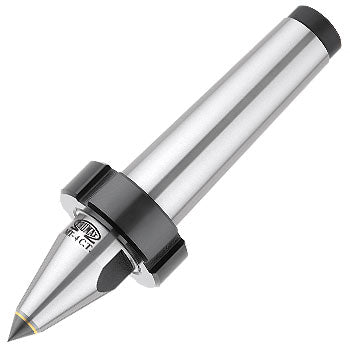

Trumax CNC Dead Center (Carbide Tipped Point) With Draw off Nut

Description

Broadly confirms to DIN : 807

Shank Taper	L mm	L1 mm	L2 mm	ØD mm	ØD1 mm	Ød mm C.T.	Ød1 mm C.T.	Ød2 mm	M (Thread)	A/F mm
MT - 2	64.0	48.0	52.0	18.0	17.780	8	8	11	M22 X 1.5	15
MT - 3	81.0	57.0	66.5	24.1	23.825	11	11	14	M27 X 1.5	21
MT - 4	102.5	72.5	83.0	31.6	31.267	14	11	14	M36 X 1.5	28
MT - 5	129.5	88.0	110.0	44.7	44.399	18	14	18	M48 X 1.5	40
MT - 6	182.0	108.5	145.0	63.8	63.348	18	18	22	M68 X 1.5	56

Product form

M.T.No Free pickup in our shop(s) Free pickup in our shop(s)

M.T.No Free pickup in our shop(s)

Tip Diameter Free pickup in our shop(s)

Type Free pickup in our shop(s)

Tungsten Carbide Tips brazed in front for high wear resistance. Shank made from Alloy Steel 20MnCr5 and case hardened to... Read more

Rs. 2,050.00 Excl. GST
