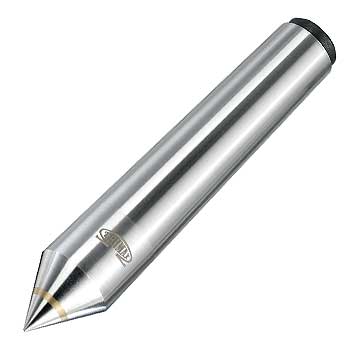

Trumax Dead Center (Carbide Tipped Point)

Description

  • Tungsten Carbide Tip brazed in front for high wear resistance.
  • Shank made from Alloy Steel 20MnCr5 and case hardened for 50-53 HRc.
  • Precision ground. Tip runout within 0.015 mm w.r.t. Taper.
  • Standard Point Angle 60°
  • Broadly confirms to IS : 2534 - 1963 (Equivalent to DIN : 806-807).

    Shank Taper L mm L1 mm Ø D mm D1 mm Ø d mm C.T. h1 mm
    MT - 1 53.5 26.5 12.2 12.065 5 3.20
    MT - 2 64.0 36.0 18.0 17.780 8 5.50
    MT - 3 81.0 44.0 24.1 23.825 11 7.00
    MT - 4 102.5 57.5 31.6 31.267 14 8.90
    MT - 5 129.5 70.5 44.7 44.399 18 11.00
    MT - 6 182.0 88.0 63.8 63.348 18 11.10

Read more

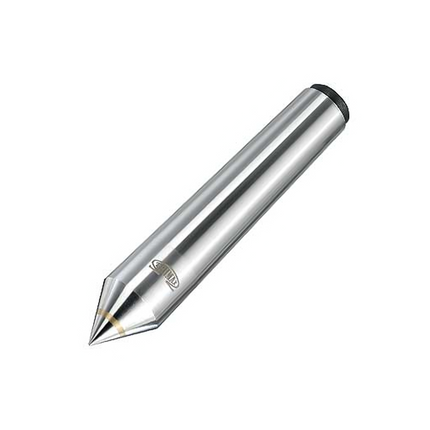

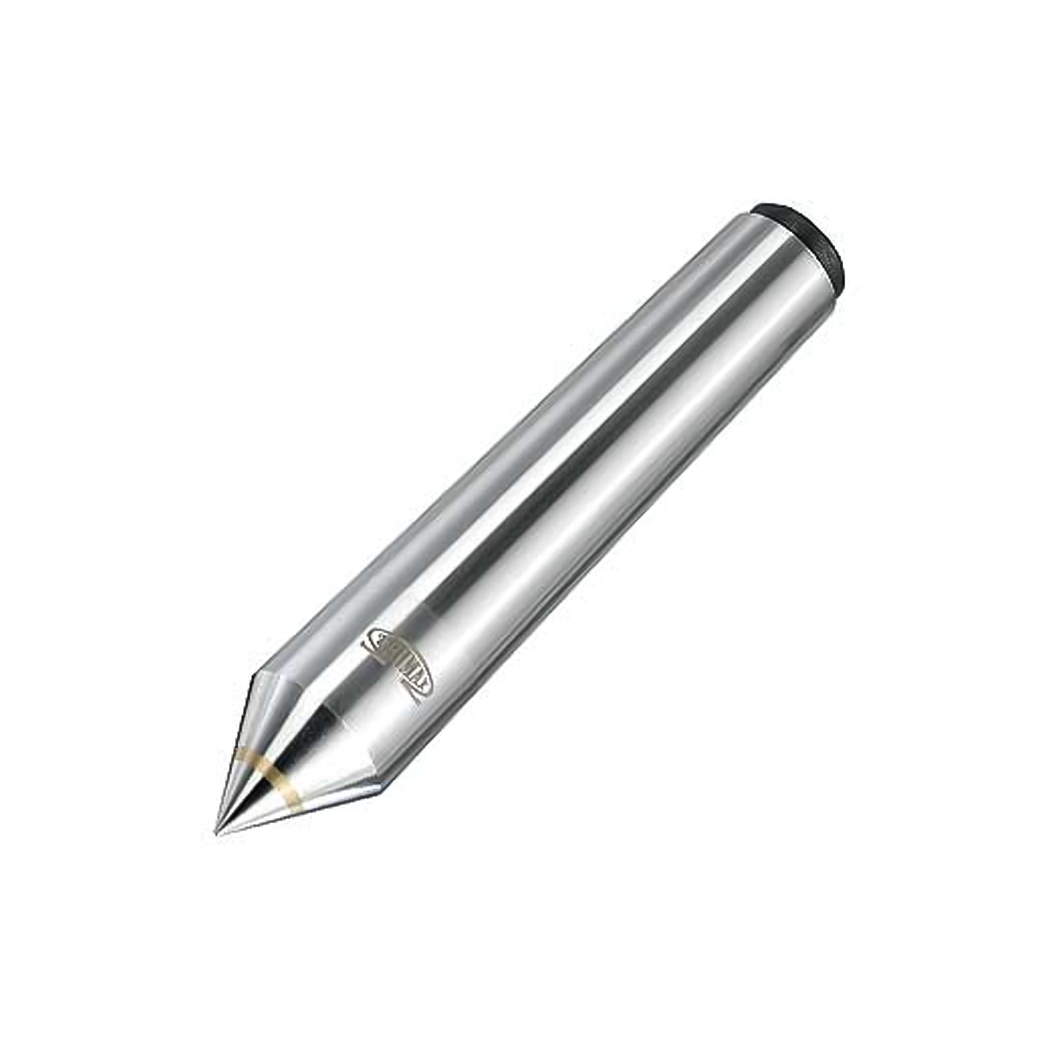

Trumax Dead Center (Carbide Tipped Point)

Product form

Rs. 1,003.00 Incl. GST

    • Trumax
    • Shop Now for Quick Delivery on In-Stock Items!
    • Discover the Quality Difference: Shop Our Collection of 100% Genuine Products.

    • Shop Confidently & Get 100% Genuine GST Bill on All the Items !!!

    Description

    • Tungsten Carbide Tip brazed in front for high wear resistance.
    • Shank made from Alloy Steel 20MnCr5 and case hardened for 50-53 HRc.
    • Precision ground. Tip runout within 0.015 mm w.r.t. Taper.
    • Standard Point Angle 60°
    • Broadly confirms to IS : 2534 - 1963 (Equivalent to DIN : 806-807).

      Shank Taper L mm L1 mm Ø D mm D1 mm Ø d mm C.T. h1 mm
      MT - 1 53.5 26.5 12.2 12.065 5 3.20
      MT - 2 64.0 36.0 18.0 17.780 8 5.50
      MT - 3 81.0 44.0 24.1 23.825 11 7.00
      MT - 4 102.5 57.5 31.6 31.267 14 8.90
      MT - 5 129.5 70.5 44.7 44.399 18 11.00
      MT - 6 182.0 88.0 63.8 63.348 18 11.10

    Read more
