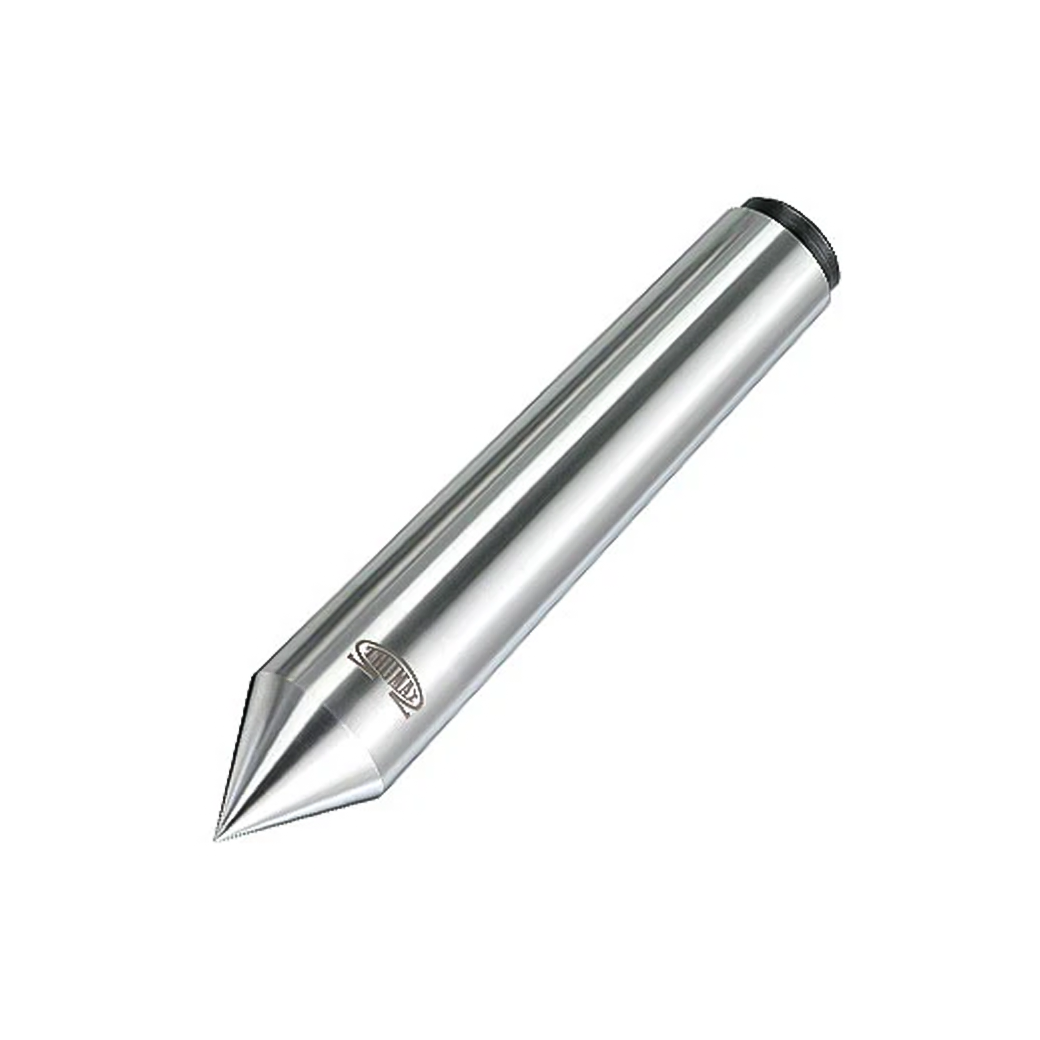

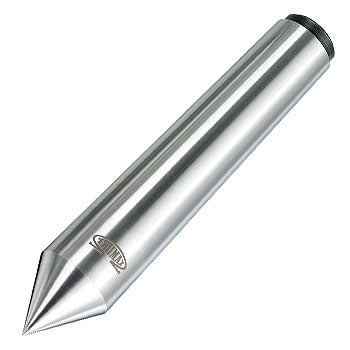

Trumax Dead Center (Plain Male Point)

Description

Small size Taper upto MT-4 made from Bearing Steel EN-31 and through hardened to 58-60 HRc.
Big size tapers from MT-5 upwards made from 20MnCr5 and Case Hardened to 58-60 HRc.
Broadly confirms to IS : 2289 - 1976 (Equivalent to DIN: 806-1961 / ISO : 298)
Precision ground.
Tip runout within 0.015 mm w.r.t. Taper.

Standard Point Angle 60° (other Angles like 75° / 90° etc. against request)

Shank Taper	L mm	L1 mm	L2 mm	ØD mm	D1 mm	h mm	h1 mm	A1 mm	B1 mm
MT - 1	53.5	26.5	21.5	12.2	12.065	2.0	3.0	5.5	2.5
MT - 2	64.0	36.0	29.0	18.0	17.780	2.6	3.5	8.0	4.0
MT - 3	81.0	44.0	36.0	24.1	23.825	3.5	4.5	9.0	5.0
MT - 4	102.5	57.5	48.0	31.6	31.267	5.2	5.5	11.0	6.0
MT - 5	129.5	70.5	58.5	44.7	44.399	11.7	6.5	14.0	8.0
MT - 6	182.0	88.0	73.0	63.8	63.348	10.1	8.5	17.0	11.0
MT - 7	254	121	-	83.550	83.058	-	-	-	-

Product form

M.T no Free pickup in our shop(s) Free pickup in our shop(s)

M.T no Free pickup in our shop(s)

Type Free pickup in our shop(s)

Small size Taper upto MT-4 made from Bearing Steel EN-31 and through hardened to 58-60 HRc. Big size tapers from... Read more

Rs. 300.00 Excl. GST
