Universal Machine Vice Unique U313

Description

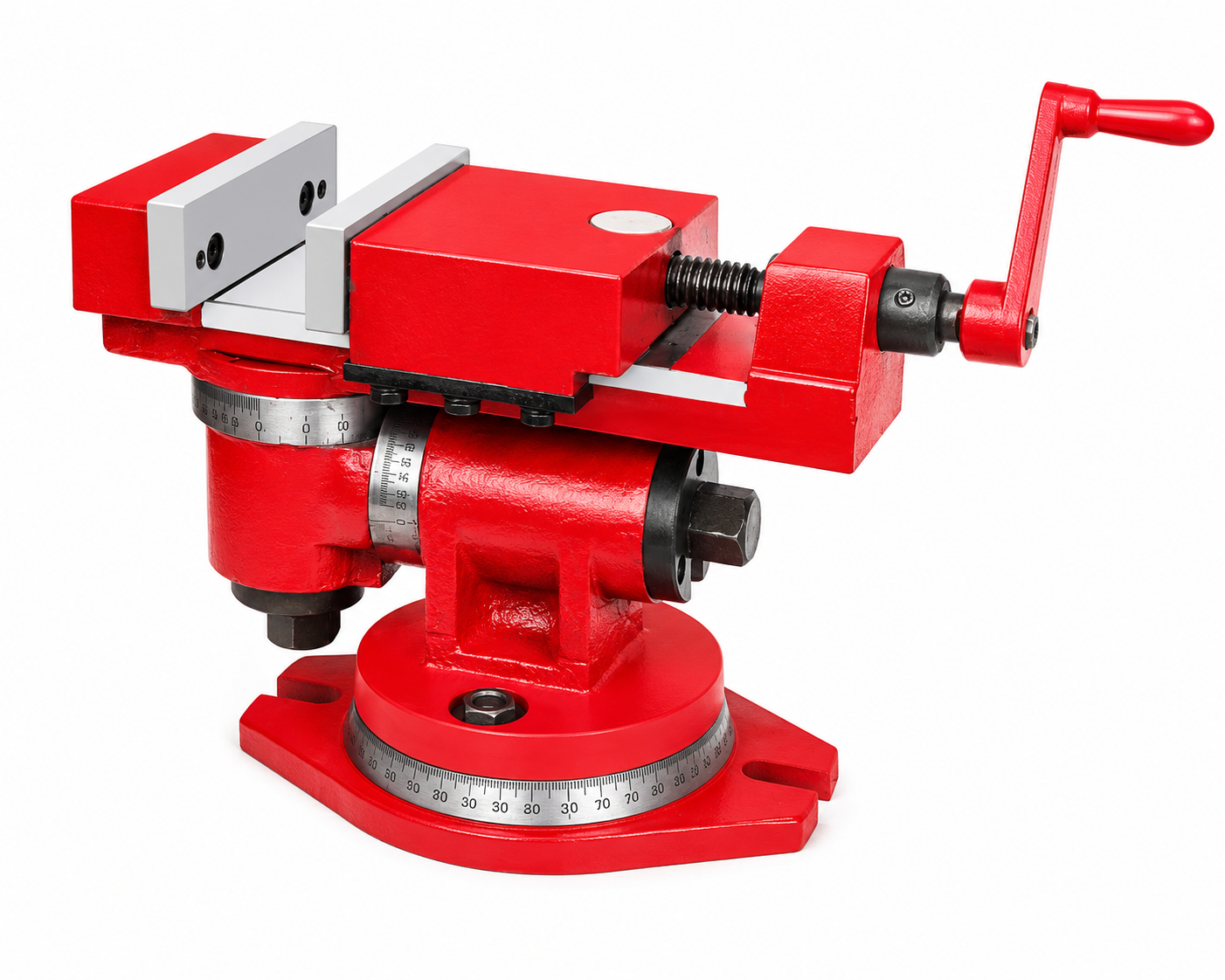

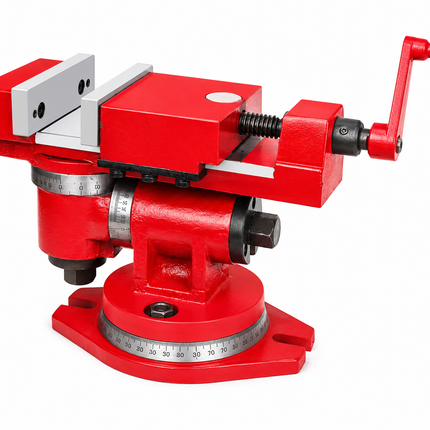

Universal Machine Vice Unique U 313

The Universal Machine Vise Code No. U313 has been designed to meet the exact specifications of all Surface Grinders and Universal Tool & Cutter Grinding Machines. Every single machine vise is manufactured from superior quality steel under strict quality control conditions using the latest processing technologies to ensure maximum accuracy and a fine surface finish.

The body of this vice is constructed entirely from steel, featuring special ground steel jaws that deliver a firm, non-slip grip. All swivelling motions feature positive locking so that workpieces can be secured safely at any optimal compound orientation.

Key Features

  • Cylindrical 360-Degree Clamping Head: Offers smooth adjustment and full movement.
  • Compound Angle Swivel Movement: Uniquely shaped steel body permits continuous full swivel around its vertical axis to any compound angle.
  • Alloy Steel Construction: Constructed from superior quality alloy steel for greater strength, hardness, and long-term wear resistance.
  • Multiple Size Options: Available in 2", 3", 4", and 6" jaw width varieties to suit compact jobs to heavy tooling operations.

Technical Specifications

Whether your application calls for a compact machine vice for small precision jobs or a heavy-duty vice for larger machine tooling operations, the U313 series delivers maximum rigidity, accuracy, and a long service life.

Size Jaw Width Opening Depth Height Width Length Tenon Slot Weight
2" 50 mm 50 mm 25 mm 140 mm 104 mm 168 mm 12 mm 4.3 kg
3" 75 mm 75 mm 35 mm 190 mm 145 mm 240 mm 12 mm 12 kg
4" 100 mm 65 mm 32 mm 175 mm 135 mm 345 mm 16 mm 12 kg
6" 150 mm 115 mm 40 mm 225 mm 220 mm 395 mm 16 mm 25 kg

Frequently Asked Questions (FAQ)

Q: What are the applications of the Universal Machine Vice?

A: A universal machine vice (or machining vice) serves for holding work parts on surface grinding machines, tool & cutter grinders, and other precision machine tools.

Q: Is the U313 machine vice good for heavy-duty work?

A: Yes. Built entirely of steel with special steel jaws, this tool provides high durability for demanding machining tasks.

Q: What sizes are available for the Unique Universal Machine Vise U313?

A: It is available in 2", 3", 4", and 6" jaw widths.

Q: What material is used in the machine vice jaws?

A: Application-specific full-grip ground inserts made from special steel for optimum grip and long wear life.

Q: Where can I buy authentic Universal Machine Vice U313?

A: Original Unique Universal Machine Vises (Code No. U313) are available through authorized online stores and dealers like BlockToBox.

Q: How much does the Unique Universal Machine Vice U313 cost?

A: Prices vary based on jaw width (2" to 6"). For current pricing and commercial bulk discounts, email sales@uniquevices.com or call +91 (181) 2602296 / 2600680.

Q: Is the U313 machine vice suitable for trade workshops?

A: Yes. Its solid steel body, precision special steel jaws, and positive lock-in capability at any compound angle make it a highly reliable vice for surface and tool grinding.

Q: Is there a warranty or quality guarantee with this machine vice?

A: All VICES products are manufactured following strict industrial specifications. For warranty details and after-sales service support, please contact +91 88474 88475.

Q: Can I use this Universal Machine Vice for CNC milling operations?

A: This model is designed primarily for surface grinding and universal tool & cutter grinding machines. For CNC milling, fixed-base or self-centring machine vices are recommended.

Q: How do I order the Unique Machine Vice U313 in bulk?

A: For bulk orders, B2B export queries, and quick delivery, contact us at support@blocktobox.com or call +91 88474 88475.

Product form

Universal Machine Vice Unique U313

SKU: U313-50

Rs. 20,470.00 Rs. 15,353.00 Excl.GST

EMI Available
EMI Option Available
    Dispatch Timeline Confirmed After Order
    100% Original Products
    GST Invoice on Every Purchase

    Description

    Universal Machine Vice Unique U 313

    The Universal Machine Vise Code No. U313 has been designed to meet the exact specifications of all Surface Grinders and Universal Tool & Cutter Grinding Machines. Every single machine vise is manufactured from superior quality steel under strict quality control conditions using the latest processing technologies to ensure maximum accuracy and a fine surface finish.

    The body of this vice is constructed entirely from steel, featuring special ground steel jaws that deliver a firm, non-slip grip. All swivelling motions feature positive locking so that workpieces can be secured safely at any optimal compound orientation.

    Key Features

    • Cylindrical 360-Degree Clamping Head: Offers smooth adjustment and full movement.
    • Compound Angle Swivel Movement: Uniquely shaped steel body permits continuous full swivel around its vertical axis to any compound angle.
    • Alloy Steel Construction: Constructed from superior quality alloy steel for greater strength, hardness, and long-term wear resistance.
    • Multiple Size Options: Available in 2", 3", 4", and 6" jaw width varieties to suit compact jobs to heavy tooling operations.

    Technical Specifications

    Whether your application calls for a compact machine vice for small precision jobs or a heavy-duty vice for larger machine tooling operations, the U313 series delivers maximum rigidity, accuracy, and a long service life.

    Size Jaw Width Opening Depth Height Width Length Tenon Slot Weight
    2" 50 mm 50 mm 25 mm 140 mm 104 mm 168 mm 12 mm 4.3 kg
    3" 75 mm 75 mm 35 mm 190 mm 145 mm 240 mm 12 mm 12 kg
    4" 100 mm 65 mm 32 mm 175 mm 135 mm 345 mm 16 mm 12 kg
    6" 150 mm 115 mm 40 mm 225 mm 220 mm 395 mm 16 mm 25 kg

    Frequently Asked Questions (FAQ)

    Q: What are the applications of the Universal Machine Vice?

    A: A universal machine vice (or machining vice) serves for holding work parts on surface grinding machines, tool & cutter grinders, and other precision machine tools.

    Q: Is the U313 machine vice good for heavy-duty work?

    A: Yes. Built entirely of steel with special steel jaws, this tool provides high durability for demanding machining tasks.

    Q: What sizes are available for the Unique Universal Machine Vise U313?

    A: It is available in 2", 3", 4", and 6" jaw widths.

    Q: What material is used in the machine vice jaws?

    A: Application-specific full-grip ground inserts made from special steel for optimum grip and long wear life.

    Q: Where can I buy authentic Universal Machine Vice U313?

    A: Original Unique Universal Machine Vises (Code No. U313) are available through authorized online stores and dealers like BlockToBox.

    Q: How much does the Unique Universal Machine Vice U313 cost?

    A: Prices vary based on jaw width (2" to 6"). For current pricing and commercial bulk discounts, email sales@uniquevices.com or call +91 (181) 2602296 / 2600680.

    Q: Is the U313 machine vice suitable for trade workshops?

    A: Yes. Its solid steel body, precision special steel jaws, and positive lock-in capability at any compound angle make it a highly reliable vice for surface and tool grinding.

    Q: Is there a warranty or quality guarantee with this machine vice?

    A: All VICES products are manufactured following strict industrial specifications. For warranty details and after-sales service support, please contact +91 88474 88475.

    Q: Can I use this Universal Machine Vice for CNC milling operations?

    A: This model is designed primarily for surface grinding and universal tool & cutter grinding machines. For CNC milling, fixed-base or self-centring machine vices are recommended.

    Q: How do I order the Unique Machine Vice U313 in bulk?

    A: For bulk orders, B2B export queries, and quick delivery, contact us at support@blocktobox.com or call +91 88474 88475.
