Small size Taper upto MT-4 made from Bearing Steel EN-31 and through hardened to 58-60 HRc. Big size tapers from MT-5 upwards made from 20MnCr5 and Case Hardened to 58-60 HRc. Broadly confirms to IS : 2289 - 1976 (Equivalent to DIN: 806-1961 / ISO : 298) Precision ground. Tip runout within 0.015 mm w.r.t. Taper. Standard Point Angle 60�� (other Angles like 75�� / 90�� etc. against request) �� Shank Taper L mm L1 mm L2 mm ��D mm D1 mm h mm h1 mm A1 mm B1 mm MT - 1 53.5 26.5 21.5 12.2 12.065 2.0 3.0 5.5 2.5 MT - 2 64.0 36.0 29.0 18.0 17.780 2.6 3.5 8.0 4.0 MT - 3 81.0 44.0 36.0 24.1 23.825 3.5 4.5 9.0 5.0 MT - 4 102.5 57.5 48.0 31.6 31.267 5.2 5.5 11.0 6.0 MT - 5 129.5 70.5 58.5 44.7 44.399 11.7 6.5 14.0 8.0 MT - 6 182.0 88.0 73.0 63.8 63.348 10.1 8.5 17.0 11.0 MT - 7 254 121 - 83.550 83.058 - - - -

Read more less

The Trumax CNC Dead Center with Draw-off Nut is a precision-engineered tool designed for high-accuracy turning operations on CNC lathes equipped with a live tailstock. Built from premium materials and manufactured to exacting standards, this dead center delivers outstanding rigidity, minimal runout, and long operational life. Smaller tapers (up to MT-4) are made from bearing-grade EN-31 steel, through hardened to 58–60 HRC for exceptional wear resistance. Larger tapers (MT-5 and above) use 20MnCr5 steel, case-hardened to the same hardness range, ensuring durability under heavy-duty loads.Each center is precision ground, with a tip runout within 0.015 mm relative to the Morse taper, conforming broadly to DIN 807 standards. Key Features High-Precision Build: Tip concentricity within 0.015 mm ensures smooth rotation and minimal vibration. Durable Materials: EN-31 (small size) and 20MnCr5 (large size) steels hardened to 58–60 HRC for superior longevity. With Draw-off Nut: Simplifies removal from the spindle while protecting the taper and center point. DIN 807 Compliant: Ensures consistent accuracy and interchangeability across tooling systems. Optimized for CNC Lathes: Designed for machines with live tailstocks to enhance turning precision. Applications CNC and conventional lathe centers High-speed precision turning Holding workpieces requiring rigid tailstock support Tool rooms and production lines demanding consistent repeatability

Read more less

The Turnmax CNC Turret Sleeve is a high-precision tool holder accessory designed to fit universally across most CNC lathe turret models. Built for reliability and strength, this sleeve securely holds cylindrical shank tools such as boring tool holders, ensuring consistent alignment and stable cutting performance. Its unique grub-lock mechanism from the turret block locks both the sleeve and the tool, preventing vibration and improving machining accuracy. Crafted from high-grade, hardened steel, this sleeve ensures long life, perfect concentricity, and superior performance for all industrial machining applications. Key Features Universal Fit: Suitable for most turret models used in CNC lathes. Secure Locking System: Locks both the sleeve and the tool through the turret grub screw. High Precision: Ensures accurate tool alignment and stable cutting operations. Durable Construction: Made from hardened, ground steel for long-lasting use. Versatile Tool Holding: Perfect for cylindrical shank tools like boring holders and drill sleeves. Easy Maintenance: Smooth surface finish reduces wear and simplifies cleaning. Applications CNC lathe machines Precision machining and tool room operations Holding boring tools, drill sleeves, and other cylindrical shank tools

Read more less

Turnmax Wedge Tool – Precision Removal Wedge for Lathe Tailstock & Female Sleeve The Turnmax Wedge is a specialised machine-tool accessory designed for fast, safe and accurate removal of interchangeable points from female sleeves or tailstock assemblies in lathe and CNC machine setups. With its hardened steel construction and precision-machined geometry, the wedge delivers dependable performance in demanding industrial workshops. Key features & benefits: Engineered by Turnmax Machine Tools, recognized for precision accessories in India and export markets.  Purpose-built wedge design to safely extract these components without damage to tooling or spindles. Compatible with female sleeve / tailstock sizes: 3, 4, 5 (as specified by vendor listing).  Ideal for heavy-duty industrial lathe usage, ensuring minimal downtime and protecting your spares investments. Supplied with GST invoice, 100% original product guarantee and dispatched within 2 days.  Usage recommendations: Ensure machine is powered down and spindle locked before insertion of wedge. Insert wedge between the female sleeve and the interchangeable point; apply controlled force to free the point. After removal, clean the interface, inspect for wear and reinstall replacement point per manufacturer instructions. Store wedge in a dry, clean workshop environment to prevent corrosion and preserve edge geometry. Ideal for: CNC lathe shops, maintenance crews, industrial tool-rooms & machining centres looking to maintain high uptime and tool life.

Read more less

Made from 20MnCr5 & Case Hardened to 55-58 HRc. Precision Ground Internally & Externally. Concentricity within 0.015 mm. �� Model ��D mm L mm Innet M.T. Outer Angle MT 3-5 Standard 44.7 70.5 MT-3 1�� 30' 26" MT 3-5 Oversize(Only made against certain minimum order quantity) 46.0 70.5 MT-3 1�� 30' 26" MT 4-6 57.6 100.0 MT-4 1�� 29' 36"

Read more less

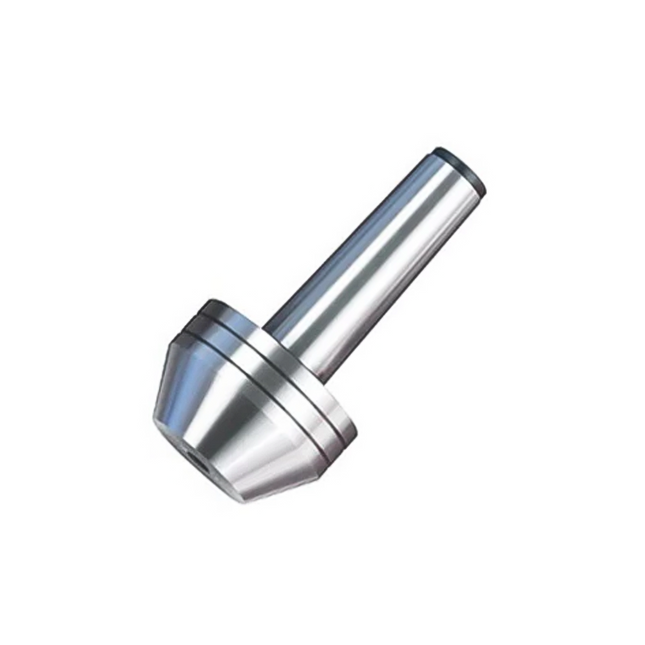

Slow Speed revolving Pipe��centre Available in Blunt & Pointed��

Read more less

The Turnmax CNC Medium Duty Revolving Center is the perfect choice for medium-duty CNC applications. Its robust design and construction ensure smooth, accurate rotation and maximum durability. With a heavy-duty bearing assembly and heavy-duty threaded spindle, it ensures accuracy during extended use.

Read more less

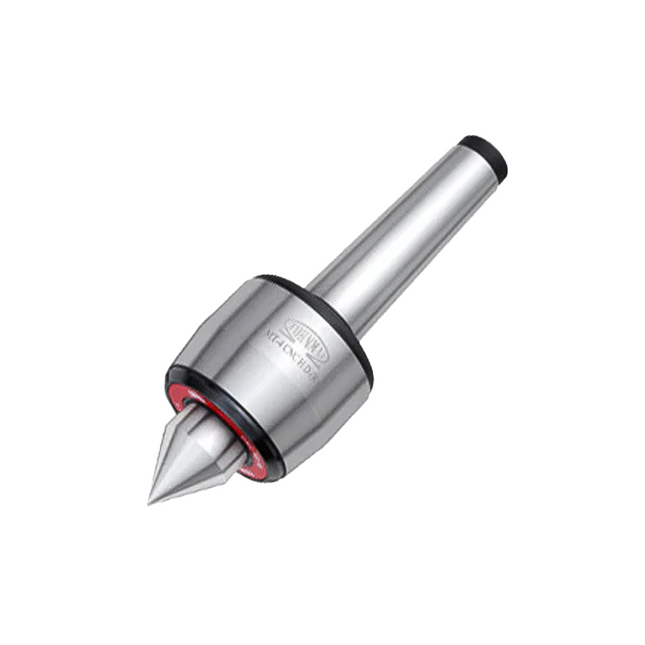

For High Speed Applications As In CNC Turning Lathes Stub Point, Extended Point & Profiled Point Supplied at Same Price Draw off Nut Provided @ 20% Extra Cost

Read more less

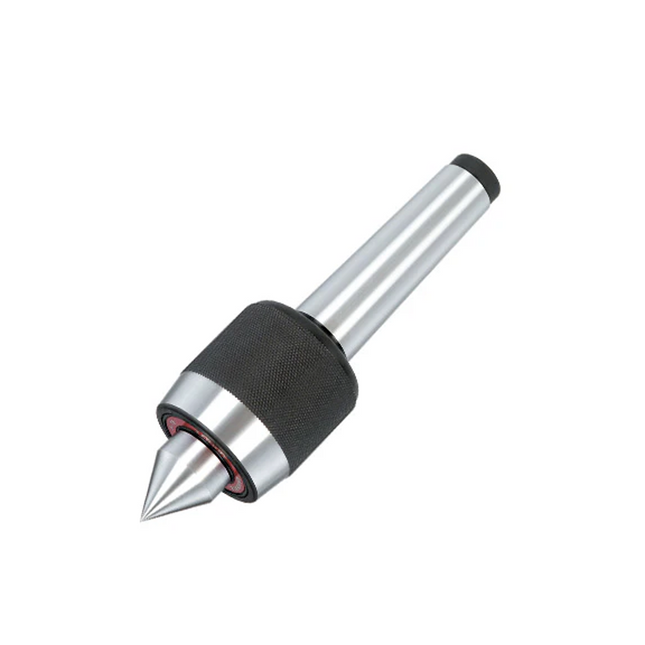

Slow Speed Centres For Conventional & Slow Speed Lathes 90degree Point - 25% Extra Female Point - 25% Extra
