Engineers Vice - steel bench vice | Unique U301R

Description

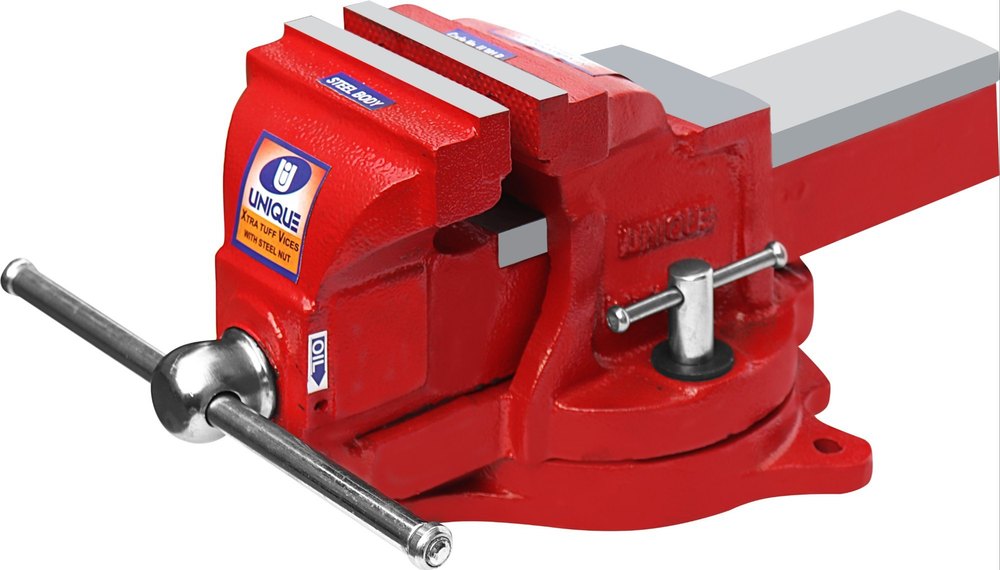

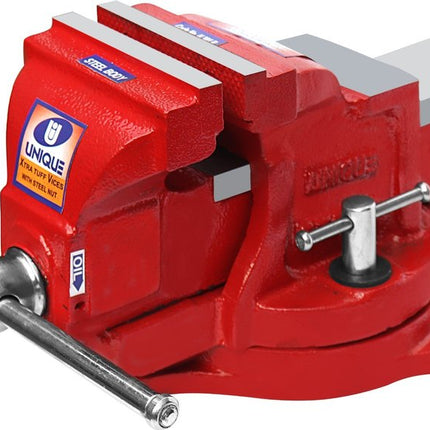

Engineers Vice ( steel vice ) Unique U301R

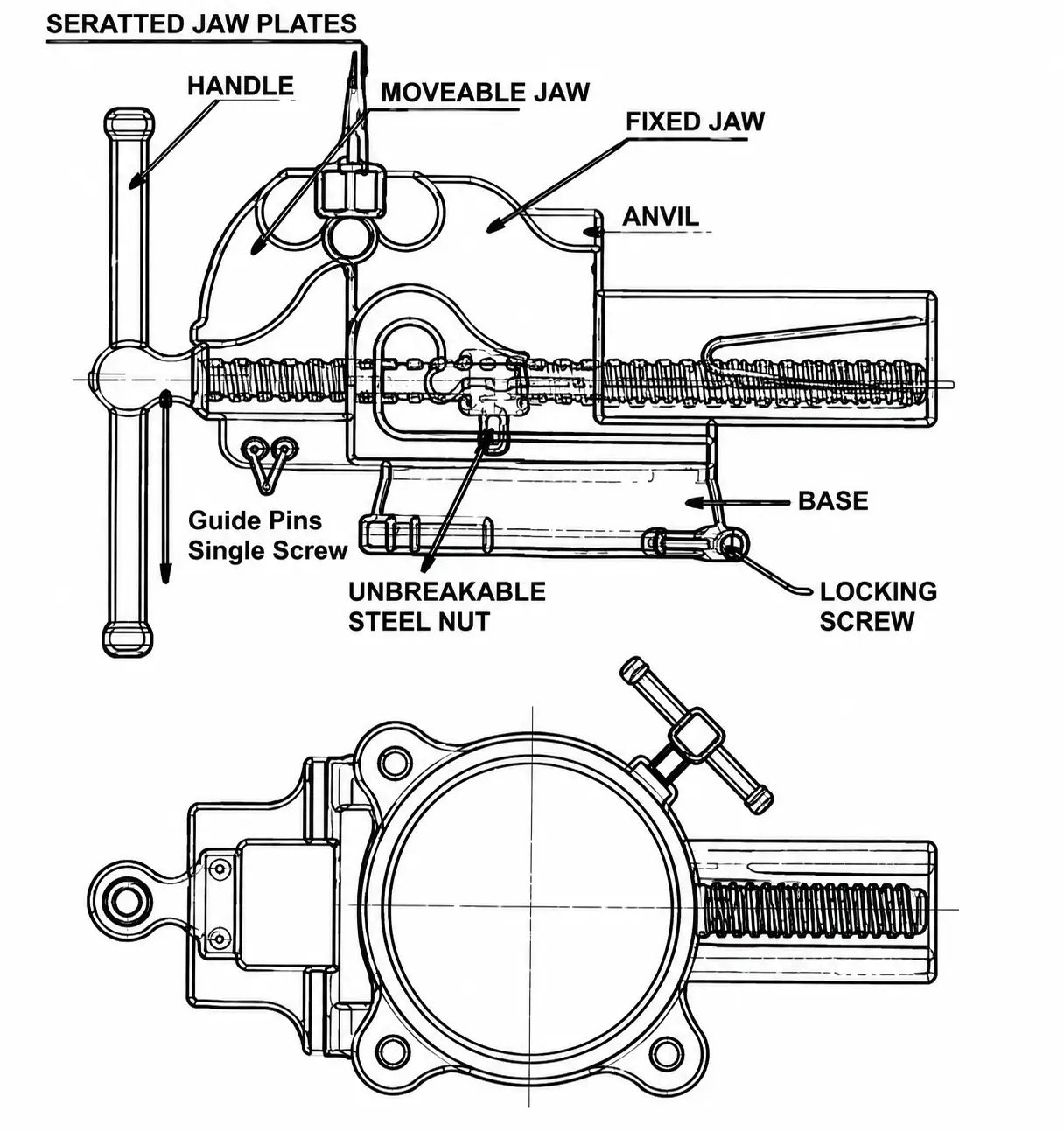

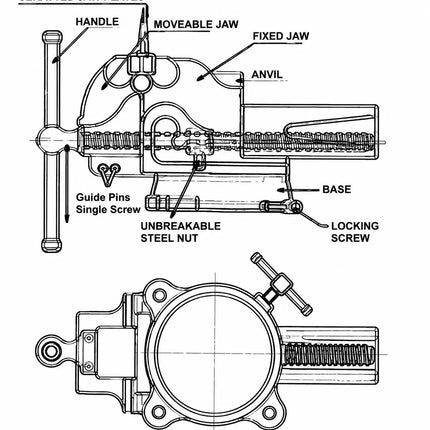

The Engineers Vice Unique STEEL VICE U301R is designed for use in industrial fitting, precise aligning, and other heavy-duty shop work. Since it is made of shock-resistant cast iron which is free of sand or blow holes, this heavy-duty engineers vice has heat-treated carbon steel jaws which have horizontal and vertical "V" grooves that securely hold both flat and round stock. This engineers vice has an unbreakable malleable steel nut, a fine-pitched spindle screw, and hardened guide pins for smooth operation and full-traction maximum clamping power.

Technical Specifications

Specification Parameter Value Range (Across Nominal Sizes)
Nominal Sizes (mm) 75 mm | 100 mm | 125 mm | 150 mm | 200 mm
Jaws Width 75 mm – 200 mm
Opening of Jaws 75 mm – 220 mm
Jaws' Depth 50 mm - 100 mm
Overall Height 120 mm - 215 mm
Overall Dimensions (L × W) 240 × 100 mm to 490 × 190 mm
Approx. Weight 5 kg - 30 kg
Base Type / Mounting Fixed Base with rigid mounting holes

Why Choose Unique U301R Engineers Vice?

  • Shock-Resistant Cast Iron Body: Manufactured from high-grade cast iron free of sand or blow holes for maximum durability during heavy shop work.

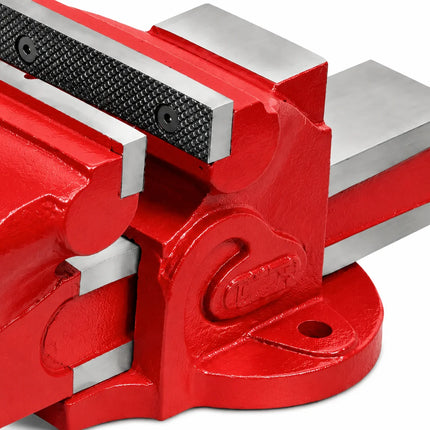

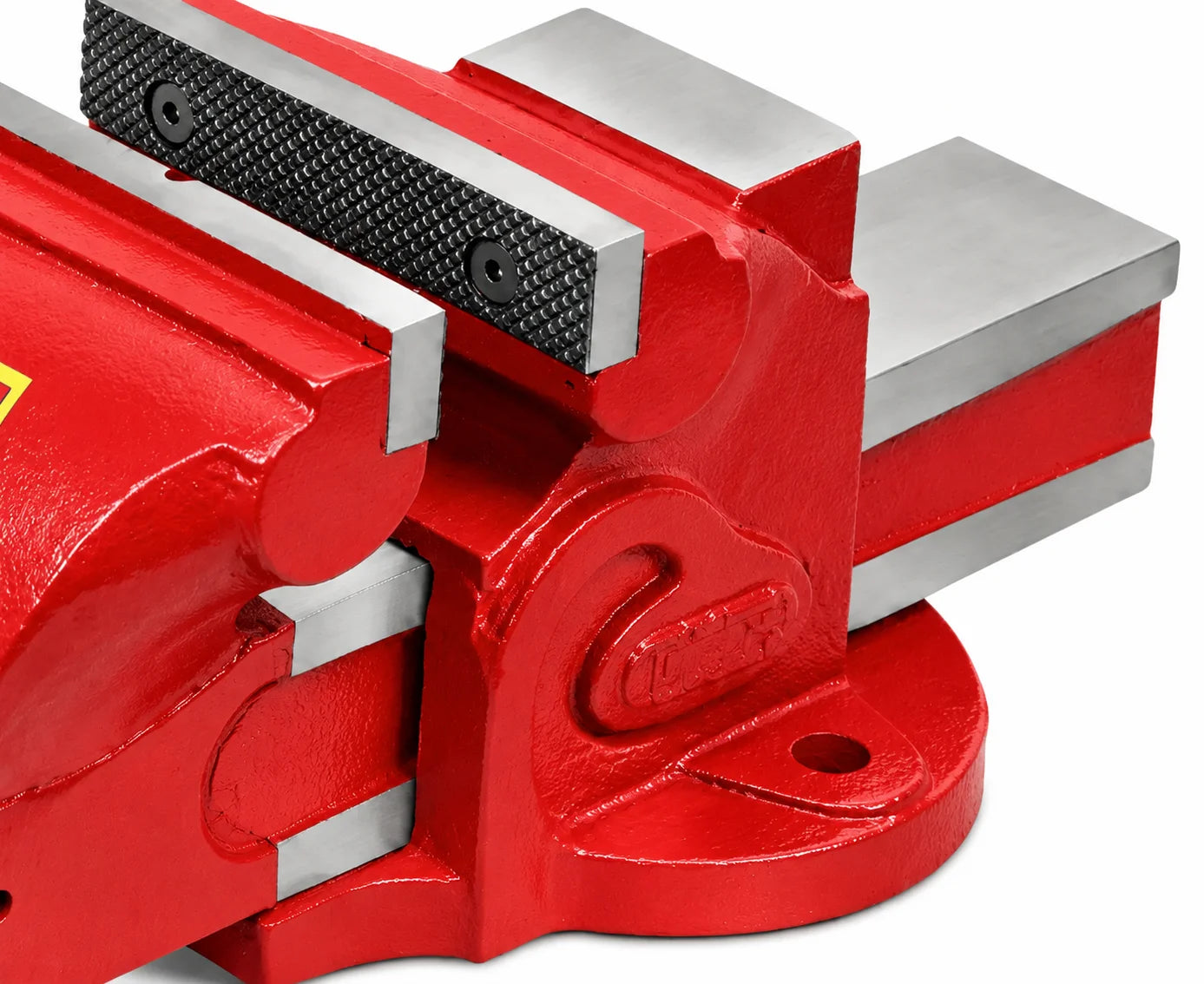

  • Horizontal & Vertical "V" Grooves: Heat-treated carbon steel jaws securely grip both flat and round stock without slipping.
  • Smooth & Powerful Operation: Built with an unbreakable malleable steel nut, fine-pitched spindle screw, and hardened guide pins for maximum clamping traction.
  • Rigid Fixed Base: Designed with robust mounting holes to ensure complete stability during heavy hammering and high-torque applications.
  • Full Size Range: Available from 75 mm to 200 mm (5 kg to 30 kg) models suited for general benchwork, toolrooms, and heavy industrial fabrication.

Related Industrial Tools & Accessories

Frequently Asked Questions (FAQ)

Q1. How do I order the Unique U301R engineers vice? Can I get a bulk quote?

A: To place direct orders or request bulk trade quotes, contact Sales at sales@uniqueservices.com or +91 (181) 2602296 / 2600680.

Q2. Can a vice for an engineer support round pipes and rod?

A: Yes, there are unique horizontal and vertical 'V' grooves on the jaw plates made from heat-treated carbon steel that are meant to hold round stock without slipping.

Q3. Which engineers vice should you opt for: the fixed base U301R or a swivel base model?

A: The fixed base U301R ensures complete rigidity and stability when performing heavy hammer work, chiseling, or high-torque operations where rotation is not needed.

Q4. Where can I purchase different sizes of the Unique U301R engineering vice, and how do I select the right one?

A: U301R is available in 75 mm, 100 mm, 125 mm, 150 mm, and 200 mm (5kg to 30kg) sizes. For general benchwork and light fitting, choose 75 mm or 100 mm. For industrial fabrication, toolrooms, and production lines, choose the 150 mm or 200 mm model for maximum clamping force and up to 220 mm wide opening jaws.

Q5. Can I get replacement equipment, such as jaw plates and spindle screws?

A: Yes, the U301R is manufactured with standard interchangeable parts including heat-treated carbon steel jaw plates, unbreakable malleable steel nuts, and fine-pitched spindle screws to maintain tool lifespan, which can be purchased through official distributor channels or customer service.

Product form

Engineers Vice - steel bench vice | Unique U301R

SKU: u301 S- 3

Rs. 2,280.00 Rs. 1,710.00 Excl.GST

EMI Available
EMI Option Available
    Dispatch Timeline Confirmed After Order
    100% Original Products
    GST Invoice on Every Purchase

    Description

    Engineers Vice ( steel vice ) Unique U301R

    The Engineers Vice Unique STEEL VICE U301R is designed for use in industrial fitting, precise aligning, and other heavy-duty shop work. Since it is made of shock-resistant cast iron which is free of sand or blow holes, this heavy-duty engineers vice has heat-treated carbon steel jaws which have horizontal and vertical "V" grooves that securely hold both flat and round stock. This engineers vice has an unbreakable malleable steel nut, a fine-pitched spindle screw, and hardened guide pins for smooth operation and full-traction maximum clamping power.

    Technical Specifications

    Specification Parameter Value Range (Across Nominal Sizes)
    Nominal Sizes (mm) 75 mm | 100 mm | 125 mm | 150 mm | 200 mm
    Jaws Width 75 mm – 200 mm
    Opening of Jaws 75 mm – 220 mm
    Jaws' Depth 50 mm - 100 mm
    Overall Height 120 mm - 215 mm
    Overall Dimensions (L × W) 240 × 100 mm to 490 × 190 mm
    Approx. Weight 5 kg - 30 kg
    Base Type / Mounting Fixed Base with rigid mounting holes

    Why Choose Unique U301R Engineers Vice?

    • Shock-Resistant Cast Iron Body: Manufactured from high-grade cast iron free of sand or blow holes for maximum durability during heavy shop work.
    • Horizontal & Vertical "V" Grooves: Heat-treated carbon steel jaws securely grip both flat and round stock without slipping.
    • Smooth & Powerful Operation: Built with an unbreakable malleable steel nut, fine-pitched spindle screw, and hardened guide pins for maximum clamping traction.
    • Rigid Fixed Base: Designed with robust mounting holes to ensure complete stability during heavy hammering and high-torque applications.
    • Full Size Range: Available from 75 mm to 200 mm (5 kg to 30 kg) models suited for general benchwork, toolrooms, and heavy industrial fabrication.

    Related Industrial Tools & Accessories

    Frequently Asked Questions (FAQ)

    Q1. How do I order the Unique U301R engineers vice? Can I get a bulk quote?

    A: To place direct orders or request bulk trade quotes, contact Sales at sales@uniqueservices.com or +91 (181) 2602296 / 2600680.

    Q2. Can a vice for an engineer support round pipes and rod?

    A: Yes, there are unique horizontal and vertical 'V' grooves on the jaw plates made from heat-treated carbon steel that are meant to hold round stock without slipping.

    Q3. Which engineers vice should you opt for: the fixed base U301R or a swivel base model?

    A: The fixed base U301R ensures complete rigidity and stability when performing heavy hammer work, chiseling, or high-torque operations where rotation is not needed.

    Q4. Where can I purchase different sizes of the Unique U301R engineering vice, and how do I select the right one?

    A: U301R is available in 75 mm, 100 mm, 125 mm, 150 mm, and 200 mm (5kg to 30kg) sizes. For general benchwork and light fitting, choose 75 mm or 100 mm. For industrial fabrication, toolrooms, and production lines, choose the 150 mm or 200 mm model for maximum clamping force and up to 220 mm wide opening jaws.

    Q5. Can I get replacement equipment, such as jaw plates and spindle screws?

    A: Yes, the U301R is manufactured with standard interchangeable parts including heat-treated carbon steel jaw plates, unbreakable malleable steel nuts, and fine-pitched spindle screws to maintain tool lifespan, which can be purchased through official distributor channels or customer service.
