Lathe Tools
-
CP CP Countersink Handles
Countersink Set- Revolving (48032) Revolving type Countersink setIncludes :CS-20 Countersinks with CS-Revolving Handle.Pack Qty : 1Wt : 236 gms
-
Noga Noga Countersink Tools/Reversible (R) Type
The Noga Countersink Tools/Reversible (R) Type utilizes an innovative Reversible design for efficient and precise countersinking. COUNTERSINK - NG3100 The standard tool for countersinking. Useful For Chamfering Deep Holes NG-3 HANDLE - NG3000 NogaGrip 3 Holds all Blade Holders Spare blades are kept inside back cap. Designed for maximum comfort in your hand.
-
CP CP Countersink Tools/2 Flute
CS-12 (48120) 2 Flute Countersinks for hole deburring / Chamferring.For hole size from 3 to 12 mm.Pack Qty : 1Wt : 24 gms CS-20 (48200) 2 Flute Countersinks for hole deburring / Chamferring.For hole size from 3 to 19 mm.Pack Qty : 1Wt : 28 gms. CS-30 (48300) 2 Flute Countersinks for hole deburring / Chamferring.For hole size from 3 to 29 mm.Pack Qty : 1Wt : 56 gms. Countersink Set- Revolving (48032) Revolving type Countersink setIncludes : CS-12, CS-20 and CS-30 Coutersinks with CS-Revolving Handle.Pack Qty : 1Wt : 236 gms
-
Vaico VAICO Internal Tool Holder DWLN Type
Item Code H B L L1 F Bore Head Shim ShimScrew Clamp ClampScrew Spring Key S-DWLN S25S DWLNL/R 06 AS3 25 23 250 60 15.90 29 27.5 WN0603C 4AT510 DC2228 8T521 8SG512 H2.5 & H3 S-DWLN S32T DWLNL/R 06 AS4 32 30 300 65 18.87 36 33.5 WN0604C 4AT510 DC2228 8T521 8SG512 H2.5 & H3 S-DWLN S40U DWLNL/R 06 AS4 40 37 350 65 23.5 45 42.5 WN0604C 4AT510 DC2228 8T521 8SG512 H2.5/H3 S-DWLN S50U DWLNL/R 06 AS4 50 47 350 65 28.8 55 52.5 WN0604C 4AT510 DC2228 8T521 8SG512 H2.5/H3
-
Vaico VAICO Internal Tool Holder DDQN Type
Item Code H B L L1 F Bore Head Shim ShimScrew Clamp ClampScrew Spring Key S-DDQN S25S DDQNL/R 11 AS3 25 23 250 50 17 32 28 DN1103C 4AT510 DC2228 8T521 8SG512 H2.5/H3 S-DDQN S32T DDQNL/R 11 AS3 32 30 300 50 22 40 34 DN1103C 4AT510 DC2228 8T521 8SG512 H2.5/H3 S-DDQN S32T DDQNL/R 15 AS4 32 30 300 50 22 40 34 DN1504C 4AT609 DC2640 8T521 8SG512 H3 S-DDQN S40U DDQNL/R 15 AS4 40 37 350 60 25 50 44 DN1504C 4AT609 DC2640 8T521 8SG512 H3 S-DDQN S50U DDQNL/R 15 AS4 50 47 350 60 30 63 56 DN1504C 4AT609 DC2640 8T521 8SG512 H3
-
Vaico VAICO Internal Tool Holder DCLN Type
Item Code H B L L1 F Bore Head Shim ShimScrew Clamp ClampScrew Spring Key S-DCLN S25S DCLNL/R 12 AS3 25 23 250 45 15.90 32 27.5 CN1203C 4AT610 DC2640 8T521 8SG512 H3 S-DCLN S32T DCLNL/R 12 AS4 32 30 300 50 18.87 36 33.5 CN1204C 4AT609 DC2640 8T521 8SG512 H3 S-DCLN S40U DCLNL/R 12 AS4 40 37 350 60 23.8 45 42.5 CN1204C 4AT609 DC2640 8T521 8SG512 H3 S-DCLN S50U DCLNL/R 12 AS4 50 47 350 60 28.8 55 52.5 CN1204C 4AT609 DC2640 8T521 8SG512 H3
-
Vaico VAICO Internal Tool Holder SVJC Type
Item Code H B L L1 F Bore Head Shim ShimScrew InsertScrew Lever Hex S-SVJC S20R SVJCL/R 16 20 18 200 50 12 24 21 - - 5S3511 LT15 - S-SVJC S25S SVJCL/R 16 25 23 250 50 15.5 32 27.5 VN1603CTW 6ST508 5S3511 LT15 LH3.5 S-SVJC S32T SVJCL/R 16 32 30 300 60 18.5 38 33.5 VN1603CTW 6ST508 5S3511 LT15 LH3.5 S-SVJC S40U SVJCL/R 16 40 37 350 65 23 48 42 VN1603CTW 6ST508 5S3511 LT15 LH3.5
-
Vaico VAICO Internal Tool Holder SVJB Type
Item Code H B L L1 F Bore Head Shim ShimScrew InsertScrew Torx Hex S-SVJB S20R SVJBL/R 16 20 18 200 50 12 24 21 - - 5S3511 LT15 - S-SVJB S25S SVJBL/R 16 25 23 250 50 15.5 32 27.5 VN1603CTW 6ST508 5S3511 LT15 LH3.5 S-SVJB S32T SVJBL/R 16 32 30 300 60 18.5 38 37.5 VN1603CTW 6ST508 5S3511 LT15 LH3.5 S-SVJB S40U SVJBL/R 16 40 37 350 65 23 48 42 VN1603CTW 6ST508 5S3511 LT15 LH3.5
-
Vaico VAICO Internal Tool Holder SVUB Type
Item Code H B L L1 F Bore Head Shim ShimScrew InsertScrew Torx Hex S-SVUB S32T SVUBL/R 16 32 30 300 45 18.5 38 34 VN1603CTW 6ST508 5S3511 LT15 LH3.5 S-SVUB S40U SVUBL/R 16 40 37 350 45 23 48 42 VN1603CTW 6ST508 5S3511 LT15 LH3.5
-
Vaico VAICO Internal Tool Holder SVQB Type
Item Code H B L L1 F Bore Head Shim ShimScrew InsertScrew Torx Hex S-SVQB S32T SVQBL/R 16 32 30 300 45 18.5 38 33.5 VN1603CTW 6ST508 5S3511 LT15 LH3.5 S-SVQB S40U SVQBL/R 16 40 37 350 45 23 48 42 VN1603CTW 6ST508 5S3511 LT15 LH3.5
-
Vaico VAICO Internal Tool Holder SDZC Type
Item Code H B L L1 F Bore Head Shim ShimScrew InsertScrew Torx Hex S-SDZC S12M SDZCL/R 07 12 11 150 25 10.5 17 14 - - 3S2506 LT8 - S-SDZC S16Q SDZCL/R 07 16 15 180 25 12.5 21 18 - - 3S2506 LT8 - S-SDZC S20R SDZCL/R 11 20 18 200 30 15.5 26 23 - - 3S2508 LT15 - S-SDZC S25S SDZCL/R 11 25 23 250 40 17.5 32 30 - - 5S3508 LT15 -
-
Vaico VAICO Internal tool Holder SDJC Type
Item Code H B L L1 F Bore Head Shim ShimScrew InsertScrew Torx Hex S-SDJC S10K SDJCL/R 07 10 9 125 25 7.53 13 12.5 - - 3S2505 LT8 - S-SDJC S12M SDJCL/R 07 12 11 150 25 8.5 15 14 - - 3S2506 LT8 - S-SDJC S16Q SDJCL/R 07 16 15 180 25 11.5 20 18 - - 3S2506 LT8 - S-SDJC S16Q SDJCL/R 11 16 15 180 30 11.5 20 19 - - 5S3508 LT15 - S-SDJC S20R SDJCL/R 11 20 18 200 30 14 25 23 - - 5S3508 LT15 - S-SDJC S25S SDJCL/R 11 25 23 250 40 17.5 32 30 - - 5S3508 LT15 -
-
Vaico VAICO Internal Tool Holder SCLC Type
Item Code H B L L1 F Bore Head Shim ShimScrew InsertScrew Torx Hex S-SCLC S08H SCLCL/R 06 8 7 100 20 4.5 9 8.5 - - 3S2505 LT8 - S-SCLC S10K SCLCL/R 06 10 9 125 20 5.5 11 10.5 - - 3S2505 LT8 - S-SCLC S12M SCLCL/R 06 12 11 150 20 6.5 13 12.5 - - 3S2506 LT8 - S-SCLC S12M SCLCL/R 09 12 11 150 30 7.5 14 13.5 - - 5S3508 LT15 - S-SCLC S16Q SCLCL/R 09 16 15 180 30 8.5 17 16.5 - - 5S3508 LT15 - S-SCLC S20R SCLCL/R 09 20 18 200 35 10.5 22 21 - - 5S3508 LT15 - S-SCLC S25S SCLCL/R 09 25 23 250 35 13 27 26.5 - - 5S3508 LT15 -
-
Vaico VAICO External Tool Holder DWLN Type
Item Code H B L L1 F Shim ShimScrew Clamp ClampScrew Spring Key DWLN DWLNL/R 2020 K06 AS4 20 20 125 40 25 WN0604C 4AT510 DC2228 8T521 8SG512 H3/H2.5 DWLN DWLNL/R 2525 M06 AS4 25 25 150 40 32 WN0604C 4AT510 DC2228 8T521 8SG512 H3/H2.5 DWLN DWLNL/R 2020 K08 AS4 20 20 125 40 25 WN0804C 4AT609 DC2640 8T521 8SG512 H3 DWLN DWLNL/R 2525 M08 AS4 25 25 150 40 32 WN0804C 4AT609 DC2640 8T521 8SG512 H3
-
Vaico VAICO External Tool Holder DVVN Type
Item Code H B L L1 F Shim ShimScrew Clamp ClampScrew Spring Key DVVNN DVVNN 2020 K12 20 20 125 50 10 - - DC3128 8T521 8SG512 H3 DVVNN DVVNN 2525 M12 25 25 150 50 12.5 - - DC3128 8T521 8SG512 H3 DVVNN DVVNN 2020 K16 AS3 25 25 150 50 12.5 VN1603C 4AT510 DC3128 8T521 8SG512 H3/H2.5 DVVNN DVVNN 2525 M16 AS3 25 25 150 50 12.5 VN1603C 4AT510 DC3128 8T521 8SG512 H3/H2.5
-
Vaico VAICO External Tool Holder DCLN Type
Item Code H B L L1 F Shim ShimScrew Clamp ClampScrew Spring Key DCLN DCLNL/R 2020 K12 AS4 20 20 125 40 25 CN1204C 4AT609 DC2640 8T521 8SG512 H3 DCLN DCLNL/R 2525 M12 AS4 25 25 150 40 32 CN1204C 4AT609 DC2640 8T521 8SG512 H3 DCLN DCLNL/R 3232 P16 AS4 32 32 170 45 40 CN1604C 4AT812 D3360 9T626 9SG617 H3/H4 DCLN DCLNL/R 3232 P19 AS4 32 32 170 50 40 CN1904C 4AT1015 D3372 9T626 9SG617 H4
-
Vaico VAICO External Tool Holder DVJN Type
Item Code H B L L1 F Shim ShimScrew Clamp ClampScrew Spring Key DVJN DVJNL/R 2020 K12 20 20 125 50 25 - - DC3128 8T521 8SG512 H3 DVJN DVJNL/R 2525 M12 25 25 150 50 32 - - DC3128 8T521 8SG512 H3 DVJN DVJNL/R 2020 K16 AS3 20 20 125 50 25 VN1603C 4AT510 DC3128 8T521 8SG512 H3/H2.5 DVJN DVJNL/R 2525 M16 AS3 25 25 150 50 32 VN1603C 4AT510 DC3128 8T521 8SG512 H3/H2.5
-
Vaico VAICO External Tool Holder DTJN Type
Item Code H B L L1 F Shim ShimScrew Clamp ClampScrew Spring Key DTJN DTJNL/R 2020 K16 AS3 20 20 125 35 25 TN1603C 4AT510 DC2228 8T521 8SG512 H3/H2.5 DTJN DTJNL/R 2525 M16 AS3 25 25 150 35 32 TN1603C 4AT510 DC2228 8T521 8SG512 H3/H2.5
-
-

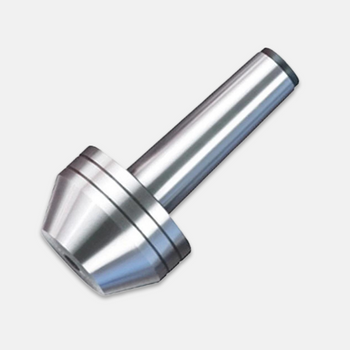

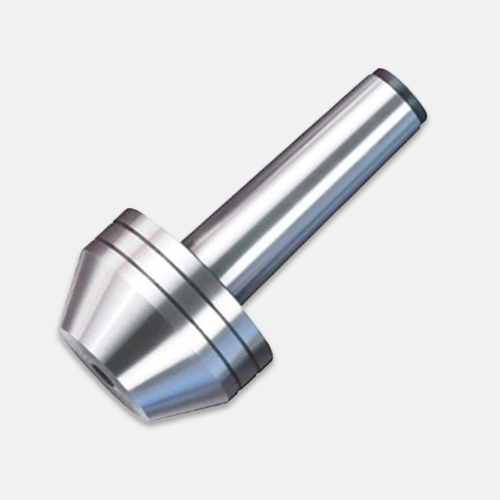

Turnmax Pipe Center-Blunt (Slow Speed Revolving)
Slow Speed revolving Pipe centre Available in Blunt & Pointed
-
Noga Noga Countersink (C) Blades & Handles
Noga Heavy Duty Countersinks Patented External contersinks allows the user continuous rotation for fast and accurate chamfering of external shafts. APPLICATION Holes External Shaft
-
Turnmax Turnmax Turret Socket
-
Turnmax Turnmax CNC Turret Sleeve
Description Universal Model Turret Sleeve suitable for any make of Turret Tool Locking for Fig. 1 type of Turret sleeve is by the grub of the Turret Block which locks both the Turret Sleeve as well as the Tool. Suitable to hold Cylindrical Shank Tools (Eg. Boring Tool Holder) on Turret of CNC Lathe. Description Universal Model Turret Sleeve suitable for any make of Turret Tool Locking for Fig. 1 type of Turret sleeve is by the grub of the Turret Block which locks both the Turret Sleeve as well as the Tool. Suitable to hold Cylindrical Shank Tools (Eg. Boring Tool Holder) on Turret of CNC Lathe. Part No. OD ØD mm Bore Ød mm ØD1 mm W mm L1 mm L2 mm L3 mm L4 mm M Thread TSL 16X8 16 8 22 - 5 40 - - M4 TSL 16X10 16 10 22 7 5 40 32 3 - TSL 20X8 20 8 26 - 5 50 - - M5 TSL 20X10 20 10 26 - 5 50 - - M5 TSL 20X12 20 12 26 9 5 50 42 3 - TSL 25X6 25 6 32 - 5 50 - - M5 TSL 25X8 25 8 32 - 5 50 - - M6 TSL 25X10 25 10 32 - 5 50 - - M6 TSL 25X12 25 12 32 - 5 50 - - M6 TSL 25X16 25 16 32 10 5 50 42 3 - TSL 32X6 32 6 38 - 5 60 - - M5 TSL 32X8 32 8 38 - 5 60 - - M6 TSL 32X10 32 10 38 - 5 60 - - M8 TSL 32X12 32 12 38 - 5 60 - - M8 TSL 32X16 32 16 38 10 5 60 52 3 - TSL 32X20 32 20 38 10 5 60 52 3 - TSL 32X25 32 25 38 10 5 60 52 3 - TSL 40X6 40 6 48 - 5 85 - - M5 TSL 40X8 40 8 48 - 5 85 - - M6 TSL 40X10 40 10 48 - 5 85 - - M8 TSL 40X12 40 12 48 - 5 85 - - M8 TSL 40X16 40 16 48 12 5 85 77 2 - TSL 40X20 40 20 48 12 5 85 77 2 - TSL 40X25 40 25 48 12 5 85 77 2 - TSL 40X32 40 32 48 12 5 85 77 2 - TSL 50X10 50 10 60 - 8 92 - - M8 TSL 50X12 50 12 60 - 8 92 - - M8 TSL 50X16 50 16 60 12 8 92 80 4 - TSL 50X20 50 20 60 12 8 92 80 4 - TSL 50X25 50 25 60 12 8 92 80 4 - TSL 50X32 50 32 60 12 8 92 80 4 - TSL 50X40 50 40 60 12 8 92 80 4 -
-
Turnmax Turnmax Wedge
-
Turnmax Turnmax CNC Medium Duty Revolving Centers
The Turnmax CNC Medium Duty Revolving Center is the perfect choice for medium-duty CNC applications. Its robust design and construction ensure smooth, accurate rotation and maximum durability. With a heavy-duty bearing assembly and heavy-duty threaded spindle, it ensures accuracy during extended use.
-
-
Turnmax Turnmax CNC Heavy Duty Revolving Centers
For High Speed Applications As In CNC Turning Lathes Stub Point, Extended Point & Profiled Point Supplied at Same Price Draw off Nut Provided @ 20% Extra Cost
-
Turnmax Turnmax Spare Point
-
Turnmax Turnmax Slow Speed Revolving Center
Slow Speed Centres For Conventional & Slow Speed Lathes 90degree Point - 25% Extra Female Point - 25% Extra
-
-
Trumax Trumax CNC Dead Center (Carbide Tipped Point) With Draw off Nut
Tungsten Carbide Tips brazed in front for high wear resistance. Shank made from Alloy Steel 20MnCr5 and case hardened to 50-53 HRc. Precision ground. Tip runout within 0.015 mm w.r.t. M. Taper. Broadly confirms to DIN : 807 Shank Taper L mm L1 mm L2 mm ØD mm ØD1 mm Ød mm C.T. Ød1 mm C.T. Ød2 mm M (Thread) A/F mm MT - 2 64.0 48.0 52.0 18.0 17.780 8 8 11 M22 X 1.5 15 MT - 3 81.0 57.0 66.5 24.1 23.825 11 11 14 M27 X 1.5 21 MT - 4 102.5 72.5 83.0 31.6 31.267 14 11 14 M36 X 1.5 28 MT - 5 129.5 88.0 110.0 44.7 44.399 18 14 18 M48 X 1.5 40 MT - 6 182.0 108.5 145.0 63.8 63.348 18 18 22 M68 X 1.5 56
-
Trumax Trumax Dead Center (Carbide Tipped Point)
Tungsten Carbide Tip brazed in front for high wear resistance. Shank made from Alloy Steel 20MnCr5 and case hardened for 50-53 HRc. Precision ground. Tip runout within 0.015 mm w.r.t. Taper. Standard Point Angle 60° Broadly confirms to IS : 2534 - 1963 (Equivalent to DIN : 806-807). Shank Taper L mm L1 mm Ø D mm D1 mm Ø d mm C.T. h1 mm MT - 1 53.5 26.5 12.2 12.065 5 3.20 MT - 2 64.0 36.0 18.0 17.780 8 5.50 MT - 3 81.0 44.0 24.1 23.825 11 7.00 MT - 4 102.5 57.5 31.6 31.267 14 8.90 MT - 5 129.5 70.5 44.7 44.399 18 11.00 MT - 6 182.0 88.0 63.8 63.348 18 11.10
-
Trumax Trumax CNC Dead Center (With Draw off Nut)
Small sizeTaper upto MT-4 made from Bearing steel EN-31 and through hardened to 58-60 HRc. Big size tapers from MT-5 upwards made from 20MnCr5 and Case Hardened to 58-60 HRc. Broadly confirms to DIN: 807 Precision ground. Tip round within 0.015 mm w.r.t. M. Taper. Application: On CNC Lathes with Live Tail Stock. Draw off Nut to be used to remove/extract the dead center from the Tailstock. Standard Point Angle 60°. Shank Taper L mm L1 mm L2 mm ØD mm ØD1 mm Ød mm M (Thread) A/F mm S/F mm MT - 2 64.0 48.0 52 18.0 17.780 8 M22 X 1.5 14 15 MT - 3 81.0 57.0 67 24.1 23.825 11 M27 X 1.5 19 21 MT - 4 102.5 72.5 83.5 31.6 31.267 14 M36 X 1.5 27 28 MT - 5 129.5 87.5 107.0 44.7 44.399 18 M48 X 1.5 36 40 MT - 6 182.0 108.0 145.0 63.8 63.348 20 M68 X 1.5 55 55
-
Trumax Trumax Dead Center (Plain Male Point)
Small size Taper upto MT-4 made from Bearing Steel EN-31 and through hardened to 58-60 HRc. Big size tapers from MT-5 upwards made from 20MnCr5 and Case Hardened to 58-60 HRc. Broadly confirms to IS : 2289 - 1976 (Equivalent to DIN: 806-1961 / ISO : 298) Precision ground. Tip runout within 0.015 mm w.r.t. Taper. Standard Point Angle 60° (other Angles like 75° / 90° etc. against request) Shank Taper L mm L1 mm L2 mm ØD mm D1 mm h mm h1 mm A1 mm B1 mm MT - 1 53.5 26.5 21.5 12.2 12.065 2.0 3.0 5.5 2.5 MT - 2 64.0 36.0 29.0 18.0 17.780 2.6 3.5 8.0 4.0 MT - 3 81.0 44.0 36.0 24.1 23.825 3.5 4.5 9.0 5.0 MT - 4 102.5 57.5 48.0 31.6 31.267 5.2 5.5 11.0 6.0 MT - 5 129.5 70.5 58.5 44.7 44.399 11.7 6.5 14.0 8.0 MT - 6 182.0 88.0 73.0 63.8 63.348 10.1 8.5 17.0 11.0 MT - 7 254 121 - 83.550 83.058 - - - -
-
Vaico VAICO External Tool Holder DDJN Type
Item Code H B L L1 F Shim ShimScrew Clamp ClampScrew Spring Key DDJN DDJNL/R 2020 K11 AS3 20 20 125 40 25 DN1103C 4AT510 DC2228 8T521 8SG512 H3/H2.5 DDJN DDJNL/R 2525 M11 AS3 25 25 150 40 32 DN1103C 4AT510 DC2228 8T521 8SG512 H3/H2.5 DDJN DDJNL/R 2525 M15 AS4 25 25 150 45 32 DN1504C 4AT609 DC2640 8T521 8SG512 H3 DDJN DDJNL/R 3232 P15 AS4 32 32 170 45 40 DN1504C 4AT609 DC2640 8T521 8SG512 H3
-
Vaico VAICO External Tool Holder PCLN Type
Item Code H B L L1 F Shim ShimPin InsertScrew Lever Key PCLN- PCLNL/R 2020 K12 20 20 125 30 25 CN1203SW 7SP066 8KS21 4L1213 LH3 PCLN- PCLNL/R 2525 M12 25 25 150 35 32 CN1203SW 7SP066 8KS21 4L1213 LH3 PCLN- PCLNL/R 3232 P19 32 32 170 42 40 CN1904CW 11SP104 10KS30 7L2120 LH4
You have seen 36 out of 47 products
