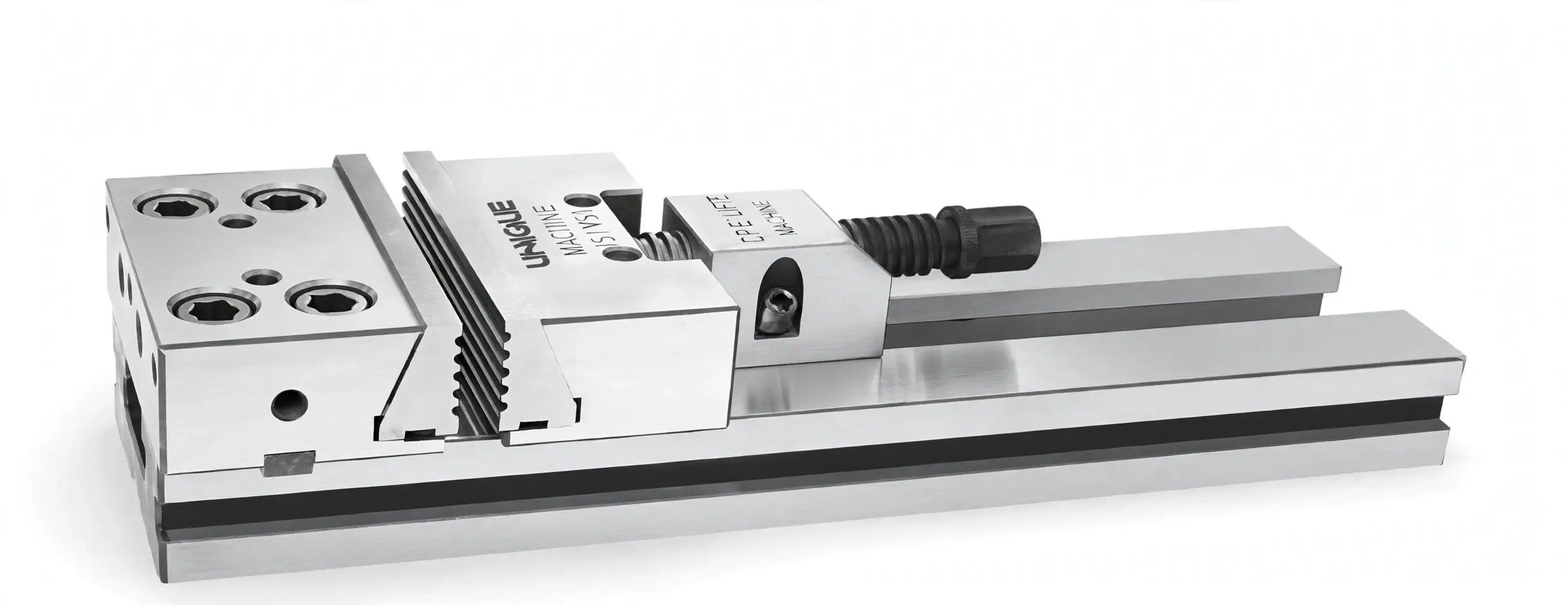

Modular Precision Machine Vice Code No. U-3333 - Low Profile Anti-Lift Vise
The Modular Precision Machine Vice Code No. U-3333 is a Low Profile, Anti Lift precision vice engineered for CNC, VMC, and high-production milling applications. Built from high-grade alloy steel, it is fully stabilized and hardened to prevent any deformation under heavy clamping loads].

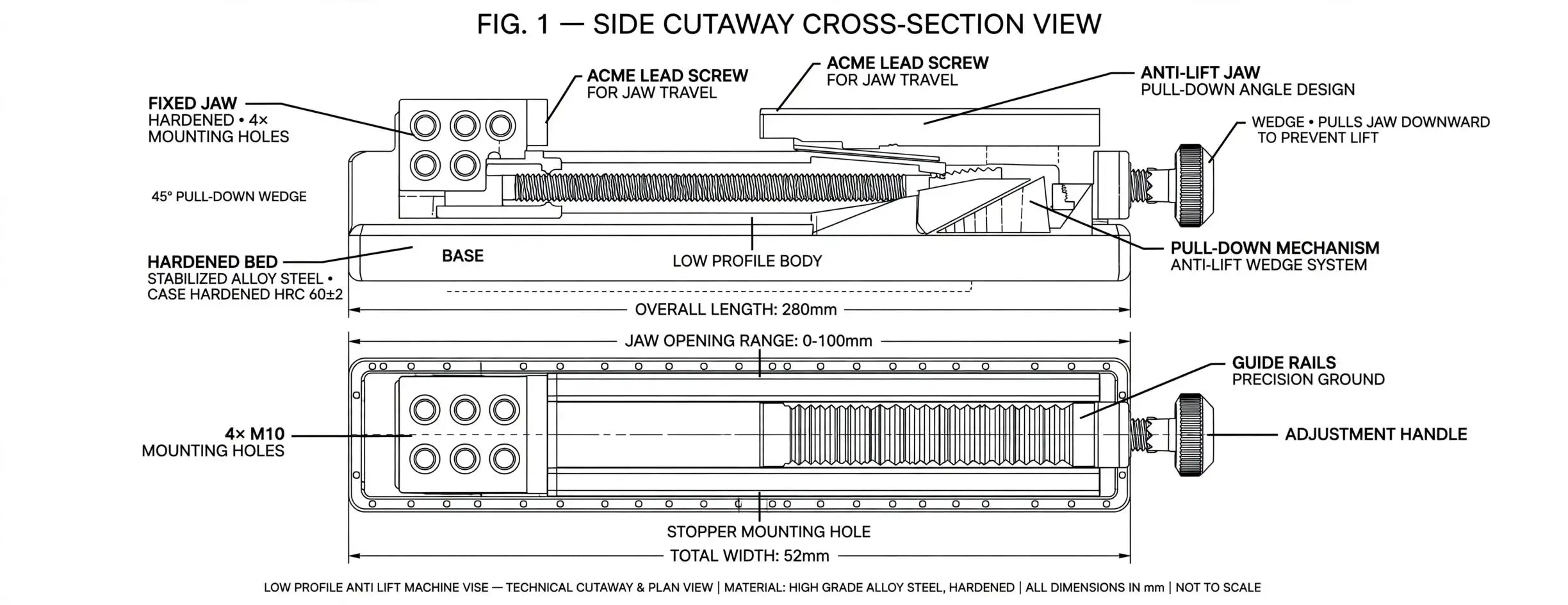

Unlike standard machine vices that tend to lift the workpiece as they tighten, the Modular Precision Machine Vice Code No. U-3333 acts as a true hammerless vice. Both jaw plates feature a pull-down angle design that securely forces the workpiece down onto the vice bed or parallels for rigid, reliable clamping. This makes it exceptionally well-suited for precision grinding, milling, and inspection processes where strict squareness is essential.
All components of the Modular Precision Machine Vice Code No. U-3333 are case-hardened to HRC 60 ±2, delivering maximum structural rigidity, zero wear, and superb long-term performance. With a precision squareness accuracy of ±0.01/100mm, multiple units can be run in series while maintaining identical bed heights—ideal for holding extended workpieces across VMC machine tables.
If you need an advanced precision vice or precision machine vice for your CNC operations, the Modular Precision Machine Vice Code No. U-3333 serves as the industry-standard alternative to premium European and Ricon precision vices.
See also: Low Profile Machine Vice | Anti Lift Precision Vice | Modular Machine Vice U-3333 Spare Jaws

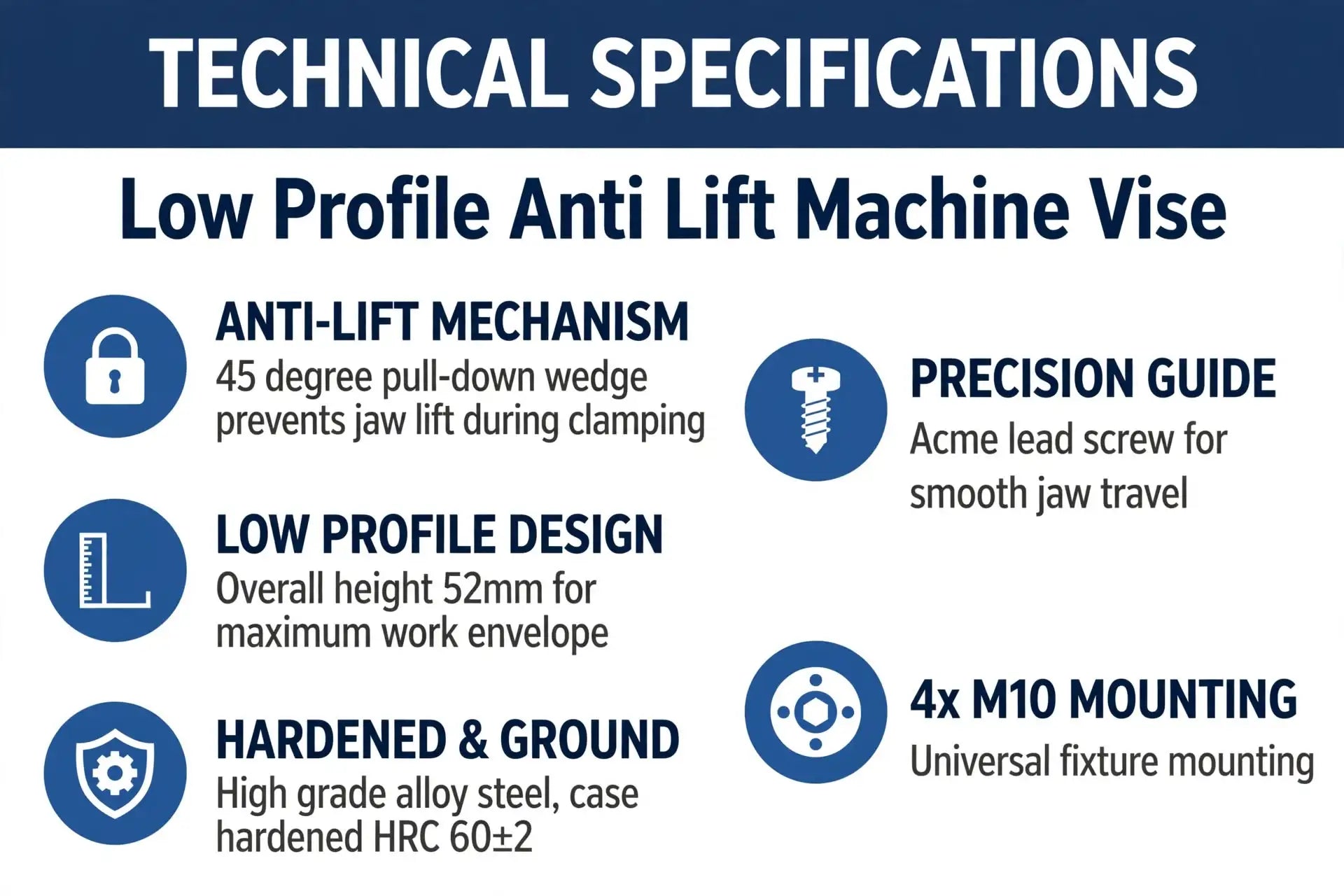

SPECIFICATIONS
| MODEL |
TYPE |
MATERIAL |
HARDNESS |
ACCURACY |
| Modular Precision Machine Vice Code No. U-3333 |
Low Profile, Anti Lift, Modular |
High Grade Alloy Steel |
HRC 60 ± 2 |
Squareness ±0.01/100mm |
TECHNICAL DATA
- Bed height precision engineered for multi-vice series clamping.
- Pull-down jaw mechanism for secure parallel registrations.
- Fully hardened & ground construction optimized for VMC, HMC, and CNC milling centers.
FEATURES
-
Low Profile, Anti-Lift Design: Effectively stops workpieces from lifting during tightening.
-
High-Grade Alloy Steel: Stabilized and hardened for heavy-duty CNC and VMC machining.
-
Superior Squareness Accuracy: Maintained at ±0.01/100 mm for best-in-class precision.
-
Hardened Components: All internal and external parts case-hardened for maximum rigidity and zero wear.
-
Series Clamping Capability: Run multiple vices in series while maintaining a uniform bed height for long workpieces.
-
Hammerless Operation: Pull-down jaw plates force the work tightly onto parallels without requiring mallet blows.
-
Rapid Dispatch: Supplied complete with a workpiece stopper for fast batch setups.
FAQ – WITH BUYING INTENT KEYWORDS
Q1. What is the cost of Modular Precision Machine Vice Code No. U-3333?
A. Order online at the best dealer price in India directly from Block To Box. Available in 4-inch, 6-inch, and specialized sizes for VMC beds, complete with a GST invoice, warranty, and attractive bulk discounts. We beat Ricon precision vices pricing.
Q2. What is the difference between a standard precision vice and the Modular Precision Machine Vice U-3333?
A. A general precision vice is typically designed for general tool room work. In contrast, the Modular Precision Machine Vice Code No. U-3333 is a low-profile, anti-lift precision machine vice specifically built for CNC/VMC environments, allowing multiple vices to be linked in series for long components with ±0.01mm accuracy.
Q3. What is the benefit of purchasing an anti-lift low-profile vice?
A. Standard vices tend to raise the workpiece slightly upon tightening. The U-3333 features hammerless pull-down jaws that eliminate workpiece lift and hammering entirely, making it ideal for finished surfaces and precision grinding.
Q4. Is it OK to use more than one U-3333 vice simultaneously?
A. Yes! The key engineering benefit is its precision-matched bed height tolerance. You can mount 2 to 3 Modular Precision Machine Vice Code No. U-3333 units side-by-side on your VMC table to securely clamp long plates in series.
