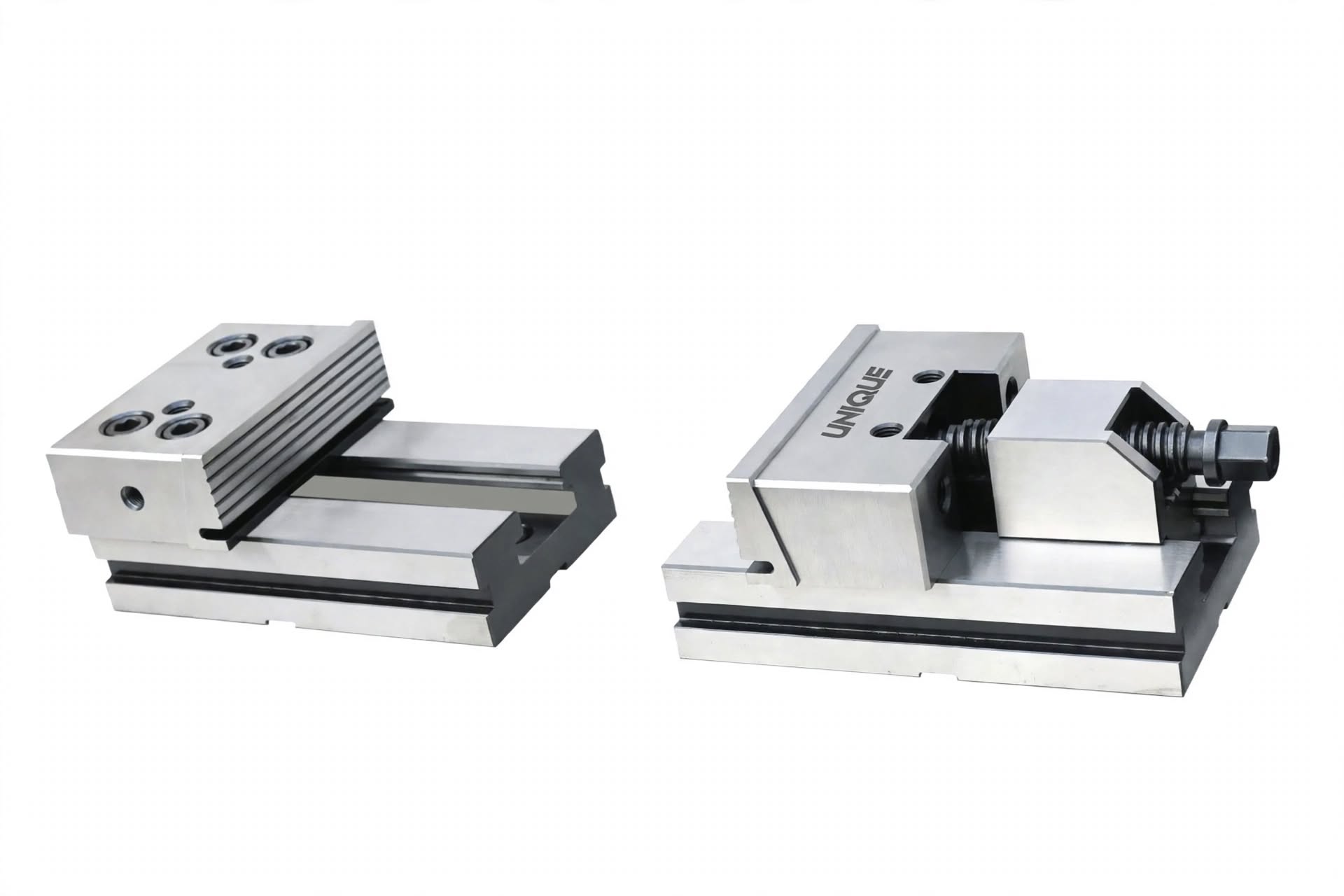

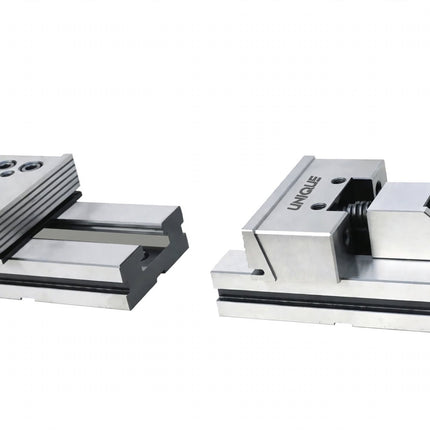

Unique Two-Piece Modular Precision Machine Vice Code No. U3434
The Unique Two-Piece Modular Precision Machine Vice Code No. U3434 can be supplied with no hand wheels or with standard hand wheels shown (to be specified at the time of order). The Unique Two-Piece Modular Precision Machine Vice Code No. U3434 is a precision milling machine vice which can be used with CNC machines or medium-duty milling machines, where standard machine vices cannot be used.
It is a unique two-piece modular precision machine vice, Code No. U3434[cite: 1]. The two-piece construction is the main feature[cite: 1]. You are able to place the fixed and movable jaws anywhere along the length of the machine table with a clamp range to suit the workpiece—unlimited—which makes the Unique Two-Piece Modular Precision Machine Vice Code No. U3434 an apt piece of equipment for long plates, extrusions, and dies.
Made out of high-alloy, corrosion-resistant steel, case-hardened to HRC 60 ±2 across the entire body and accessories, it provides maximum rigidity, high performance, and wear-free operation[cite: 1]. This modular precision machine vice is provided with both jaw plates in a pull-down angle, providing anti-lift clamping of the workpiece for perfect squareness with an accuracy of 0.01/100 MM.
Searching for a two-piece modular vice, precision machine vice for long jobs, or modular precision machine vice? The Unique Two-Piece Modular Precision Machine Vice Code No. U3434 is what you need.
Best For: Long Workpieces, Die Mold, CNC VMC Bed, Unlimited Length Clamping.
Related Products: Modular Precision Machine Vice U-3333 PJ | Modular Precision Machine Vice U-3333 | All Modular Precision Vices.
FEATURES
-
Great for Long Workpieces: Two-piece design, not limited by body length.
-
Endless Table Clamping Range: According to workpiece—jaws can be adjusted to any distance on the table.
-
High-Alloyed Resistance Steel: Case-hardened HRC 60 ±2 across the entire body and accessories.
-
Maximum Stiffness & No Wear: Designed for heavy CNC milling with top performance.
-
CNC Compatible: Two-piece modular vice made for precision milling that can be incorporated with CNC Machines.
-
High Squareness Accuracy: Precision accuracy in squareness of 0.01/100 MM.
-
Anti-Lift Clamping: Both jaw plates at a pull-down angle guarantee anti-lift clamping of the workpiece.

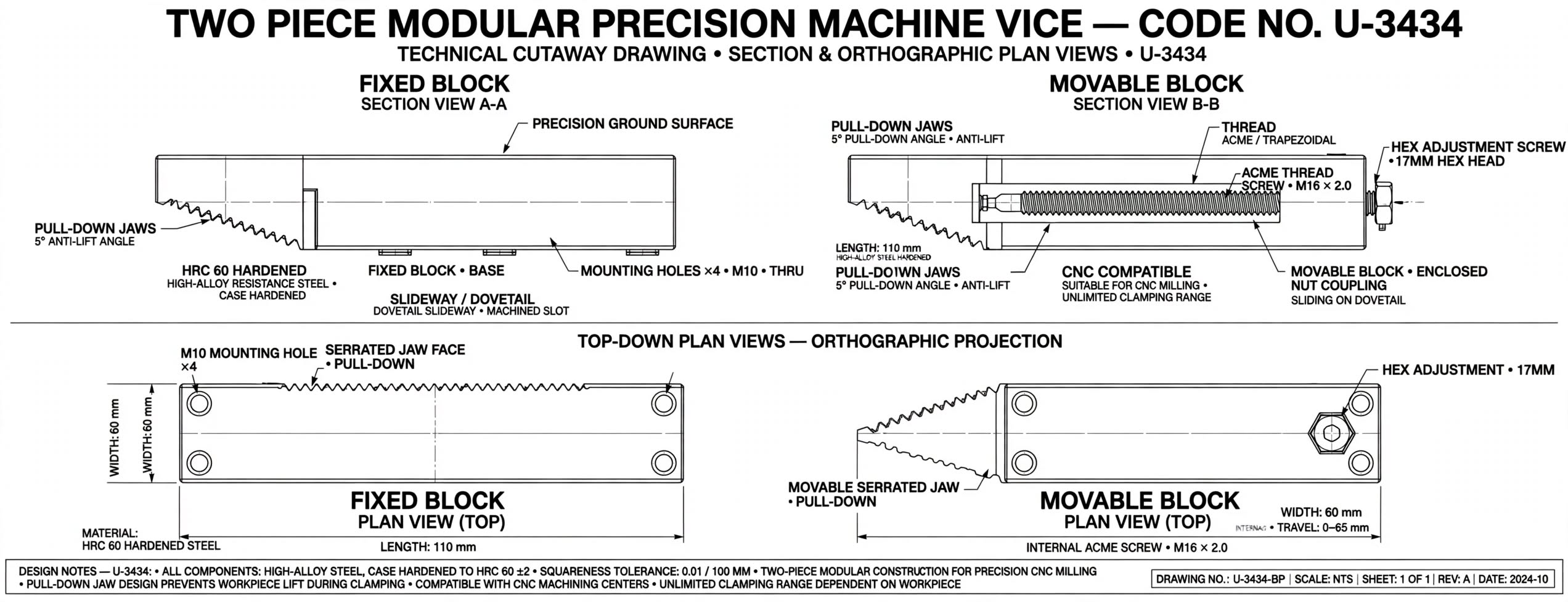

SPECIFICATIONS - U3434
| Parameter |
SIZE IN INCHES: 6 |
| Code No. |
U3434 / U-3434 |
| Width of jaws in mm (A) |
150 mm / 200 mm |
| Opening of jaws in mm (B) |
As per Job / Unlimited |
| Depth of jaws in mm (C) |
50 mm |
| Length overall in mm (D) |
Assorted |
| Height altogether in mm (E) |
100 mm |
| WIDTH OVERALL (F) |
150 mm |
| Tenon slot Size in mm |
16 mm |
| Weight Approx in kgs |
26 kgs |
| Hardness |
60 ±2 HRC |
| HSN CODE |
84669390 |
PRICE TABLE
| Jaw Width |
Opening |
Price ₹ |
| 150 mm |
Assorted |
54680/- |
| 200 mm |
Assorted |
77550/- |
5. FAQ – WITH BUYING INTENT KEYWORDS
Q1. What is the price of the Unique Two Piece Modular Precision Machine Vice U3434?
A. U3434 150mm price is ₹54,680 and 200mm is ₹77,550. Check blocktobox.com for the best U3434 precision machine vice purchase—this is an unlimited clamping range model suitable for long work[cite: 1]. Best dealer price for U3434 with GST bill is available at BlockToBox. Contact us for VMC setup discounts.
Q2. Why buy a two-piece modular vice instead of U-3333?
A. U-3333 is a fixed-body vice with a max opening of 150–200 mm. The Unique Two-Piece Modular Precision Machine Vice Code No. U3434 features two separate pieces, allowing you to clamp 500mm, 1000mm, or any length job by splitting the jaws across the T-slots. It offers an unlimited clamping range as per the workpiece and is a must-buy for mold makers and long plate machining.
Q3. What is an unlimited clamping range?
A. In the Unique Two-Piece Modular Precision Machine Vice Code No. U3434, both fixed and movable jaws are separate. They are attached independently onto the machine table T-slots[cite: 1]. The opening is not restricted by a vice screw; it adjusts according to your job length, making it an ideal vice for long workpieces.
Q4. Is it an anti-lift vice?
A. Yes[cite: 1]. Both of its jaw plates are angled in a pull-down mechanism to guarantee anti-lift clamping of the job[cite: 1]. The job does not lift off as in cheap machine vices, ensuring squareness accuracy of 0.01/100 MM.
